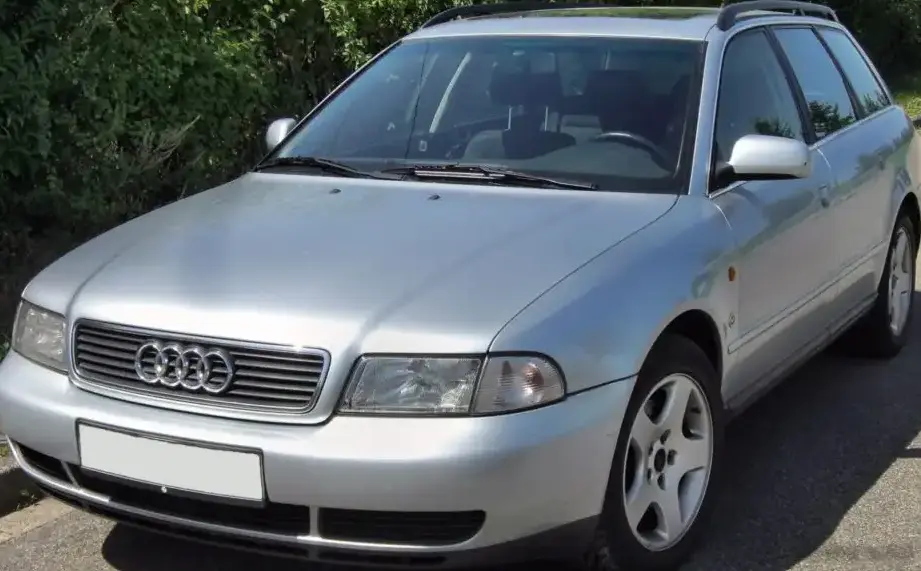

1996-1999 Audi A4 Avant (B5 Typ 8D) 1.9 TDI (90 Hp)

Technical Specifications

The Audi A4 Avant (B5, Typ 8D) 1.9 TDI 90 hp, produced between 1996 and 1999, represented a key offering in Audi’s lineup during that period. Built on the Volkswagen Group’s 1HX0/A3 platform, the B5 A4 Avant aimed to combine practicality with Audi’s reputation for build quality and refinement. This particular variant, powered by the 1.9-liter turbocharged diesel engine, was designed to appeal to buyers prioritizing fuel economy and reasonable performance. It served as the entry point into the A4 Avant range, offering a more affordable alternative to the more powerful gasoline engines and the higher-specification TDI models.

Powertrain & Engine Architecture

The heart of this A4 Avant is the 1.9-liter inline-four cylinder diesel engine, identifiable by engine codes 1Z, AHU, or AHH. This engine is a direct-injection diesel, utilizing a Bosch VE injection pump. This system delivers fuel directly into the combustion chamber at extremely high pressure, promoting efficient combustion and reducing emissions. The engine features an overhead camshaft (OHC) valvetrain operating two valves per cylinder. A wastegate-equipped turbocharger provides forced induction, boosting power output. The 90 horsepower output is achieved at 4000 rpm, while peak torque of 182 Nm (134 lb-ft) is available from 2300 rpm. The engine is longitudinally mounted in the front of the vehicle. The transmission is a five-speed manual gearbox, chosen for its efficiency and cost-effectiveness. While an automatic transmission was available on other A4 variants, it was less common with the 90 hp TDI engine.

Driving Characteristics

The 1.9 TDI 90 hp A4 Avant offered a pragmatic driving experience. Acceleration was adequate, with a 0-60 mph time of around 12.9 seconds, but it wasn’t designed for outright speed. The engine’s strength lay in its mid-range torque, making it suitable for everyday driving and hauling loads. The five-speed manual transmission provided precise gear changes, and the gear ratios were optimized for fuel efficiency. Compared to the more powerful 1.8L gasoline or 110 hp TDI versions, this variant felt noticeably slower, particularly when fully loaded. However, it offered significantly better fuel economy. The front-wheel-drive configuration provided predictable handling, although it lacked the all-weather capability of Audi’s quattro all-wheel-drive system.

Equipment & Trim Levels

The 1.9 TDI 90 hp A4 Avant typically came with a relatively basic level of equipment, reflecting its position as the entry-level model. Standard features generally included power windows, central locking, and an AM/FM radio. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat understated, design. Optional extras included alloy wheels, a sunroof, air conditioning, and upgraded audio systems. Higher trim levels, such as the SE or Sport, added features like sport seats, leather trim, and more sophisticated audio systems. The overall interior ambiance was typical of Audi at the time – well-built and durable, but not overly luxurious.

Chassis & Braking

The A4 Avant’s chassis featured independent wishbone suspension at the front and a multi-link suspension at the rear, providing a comfortable ride and good handling characteristics. The suspension was tuned for a balance between comfort and control. Braking duties were handled by disc brakes on all four wheels, supplemented by an Anti-lock Braking System (ABS). The braking system was generally effective, providing adequate stopping power for the vehicle’s weight and performance. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering. The steering was a rack-and-pinion system with hydraulic power assistance, offering precise and responsive steering feel.

Market Reception & Comparison

The 1.9 TDI 90 hp A4 Avant was well-received in the European market as a practical and economical choice. Critics praised its fuel efficiency, comfortable ride, and build quality. However, some noted its relatively modest performance compared to other A4 variants. Compared to the 1.8L gasoline engine, the TDI offered significantly better fuel economy but less power. The 110 hp TDI provided a noticeable performance upgrade, but at a higher price point. The 90 hp TDI appealed to buyers who prioritized fuel economy and practicality over outright performance, making it a popular choice for fleet operators and private buyers alike.

Legacy

The 1.9 TDI engine, in various iterations, proved to be remarkably durable and reliable. The 90 hp version, while not the most powerful, is known for its longevity and relatively low maintenance costs. Today, these A4 Avants can still be found on the used car market, often with high mileage but still running reliably. The engine’s simplicity and robust construction contribute to its enduring appeal. While finding parts may become more challenging over time, the 1.9 TDI remains a popular choice for those seeking a practical and economical station wagon. Its reputation for reliability and fuel efficiency has cemented its place as a classic of the era.
