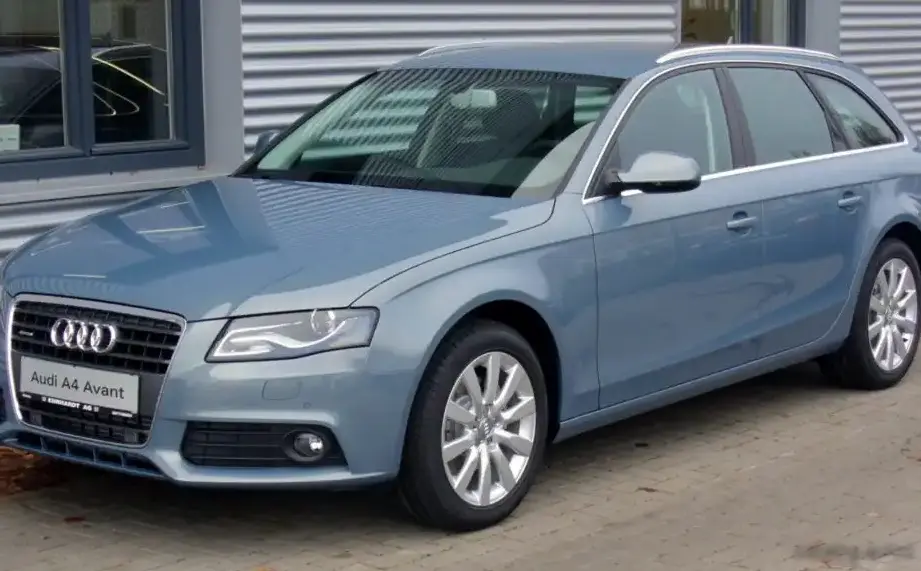

The Audi A4 Avant (B8 8K) 2.0 TDI, producing 170 horsepower, was a key variant within the fourth generation (B8) of Audi’s popular A4 series of compact executive cars. Produced from 2008 to 2011, this model represented a significant step forward in terms of technology, refinement, and driving dynamics for Audi. The Avant designation signifies the station wagon (estate) body style, catering to buyers seeking a blend of practicality and Audi’s signature premium experience. This particular 2.0 TDI variant occupied a middle ground in the A4 lineup, offering a balance between fuel efficiency, performance, and price, appealing to a broad customer base.
Technical Specifications
| Brand | Audi |
| Model | A4 |
| Generation | A4 Avant (B8 8K) |
| Type (Engine) | 2.0 TDI (170 Hp) |
| Start of production | 2008 |
| End of production | 2011 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.4 l/100 km (31.8 US mpg) |
| Fuel consumption (extra urban) | 4.9 l/100 km (48 US mpg) |
| Fuel consumption (combined) | 5.8 l/100 km (40.6 US mpg) |
| CO2 emissions | 154 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 8.6 sec |
| Acceleration 0 – 62 mph | 8.6 sec |
| Acceleration 0 – 60 mph | 8.2 sec |
| Maximum speed | 222 km/h (137.94 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 8.9 kg/Hp |
| Weight-to-torque ratio | 4.3 kg/Nm |
| Power | 170 Hp @ 4200 rpm |
| Torque | 350 Nm @ 1750-2500 rpm (258.15 lb.-ft.) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | EA189 / CAHA |
| Engine displacement | 1968 cm3 (120.09 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Kerb Weight | 1520 kg (3351.03 lbs.) |
| Max. weight | 2090 kg (4607.66 lbs.) |
| Max load | 570 kg (1256.63 lbs.) |
| Trunk (boot) space – minimum | 490 l (17.3 cu. ft.) |
| Trunk (boot) space – maximum | 1430 l (50.5 cu. ft.) |
| Fuel tank capacity | 65 l (17.17 US gal | 14.3 UK gal) |
| Length | 4703 mm (185.16 in.) |
| Width | 1826 mm (71.89 in.) |
| Height | 1436 mm (56.54 in.) |
| Wheelbase | 2808 mm (110.55 in.) |
| Front track | 1564 mm (61.57 in.) |
| Rear track | 1551 mm (61.06 in.) |
| Drag coefficient (Cd) | 0.32 |
| Minimum turning circle | 11.4 m (37.4 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
Powertrain & Engine Architecture
The heart of the A4 Avant 2.0 TDI was the EA189 series engine, specifically the CAHA code. This 1968cc, four-cylinder diesel engine utilized common rail direct injection, delivering fuel at extremely high pressure for optimized combustion. A turbocharger with an intercooler was employed to boost power output and improve efficiency. The engine featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, enhancing breathing and contributing to the engine’s relatively high specific output. The 6-speed manual transmission was standard, providing precise gear changes and allowing the driver to fully utilize the engine’s torque band. The engine’s longitudinal mounting allowed for a more balanced weight distribution, contributing to the A4’s handling characteristics.
Driving Characteristics
The 170 hp 2.0 TDI engine in the A4 Avant offered a respectable level of performance. Acceleration from 0-60 mph took approximately 8.2 seconds, and the car could reach a top speed of 137.94 mph. While not as quick as the higher-output variants like the 2.0 TFSI or the 3.0 TDI, the 2.0 TDI provided ample power for everyday driving and comfortable highway cruising. The engine’s strong low-end torque (350 Nm or 258 lb-ft) made it particularly well-suited for overtaking maneuvers. The manual transmission’s gear ratios were well-matched to the engine’s power delivery, providing a smooth and engaging driving experience. Compared to the automatic transmission option, the manual offered greater control and a more direct connection to the engine.
Equipment & Trim Levels
The A4 Avant 2.0 TDI typically came equipped with a solid base level of features. Standard equipment included alloy wheels, air conditioning, a multi-function steering wheel, and an Audi Concert audio system. Interior upholstery was typically cloth, although leather options were available. Higher trim levels, such as SE or S-line, added features like sport seats, upgraded audio systems, and exterior styling enhancements. Optional extras included navigation systems, parking sensors, and a sunroof. The A4 Avant prioritized a refined and comfortable interior, with high-quality materials and a well-designed dashboard layout.
Chassis & Braking
The B8 A4 Avant featured a sophisticated chassis design. The front suspension utilized independent multi-link suspension, providing excellent ride comfort and handling precision. The rear suspension also employed an independent multi-link setup with a stabilizer bar, further enhancing stability. Braking duties were handled by ventilated discs at the front and solid discs at the rear. Anti-lock braking system (ABS) was standard, ensuring safe and controlled stopping power. The A4 Avant’s chassis was tuned to provide a balance between comfort and sporty handling, making it a pleasant car to drive on a variety of road surfaces.
Market Reception & Comparison
The Audi A4 Avant 2.0 TDI was generally well-received by automotive critics. It was praised for its refined driving experience, comfortable interior, and fuel efficiency. Compared to other trims in the A4 lineup, the 2.0 TDI offered a more affordable entry point while still delivering a premium experience. The 2.0 TFSI petrol engine offered more power but at the expense of fuel economy. The 3.0 TDI provided even more performance but came with a higher price tag. The 2.0 TDI struck a good balance, appealing to buyers who prioritized fuel efficiency and practicality.
Legacy
The EA189 engine, while generally reliable, has been subject to some scrutiny regarding emissions compliance. However, the 2.0 TDI engine in the A4 Avant proved to be a durable and long-lasting powertrain when properly maintained. Today, these cars can be found on the used car market at relatively affordable prices. They continue to offer a compelling combination of practicality, refinement, and fuel efficiency. Regular maintenance, including oil changes and timing belt replacements, is crucial to ensure the continued reliability of these vehicles. The A4 Avant 2.0 TDI remains a popular choice for buyers seeking a premium station wagon that offers a good balance of performance, economy, and practicality.
