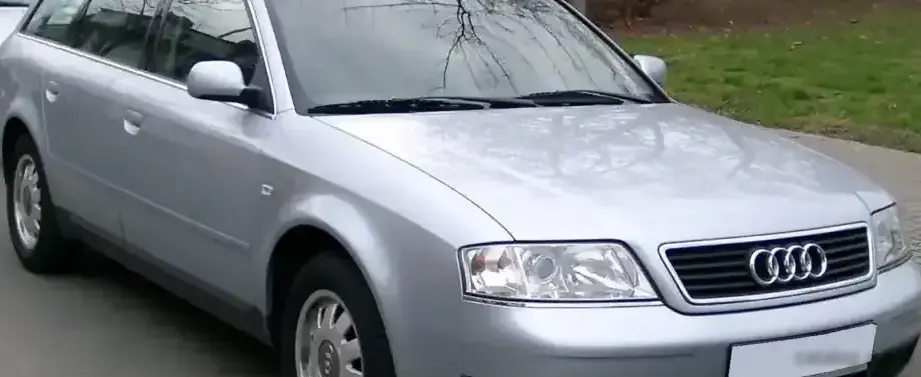

The Audi A6 Avant (4B, C5) 2.8 V6 30V Tiptronic, produced between 1998 and 2000, represents a compelling blend of practicality and performance within the mid-size luxury wagon segment. Positioned as a step up from the base 1.8L four-cylinder models, and below the high-performance S6 Avant, this variant offered a sophisticated driving experience coupled with the versatility expected of a station wagon. It was a key offering in Audi’s lineup during a period where the C5 A6 established a reputation for refined interiors, advanced technology, and quattro all-wheel drive (though this specific variant was front-wheel drive). The Avant body style, Audi’s designation for a station wagon, was particularly popular in Europe, offering a premium alternative to more mainstream estate cars.
Technical Specifications
| Brand | Audi |
| Model | A6 |
| Generation | A6 Avant (4B,C5) |
| Type (Engine) | 2.8 V6 30V (193 Hp) Tiptronic |
| Start of production | 1998 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 16 l/100 km (14.7 US mpg, 17.7 UK mpg, 6.3 km/l) |
| Fuel consumption (extra urban) | 7.7 l/100 km (30.5 US mpg, 36.7 UK mpg, 13 km/l) |
| Fuel consumption (combined) | 10.7 l/100 km (22 US mpg, 26.4 UK mpg, 9.3 km/l) |
| CO2 emissions | 257 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.6 sec |
| Acceleration 0 – 62 mph | 9.6 sec |
| Acceleration 0 – 60 mph | 9.1 sec |
| Maximum speed | 229 km/h (142.29 mph) |
| Weight-to-power ratio | 8.1 kg/Hp, 123.7 Hp/tonne |
| Weight-to-torque ratio | 5.6 kg/Nm, 179.5 Nm/tonne |
| Power | 193 Hp @ 6000 rpm |
| Power per litre | 69.6 Hp/l |
| Torque | 280 Nm @ 3200 rpm (206.52 lb.-ft. @ 3200 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | ACK, AHA, ALG, AMX, APR, AQD |
| Engine displacement | 2771 cm3 (169.1 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 86.4 mm (3.4 in.) |
| Compression ratio | 10.6:1 |
| Number of valves per cylinder | 5 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 5.5 l (5.81 US qt, 4.84 UK qt) |
| Coolant | 6 l (6.34 US qt, 5.28 UK qt) |
| Kerb Weight | 1560 kg (3439.21 lbs.) |
| Max. weight | 2140 kg (4717.89 lbs.) |
| Max load | 580 kg (1278.68 lbs.) |
| Trunk (boot) space – minimum | 455 l (16.07 cu. ft.) |
| Trunk (boot) space – maximum | 1590 l (56.15 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal, 15.4 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (8%) | 1900 kg (4188.78 lbs.) |
| Permitted trailer load with brakes (12%) | 1800 kg (3968.32 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 85 kg (187.39 lbs.) |
| Length | 4796 mm (188.82 in.) |
| Width | 1810 mm (71.26 in.) |
| Height | 1479 mm (58.23 in.) |
| Wheelbase | 2760 mm (108.66 in.) |
| Front track | 1540 mm (60.63 in.) |
| Rear (Back) track | 1569 mm (61.77 in.) |
| Drag coefficient (Cd) | 0.31 |
| Minimum turning circle | 11.68 m (38.32 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission Tiptronic |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/55 R16 |
| Wheel rims size | 7J x 16 |
Powertrain & Engine Architecture
The heart of the A6 Avant 2.8 V6 Tiptronic is the ACK (and related codes like AHA, ALG, AMX, APR, AQD) 2.8-liter naturally aspirated V6 engine. This engine, a member of Audi’s long-running V6 family, features a 90-degree V-angle for inherent smoothness. It utilizes a cast iron block with an aluminum cylinder head, incorporating five valves per cylinder (three intake, two exhaust) operated by a double overhead camshaft (DOHC) design. Fuel delivery is managed by a Bosch Motronic multi-port fuel injection system. The engine produces 193 horsepower at 6000 rpm and 280 Nm (206.52 lb-ft) of torque at 3200 rpm. The “Tiptronic” transmission is a 5-speed automatic with a manual shift mode, allowing drivers some control over gear selection. It’s a conventional torque converter automatic, not a dual-clutch system.
Driving Characteristics
The 2.8 V6 Tiptronic offered a comfortable and refined driving experience. While not overtly sporty, the engine provided adequate power for everyday driving and highway cruising. Acceleration from 0-60 mph took around 9.1 seconds, making it competitive with other vehicles in its class. The Tiptronic transmission, while offering a degree of driver involvement, wasn’t as responsive as a manual gearbox. Gear ratios were tuned for comfort and fuel efficiency rather than outright performance. Compared to the more powerful S6 Avant, the 2.8 felt noticeably less urgent, but it offered a smoother and more relaxed driving experience. Compared to the 1.8T models, the V6 provided a more linear power delivery and a more refined engine note.
Equipment & Trim Levels
The A6 Avant 2.8 V6 Tiptronic typically came well-equipped, reflecting its position as a premium vehicle. Standard features included automatic climate control, power windows and locks, a driver and passenger airbag, and an upgraded audio system. Interior upholstery was typically cloth, with leather options available. Optional extras included sunroof, navigation system, heated seats, and upgraded wheels. The dashboard layout was typical of the C5 A6, characterized by a clean and functional design with a focus on ergonomics.
Chassis & Braking
The A6 Avant featured an independent multi-link front suspension and a semi-independent coil spring rear suspension. This setup provided a good balance of ride comfort and handling. The front brakes were ventilated discs, while the rear brakes were solid discs. Anti-lock Braking System (ABS) was standard. The front-wheel drive configuration of this variant meant it lacked the all-weather capability of the quattro-equipped models. Stabilizer bars were fitted front and rear to reduce body roll during cornering.
Market Reception & Comparison
The A6 Avant 2.8 V6 Tiptronic was generally well-received by automotive critics. It was praised for its comfortable ride, spacious interior, and refined engine. However, some critics noted that the Tiptronic transmission could feel sluggish at times. Fuel economy was reasonable for a V6 engine of this size, averaging around 22 mpg combined. Compared to the 1.8T models, the 2.8 V6 offered more power and a smoother driving experience, but at a higher price point. The 2.8 also proved to be more reliable than some of the early 1.8T engines, which were prone to oil consumption issues.
Legacy
The Audi A6 Avant (4B, C5) 2.8 V6 Tiptronic remains a popular choice among enthusiasts and used car buyers. The ACK engine is known for its durability and relatively straightforward maintenance. While not immune to age-related issues, these engines generally hold up well with proper care. The Tiptronic transmission, however, can be a potential weak point, and regular fluid changes are crucial. Today, these Avants are appreciated for their classic Audi styling, comfortable interiors, and practical wagon body style. They represent a sweet spot in the C5 A6 lineup, offering a good balance of performance, luxury, and reliability.
