2022 Audi A8L (D5 facelift ) 60 TFSI e V6 (462 Hp) Plug-in Hybrid quattro tiptronic

Technical Specifications

Brand Audi
Model A8
Generation A8L (D5, facelift 2021)
Type (Engine) 60 TFSI e V6 (462 Hp) Plug-in Hybrid quattro tiptronic
Start of production 2022
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Sedan
Seats 4-5
Doors 4
Combined fuel consumption (WLTP) 1.8-2.2 l/100 km (130.7 – 106.9 US mpg, 156.9 – 128.4 UK mpg, 55.6 – 45.5 km/l)
CO2 emissions (WLTP) 40-49 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 4.9 sec
Acceleration 0 – 62 mph 4.9 sec
Acceleration 0 – 60 mph 4.7 sec
Maximum speed 250 km/h (155.34 mph)
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 5.1 kg/Hp, 197.4 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 299.1 Nm/tonne
Gross battery capacity 17.9 kWh
Net (usable) battery capacity 14.4 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the trunk
All-electric range (WLTP) 54-60 km (33.55 – 37.28 mi)
Average Energy consumption (WLTP) 22-23.8 kWh/100 km (35.41 – 38.3 kWh/100 mi, 95 – 88 MPGe, 4.5 – 4.2 km/kWh, 2.8 – 2.6 mi/kWh)
Max speed (electric) 135 km/h (83.89 mph)
Electric motor power 136 Hp
Electric motor Torque 400 Nm (295.02 lb.-ft.)
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 462 Hp
System torque 700 Nm (516.29 lb.-ft.)
Power 340 Hp @ 5000-6400 rpm
Torque 500 Nm @ 1370-4500 rpm (368.78 lb.-ft. @ 1370-4500 rpm)
Engine layout Front, Longitudinal
Engine Model/Code EA839 / CZSE
Engine displacement 2995 cm3 (182.77 cu. in.)
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm (3.33 in.)
Piston Stroke 89 mm (3.5 in.)
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.6 l (8.03 US qt | 6.69 UK qt)
Coolant 19.6 l (20.71 US qt | 17.25 UK qt)
Kerb Weight 2340 kg (5158.82 lbs.)
Max. weight 2950 kg (6503.64 lbs.)
Max load 610 kg (1344.82 lbs.)
Trunk (boot) space – minimum 390 l (13.77 cu. ft.)
Fuel tank capacity 65 l (17.17 US gal | 14.3 UK gal)
Max. roof load 75 kg (165.35 lbs.)
Permitted trailer load with brakes (8%) 2300 kg (5070.63 lbs.)
Permitted trailer load with brakes (12%) 2300 kg (5070.63 lbs.)
Permitted trailer load without brakes 750 kg (1653.47 lbs.)
Permitted towbar download 95 kg (209.44 lbs.)
Length 5320 mm (209.45 in.)
Width 1945 mm (76.57 in.)
Width including mirrors 2130 mm (83.86 in.)
Height 1486 mm (58.5 in.)
Wheelbase 3128 mm (123.15 in.)
Front track 1635 mm (64.37 in.)
Rear (Back) track 1623 mm (63.9 in.)
Front overhang 1007 mm (39.65 in.)
Rear overhang 1185 mm (46.65 in.)
Drag coefficient (Cd) 0.26
Minimum turning circle (turning diameter) 12.9 m (42.32 ft.)
Front suspension Independent multi-link suspension, Air suspension
Rear suspension Independent multi-link suspension, Air suspension
Front brakes Ventilated discs, 400 mm
Rear brakes Ventilated discs, 350 mm
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic

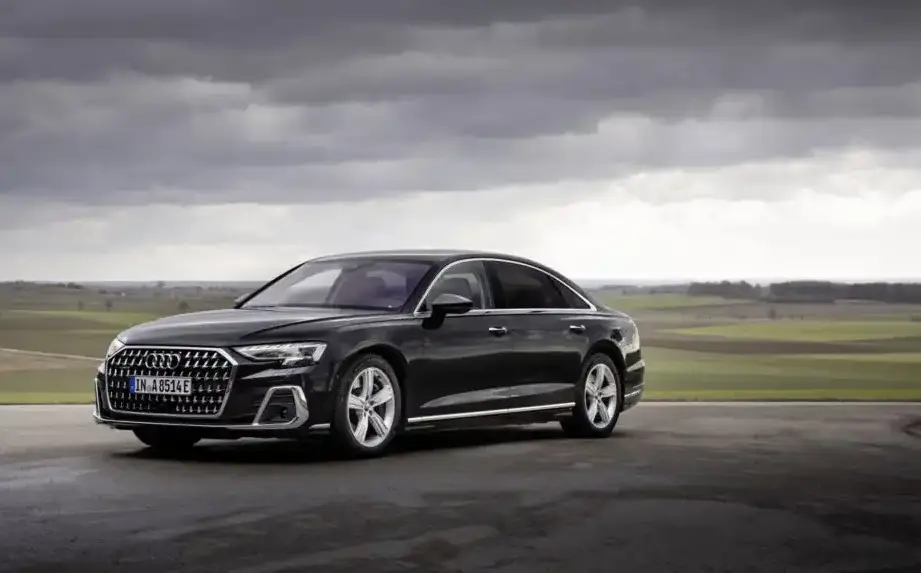

The Audi A8 L 60 TFSI e, launched in 2022, is a long-wheelbase variant of the fourth-generation (D5) A8, benefitting from a mid-cycle refresh. It represents Audi’s push towards electrification, offering a blend of luxury, performance, and efficiency. The “L” designation indicates the extended wheelbase, providing increased rear passenger legroom – a key feature for markets where the A8 is often chauffeur-driven. This plug-in hybrid model is positioned above the standard A8 55 TFSI in terms of both price and technology, appealing to buyers who prioritize environmental consciousness without sacrificing the A8’s renowned refinement.

Powertrain & Engine Architecture

At the heart of the A8 L 60 TFSI e lies Audi’s EA839 3.0-liter V6 engine. This engine utilizes a single twin-scroll turbocharger and direct fuel injection to produce 340 horsepower and 368 lb-ft of torque. The engine’s architecture features an aluminum block and cylinder heads, contributing to weight reduction. The “e” in the model name signifies the integration of a 136-horsepower electric motor, seamlessly integrated between the engine and the eight-speed tiptronic automatic transmission. This electric motor draws power from a 17.9 kWh (gross) / 14.4 kWh (net) lithium-ion battery pack located under the trunk floor. The powertrain employs a sophisticated power electronics system to manage the interplay between the combustion engine and the electric motor, optimizing for efficiency or performance as needed. The transmission itself is a well-refined eight-speed automatic, known for its smooth shifts and responsiveness.

Driving Characteristics

The A8 L 60 TFSI e delivers a unique driving experience. In electric-only mode, it offers near-silent operation and a range of up to 37 miles (WLTP), sufficient for many daily commutes. When combined with the V6 engine, the system produces a total of 462 horsepower and 516 lb-ft of torque, resulting in brisk acceleration – 0 to 60 mph in approximately 4.7 seconds. The electric motor provides instant torque, filling in gaps in the V6’s power delivery and enhancing responsiveness. The tiptronic transmission is programmed to prioritize efficiency in hybrid mode, but can be shifted manually for more engaging driving. Compared to the standard A8 55 TFSI, the 60 TFSI e feels noticeably more powerful, particularly during acceleration. However, the added weight of the battery pack does slightly impact handling agility, though the adaptive air suspension helps to mitigate this effect.

Equipment & Trim Levels

The A8 L 60 TFSI e comes standard with a comprehensive suite of luxury features. Interior appointments include Valcona leather upholstery, heated and ventilated front seats with massage function, a panoramic sunroof, and a premium Bang & Olufsen sound system. The MMI touch response system, with its dual touchscreen displays, controls infotainment and vehicle settings. Standard driver-assistance features include adaptive cruise control, lane keeping assist, and a 360-degree camera system. Optional extras include rear-seat entertainment, a head-up display, and various interior trim packages. The A8 L generally offers a high degree of customization, allowing buyers to tailor the vehicle to their preferences.

Chassis & Braking

The A8 L 60 TFSI e utilizes Audi’s multi-link suspension system at both the front and rear, coupled with adaptive air suspension. This system automatically adjusts the ride height and damping characteristics to optimize comfort and handling. The air suspension also allows for adjustable ride height, useful for navigating challenging road conditions. Braking duties are handled by ventilated disc brakes on all four wheels, with larger discs at the front. The braking system is augmented by ABS, electronic brake-force distribution, and brake assist. Due to the added weight of the hybrid system, the 60 TFSI e may have slightly longer stopping distances compared to lighter A8 variants.

Market Reception & Comparison

The A8 L 60 TFSI e has been generally well-received by automotive critics, who praise its blend of luxury, performance, and efficiency. Its electric range is competitive within the plug-in hybrid luxury sedan segment. Compared to the A8 55 TFSI, the 60 TFSI e offers significantly improved fuel economy and the ability to drive in electric-only mode, but comes at a higher price point. Against rivals such as the BMW 745e and Mercedes-Benz S560e, the A8 L 60 TFSI e holds its own in terms of technology, refinement, and driving experience. Some reviewers have noted that the battery pack slightly reduces trunk space compared to non-hybrid A8 models.

Legacy

The A8 L 60 TFSI e represents a significant step in Audi’s electrification strategy. While long-term reliability data is still emerging, Audi’s reputation for build quality and engineering suggests that the powertrain should prove durable. The combination of a refined V6 engine and a powerful electric motor provides a compelling alternative to traditional internal combustion engines. As the automotive industry continues to shift towards electrification, the A8 L 60 TFSI e is likely to be viewed as a pioneering model that helped to bridge the gap between luxury and sustainability. On the used car market, these models are expected to hold their value well, particularly as demand for plug-in hybrid vehicles continues to grow.
