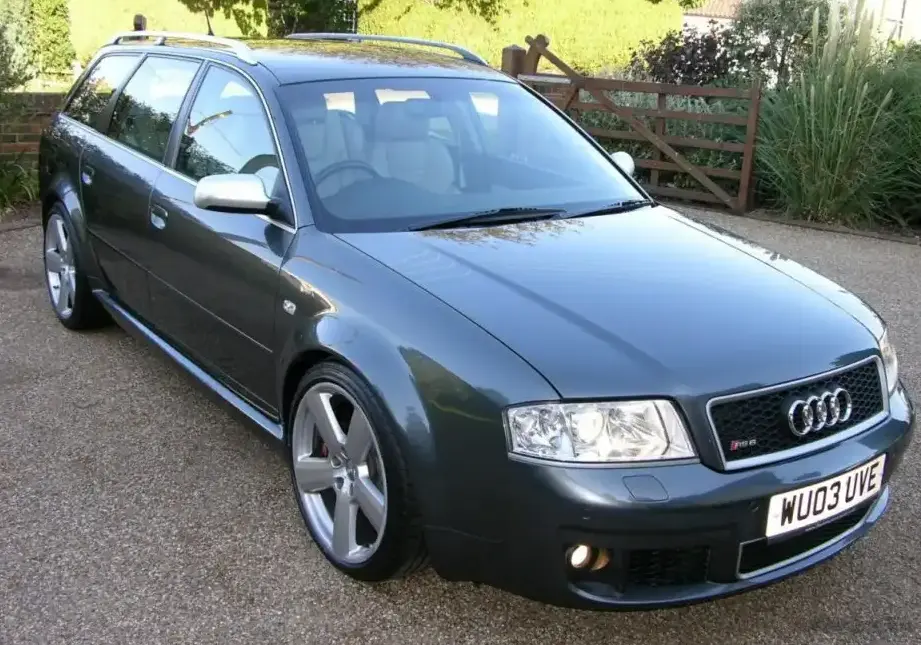

The Audi RS6 Avant (4B, C5) with the 4.2 BiTurbo V8 engine and Tiptronic automatic transmission, produced between 2002 and 2006, represents a high-performance iteration of Audi’s popular Avant (station wagon) model. Positioned as the flagship of the C5 generation, the RS6 combined the practicality of a family vehicle with the performance characteristics of a sports car. It was a key model in establishing Audi’s reputation for blending luxury, technology, and exhilarating driving dynamics, particularly within the European market where high-performance estates were – and remain – highly sought after. This variant occupied the top tier of the RS6 lineup, offering significantly more power and performance than the standard A6 models.
Technical Specifications
| Brand | Audi |
| Model | RS6 |
| Generation | RS6 Avant (4B,C5) |
| Type (Engine) | 4.2 BiTurbo V8 (450 Hp) quattro Tiptronic |
| Start of production | 2002 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 21.8 l/100 km (10.8 US mpg, 13 UK mpg, 4.6 km/l) |
| Fuel consumption (extra urban) | 10.4 l/100 km (22.6 US mpg, 27.2 UK mpg, 9.6 km/l) |
| Fuel consumption (combined) | 14.6 l/100 km (16.1 US mpg, 19.3 UK mpg, 6.8 km/l) |
| CO2 emissions | 350 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 4.9 sec |
| Acceleration 0 – 62 mph | 4.9 sec |
| Acceleration 0 – 60 mph | 4.7 sec |
| Acceleration 0 – 200 km/h | 17.8 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 4.1 kg/Hp, 241.3 Hp/tonne |
| Weight-to-torque ratio | 3.3 kg/Nm, 300.3 Nm/tonne |
| Power | 450 Hp @ 5700-6400 rpm |
| Power per litre | 107.9 Hp/l |
| Torque | 560 Nm @ 1950-5600 rpm (413.03 lb.-ft. @ 1950-5600 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | BCY |
| Engine displacement | 4172 cm3 (254.59 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 84.5 mm (3.33 in.) |
| Piston Stroke | 93 mm (3.66 in.) |
| Compression ratio | 9.3:1 |
| Number of valves per cylinder | 5 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | BiTurbo, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 7.5 l (7.93 US qt | 6.6 UK qt) |
| Coolant | 11 l (11.62 US qt | 9.68 UK qt) |
| Kerb Weight | 1865 kg (4111.62 lbs.) |
| Max. weight | 2355 kg (5191.89 lbs.) |
| Max load | 490 kg (1080.27 lbs.) |
| Trunk (boot) space – minimum | 455 l (16.07 cu. ft.) |
| Trunk (boot) space – maximum | 1590 l (56.15 cu. ft.) |
| Fuel tank capacity | 82 l (21.66 US gal | 18.04 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Length | 4852 mm (191.02 in.) |
| Width | 1850 mm (72.83 in.) |
| Height | 1390-1430 mm (54.72 – 56.3 in.) |
| Wheelbase | 2759 mm (108.62 in.) |
| Front track | 1578 mm (62.13 in.) |
| Rear (Back) track | 1587 mm (62.48 in.) |
| Drag coefficient (Cd) | 0.35 |
| Minimum turning circle | 11.4 m (37.4 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, automatic transmission Tiptronic |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 255/40 R18 |
| Wheel rims size | 8.5J X 18 |
Powertrain & Engine Architecture
The heart of the RS6 Avant (4B, C5) is the 4.2-liter V8 engine, designated as the BCY code. This engine is notable for its twin turbochargers, which significantly boosted power output compared to naturally aspirated Audi V8s of the time. The engine utilizes multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain. The twin-turbo setup, with an intercooler, provides substantial torque across a broad RPM range. The Tiptronic 5-speed automatic transmission, while offering convenience, was a point of contention for some enthusiasts who preferred the engagement of a manual gearbox. The Tiptronic allowed for manual gear selection, but lacked the responsiveness of a dedicated performance automatic or manual transmission. The engine’s longitudinal mounting and Audi’s quattro all-wheel-drive system ensured optimal weight distribution and traction.
Driving Characteristics
The 450 horsepower and 413 lb-ft of torque delivered by the 4.2 BiTurbo V8, combined with the quattro all-wheel-drive system, resulted in impressive acceleration. The 0-60 mph sprint was consistently achieved in around 4.7-4.9 seconds, and the car could reach a limited top speed of 155 mph. The Tiptronic transmission, while smooth, did introduce a slight delay in gear changes compared to a manual. This could be mitigated by utilizing the manual shift mode, but it didn’t fully replicate the immediacy of a traditional manual gearbox. The car felt planted and stable at high speeds, thanks to the quattro system and well-tuned suspension. However, the weight of the vehicle (approximately 4,112 lbs) was noticeable, particularly during spirited driving on winding roads.
Equipment & Trim Levels
The RS6 Avant came standard with a comprehensive list of features, reflecting its position as Audi’s performance flagship. Interior appointments included sport seats upholstered in Nappa leather, a leather-wrapped steering wheel, and unique RS6 badging. Standard exterior features included a distinctive RS6 body kit, including aggressive front and rear bumpers, side skirts, and a roof spoiler. Optional extras included carbon fiber interior trim, upgraded sound systems, and a sunroof. The interior dashboard configuration was largely similar to other A6 Avant models, but with unique RS6-specific gauges and trim elements.
Chassis & Braking
The RS6 Avant featured a sport-tuned suspension with stiffer springs and dampers compared to standard A6 models. The front suspension utilized an independent multi-link design, while the rear employed a double wishbone setup. Ventilated disc brakes were fitted on all four wheels, providing ample stopping power. ABS (Anti-lock Braking System) was standard. The RS6 Avant generally featured larger stabilizer bars than other A6 variants, further reducing body roll during cornering. The rear brakes were typically ventilated discs, a step up from the solid discs found on some lower-trim A6 models.
Market Reception & Comparison
The RS6 Avant (4B, C5) was generally well-received by automotive critics, who praised its performance, practicality, and luxurious interior. However, the Tiptronic transmission was a common point of criticism, with some reviewers preferring the engagement of a manual gearbox. Compared to other high-performance estates of the time, such as the BMW M5 Touring, the RS6 offered a unique blend of performance and refinement. Fuel economy was predictably poor, averaging around 16 mpg in combined driving. Reliability was generally good, but the complex twin-turbo system required diligent maintenance. Compared to the naturally aspirated A6 4.2 models, the RS6 offered significantly more power and performance, but at the cost of increased fuel consumption and maintenance complexity.
Legacy
The RS6 Avant (4B, C5) remains a desirable vehicle in the used car market today, particularly among enthusiasts who appreciate its unique combination of performance, practicality, and exclusivity. The 4.2 BiTurbo V8 engine, while complex, is generally considered to be robust when properly maintained. Common maintenance issues include turbocharger wear, cooling system leaks, and occasional issues with the Tiptronic transmission. Despite these potential issues, the RS6 Avant (4B, C5) has earned a reputation as a capable and rewarding performance vehicle, and continues to be a sought-after model for those seeking a high-performance estate car.
