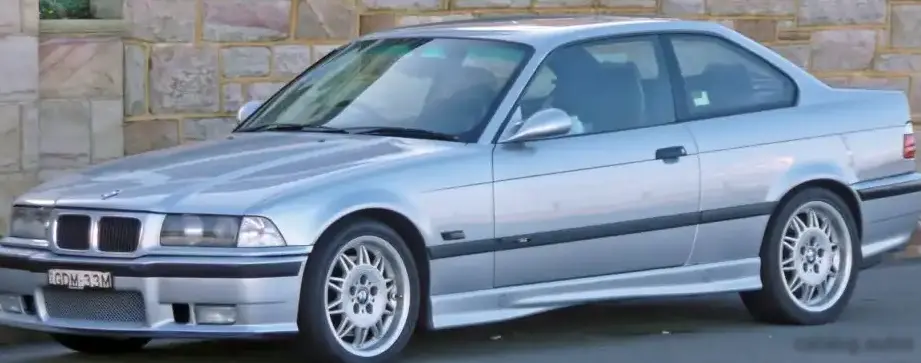

The BMW M3 Coupe (E36) 3.2, produced between 1995 and 1999, represents a pivotal moment in the M3 lineage. Positioned as the highest-performance variant of the E36 3 Series coupe, it marked a significant departure from the earlier 3.0-liter and 3.1-liter engines, offering a substantial increase in power and a more focused driving experience. This generation M3, built on the E36 platform, was primarily aimed at the North American and European markets, becoming a benchmark for attainable performance and driver engagement. The 3.2-liter version was the final iteration of the E36 M3 coupe before the introduction of the E46 generation.
Technical Specifications
| Brand | BMW |
| Model | M3 |
| Generation | M3 Coupe (E36) |
| Type (Engine) | 3.2 (321 Hp) |
| Start of production | 1995 |
| End of production | 1999 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 5 |
| Doors | 2 |
| Fuel consumption (economy) – urban | 16.9 l/100 km (13.9 US mpg, 16.7 UK mpg, 5.9 km/l) |
| Fuel consumption (economy) – extra urban | 7.5 l/100 km (31.4 US mpg, 37.7 UK mpg, 13.3 km/l) |
| Fuel consumption (economy) – combined | 11 l/100 km (21.4 US mpg, 25.7 UK mpg, 9.1 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 5.5 sec |
| Acceleration 0 – 62 mph | 5.5 sec |
| Acceleration 0 – 60 mph | 5.2 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Weight-to-power ratio | 4.5 kg/Hp, 219.9 Hp/tonne |
| Weight-to-torque ratio | 4.2 kg/Nm, 239.7 Nm/tonne |
| Power | 321 Hp @ 7400 rpm |
| Power per litre | 100.3 Hp/l |
| Torque | 350 Nm @ 3250 rpm (258.15 lb.-ft. @ 3250 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | S50B32 |
| Engine displacement | 3201 cm3 (195.34 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 86.4 mm (3.4 in.) |
| Piston Stroke | 91 mm (3.58 in.) |
| Compression ratio | 11.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Coolant | 10.8 l (11.41 US qt | 9.5 UK qt) |
| Kerb Weight | 1460 kg (3218.75 lbs.) |
| Max. weight | 1950 kg (4299.01 lbs.) |
| Max load | 490 kg (1080.27 lbs.) |
| Trunk (boot) space – minimum | 405 l (14.3 cu. ft.) |
| Fuel tank capacity | 62 l (16.38 US gal | 13.64 UK gal) |
| Length | 4433 mm (174.53 in.) |
| Width | 1710 mm (67.32 in.) |
| Height | 1335 mm (52.56 in.) |
| Wheelbase | 2700 mm (106.3 in.) |
| Front track | 1422 mm (55.98 in.) |
| Rear (Back) track | 1444 mm (56.85 in.) |
| Ride height (ground clearance) | 110 mm (4.33 in.) |
| Drag coefficient (Cd) | 0.32 |
| Minimum turning circle (turning diameter) | 10.7 m (35.1 ft.) |
| Drivetrain Architecture | Rear wheel drive |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/45 R17; 245/40 R17 |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The heart of the E36 M3 3.2 is the S50B32 engine, a 3.2-liter inline-six cylinder powerplant. This engine is a derivative of the S50B30 found in earlier E36 M3s, but with a significantly increased bore size (86.4mm vs 84mm) bringing displacement to 3201cc. The S50B32 utilizes individual throttle bodies, a high-compression ratio of 11.3:1, and double VANOS (Variable Valve Timing) for both intake and exhaust camshafts. This sophisticated valvetrain design contributes to the engine’s broad torque curve and responsive throttle behavior. Fuel delivery is managed by a Bosch Motronic MS4.1 engine management system and multi-port fuel injection. The engine produces 321 horsepower at 7400 rpm and 350 Nm (258 lb-ft) of torque at 3250 rpm. The only transmission option offered with the 3.2-liter engine was a Getrag 285 6-speed manual transmission, known for its precise shifts and durability.
Driving Characteristics
The E36 M3 3.2 delivers a distinctly analog driving experience. The 6-speed manual transmission provides excellent control, and the engine’s linear power delivery encourages spirited driving. Acceleration from 0 to 60 mph takes approximately 5.2 seconds, and the car can reach a top speed of 155 mph (electronically limited). Compared to the earlier 3.0 and 3.1-liter M3s, the 3.2 offers a noticeable increase in mid-range torque, making it more tractable in everyday driving situations. While not as raw or visceral as some later performance cars, the E36 M3 3.2 strikes a compelling balance between performance and usability. The suspension, while firm, provides a comfortable enough ride for daily use, and the steering is precise and communicative.
Equipment & Trim Levels
The E36 M3 3.2 was relatively well-equipped as standard. Interior features included sport seats with adjustable lumbar support, a leather-wrapped steering wheel, and a comprehensive instrument cluster. Optional extras included a sunroof, navigation system, upgraded sound system, and various interior trim options. The exterior typically featured a subtle aerodynamic package, including a front splitter, rear spoiler, and wider wheel arches. Paint options were extensive, with a range of solid, metallic, and pearl finishes available. The M3 3.2 was positioned as the premium offering within the E36 coupe range, and its price reflected this.
Chassis & Braking
The E36 M3 3.2 features a reinforced chassis compared to standard E36 coupes, enhancing rigidity and handling precision. The suspension utilizes a MacPherson strut front suspension and a multi-link rear suspension, optimized for performance driving. Braking duties are handled by ventilated disc brakes on all four wheels, providing ample stopping power. An Anti-lock Braking System (ABS) is standard. The car’s relatively lightweight construction (approximately 3219 lbs) contributes to its agile handling characteristics.
Market Reception & Comparison
The E36 M3 3.2 was widely praised by automotive journalists for its performance, handling, and overall driving experience. It was often compared favorably to rivals such as the Porsche 968 and the Mercedes-Benz C36 AMG. Critics noted the engine’s responsiveness and the car’s balanced chassis. Fuel economy, while not a primary concern for M3 buyers, was reasonable for a high-performance vehicle, averaging around 21 mpg combined. Compared to the earlier E36 M3 variants, the 3.2 commanded a higher price and was considered the most desirable version of the E36 M3.
Legacy
The E36 M3 3.2 has become a highly sought-after classic car. Its combination of performance, driving dynamics, and relative reliability has made it a favorite among enthusiasts. The S50B32 engine is known for its durability, although regular maintenance is essential. Well-maintained examples command premium prices in the used car market. The E36 M3 3.2 is widely regarded as one of the best driver’s cars of the 1990s, and it continues to be celebrated for its analog feel and engaging driving experience. Its influence can be seen in subsequent generations of the M3, which have continued to build on the E36’s legacy of performance and driver involvement.
