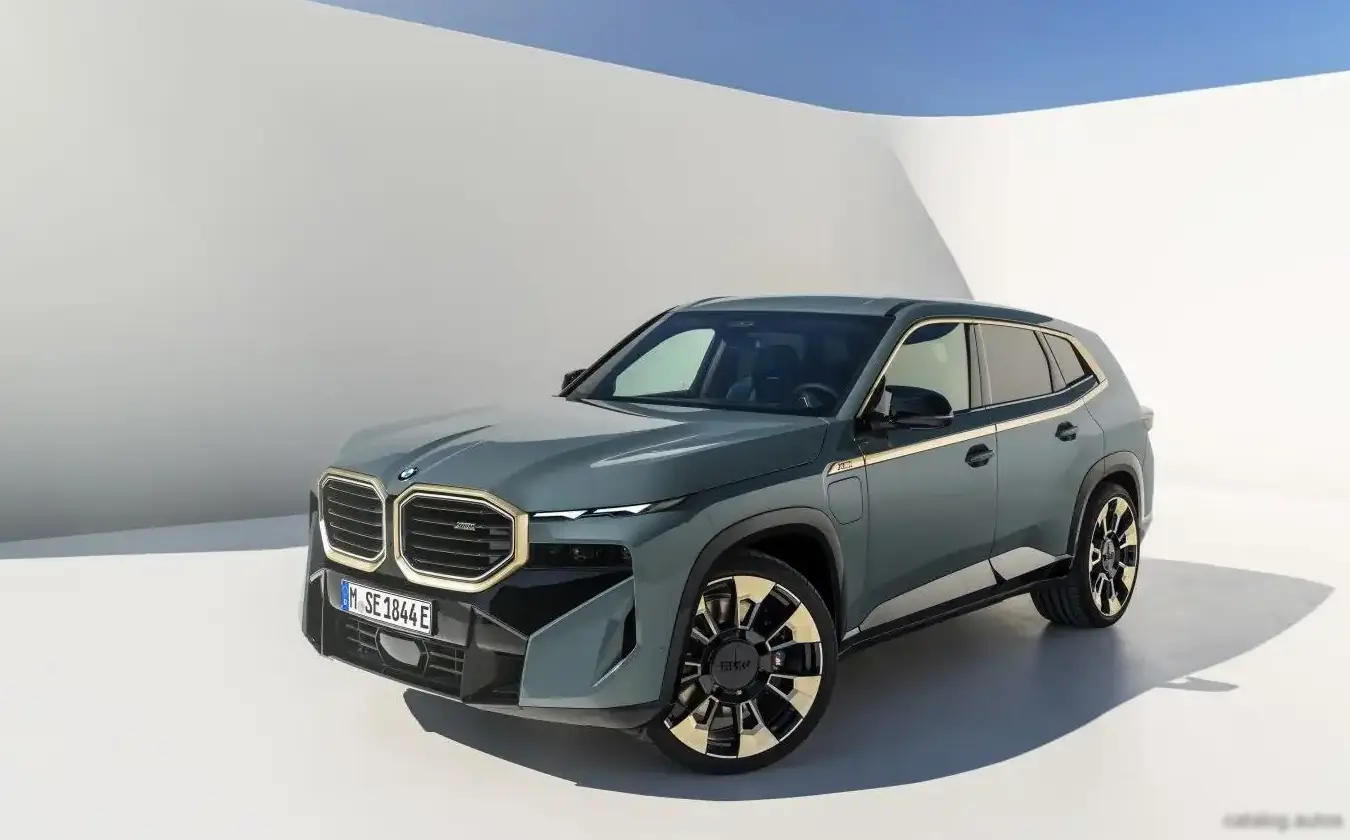

The BMW XM (G09) Label Red 4.4 V8 is a high-performance plug-in hybrid SUV produced by BMW M GmbH, entering production in August 2023. Representing the highest-performance variant of the XM, the Label Red combines a 4.4-liter twin-turbocharged V8 engine with an electric motor, delivering a combined output of 748 horsepower and 1000 Nm (737.56 lb-ft) of torque. It sits at the pinnacle of the XM lineup, offering significantly enhanced performance compared to the standard XM model. The XM is BMW’s first dedicated high-performance electric vehicle (PHEV) SUV, and the Label Red variant further emphasizes this commitment to performance and electrification.
Technical Specifications
| Brand | BMW |
| Model | XM |
| Generation | XM (G09) |
| Type (Engine) | Label Red 4.4 V8 (748 Hp) Plug-in Hybrid xDrive Steptronic |
| Start of production | August, 2023 |
| Powertrain Architecture | PHEV (Plug-in Hybrid Electric Vehicle) |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Combined fuel consumption (WLTP) | 1.6-1.7 l/100 km (147 – 138.4 US mpg, 176.6 – 166.2 UK mpg, 62.5 – 58.8 km/l) |
| CO2 emissions (WLTP) | 35-39 g/km |
| Fuel Type | Petrol / electricity |
| Acceleration 0 – 100 km/h | 3.8 sec |
| Acceleration 0 – 62 mph | 3.8 sec |
| Acceleration 0 – 60 mph | 3.6 sec |
| Maximum speed | 250 km/h (155.34 mph), Electronically limited |
| Emission standard | Euro 6d |
| Net (usable) battery capacity | 25.7 kWh |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery location | Below the floor |
| All-electric range (WLTP) | 75-83 km (46.6 – 51.57 mi) |
| Average Energy consumption (WLTP) | 33-34.5 kWh/100 km (53.11 – 55.52 kWh/100 mi, 63 – 61 MPGe, 3 – 2.9 km/kWh, 1.9 – 1.8 mi/kWh) |
| Max speed (electric) | 140 km/h (86.99 mph) |
| Electric motor power | 197 Hp |
| Electric motor Torque | 280 Nm (206.52 lb.-ft.) |
| Electric motor location | Between the combustion engine and the transmission |
| Electric motor type | Synchronous |
| System power | 748 Hp |
| System torque | 1000 Nm (737.56 lb.-ft.) |
| Power | 585 Hp @ 5600 rpm |
| Torque | 750 Nm @ 1800-5400 rpm (553.17 lb.-ft. @ 1800-5400 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 4395 cm3 (268.2 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 88.3 mm (3.48 in.) |
| Piston Stroke | 89.5 mm (3.52 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Twin-power turbo, Intercooler |
| Valvetrain | VALVETRONIC, Double-VANOS |
| Engine oil capacity | 10.75 l (11.36 US qt | 9.46 UK qt) |
| Drivetrain Architecture | The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 8 gears, automatic transmission Steptronic |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | Front wheel tires: 275/45 R21, Rear wheel tires: 315/40 R21 |
| Wheel rims size | Front wheel rims: 21, Rear wheel rims: 21 |
Powertrain & Engine Architecture
At the heart of the XM Label Red lies BMW’s S68 engine, a 4.4-liter twin-turbocharged V8. This engine, derived from the M5 and X5 M, produces 585 hp at 5,600 rpm and 750 Nm (553.17 lb-ft) of torque between 1,800 and 5,400 rpm. The engine utilizes direct fuel injection and BMW’s VALVETRONIC and Double-VANOS technologies for optimized efficiency and power delivery. Integrated with the V8 is a 197 hp electric motor, powered by a 25.7 kWh lithium-ion battery pack located under the floor. This combination results in a total system output of 748 hp and 1000 Nm (737.56 lb-ft) of torque. The powertrain is paired with an 8-speed Steptronic automatic transmission, optimized for both performance and efficiency. The transmission is programmed to provide quick and smooth shifts, adapting to driving conditions and driver input.
Driving Characteristics
The XM Label Red delivers exceptionally brisk acceleration, achieving 0-60 mph in approximately 3.6 seconds and a limited top speed of 155.34 mph. The electric motor provides instant torque, filling in gaps in the V8’s power delivery and enhancing responsiveness. In electric-only mode, the XM Label Red can travel between 75-83 km (46.6 – 51.57 miles) on a full charge. The all-wheel-drive system ensures optimal traction in various conditions. The suspension is tuned for a balance between comfort and performance, providing a relatively compliant ride while maintaining excellent body control during spirited driving. The steering is precise and well-weighted, offering good feedback to the driver.
Equipment & Trim Levels
The XM Label Red comes standard with a comprehensive suite of luxury and technology features. Interior appointments include Merino leather upholstery, carbon fiber trim, and a curved BMW display featuring a 12.3-inch information display and a 14.9-inch control display. Standard equipment also includes a premium sound system, adaptive cruise control, lane keeping assist, and a 360-degree camera system. Optional extras include a head-up display, massaging seats, and various customization options for interior and exterior finishes. The XM Label Red’s trim is focused on a sporty and luxurious aesthetic, differentiating it from the standard XM with unique exterior accents and interior detailing.
Chassis & Braking
The XM Label Red features a robust chassis designed to handle the vehicle’s substantial power and weight. The front suspension utilizes a double wishbone design, while the rear employs an independent multi-link setup. Both ends are equipped with ventilated disc brakes, providing ample stopping power. The braking system is enhanced by ABS (Anti-lock Braking System) and other electronic stability control systems. The vehicle rides on 21-inch alloy wheels, fitted with performance tires (275/45 R21 front, 315/40 R21 rear) to maximize grip and handling.
Market Reception & Comparison
The BMW XM Label Red has received mixed reviews from automotive critics. While praised for its exceptional performance and luxurious interior, some reviewers have criticized its polarizing styling and high price tag. Compared to the standard XM, the Label Red offers a significant performance upgrade, justifying the price premium for enthusiasts seeking the ultimate driving experience. In terms of fuel economy, the plug-in hybrid powertrain allows for efficient operation in electric mode, but fuel consumption increases significantly when relying solely on the V8 engine. Reliability data is still emerging, but BMW’s reputation for engineering quality suggests that the XM Label Red should prove to be a durable and dependable vehicle.
Legacy
The BMW XM Label Red represents a bold step for BMW M GmbH, showcasing the brand’s commitment to high-performance electrification. As BMW’s first dedicated high-performance electric vehicle (PHEV) SUV, the XM Label Red sets a precedent for future M models. Its long-term reliability remains to be seen, but the combination of a proven V8 engine and advanced electric technology suggests a promising future. On the used car market, the XM Label Red is expected to hold its value well, appealing to collectors and enthusiasts seeking a unique and powerful luxury SUV.
