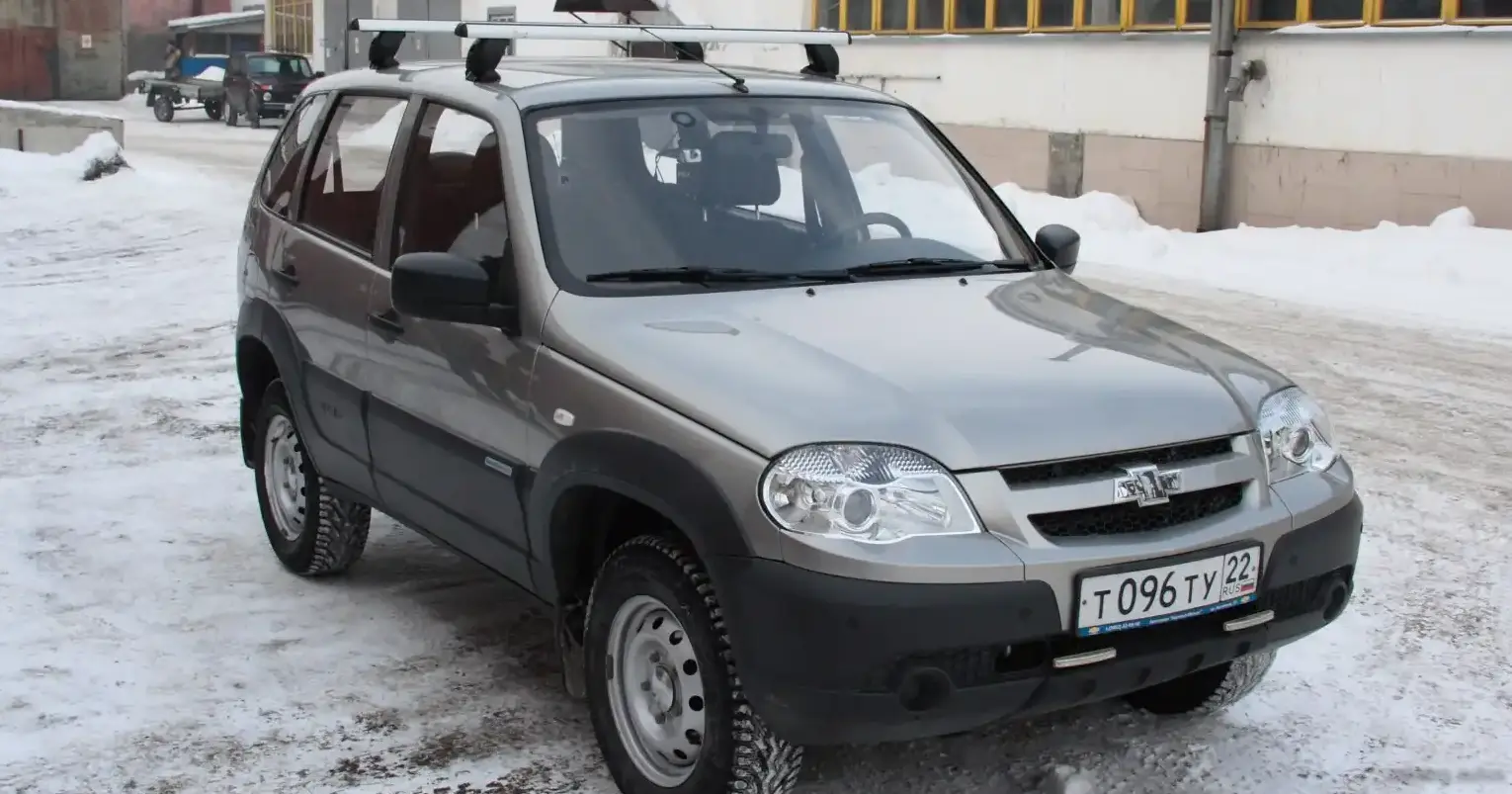

The Chevrolet Niva 1.8 i 16V ECOTEC, produced between 2004 and 2009, represents a significant evolution of the original VAZ-2121 Niva, a vehicle renowned for its robust off-road capability. This variant, developed under General Motors’ ownership following their acquisition of a majority stake in AvtoVAZ, aimed to modernize the Niva while retaining its core strengths. The 1.8L ECOTEC engine and five-speed manual transmission combination positioned this model as a mid-range offering within the Niva lineup, bridging the gap between the base models and potential future, more powerful iterations that never materialized. It was primarily marketed towards drivers seeking a practical, affordable, and capable SUV for both on and off-road use, particularly in Eastern European markets and Russia.
Technical Specifications
| Brand | Chevrolet |
| Model | Niva |
| Generation | Niva |
| Type (Engine) | 1.8 i 16V ECOTEC (125 Hp) |
| Start of production | 2004 |
| End of production | 2009 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 165 km/h (102.53 mph) |
| Weight-to-power ratio | 11.6 kg/Hp, 86.2 Hp/tonne |
| Weight-to-torque ratio | 8.7 kg/Nm, 115.2 Nm/tonne |
| Power | 125 Hp @ 5600 rpm |
| Power per litre | 69.6 Hp/l |
| Torque | 167 Nm @ 4600 rpm (123.17 lb.-ft. @ 4600 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 1796 cm3 (109.6 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80.5 mm (3.17 in.) |
| Piston Stroke | 88.2 mm (3.47 in.) |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Kerb Weight | 1450 kg (3196.7 lbs.) |
| Max. weight | 1850 kg (4078.55 lbs.) |
| Max load | 400 kg (881.85 lbs.) |
| Trunk (boot) space – minimum | 320 l (11.3 cu. ft.) |
| Trunk (boot) space – maximum | 650 l (22.95 cu. ft.) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Length | 4048 mm (159.37 in.) |
| Width | 1770 mm (69.69 in.) |
| Height | 1652 mm (65.04 in.) |
| Wheelbase | 2450 mm (96.46 in.) |
| Front track | 1466 mm (57.72 in.) |
| Rear (Back) track | 1456 mm (57.32 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Power steering | Hydraulic Steering |
| Tires size | 215/65 R16 |
Powertrain & Engine Architecture
The heart of the Chevrolet Niva 1.8 i 16V ECOTEC is the 1796cc (1.8L) inline-four cylinder engine. This engine, part of the GM ECOTEC family, featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to improved breathing and higher-end power compared to earlier Niva engines. The engine utilized a multi-port fuel injection system, providing precise fuel delivery for optimized combustion. The engine code is often associated with variations within the ECOTEC range, and specific implementations could vary slightly depending on the production year and market. The five-speed manual transmission was the standard offering for this variant, providing a direct and engaging driving experience. The transmission was chosen for its durability and suitability for both on-road and off-road conditions. Gear ratios were relatively short, prioritizing low-end torque for tackling challenging terrain.
Driving Characteristics
The 125 horsepower and 167 Nm (123.17 lb-ft) of torque delivered by the 1.8L ECOTEC engine provided a noticeable improvement in performance over the older, smaller displacement engines previously offered in the Niva. While not a particularly fast vehicle, the 1.8L version offered adequate acceleration for everyday driving and highway cruising. The manual transmission allowed for precise control over the engine’s power band, and the short gear ratios aided in maintaining momentum off-road. Compared to potential higher-output variants (which were never fully realized in production), this version prioritized fuel efficiency and ease of use over outright performance. The all-wheel-drive system, coupled with the relatively lightweight construction, ensured excellent traction in a variety of conditions.
Equipment & Trim Levels
The Chevrolet Niva 1.8 i 16V ECOTEC typically came with a fairly basic level of equipment, reflecting its positioning as an affordable and utilitarian SUV. Standard features generally included power steering, central locking, and a basic audio system. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat spartan, design. Optional extras could include air conditioning, power windows, and upgraded audio systems. Trim levels were often differentiated by minor cosmetic changes, such as different wheel covers or interior trim materials. The focus was on providing a durable and practical vehicle rather than luxurious appointments.
Chassis & Braking
The Chevrolet Niva retained the robust ladder-frame chassis of the original Niva, providing exceptional strength and durability. Suspension consisted of coil springs all around, offering a comfortable ride on paved roads while maintaining sufficient articulation for off-road use. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were drums. This configuration was a cost-effective solution, but it did limit the overall braking performance compared to vehicles with four-wheel disc brakes. The hydraulic steering system provided reasonable steering feel and maneuverability.
Market Reception & Comparison
The Chevrolet Niva 1.8 i 16V ECOTEC was generally well-received by critics and consumers alike. It was praised for its improved performance, modern engine, and continued off-road capability. Compared to other SUVs in its price range, the Niva offered a unique combination of affordability, ruggedness, and all-wheel-drive capability. However, it was also criticized for its basic interior, limited safety features, and relatively low fuel economy compared to more modern vehicles. Compared to the base-model Nivas with smaller engines, the 1.8L version offered a significant performance upgrade, making it a more appealing option for drivers who frequently ventured off-road or needed to carry heavy loads.
Legacy
The Chevrolet Niva 1.8 i 16V ECOTEC represents a transitional period in the Niva’s history. While it didn’t usher in a completely new generation of the vehicle, it did introduce a more modern engine and improved performance. The ECOTEC engine proved to be relatively reliable, and many examples are still on the road today. In the used car market, these models are often sought after by enthusiasts and those looking for a capable and affordable off-road vehicle. The Niva’s enduring popularity is a testament to its simple, robust design and its ability to tackle challenging terrain. The 1.8L ECOTEC variant, in particular, strikes a good balance between performance, reliability, and affordability, making it a desirable option for those seeking a classic and capable SUV.
