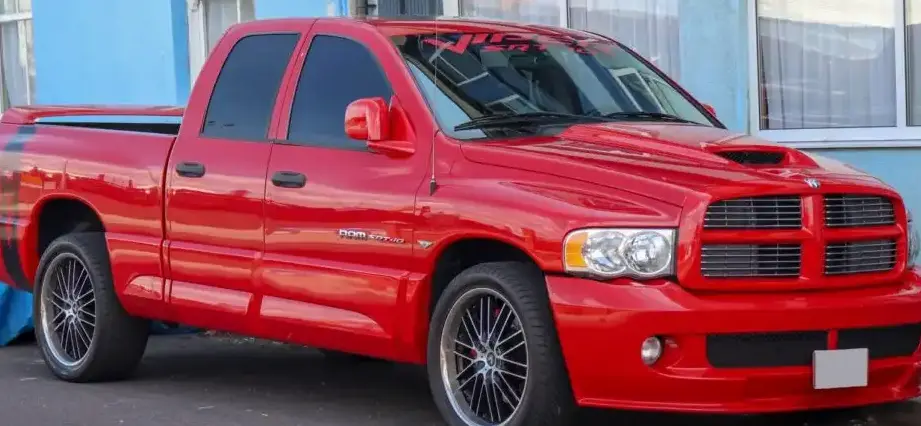

The Dodge Ram 1500 SRT-10, produced between 2004 and 2006, represented a bold foray into the high-performance truck segment by Dodge. Based on the third-generation Ram (DR/DH platform), the SRT-10 was a limited-production model designed to showcase the capabilities of Dodge’s performance division, then known as Street & Racing Technology (SRT). It distinguished itself from standard Ram 1500s with its massive 8.3-liter V10 engine, aggressive styling, and performance-tuned chassis. This variant occupied the very top of the Ram 1500 lineup, aimed at buyers seeking a uniquely powerful and visually striking pickup truck. The SRT-10 was a direct response to Ford’s SVT Lightning, initiating a brief but intense rivalry in the super-truck arena.
Technical Specifications
| Brand | Dodge |
| Model | RAM |
| Generation | Ram 1500 III (DR/DH) |
| Type (Engine) | SRT10 8.3 V10 (500 Hp) Automatic |
| Start of production | 2004 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (economy) – urban (EPA) | 26.1 l/100 km (9 US mpg, 10.8 UK mpg, 3.8 km/l) |
| Fuel consumption (economy) – extra urban (EPA) | 19.6 l/100 km (12 US mpg, 14.4 UK mpg, 5.1 km/l) |
| Fuel consumption (economy) – combined (EPA) | 23.5 l/100 km (10 US mpg, 12 UK mpg, 4.3 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Emission standard | Tier 1 |
| Weight-to-power ratio | 4.9 kg/Hp, 202.3 Hp/tonne |
| Weight-to-torque ratio | 3.5 kg/Nm, 288 Nm/tonne |
| Power | 500 Hp @ 5600 rpm |
| Power per litre | 60.4 Hp/l |
| Torque | 712 Nm @ 4200 rpm (525.14 lb.-ft. @ 4200 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 8285 cm3 (505.58 cu. in.) |
| Number of cylinders | 10 |
| Engine configuration | V-engine |
| Cylinder Bore | 102.4 mm (4.03 in.) |
| Piston Stroke | 100.6 mm (3.96 in.) |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine oil capacity | 9.9 l (10.46 US qt | 8.71 UK qt) |
| Coolant | 11.9 l (12.57 US qt | 10.47 UK qt) |
| Kerb Weight | 2472 kg (5449.83 lbs.) |
| Trunk (boot) space – minimum | 1634 l (57.7 cu. ft.) |
| Fuel tank capacity | 98 l (25.89 US gal | 21.56 UK gal) |
| Permitted trailer load with brakes (12%) | 3697 kg (8150.49 lbs.) |
| Length | 5784 mm (227.72 in.) |
| Width | 2029 mm (79.88 in.) |
| Height | 1897 mm (74.69 in.) |
| Wheelbase | 3569 mm (140.51 in.) |
| Front track | 1727 mm (67.99 in.) |
| Rear (Back) track | 1712 mm (67.4 in.) |
| Drag coefficient (Cd) | 0.45 |
| Minimum turning circle (turning diameter) | 13.9 m (45.6 ft.) |
| Approach angle | 16.5° |
| Departure angle | 25° |
| Ramp-over (brakeover) angle | 21.1° |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Double wishbone, Transverse stabilizer |
| Rear suspension | Rigid axle suspension |
| Front brakes | Ventilated discs, 380×35.5 mm |
| Rear brakes | Ventilated discs, 350×30 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 305/40 R22 |
| Wheel rims size | 10J x 22 |
Powertrain & Engine Architecture
The heart of the SRT-10 was its 8.3-liter (505 cubic inch) V10 engine, derived from the engine used in the Dodge Viper sports car. This engine, internally designated as the 8.3L Magnum V10, produced 500 horsepower at 5,600 rpm and 525 lb-ft of torque at 4,200 rpm. It featured a cast iron block, aluminum cylinder heads, and a single overhead valve (OHV) valvetrain. Fuel delivery was handled by a multi-port fuel injection system. The engine’s large displacement and relatively simple design prioritized brute force over fuel efficiency. The sole transmission option was a four-speed automatic transmission, chosen for its durability and ability to handle the engine’s substantial output. While some enthusiasts lamented the lack of a manual transmission, the automatic was reinforced to withstand the V10’s power.
Driving Characteristics
The SRT-10 delivered exhilarating, if somewhat unwieldy, performance. Its massive torque output allowed for rapid acceleration, with 0-60 mph times consistently in the low 5-second range. However, the truck’s considerable weight (over 5,400 pounds) and long wheelbase meant it wasn’t particularly nimble in corners. The automatic transmission, while robust, wasn’t known for its quick shifts. Compared to the standard Ram 1500 models with smaller engines, the SRT-10 offered a dramatically different driving experience – one focused on straight-line speed and a commanding presence. The gear ratios were optimized for acceleration, sacrificing some high-speed cruising efficiency.
Equipment & Trim Levels
The SRT-10 came relatively well-equipped, though options were limited. Standard features included leather upholstery, power-adjustable front seats, a premium sound system, and unique SRT-specific badging both inside and out. Exterior styling cues included a distinctive hood scoop, aggressive front fascia, and large 22-inch wheels. Optional extras were few, primarily consisting of a sunroof and a navigation system. The interior, while comfortable, retained the functional, truck-like aesthetic of the standard Ram 1500, albeit with SRT-specific trim and detailing.
Chassis & Braking
To manage the increased power, the SRT-10 received several chassis upgrades. The suspension was stiffened with heavier-duty springs and dampers. Larger brakes, with ventilated discs at all four corners, provided improved stopping power. Front brakes measured 380×35.5mm, while the rear brakes were 350x30mm. An anti-lock braking system (ABS) was standard. The rear axle was also reinforced to handle the increased torque. However, the rear suspension still utilized a solid axle design, which contributed to a somewhat rough ride quality.
Market Reception & Comparison
The Dodge Ram SRT-10 was generally well-received by automotive critics, who praised its immense power and unique character. However, its poor fuel economy (around 10 mpg combined) and limited practicality were frequently cited as drawbacks. Compared to other Ram 1500 trims, the SRT-10 was significantly more expensive and less fuel-efficient. It directly competed with the Ford SVT Lightning, which offered a more refined driving experience and slightly better fuel economy. The SRT-10 appealed to buyers who prioritized performance and exclusivity over practicality and efficiency.
Legacy
The Dodge Ram SRT-10 remains a relatively rare and sought-after vehicle among truck enthusiasts. The 8.3-liter V10 engine, while thirsty, is known for its durability and reliability when properly maintained. However, the truck’s age and high mileage mean that maintenance costs can be significant. Parts availability is generally good, but some SRT-specific components can be difficult to find. Today, the SRT-10 is viewed as a unique and somewhat quirky piece of automotive history – a bold statement from Dodge during a period of performance truck experimentation. Its value in the used car market has remained relatively stable, appealing to collectors and those seeking a truly distinctive pickup truck.
