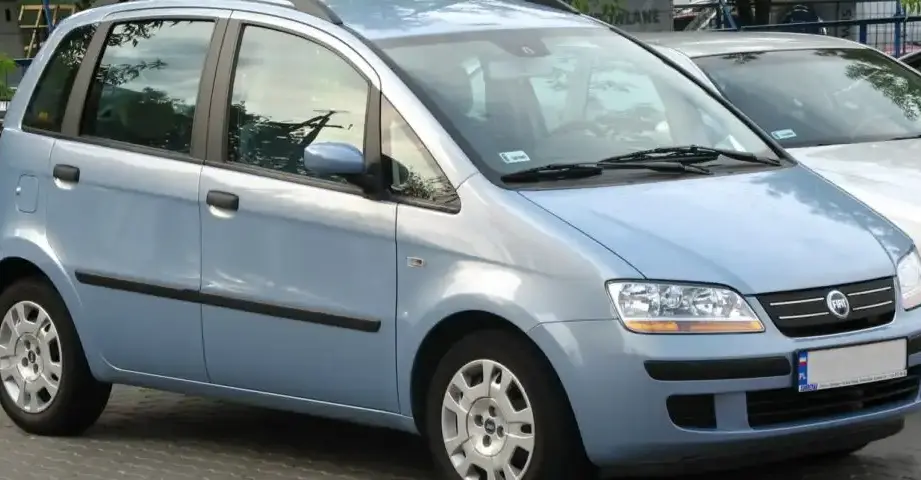

The Fiat Idea 1.9 JTD, producing 101 horsepower, was a popular compact minivan offered by Fiat from 2003 to 2007. Positioned as a practical and economical choice within the Idea range, it served as a mid-range offering, slotting between the lower-powered 1.4-liter petrol engine and the more expensive, albeit less common, higher-output JTD variants. Built on the Fiat 188 platform (shared with the second-generation Palio and Punto), the Idea aimed to provide a versatile and affordable family vehicle, particularly in European markets. This variant was specifically designed to balance fuel efficiency with acceptable performance for everyday driving needs.
Technical Specifications
| Brand | Fiat |
| Model | Idea |
| Generation | Idea |
| Type (Engine) | 1.9 JTD (101 Hp) |
| Start of production | 2003 |
| End of production | 2007 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7 l/100 km (33.6 US mpg, 40.4 UK mpg, 14.3 km/l) |
| Fuel consumption (extra urban) | 4.7 l/100 km (50 US mpg, 60.1 UK mpg, 21.3 km/l) |
| Fuel consumption (combined) | 5.5 l/100 km (42.8 US mpg, 51.4 UK mpg, 18.2 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.5 sec |
| Acceleration 0 – 62 mph | 11.5 sec |
| Acceleration 0 – 60 mph | 10.9 sec |
| Maximum speed | 179 km/h (111.23 mph) |
| Weight-to-power ratio | 12.6 kg/Hp, 79.2 Hp/tonne |
| Weight-to-torque ratio | 6.4 kg/Nm, 156.9 Nm/tonne |
| Power | 101 Hp @ 4000 rpm |
| Power per litre | 52.9 Hp/l |
| Torque | 200 Nm @ 1500 rpm (147.51 lb.-ft. @ 1500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 188D2000 |
| Engine displacement | 1910 cm3 (116.56 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm (3.23 in.) |
| Piston Stroke | 90.4 mm (3.56 in.) |
| Compression ratio | 18.45:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine oil capacity | 4.4 l (4.65 US qt | 3.87 UK qt) |
| Coolant | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 1275 kg (2810.89 lbs.) |
| Trunk (boot) space – minimum | 320 l (11.3 cu. ft.) |
| Trunk (boot) space – maximum | 1420 l (50.15 cu. ft.) |
| Fuel tank capacity | 47 l (12.42 US gal | 10.34 UK gal) |
| Length | 3930 mm (154.72 in.) |
| Width | 1700 mm (66.93 in.) |
| Height | 1660 mm (65.35 in.) |
| Wheelbase | 2510 mm (98.82 in.) |
| Front track | 1435 mm (56.5 in.) |
| Rear (Back) track | 1425 mm (56.1 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Torsion |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 195/60 R15 |
| Wheel rims size | 6J x 15 |
Powertrain & Engine Architecture
The heart of the Fiat Idea 1.9 JTD is the 188D2000 engine, a 1.9-liter inline-four cylinder diesel. This engine is a member of Fiat’s second-generation JTD (Jet Diesel Technology) family. It utilizes a common rail direct injection system, delivering fuel at extremely high pressure for improved combustion efficiency and reduced emissions. The engine features an overhead camshaft (OHC) valvetrain with two valves per cylinder. A turbocharger with an intercooler is employed to boost power output and improve torque across a wider rev range. The 188D2000 engine is known for its relatively robust construction and ability to handle moderate tuning. The five-speed manual transmission was the standard offering for this variant, providing a balance between fuel economy and drivability. The transmission’s gear ratios were tuned for maximizing fuel efficiency and providing adequate acceleration for everyday use.
Driving Characteristics
The 101 hp 1.9 JTD engine in the Idea provided a noticeable step up in performance compared to the smaller petrol engines available. While not a sports car by any means, it offered sufficient power for comfortable highway cruising and overtaking. Acceleration from 0-60 mph took around 10.9 seconds, which was respectable for a compact minivan of its era. The engine’s 200 Nm (147.51 lb-ft) of torque, available from just 1500 rpm, provided good low-end grunt, making it easy to navigate city traffic and handle inclines. Compared to the higher-output JTD variants, the 101 hp version felt less strained during acceleration, but naturally lacked the same outright speed. The manual transmission offered precise shifts, and the gear ratios were well-matched to the engine’s powerband. The driving experience was generally comfortable, with the suspension tuned for absorbing bumps and providing a stable ride.
Equipment & Trim Levels
The 1.9 JTD variant of the Fiat Idea typically came with a reasonable level of standard equipment. This included power steering, central locking, electric front windows, and an adjustable steering column. Interior upholstery was typically cloth, with a functional and durable design. Air conditioning was often an optional extra, as were features like alloy wheels, a radio/CD player, and rear electric windows. Higher trim levels, if available, might have included features like a trip computer, upgraded interior trim, and fog lights. The dashboard layout was straightforward and user-friendly, prioritizing practicality over luxury.
Chassis & Braking
The Fiat Idea utilized a front-wheel-drive layout with a relatively simple suspension setup. The front suspension consisted of MacPherson struts, while the rear employed a torsion beam axle. This configuration provided a good balance between ride comfort and handling. Braking duties were handled by disc brakes at the front and drum brakes at the rear. An Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The chassis was designed to be lightweight, contributing to the vehicle’s fuel efficiency and agility. Stabilizer bars were included to reduce body roll during cornering.
Market Reception & Comparison
The Fiat Idea 1.9 JTD was generally well-received by automotive critics as a practical and economical family vehicle. The diesel engine was praised for its fuel efficiency and torque, making it an ideal choice for long-distance driving. However, some critics noted that the interior was somewhat basic and lacked the refinement of some competitors. Compared to other compact minivans on the market, the Idea offered a competitive price point and a good level of versatility. The 1.9 JTD variant offered a better balance of performance and fuel economy than the smaller petrol engines, but it was more expensive to purchase. Compared to the higher-output JTD models, it provided a more affordable option for buyers who didn’t require maximum performance.
Legacy
The Fiat Idea 1.9 JTD has proven to be a relatively reliable vehicle in the long term, particularly the engine itself. The 188D2000 engine is known for its durability and ability to withstand high mileage. Common maintenance issues include wear and tear on suspension components, brake pads, and the occasional turbocharger failure. In the used car market, the Idea 1.9 JTD remains a popular choice for budget-conscious buyers seeking a practical and economical family vehicle. Its fuel efficiency and relatively low running costs continue to make it an attractive option, even today. The model represents a significant step in Fiat’s development of efficient and practical small vehicles, and its influence can be seen in subsequent models.
