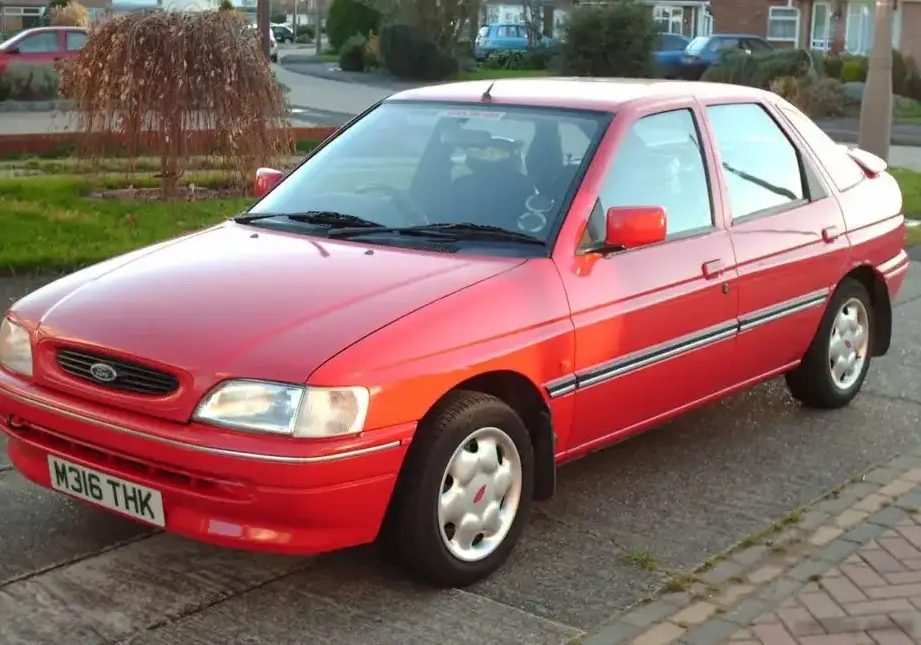

The Ford Escort VI Hatch, produced between 1993 and 1995, represented a significant evolution of Ford’s popular compact car. Within the GAL generation, the 1.8 TD variant – equipped with a 90 horsepower turbocharged diesel engine – occupied a unique position. It aimed to provide a balance between fuel efficiency and respectable performance, appealing to buyers seeking a practical and economical family vehicle. This model was primarily sold in Europe, where diesel engines were, and continue to be, highly favored for their fuel economy and durability. The 1.8 TD sat in the mid-range of the Escort VI lineup, offering more power than the base 1.6L petrol models but remaining more affordable than the higher-performance petrol variants.
Technical Specifications
| Brand | Ford |
| Model | Escort |
| Generation | Escort VI Hatch (GAL) |
| Type (Engine) | 1.8 TD (90 Hp) |
| Start of production | 1993 |
| End of production | 1995 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3/5 |
| Fuel consumption (combined) | 6.3 l/100 km (37.3 US mpg, 44.8 UK mpg, 15.9 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.5 sec |
| Acceleration 0 – 62 mph | 11.5 sec |
| Acceleration 0 – 60 mph | 10.9 sec |
| Maximum speed | 172 km/h (106.88 mph) |
| Weight-to-power ratio | 12.7 kg/Hp, 78.6 Hp/tonne |
| Weight-to-torque ratio | 6.4 kg/Nm, 157.2 Nm/tonne |
| Power | 90 Hp @ 4500 rpm |
| Power per litre | 51.3 Hp/l |
| Torque | 180 Nm @ 2000 rpm (132.76 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | RFD, RFK, RFS |
| Engine displacement | 1753 cm3 (106.97 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 82 mm (3.23 in.) |
| Compression ratio | 21.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger |
| Valvetrain | OHC |
| Engine oil capacity | 5.1 l (5.39 US qt | 4.49 UK qt) |
| Coolant | 9.3 l (9.83 US qt | 8.18 UK qt) |
| Kerb Weight | 1145 kg (2524.29 lbs.) |
| Max. weight | 1650 kg (3637.63 lbs.) |
| Max load | 505 kg (1113.33 lbs.) |
| Trunk (boot) space – minimum | 380 l (13.42 cu. ft.) |
| Trunk (boot) space – maximum | 735 l (25.96 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4104 mm (161.57 in.) |
| Width | 1696 mm (66.77 in.) |
| Height | 1397 mm (55 in.) |
| Wheelbase | 2525 mm (99.41 in.) |
| Front track | 1440 mm (56.69 in.) |
| Rear (Back) track | 1462 mm (57.56 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/70 R13 |
Powertrain & Engine Architecture
The heart of the Escort VI 1.8 TD was the RFD (and related RFK, RFS) engine, a 1.8-liter inline-four cylinder diesel. This engine utilized precombustion chamber injection, a system common in European diesels of the era. This system involved injecting fuel into a precombustion chamber connected to the main cylinder, promoting more complete combustion and reducing noise. The engine was turbocharged, which significantly boosted power output compared to naturally aspirated diesel engines. The turbocharger provided 90 horsepower at 4500 rpm and 180 Nm (132.76 lb-ft) of torque at a relatively low 2000 rpm. The engine featured an overhead camshaft (OHC) valvetrain with two valves per cylinder. The 5-speed manual transmission was the standard offering, providing a good balance between fuel economy and drivability. While an automatic transmission was available on some Escort VI models, it was not typically paired with the 1.8 TD engine.
Driving Characteristics
The 1.8 TD Escort offered a noticeable step up in performance compared to the smaller petrol engines available in the range. While not a sports car, the turbo diesel provided ample torque for everyday driving and comfortable cruising. Acceleration to 60 mph took around 10.9 seconds, and it could reach a top speed of 106.88 mph. The gear ratios in the 5-speed manual transmission were well-suited to the engine’s torque curve, allowing for relaxed highway driving and responsive acceleration in lower gears. Compared to the higher-output petrol versions, the 1.8 TD lacked the same level of outright speed, but it compensated with superior fuel economy and a more relaxed driving experience. The manual transmission provided more driver engagement than the optional automatic transmissions available on other Escort models.
Equipment & Trim Levels
The 1.8 TD typically came with a reasonable level of standard equipment. This included power steering, central locking, and an adjustable steering column. Interior upholstery was typically cloth, with a durable and practical design. Depending on the market and optional packages, features like electric windows, a sunroof, and upgraded audio systems were available. The trim level generally fell into the mid-range of the Escort VI lineup, offering a good balance of comfort and practicality without the added expense of the more luxurious trims.
Chassis & Braking
The Escort VI 1.8 TD utilized a front-wheel-drive layout with independent wishbone suspension at the front and a coil spring rear suspension. This setup provided a comfortable ride and decent handling characteristics. The front brakes were ventilated discs, offering good stopping power, while the rear brakes were drums. An anti-lock braking system (ABS) was often included as standard equipment, enhancing safety. The chassis was designed to accommodate the slightly heavier diesel engine and provide a stable platform for everyday driving. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The 1.8 TD Escort was generally well-received in European markets. Critics praised its fuel economy, torque, and overall practicality. It was seen as a sensible choice for drivers who covered long distances or frequently transported passengers and cargo. Compared to the petrol-powered Escorts, the 1.8 TD offered significantly better fuel economy, making it a popular choice for fleet operators and private buyers alike. However, it was sometimes criticized for being slightly noisier and less refined than its petrol counterparts. The 1.8 TD offered a compelling alternative to other diesel-powered hatchbacks in its class, such as the Volkswagen Golf and Opel Astra.
Legacy
The Ford Escort VI 1.8 TD powertrain proved to be relatively reliable, with many examples still on the road today. The RFD engine is known for its durability and ability to withstand high mileage. However, like any older vehicle, regular maintenance is crucial to ensure long-term reliability. Common issues include turbocharger wear, fuel injector problems, and corrosion. In the used car market, the 1.8 TD Escort is often sought after by enthusiasts and those looking for a practical and economical classic car. Its combination of fuel efficiency, durability, and affordability makes it a popular choice for those seeking a reliable and easy-to-maintain vehicle.
