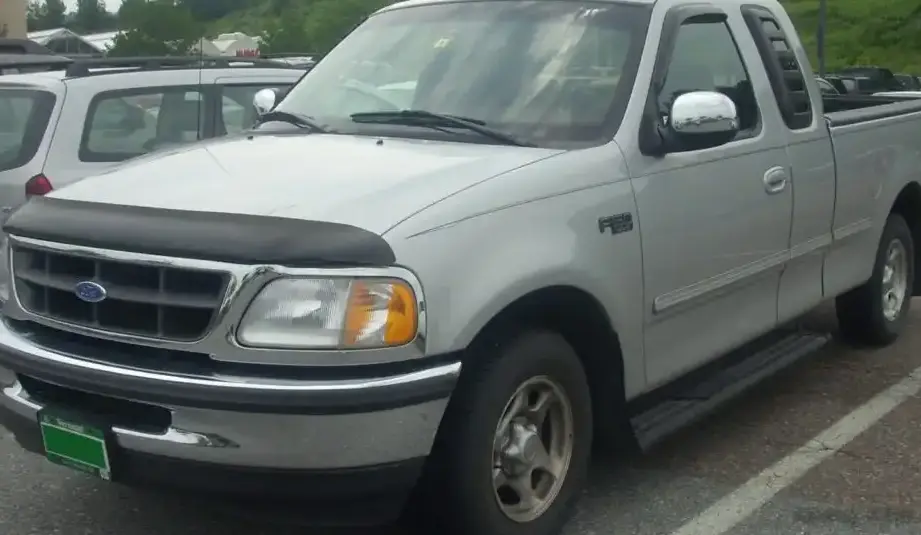

The Ford F-Series F-150 X SuperCab, equipped with the 4.6-liter V8 Triton engine producing 231 horsepower and a four-wheel-drive system, was a popular configuration within the ninth generation of Ford’s full-size pickup truck, produced from 1999 to 2004. This variant occupied a middle ground in the F-150 lineup, offering a balance between capability, comfort, and affordability. It catered to buyers needing a versatile truck for both work and personal use, without the premium price tag of the higher-output engines or luxury trims. The SuperCab body style provided extended passenger space compared to the standard cab, making it suitable for families or crews.
Technical Specifications
| Brand | Ford |
| Model | F-Series F-150 |
| Generation | F-Series F-150 X SuperCab |
| Type (Engine) | 4.6 V8 Triton (231 Hp) 4×4 |
| Start of production | 1999 |
| End of production | 2004 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5-6 |
| Doors | 2 |
| Fuel Type | Petrol (Gasoline) |
| Power | 231 Hp @ 4750 rpm |
| Power per litre | 50.2 Hp/l |
| Torque | 397 Nm @ 3500 rpm / 292.81 lb.-ft. @ 3500 rpm |
| Engine layout | Front, Longitudinal |
| Engine displacement | 4605 cm3 / 281.01 cu. in. |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 90.17 mm / 3.55 in. |
| Piston Stroke | 89.92 mm / 3.54 in. |
| Compression ratio | 9.3:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 5.7 l / 6.02 US qt | 5.02 UK qt |
| Coolant | 19.5 l / 20.61 US qt | 17.16 UK qt |
| Max. weight | 2835 kg / 6250.11 lbs. |
| Trunk (boot) space – minimum | 1422 l / 50.22 cu. ft. |
| Trunk (boot) space – maximum | 2056 l / 72.61 cu. ft. |
| Fuel tank capacity | 95-114 l / 25.1 – 30.12 US gal | 20.9 – 25.08 UK gal |
| Permitted trailer load with brakes (12%) | 1315 kg / 2899.08 lbs. |
| Length | 5736-6208 mm / 225.83 – 244.41 in. |
| Width | 2019 mm / 79.49 in. |
| Height | 1918 mm / 75.51 in. |
| Wheelbase | 3526-3998 mm / 138.82 – 157.4 in. |
| Front overhang | 983 mm / 38.7 in. |
| Rear overhang | 1227 mm / 48.31 in. |
| Ride height (ground clearance) | 206 mm / 8.11 in. |
| Approach angle | 25.8° |
| Departure angle | 19.8° |
| Ramp-over (brakeover) angle | 18.7° |
| Wading depth | 886 mm / 34.88 in. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Torsion |
| Rear suspension | Leaf spring |
| Front brakes | Ventilated discs, 308 mm |
| Rear brakes | Ventilated discs, 335 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Cone worm with recirculation balls |
| Power steering | Electric Steering |
| Tires size | 235/70 R16 |
| Wheel rims size | 16 |
Powertrain & Engine Architecture
The heart of this F-150 variant is the 4.6-liter Triton V8 engine. This engine, part of Ford’s modular engine family, featured a single overhead camshaft (SOHC) design with two valves per cylinder. The engine code varied, but commonly included designations like 2V. Multi-port fuel injection delivered fuel to each cylinder, optimizing combustion. The 9.3:1 compression ratio was a compromise between performance and the ability to run on readily available gasoline. The 4.6L Triton was known for its relatively smooth operation and decent low-end torque, making it suitable for everyday driving and towing. The five-speed manual transmission provided a direct connection to the engine, offering drivers more control over gear selection and engine braking.
Driving Characteristics
The 231-horsepower and 292 lb-ft of torque provided by the 4.6L V8 and five-speed manual transmission offered adequate performance for most tasks. Acceleration was respectable, though not as brisk as the larger 5.4L Triton V8. The manual transmission allowed for precise control, especially when towing or navigating challenging terrain. The gear ratios were tuned for a balance of fuel efficiency and towing capability. Compared to the automatic transmission option, the manual version offered slightly better fuel economy and a more engaging driving experience. However, it lacked the convenience of an automatic, particularly in stop-and-go traffic.
Equipment & Trim Levels
The F-150 X SuperCab 4.6L 4×4 typically came standard with features like air conditioning, a basic audio system, and cloth upholstery. The SuperCab configuration offered a split bench seat in the rear, providing seating for up to three additional passengers. Optional extras included power windows and locks, a premium sound system, cruise control, and upgraded interior trim. The “X” trim level represented a mid-range offering, positioned above the base XL trim but below the more luxurious Lariat and King Ranch models.
Chassis & Braking
The F-150’s chassis featured a robust frame construction designed for durability and towing capacity. The front suspension utilized torsion bars, while the rear suspension employed leaf springs. This setup provided a comfortable ride while maintaining good load-carrying capability. The four-wheel-drive system offered enhanced traction in slippery conditions. Braking duties were handled by ventilated disc brakes on all four wheels, with ABS (Anti-lock Braking System) as standard equipment. The braking system was adequate for the truck’s weight and performance, but it wasn’t particularly powerful compared to more modern systems.
Market Reception & Comparison
The F-150 X SuperCab 4.6L 4×4 was well-received by buyers seeking a versatile and capable pickup truck. Critics praised its comfortable ride, spacious interior, and decent performance. Compared to the larger 5.4L V8 models, the 4.6L offered better fuel economy, making it a more practical choice for daily driving. However, it lacked the sheer power of the 5.4L when it came to heavy towing or hauling. The manual transmission was appreciated by enthusiasts who preferred a more engaging driving experience, but it wasn’t as popular as the automatic transmission among the general public.
Legacy
The 4.6-liter Triton V8 engine, while generally reliable, did have some known issues, including potential spark plug breakage and timing chain wear. However, with proper maintenance, these engines could provide many years of service. Today, the F-150 X SuperCab 4.6L 4×4 remains a popular choice in the used truck market, offering a good balance of affordability, capability, and reliability. Its relatively simple design and readily available parts make it a relatively easy vehicle to maintain and repair. It represents a solid, dependable workhorse from a classic era of American pickup truck design.
