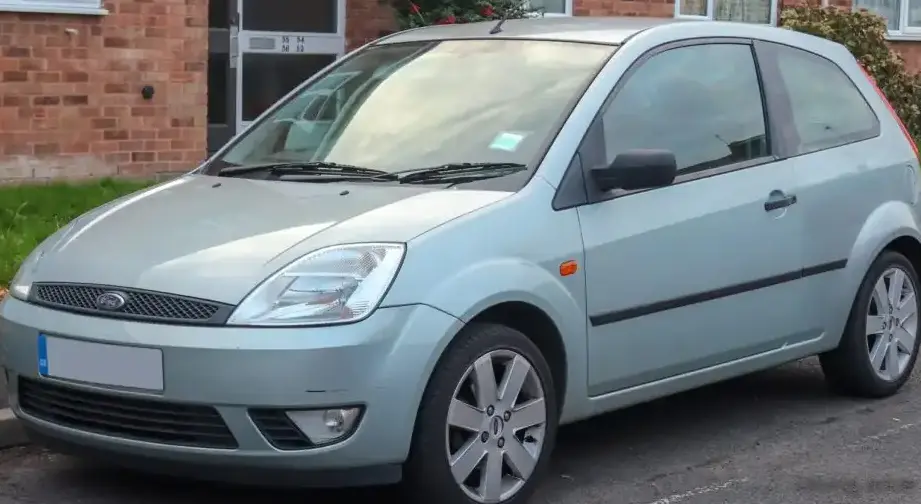

The Ford Fiesta Mk6, produced from 2002 to 2008, represented a significant step forward for Ford’s supermini. The 3-door variant, particularly when equipped with the 1.3-liter Duratec 8V engine producing 70 horsepower, served as the entry point into the Mk6 Fiesta range. This configuration was primarily aimed at budget-conscious buyers, first-time drivers, and those seeking economical transportation. Production of this specific trim ran from 2002 through 2005, before being superseded by minor revisions and engine updates within the Mk6 lineup. It was a key model in the European market, where small, fuel-efficient hatchbacks are highly popular.
Technical Specifications
| Brand | Ford |
| Model | Fiesta |
| Generation | Fiesta VI (Mk6) 3 door |
| Type (Engine) | 1.3 Duratec 8V (70 Hp) |
| Start of production | 2002 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (economy) – urban (NEDC) | 8.4 l/100 km (28 US mpg, 33.6 UK mpg, 11.9 km/l) |
| Fuel consumption (economy) – extra urban (NEDC) | 5 l/100 km (47 US mpg, 56.5 UK mpg, 20 km/l) |
| Fuel consumption (economy) – combined (NEDC) | 6.2 l/100 km (37.9 US mpg, 45.6 UK mpg, 16.1 km/l) |
| CO2 emissions (NEDC) | 147 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 15.8 sec |
| Acceleration 0 – 62 mph | 15.8 sec |
| Acceleration 0 – 60 mph | 15 sec |
| Maximum speed | 160 km/h (99.42 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 14.9 kg/Hp, 67.2 Hp/tonne |
| Weight-to-torque ratio | 9.8 kg/Nm, 101.7 Nm/tonne |
| Power | 70 Hp @ 5600 rpm |
| Power per litre | 53.9 Hp/l |
| Torque | 106 Nm @ 2600 rpm (78.18 lb.-ft. @ 2600 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | BAJA, A9JB |
| Engine displacement | 1299 cm3 (79.27 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 74 mm (2.91 in.) |
| Piston Stroke | 75.5 mm (2.97 in.) |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 4.35 l (4.6 US qt, 3.83 UK qt) |
| Coolant | 5 l (5.28 US qt, 4.4 UK qt) |
| Kerb Weight | 1042 kg (2297.22 lbs.) |
| Max. weight | 1530 kg (3373.07 lbs.) |
| Max load | 488 kg (1075.86 lbs.) |
| Trunk (boot) space – minimum | 268 l (9.46 cu. ft.) |
| Trunk (boot) space – maximum | 945 l (33.37 cu. ft.) |
| Fuel tank capacity | 45 l (11.89 US gal, 9.9 UK gal) |
| Length | 3917 mm (154.21 in.) |
| Width | 1683 mm (66.26 in.) |
| Width including mirrors | 1905 mm (75 in.) |
| Height | 1467 mm (57.76 in.) |
| Wheelbase | 2487 mm (97.91 in.) |
| Front track | 1474 mm (58.03 in.) |
| Rear (Back) track | 1444 mm (56.85 in.) |
| Minimum turning circle | 9.8 m (32.15 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson, Transverse stabilizer |
| Rear suspension | Coil spring, Torsion |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
| Wheel rims size | 5.5J x 14 |
Powertrain & Engine Architecture
The heart of this Fiesta variant is the 1.3-liter Duratec 8V engine, identified by engine codes BAJA and A9JB. This engine is a naturally aspirated, inline-four cylinder unit utilizing a single overhead camshaft (SOHC) design. The Duratec engine family was designed to be modular and cost-effective, and the 1.3L version was a key component in Ford’s strategy to offer affordable transportation. Fuel delivery is managed by a multi-port fuel injection system, providing adequate, though not exceptional, combustion control. The 8-valve configuration, while simpler than multi-valve designs, contributes to the engine’s robustness and ease of maintenance. The engine is transversely mounted, driving the front wheels. The transmission is a standard five-speed manual gearbox, chosen for its simplicity and efficiency. While an automatic transmission was offered on other Fiesta Mk6 trims, it wasn’t available with the base 1.3L engine.
Driving Characteristics
The 1.3L Fiesta’s driving experience is characterized by its economy-focused nature. With 70 horsepower and 106 Nm (78 lb-ft) of torque, acceleration is modest, taking approximately 15.8 seconds to reach 62 mph. The engine requires frequent downshifts to maintain momentum, particularly when overtaking or climbing hills. The five-speed manual transmission is well-matched to the engine’s powerband, offering a reasonable spread of gears. The steering is light and precise, making it easy to maneuver in urban environments. The suspension, while basic, provides a comfortable ride on most road surfaces. Compared to higher-spec Fiesta models with larger engines (like the 1.6 or 2.0L variants), the 1.3L feels significantly less powerful, but it offers a more forgiving and economical driving experience.
Equipment & Trim Levels
The 1.3L Fiesta typically came with a basic level of equipment. Standard features generally included power steering, central locking, and an adjustable steering column. Interior upholstery was typically cloth, with a simple dashboard layout. Air conditioning, alloy wheels, and electric windows were usually optional extras, often bundled into packages. The trim level was generally considered the base model, designed to appeal to buyers prioritizing affordability over luxury. The focus was on providing a functional and reliable vehicle at a low price point.
Chassis & Braking
The Fiesta Mk6 utilized a McPherson strut front suspension and a torsion beam rear suspension. This setup provided a good balance between ride comfort and handling. The front brakes were disc brakes, offering adequate stopping power, while the rear brakes were drums, a cost-saving measure common in entry-level models. Anti-lock Braking System (ABS) was standard, enhancing safety. The chassis was relatively lightweight, contributing to the car’s fuel efficiency. Stabilizer bars were fitted to the front suspension to reduce body roll during cornering.
Market Reception & Comparison
The 1.3L Fiesta was generally well-received as an affordable and economical city car. Critics praised its fuel efficiency and ease of driving, but noted its lack of outright performance. Compared to other trims in the Fiesta lineup, such as the 1.6L or Zetec models, the 1.3L offered significantly lower running costs but sacrificed performance and features. It competed with other superminis like the Volkswagen Polo, Renault Clio, and Peugeot 206, often undercutting them on price. Its reliability was generally considered good, although the engine’s simplicity meant it was less sophisticated than some of its rivals.
Legacy
The 1.3L Duratec engine, while not known for its power, proved to be a durable and reliable unit. Fiesta Mk6 models equipped with this engine are still relatively common on the used car market today. They are often sought after by first-time drivers or those looking for a cheap and cheerful runabout. Maintenance costs are generally low, and parts availability is good. However, potential buyers should be aware of the engine’s limited performance and the possibility of age-related wear and tear. The 1.3L Fiesta Mk6 represents a practical and economical choice for those prioritizing affordability and fuel efficiency over performance and luxury.
