Technical Specifications
| Brand | Ford |
| Model | Mondeo |
| Generation | Mondeo I Sedan |
| Type (Engine) | 1.8 i 16V (115 Hp) |
| Start of production | 1993 |
| End of production | 1994 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (combined) | 7.7 l/100 km |
| Fuel consumption (US mpg) | 30.5 US mpg |
| Fuel consumption (UK mpg) | 36.7 UK mpg |
| Fuel consumption (km/l) | 13 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.1 sec |
| Acceleration 0 – 62 mph | 11.1 sec |
| Acceleration 0 – 60 mph | 10.5 sec |
| Maximum speed | 195 km/h (121.17 mph) |
| Emission standard | Euro 2 |
| Weight-to-power ratio | 10.8 kg/Hp |
| Power | 115 Hp @ 5750 rpm |
| Power per litre | 64 Hp/l |
| Torque | 158 Nm @ 3750 rpm (116.53 lb.-ft. @ 3750 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | RKA |
| Engine displacement | 1796 cm3 (109.6 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80.6 mm (3.17 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Coolant capacity | 6.6 l (6.97 US qt | 5.81 UK qt) |
| Kerb Weight | 1240 kg (2733.73 lbs.) |
| Max. weight | 1800 kg (3968.32 lbs.) |
| Max load | 560 kg (1234.59 lbs.) |
| Trunk (boot) space – minimum | 480 l (16.95 cu. ft.) |
| Fuel tank capacity | 61 l (16.11 US gal | 13.42 UK gal) |
| Length | 4481 mm (176.42 in.) |
| Width | 1749 mm (68.86 in.) |
| Height | 1428 mm (56.22 in.) |
| Wheelbase | 2704 mm (106.46 in.) |
| Front track | 1503 mm (59.17 in.) |
| Rear track | 1487 mm (58.54 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 |

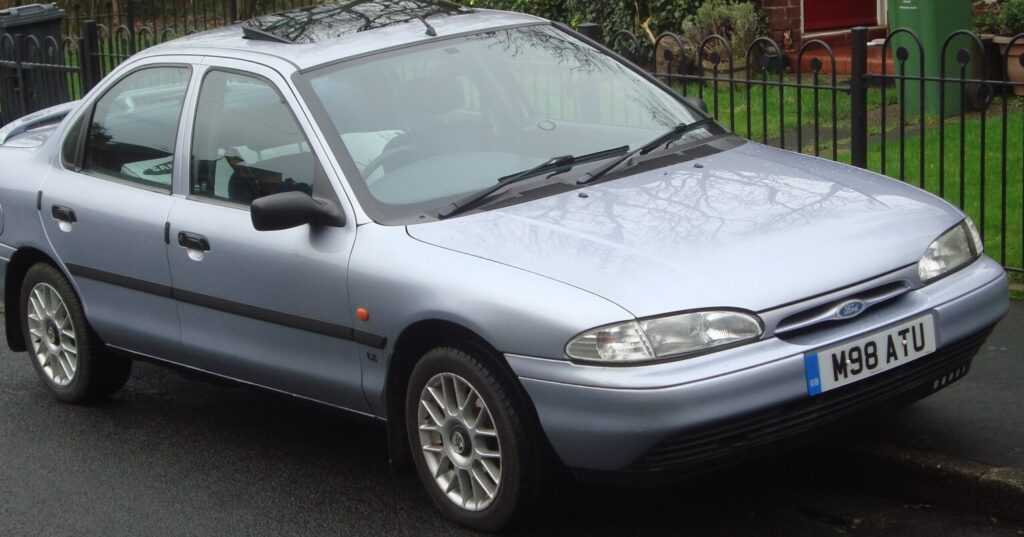

The Ford Mondeo I Sedan 1.8 i 16V, produced between 1993 and 1994, marked a pivotal moment for Ford’s mid-size car strategy in Europe. Designed to supersede the aging Sierra and Scorpio, the Mondeo aimed to deliver a modern, globally competitive vehicle. This specific 1.8-liter, 16-valve variant, equipped with a five-speed manual transmission, served as a cornerstone of the initial Mondeo lineup, offering a compelling blend of affordability, fuel efficiency, and adequate performance. It was a key component of the first-generation (BDM) Mondeo, built upon Ford’s globally-shared CDW27 platform, also known as the 1HX0 platform.
Powertrain & Engine Architecture
At the heart of this Mondeo variant lay the Ford RKA engine, a 1.8-liter inline-four cylinder gasoline engine. This engine benefited from a 16-valve dual overhead camshaft (DOHC) configuration, optimizing airflow and contributing to its respectable power output for its displacement. The RKA engine incorporated multi-port fuel injection, a significant advancement over previous throttle-body injection systems, enhancing fuel atomization and combustion efficiency. The engine’s dimensions – an 80.6mm bore and 88mm stroke – resulted in a total displacement of 1796cc. The standard five-speed manual transmission provided drivers with precise control over the engine’s powerband. This transmission was selected for its durability and relatively smooth shifting feel.
Driving Characteristics
The 1.8L Mondeo delivered a comfortable and predictable driving experience. Producing 115 horsepower and 158 Nm (116.53 lb-ft) of torque, acceleration was sufficient for everyday driving, though not particularly sporty. A 0-60 mph time of approximately 10.5 seconds reflects this. The five-speed manual transmission allowed drivers to maintain the engine within its optimal power range, providing reasonable responsiveness. Compared to the more powerful 2.0L or V6 Mondeo versions, the 1.8L felt less potent, especially when carrying a full load or ascending steep hills. However, it offered a noticeable improvement in fuel economy. The gear ratios were well-spaced, balancing acceleration with cruising efficiency. The steering was light and precise, making it easy to maneuver in urban settings.
Equipment & Trim Levels
The 1.8 i 16V Mondeo typically included a reasonable array of standard features for its era. These encompassed power steering, central locking, electric front windows, and an adjustable steering column. Interior upholstery was generally cloth, with a relatively straightforward dashboard layout. Optional extras included air conditioning, a sunroof, and upgraded audio systems. This trim level occupied a middle ground within the Mondeo range, offering more features than the base models but lacking the luxurious appointments of the higher-specification versions. It was targeted towards families and drivers who prioritized practicality and value.
Chassis & Braking
The Mondeo I featured an independent front suspension with wishbones and a coil spring rear suspension. This configuration provided a comfortable ride and respectable handling characteristics. The front brakes were ventilated discs, offering strong stopping power, while the rear brakes were drums. ABS (Anti-lock Braking System) was standard, enhancing safety. The chassis was engineered to strike a balance between ride comfort and handling stability. The relatively light weight of the 1.8L model, approximately 1240 kg (2733.73 lbs), contributed to its agility.
Market Reception & Comparison
The Ford Mondeo I was generally well-received by automotive critics. The 1.8L variant was lauded for its fuel efficiency and affordability. However, some reviewers pointed out that its performance was somewhat underwhelming compared to its competitors and the higher-powered Mondeo models. Compared to the 2.0L version, the 1.8L offered better fuel economy (around 7.7 l/100km versus 8.5 l/100km) but considerably less power. The 1.8L also represented a more economical choice than the V6 models, which prioritized performance over fuel efficiency. The Mondeo’s spacious interior and comfortable ride were consistently highlighted as strengths.
Legacy
The Ford Mondeo I, and specifically the 1.8 i 16V variant, firmly established the Mondeo as a strong contender in the mid-size family car segment. The RKA engine proved to be relatively reliable, provided regular maintenance was performed. In today’s used car market, these models are increasingly sought after by enthusiasts and collectors. While not as highly prized as the higher-performance versions, the 1.8L Mondeo offers a cost-effective entry point into Mondeo ownership, delivering a classic 1990s driving experience. Parts availability is generally good, making it a relatively straightforward car to maintain and restore. The Mondeo I laid the groundwork for the continued success of the Mondeo nameplate, which remains a popular choice for families and fleet buyers.
