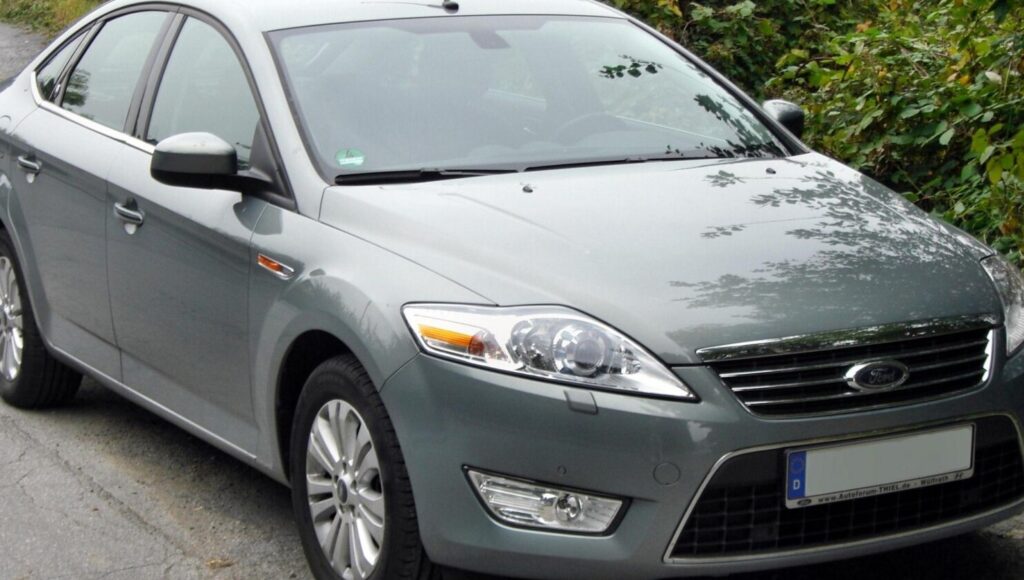

The Ford Mondeo III Hatchback 2.0 TDCi, producing 140 horsepower, was a significant offering in the European market from 2007 to 2010. Positioned as a mid-range trim within the Mondeo III lineup, it aimed to balance fuel efficiency with respectable performance for family and fleet buyers. This variant played a crucial role in solidifying the Mondeo’s reputation as a practical and well-rounded vehicle, competing directly with rivals like the Volkswagen Passat and Opel Vectra. The Mondeo III, built on the B72 platform, represented a substantial evolution over its predecessor, offering improved refinement, safety features, and a more contemporary design.
Technical Specifications
| Brand | Ford |
| Model | Mondeo |
| Generation | Mondeo III Hatchback |
| Type (Engine) | 2.0 TDCi (140 Hp) |
| Start of production | 2007 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.6 l/100 km (30.9 US mpg) |
| Fuel consumption (extra urban) | 4.9 l/100 km (48 US mpg) |
| Fuel consumption (combined) | 5.9 l/100 km (39.9 US mpg) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9.5 sec |
| Acceleration 0 – 62 mph | 9.5 sec |
| Acceleration 0 – 60 mph | 9 sec |
| Maximum speed | 210 km/h (130.49 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 10.6 kg/Hp |
| Weight-to-torque ratio | 4.6 kg/Nm |
| Power | 140 Hp @ 4000 rpm |
| Torque | 320 Nm @ 1750 rpm (236.02 lb.-ft. @ 1750 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | QXBA |
| Engine displacement | 1997 cm3 (121.86 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 17.9:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Coolant capacity | 8.1 l (8.56 US qt | 7.13 UK qt) |
| Kerb Weight | 1481 kg (3265.05 lbs.) |
| Max. weight | 2170 kg (4784.03 lbs.) |
| Max load | 689 kg (1518.98 lbs.) |
| Trunk (boot) space – minimum | 486 l (17.16 cu. ft.) |
| Trunk (boot) space – maximum | 1460 l (51.56 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4778 mm (188.11 in.) |
| Width | 1886 mm (74.25 in.) |
| Height | 1500 mm (59.06 in.) |
| Wheelbase | 2850 mm (112.2 in.) |
| Front track | 1522 mm (59.92 in.) |
| Rear track | 1537 mm (60.51 in.) |
| Minimum turning circle | 11.1 m (36.42 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric |
| Tires size | 205/55 R16 |
Powertrain & Engine Architecture
The heart of the Mondeo III 2.0 TDCi was the QXBA engine, a four-cylinder diesel utilizing common rail direct injection. This engine was part of Ford’s Duratorq family, known for its robustness and relatively good fuel economy. The 1997cc engine featured a single overhead camshaft (SOHC) design with four valves per cylinder. The turbocharger, coupled with an intercooler, boosted power output to 140 hp at 4000 rpm and a healthy 320 Nm (236 lb-ft) of torque at just 1750 rpm. This torque curve provided good low-end grunt, making it suitable for everyday driving and hauling passengers. The six-speed manual transmission was the standard offering, providing a good balance between fuel efficiency and driver control. The gear ratios were tuned for relaxed cruising, prioritizing fuel economy over outright acceleration.
Driving Characteristics
The 2.0 TDCi 140 hp engine in the Mondeo III offered a comfortable and refined driving experience. While not a performance-oriented variant, it provided sufficient power for most driving situations. Acceleration from 0-60 mph took around 9 seconds, and top speed was rated at 130 mph. The engine’s strong torque delivery meant that overtaking maneuvers were generally effortless, even with a full load. Compared to the higher-output 2.2 TDCi models, the 2.0 TDCi felt less strained at higher speeds, but lacked the same level of outright punch. The manual transmission was smooth and precise, although the shift linkage could feel a little vague at times. Overall, the driving experience was geared towards comfort and practicality rather than sporty handling.
Equipment & Trim Levels
The 2.0 TDCi variant typically came equipped with a respectable level of standard features. These included air conditioning, power windows, power mirrors, a CD player with steering wheel-mounted audio controls, and ABS brakes. Higher trim levels, such as Titanium, added features like alloy wheels, automatic climate control, rain-sensing wipers, and a trip computer. Optional extras included a sunroof, leather upholstery, and a premium sound system. Interior upholstery was typically cloth, although leather was available as an upgrade. The dashboard layout was functional and well-designed, with clear instrumentation and intuitive controls.
Chassis & Braking
The Mondeo III utilized a MacPherson strut front suspension and a multi-link rear suspension, providing a comfortable and controlled ride. The suspension was tuned to prioritize ride comfort over sporty handling, but still offered decent body control in corners. Front brakes were ventilated discs, while rear brakes were solid discs. ABS was standard, providing enhanced braking performance in emergency situations. The steering was electrically assisted, offering a light and precise feel. The chassis was well-built and felt solid, contributing to the car’s overall sense of refinement.
Market Reception & Comparison
The Ford Mondeo III 2.0 TDCi was generally well-received by automotive critics. It was praised for its fuel efficiency, comfortable ride, and spacious interior. However, some critics noted that the engine could be a little noisy under hard acceleration. Compared to other trims in the Mondeo lineup, the 2.0 TDCi offered a good balance between price and performance. It was more affordable than the higher-output 2.2 TDCi models, but still provided sufficient power for most drivers. Fuel economy was comparable to other diesel-powered vehicles in its class.
Legacy
The Ford Mondeo III 2.0 TDCi has proven to be a reliable and durable vehicle. The Duratorq engine is known for its longevity, and with regular maintenance, it can easily exceed 200,000 miles. The car remains a popular choice in the used car market, offering good value for money. Common issues include wear and tear on suspension components and occasional problems with the fuel injection system. However, these issues are generally not major and can be addressed with relatively inexpensive repairs. The Mondeo III 2.0 TDCi continues to be a practical and dependable choice for those seeking a comfortable and fuel-efficient family car.
