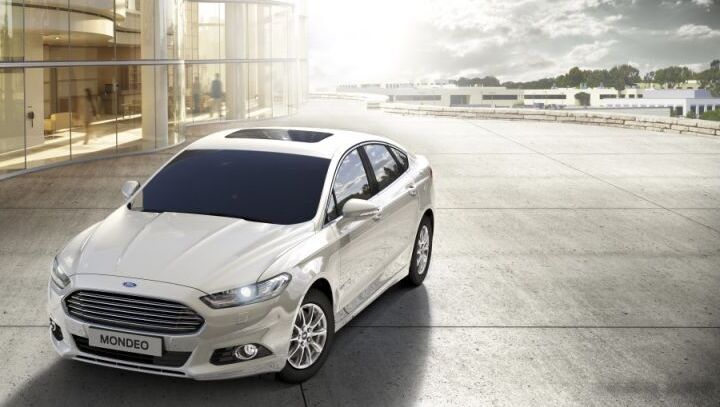

2014-2018 Ford Mondeo IV Sedan 1.5 EcoBoost (160 Hp)

The Ford Mondeo IV Sedan 1.5 EcoBoost (160 hp) represents a significant iteration in Ford’s mid-size sedan lineup, produced between 2014 and 2018. This variant was part of the fourth generation of the Mondeo (introduced globally in 2014, and in North America as the Fusion), built on the CD2 platform – a modernized version of the earlier EUCD platform. The 1.5 EcoBoost model occupied a crucial position as the entry-level gasoline engine option, offering a balance between fuel efficiency and acceptable performance for everyday driving. It aimed to attract buyers seeking a comfortable and well-equipped sedan without the higher price tag of the more powerful engine choices.

The 1.5 EcoBoost: Positioning and Overview

The Mondeo IV range offered a variety of powertrains, including larger gasoline engines (2.0 EcoBoost) and diesel options (1.6 TDCi, 2.0 TDCi). The 1.5 EcoBoost 160 hp model served as the gateway to the Mondeo lineup for many customers. It was positioned below the 2.0L EcoBoost variants in terms of performance and price, and offered a more economical alternative to the diesel engines. This trim level typically appealed to families and commuters prioritizing fuel economy and practicality over outright speed. The sedan body style was popular in many markets, offering a more traditional appearance compared to the hatchback and wagon versions also available.

Powertrain & Engine Architecture

The heart of the Mondeo IV Sedan 1.5 EcoBoost is the UNCA, UNCB, UNCE, UNCF, or UNCM engine code, a 1.498-liter (91.41 cubic inches) inline-four cylinder gasoline engine. This engine is a member of Ford’s EcoBoost family, characterized by turbocharging and direct fuel injection. The engine utilizes a single-scroll turbocharger with an intercooler to boost power and efficiency. Direct injection, operating at pressures up to 200 bar, ensures precise fuel delivery and optimized combustion. The engine features a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its responsive nature.

The 1.5 EcoBoost engine employs a sophisticated engine management system to control fuel injection, ignition timing, and turbocharger boost. This system optimizes performance and fuel economy based on driving conditions. The engine’s block is constructed from aluminum, contributing to weight reduction. The engine oil capacity is 4.05 liters (4.28 US quarts / 3.56 UK quarts), and requires a specification adhering to Ford’s standards. The cooling system holds 10.5 liters (11.1 US quarts / 9.24 UK quarts) of coolant.

Transmission Details

While a six-speed automatic transmission was available, the 1.5 EcoBoost was often paired with a six-speed manual transmission. This manual gearbox was chosen to maximize fuel efficiency and provide a more engaging driving experience. The gear ratios were optimized to provide a balance between acceleration and cruising comfort. The automatic transmission, when equipped, offered smooth shifts and a convenient driving experience, but at the expense of some fuel economy.

Driving Characteristics

The 1.5 EcoBoost engine delivers a maximum power output of 160 hp at 6000 rpm and a peak torque of 240 Nm (177.01 lb-ft) between 1500 and 4500 rpm. This torque curve provides good low-end responsiveness, making the car feel lively in everyday driving situations. Acceleration from 0 to 100 km/h (0-62 mph) takes approximately 9.2 seconds, and 0-60 mph is achieved in around 8.7 seconds. While not a performance-oriented engine, the 1.5 EcoBoost offers sufficient power for comfortable highway cruising and overtaking maneuvers.

Compared to the 2.0 EcoBoost variants, the 1.5 EcoBoost feels less powerful, particularly at higher speeds. However, it offers a more refined and fuel-efficient driving experience. The manual transmission allows for greater driver control, while the automatic transmission provides convenience. The engine’s turbocharger provides a noticeable boost in power when accelerating, but some turbo lag is present at lower engine speeds. The overall driving experience is comfortable and composed, thanks to the Mondeo’s well-tuned suspension.

Equipment & Trim Levels

The Mondeo IV Sedan 1.5 EcoBoost was typically offered in several trim levels, including Zetec, Titanium, and Vignale. The Zetec trim served as the base model, offering standard features such as air conditioning, power windows, a basic audio system, and alloy wheels. The Titanium trim added features such as dual-zone climate control, a more advanced audio system, and upgraded interior trim. The Vignale trim represented the luxury flagship, offering premium leather upholstery, advanced safety features, and exclusive styling cues.

Optional extras available for the 1.5 EcoBoost model included a navigation system, a sunroof, parking sensors, and a rear-view camera. Interior upholstery typically consisted of cloth or leather, depending on the trim level. The dashboard layout was modern and functional, with a central touchscreen display providing access to various vehicle functions. Safety features included ABS, electronic stability control, and multiple airbags.

Chassis & Braking

The Mondeo IV Sedan features an independent front suspension with McPherson struts and a coil spring and anti-roll bar. The rear suspension utilizes an independent multi-link setup with a stabilizer bar, providing a comfortable and controlled ride. The front brakes are ventilated discs, while the rear brakes are discs. ABS (Anti-lock Braking System) is standard, enhancing braking performance and stability. The steering system is a rack and pinion type, providing precise and responsive steering feel.

The Mondeo’s chassis was designed to provide a balance between comfort and handling. The suspension tuning was optimized for everyday driving conditions, offering a smooth ride over various road surfaces. The car’s weight distribution contributes to its stable handling characteristics. Tire sizes varied depending on the trim level, ranging from 215/60 R16 to 235/40 R19.

Market Reception & Comparison

The Ford Mondeo IV Sedan 1.5 EcoBoost received generally positive reviews from automotive critics. It was praised for its fuel efficiency, comfortable ride, and well-equipped interior. However, some critics noted that the engine lacked the power of the larger EcoBoost variants. Compared to the 2.0 EcoBoost models, the 1.5 EcoBoost offered better fuel economy but slower acceleration. Compared to the diesel options, the 1.5 EcoBoost provided a quieter and more refined driving experience, but with slightly higher running costs. Fuel consumption figures averaged around 5.8 l/100 km (40.6 US mpg / 48.7 UK mpg), and CO2 emissions were rated at 134 g/km (Euro 6 standard).

Technical Specifications

Legacy

The 1.5 EcoBoost engine has proven to be a relatively reliable powertrain, although some owners have reported issues with the turbocharger and fuel injectors. Regular maintenance, including oil changes and fuel filter replacements, is crucial for ensuring long-term reliability. In the used car market, the Mondeo IV Sedan 1.5 EcoBoost represents a good value proposition, offering a comfortable and well-equipped sedan at an affordable price. Its fuel efficiency and practicality make it a popular choice for families and commuters. While not as sought-after as the higher-performance variants, the 1.5 EcoBoost model remains a viable option for buyers seeking a dependable and economical mid-size sedan.
