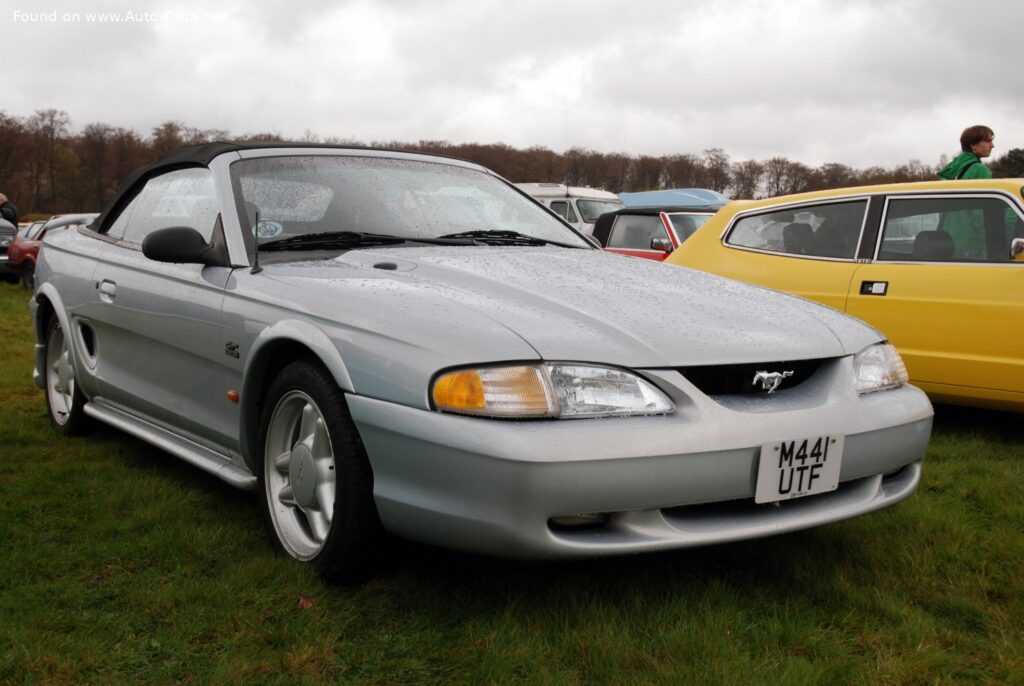

1995-1997 Ford Mustang Convertible IV 4.6 V8 GT (215 Hp)

The Ford Mustang Convertible IV 4.6 V8 GT, produced between 1995 and 1997, represented a significant iteration of Ford’s iconic pony car. This fourth-generation Mustang (SN-95 chassis) offered open-air driving enjoyment combined with the performance of Ford’s modular 4.6-liter V8 engine. Positioned as the performance-oriented trim of the Convertible lineup, the GT model sat above the base V6 models, offering a substantial power upgrade and a more aggressive driving experience. It served as a bridge between the more affordable V6 convertibles and the higher-performance, but less accessible, special edition Mustangs.

Powertrain & Engine Architecture

The heart of the 1995-1997 Mustang Convertible IV GT was Ford’s 4.6-liter Modular V8 engine, internally designated the 99WSFI. This engine represented a departure from the traditional Ford V8 designs, utilizing overhead camshafts (OHC) and a more modern construction. The engine displaced 4601 cm3 (280.77 cubic inches) and featured a 9:1 compression ratio. It was naturally aspirated and employed a multi-port fuel injection system, delivering fuel directly into each intake port. The valvetrain consisted of two valves per cylinder.

The 99WSFI engine produced 215 horsepower at 4400 rpm and 285 lb-ft of torque at 3500 rpm. While not a groundbreaking power figure for the era, it provided a noticeable performance increase over the base V6 engine. The engine’s architecture was designed for future scalability, and later iterations of the Modular V8 would see significant power gains. The engine oil capacity was 5.7 liters (6.02 US quarts), and the cooling system held 13.3 liters (14.05 US quarts) of coolant.

The Mustang GT Convertible utilized a 5-speed manual transmission as standard. This transmission was designed to handle the V8’s power output and provided a direct connection between the engine and the rear wheels. The transmission’s gear ratios were optimized for both acceleration and highway cruising.

Engine Code Specifics

The 99WSFI engine code signifies a specific configuration of the 4.6L Modular V8. Early versions of this engine were known for some initial quality control issues, particularly regarding oil leaks and intake manifold gasket failures. However, these issues were largely addressed through running changes during the 1996 and 1997 model years. The engine’s design, while modern for its time, was relatively simple, making it reasonably accessible for DIY maintenance and repairs.

Driving Characteristics

The 1995-1997 Mustang Convertible IV GT offered a classic American muscle car driving experience, albeit tempered by the convertible body style. The 215 hp and 285 lb-ft of torque provided brisk acceleration, with 0-60 mph times typically falling in the mid-6 second range. The 5-speed manual transmission allowed drivers to fully exploit the engine’s powerband, while the rear-wheel-drive configuration contributed to a lively and engaging driving experience.

Compared to the base V6 Mustang Convertible, the GT offered a significantly more responsive throttle and a more satisfying exhaust note. While not as powerful as later Mustang GT models, the 4.6L V8 provided ample power for everyday driving and spirited weekend excursions. The convertible top, while adding some weight and reducing structural rigidity, did not significantly detract from the car’s handling characteristics. The suspension was tuned for a balance between comfort and performance, providing a reasonably compliant ride without sacrificing too much handling precision.

Equipment & Trim Levels

The Mustang Convertible IV GT came standard with a number of features designed to enhance the driving experience. These included power windows, power locks, air conditioning, and a basic sound system. The interior typically featured cloth upholstery, although leather upholstery was available as an option. The dashboard layout was relatively straightforward, with clearly marked gauges and easy-to-use controls.

Optional extras included a premium sound system, leather upholstery, power driver’s seat, and a color-matched hardtop. The GT trim also included unique exterior styling cues, such as a rear spoiler, fog lights, and GT badging. The color palette offered a range of options, including traditional Mustang colors like red, black, and white, as well as more vibrant shades.

Chassis & Braking

The Mustang Convertible IV utilized a front wishbone and rear trailing arm suspension system. This suspension setup provided a reasonable balance between ride comfort and handling performance. The GT model typically featured heavier-duty springs and shocks compared to the base V6 models, improving handling stability. The curb weight of the GT Convertible was approximately 3425.98 lbs (1554 kg).

Braking duties were handled by disc brakes on all four wheels, providing adequate stopping power for the car’s weight and performance. An Anti-lock Braking System (ABS) was standard equipment, enhancing safety and control during emergency braking situations. The steering system was a hydraulic power rack and pinion setup, providing precise and responsive steering feel. The standard tire size was 225/55 R16.

Market Reception & Comparison

The 1995-1997 Mustang Convertible IV GT was generally well-received by automotive critics. It was praised for its stylish design, powerful V8 engine, and relatively affordable price. However, some critics noted the car’s somewhat dated interior and its lack of refinement compared to some of its European competitors.

Compared to the base V6 Mustang Convertible, the GT offered a significant performance advantage. Fuel economy was understandably lower, with a combined fuel consumption of 11.1 l/100 km (21.2 US mpg). In terms of reliability, the 4.6L V8 engine proved to be reasonably durable, although early models were prone to some minor issues. The GT Convertible offered a compelling alternative to other sports cars in its price range, such as the Mazda MX-5 Miata and the Chevrolet Camaro Convertible.

Technical Specifications

Legacy

The 1995-1997 Mustang Convertible IV GT remains a popular choice among Mustang enthusiasts and collectors. The 4.6L V8 engine, while not the most powerful Mustang engine ever produced, is known for its reliability and relatively easy maintenance. These cars are readily available on the used car market at affordable prices, making them an accessible entry point into the world of classic American muscle cars. While early models may require some attention to address common issues like oil leaks, the 4.6L V8 is generally considered a durable and long-lasting powertrain. The combination of open-air driving enjoyment, V8 power, and classic Mustang styling ensures that the 1995-1997 Convertible IV GT will continue to be appreciated for years to come.
