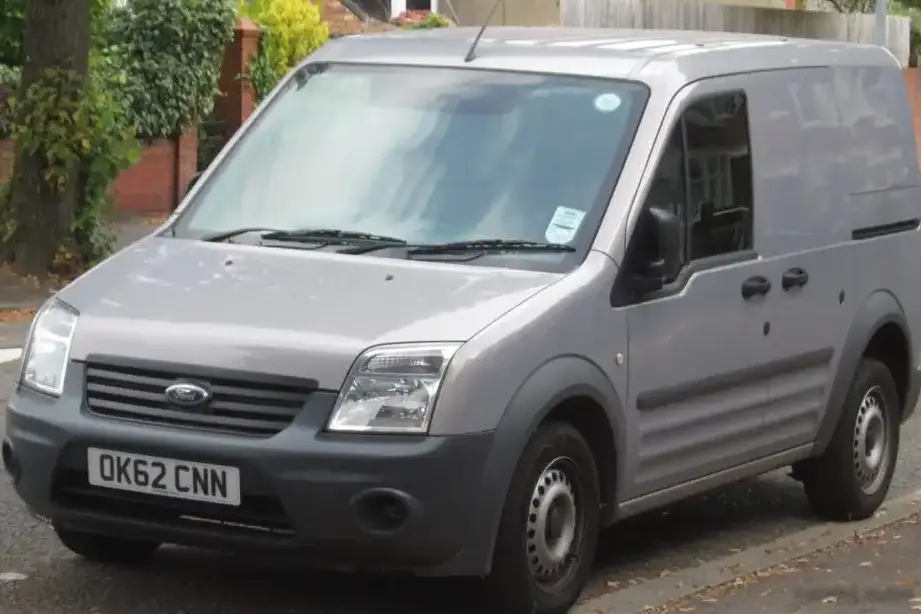

The Ford Transit Connect, particularly the first generation (2002-2013) and its 2009 facelift, represented Ford’s entry into the compact commercial van segment in North America and Europe. The 1.8 TDCi 90 hp variant, produced from 2011-2013, was a significant offering within the lineup, positioned as an economical and practical choice for businesses and individuals needing a small, versatile cargo vehicle. This specific configuration – the L1H1 panel van with the 1.8-liter diesel engine and a five-speed manual transmission – aimed to balance affordability with reasonable performance and fuel efficiency. It served as a base model, offering essential functionality without the added cost of more powerful engines or higher trim levels.
Technical Specifications
| Brand | Ford |
| Model | Transit Connect |
| Generation | Transit Connect I (facelift 2009) Panel Van L1H1 |
| Type (Engine) | 1.8 TDCi (90 Hp) DPF |
| Start of production | September, 2011 |
| End of production | 2013 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 2 |
| Doors | 3-5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg, 39.2 UK mpg, 13.9 km/l) |
| Fuel consumption (extra urban) | 5.3 l/100 km (44.4 US mpg, 53.3 UK mpg, 18.9 km/l) |
| Fuel consumption (combined) | 6 l/100 km (39.2 US mpg, 47.1 UK mpg, 16.7 km/l) |
| CO2 emissions | 159 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 17.4 sec |
| Acceleration 0 – 62 mph | 17.4 sec |
| Acceleration 0 – 60 mph | 16.5 sec |
| Maximum speed | 155 km/h (96.31 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 15.4 kg/Hp, 64.8 Hp/tonne |
| Weight-to-torque ratio | 5.9 kg/Nm, 169.3 Nm/tonne |
| Power | 90 Hp @ 4000 rpm |
| Power per litre | 51.3 Hp/l |
| Torque | 235 Nm @ 1900 rpm (173.33 lb.-ft. @ 1900 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Duratorq / HCPA, P9PA, R3PA |
| Engine displacement | 1753 cm3 (106.97 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 82 mm (3.23 in.) |
| Compression ratio | 19.4:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | SOHC |
| Engine oil capacity | 5.6 l (5.92 US qt | 4.93 UK qt) |
| Coolant capacity | 7 l (7.4 US qt | 6.16 UK qt) |
| Kerb Weight | 1388-1510 kg (3060.02 – 3328.98 lbs.) |
| Max. weight | 2040-2240 kg (4497.43 – 4938.35 lbs.) |
| Max load | 652-730 kg (1437.41 – 1609.37 lbs.) |
| Trunk (boot) space – minimum | 2800 l (98.88 cu. ft.) |
| Trunk (boot) space – maximum | 3400 l (120.07 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Permitted trailer load (braked) | 1200 kg (2645.55 lbs.) |
| Permitted trailer load (unbraked) | 730 kg (1609.37 lbs.) |
| Length | 4275 mm (168.31 in.) |
| Width | 1795 mm (70.67 in.) |
| Width (including mirrors) | 2044 mm (80.47 in.) |
| Height | 1815 mm (71.46 in.) |
| Wheelbase | 2664 mm (104.88 in.) |
| Front track | 1505 mm (59.25 in.) |
| Rear track | 1552 mm (61.1 in.) |
| Front overhang | 861 mm (33.9 in.) |
| Rear overhang | 749 mm (29.49 in.) |
| Ride height | 166 mm (6.54 in.) |
| Turning circle | 11 m (36.09 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Transverse stabilizer, Leaf spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
INTRODUCTION
The Ford Transit Connect I, launched in 2002 and receiving a significant facelift in 2009, was a crucial model for Ford in Europe and, later, North America. Based on the Ford Focus C-car platform (specifically the 1HX0/A3 architecture), it offered a smaller, more fuel-efficient alternative to larger, body-on-frame vans. The 1.8 TDCi 90 hp variant, introduced in 2011, was a key part of the facelifted range, aiming to provide a cost-effective solution for commercial users and small businesses. This L1H1 configuration (short wheelbase, standard roof height) was the most common, maximizing cargo space within a compact footprint. It was primarily sold as a panel van, though a double-cab-in-van version was also available.
Powertrain & Engine Architecture
The heart of this Transit Connect variant is the 1.8-liter Duratorq TDCi diesel engine, specifically utilizing engine codes like HCPA, P9PA, or R3PA. This engine is a four-cylinder, inline configuration with a displacement of 1753 cc. It features a single overhead camshaft (SOHC) valvetrain with two valves per cylinder. The engine employs a turbocharger with an intercooler to boost power and efficiency. Crucially, it utilizes a Diesel Commonrail fuel injection system, delivering precise fuel metering for improved combustion and reduced emissions. The 90 horsepower output is achieved at 4000 rpm, while peak torque of 235 Nm (173.33 lb.-ft.) is available from 1900 rpm. This engine was paired with a five-speed manual transmission, chosen for its simplicity and fuel efficiency. The transmission’s gear ratios were optimized for maximizing torque delivery at lower speeds, suitable for urban driving and light cargo hauling.
Driving Characteristics
The 1.8 TDCi 90 hp Transit Connect, with its manual transmission, offered a functional but not particularly sporty driving experience. Acceleration was modest, with a 0-60 mph time around 16.5 seconds. The engine’s torque delivery was relatively flat, providing adequate pulling power for typical commercial tasks, but it lacked the responsiveness of higher-output versions. The five-speed gearbox was well-matched to the engine’s characteristics, allowing drivers to keep the engine in its optimal torque band. Compared to the more powerful 1.6-liter EcoBoost petrol engine or the higher-tuned diesel variants, this 1.8 TDCi felt noticeably slower, especially when fully loaded. However, its strength lay in its fuel economy and affordability. The suspension, tuned for carrying loads, provided a comfortable ride when unladen but could become somewhat firm with a full cargo bay.
Equipment & Trim Levels
The 1.8 TDCi 90 hp Transit Connect was typically offered in a basic trim level, focusing on practicality rather than luxury. Standard equipment included power steering, a driver’s airbag, and basic instrumentation. The interior was functional and durable, with hard-wearing plastics and cloth upholstery. The cab featured a simple dashboard layout with easy-to-use controls. Optional extras included air conditioning, a radio/CD player, electric windows, and central locking. The van’s primary focus was on providing a versatile cargo space, with features like load tie-down points and a rear door configuration designed for easy loading and unloading.
Chassis & Braking
The Transit Connect’s chassis was based on the Ford Focus platform, providing a relatively car-like driving experience. The front suspension utilized an independent McPherson strut setup with coil springs and an anti-roll bar, while the rear suspension employed a semi-independent twist beam arrangement with a transverse stabilizer. Braking was handled by ventilated discs on the front wheels and solid discs on the rear. Anti-lock Braking System (ABS) was standard, enhancing safety during emergency braking. The van’s weight-to-power ratio of 15.4 kg/hp indicated its focus on utility rather than performance. The relatively simple suspension setup was designed to balance ride comfort with load-carrying capacity.
Market Reception & Comparison
The 1.8 TDCi 90 hp Transit Connect was generally well-received as a practical and economical commercial vehicle. Critics praised its fuel efficiency, compact size, and versatile cargo space. However, some reviewers noted its modest performance and basic interior. Compared to the higher-output diesel variants, this model offered lower running costs but sacrificed some power and refinement. Against competitors like the Volkswagen Caddy and Citroën Berlingo, the Transit Connect offered a competitive package in terms of price, fuel economy, and cargo capacity. Its reliability was generally considered good, though diesel particulate filter (DPF) maintenance was a potential concern for owners primarily driving short distances.
Legacy
The 1.8 TDCi 90 hp Ford Transit Connect has proven to be a relatively reliable and durable workhorse in the used car market. The Duratorq engine, while not known for blistering performance, is generally robust and capable of high mileage with proper maintenance. The simplicity of the mechanical components makes it relatively easy and affordable to repair. However, potential buyers should be aware of the potential for DPF issues, particularly if the vehicle has been primarily used for short trips. Today, these vans are often found in the hands of small businesses, tradespeople, and individuals seeking an affordable and practical cargo solution. They represent a solid value proposition for those prioritizing functionality and economy over outright performance.
