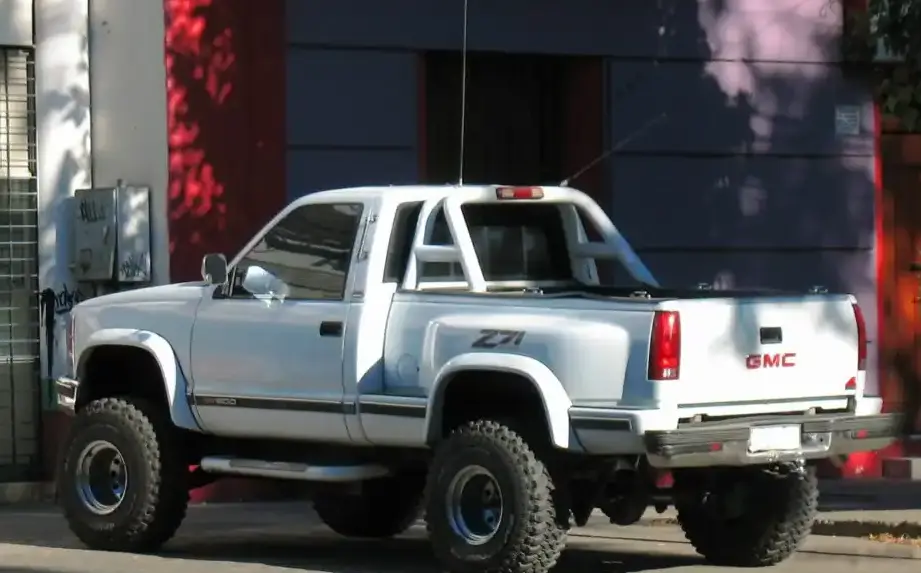

The GMC Sierra 1500, in its first generation (GMT400), represented GMC’s entry into the increasingly popular full-size pickup truck market. Produced from 1988 through 1992, this iteration of the Sierra aimed to provide a robust and capable work vehicle, while also offering a degree of comfort and style not always found in its class. The Regular Cab SWB (Short Wheelbase) Sportside configuration, equipped with the 5.7-liter V8 engine producing 210 horsepower and paired with a four-wheel-drive system, was a common sight on American roads and job sites. This particular variant occupied a middle ground in the Sierra 1500 lineup, offering a balance between affordability and capability, appealing to both individual owners and commercial users.
Technical Specifications
| Brand | GMC |
| Model | Sierra 1500 |
| Generation | Sierra 1500 I (GMT400) Regular cab SWB Sportside |
| Type (Engine) | 5.7 V8 (210 Hp) 4WD |
| Start of production | 1988 |
| End of production | 1992 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 3 |
| Doors | 2 |
| Fuel Type | Petrol (Gasoline) |
| Power | 210 Hp @ 4000 rpm |
| Torque | 407 Nm @ 2800 rpm / 300.19 lb.-ft. @ 2800 rpm |
| Engine layout | Front, Longitudinal |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 101.6 mm / 4 in. |
| Piston Stroke | 88.39 mm / 3.48 in. |
| Compression ratio | 9.3:1 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Max. weight | 2540 kg / 5599.74 lbs. |
| Fuel tank capacity | 95 l / 25.1 US gal | 20.9 UK gal |
| Length | 5065 mm / 199.41 in. |
| Width | 1958 mm / 77.09 in. |
| Height | 1788 mm / 70.39 in. |
| Wheelbase | 2985 mm / 117.52 in. |
| Front overhang | 886 mm / 34.88 in. |
| Rear overhang | 1194 mm / 47.01 in. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent torsion bar, double wishbone |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Tires size | 225/75 R16 |
Powertrain & Engine Architecture
The heart of this Sierra 1500 variant was the 5.7-liter (350 cubic inch) small-block Chevrolet V8 engine. This engine, internally designated as the L05, was a staple of General Motors vehicles for decades, known for its durability and relatively simple design. The 9.3:1 compression ratio and multi-port fuel injection system contributed to the engine’s 210 horsepower output. The engine’s longitudinal mounting within the chassis and rear-wheel-drive base, coupled with a transfer case for four-wheel drive operation, provided a traditional truck layout. The five-speed manual transmission offered a direct connection to the engine, allowing for driver control and reasonable fuel economy for a vehicle of its size. The transmission’s gear ratios were optimized for both towing and everyday driving, though it wasn’t particularly refined by modern standards.
Driving Characteristics
The 1988-1992 GMC Sierra 1500 with the 5.7L V8 and manual transmission delivered a driving experience typical of full-size trucks of the era. Acceleration was adequate, with the 210 horsepower providing sufficient power for most tasks, but it wasn’t a particularly quick vehicle. The manual transmission allowed for precise gear selection, and the 4WD system provided enhanced traction in challenging conditions. Compared to the available 4.3L V6, the 5.7L offered a significant boost in power and towing capacity. However, it came at the cost of increased fuel consumption. The short wheelbase contributed to a somewhat choppy ride, especially when unladen, but the torsion bar front suspension helped to mitigate some of the harshness. The truck’s steering was relatively slow and lacked the precision of more modern systems.
Equipment & Trim Levels
The Sportside trim level, as featured in this variant, represented a step up from the base models. Standard features typically included a basic AM/FM radio, cloth upholstery, and a tilt steering wheel. The interior was functional and durable, prioritizing practicality over luxury. Optional extras included air conditioning, power windows and locks, and a premium sound system. The exterior featured bright trim, a chrome grille, and often, two-tone paint options. The Regular Cab configuration meant a single row of seating, accommodating up to three passengers. The bed length was typically a short bed, offering a balance between cargo capacity and maneuverability.
Chassis & Braking
The GMT400 platform utilized a body-on-frame construction, providing a robust and durable chassis. The front suspension employed an independent torsion bar setup with double wishbone components, offering a degree of ride comfort and handling. The rear suspension consisted of a traditional leaf spring setup, designed to handle heavy loads. Braking duties were handled by disc brakes at the front and drum brakes at the rear. While adequate for the vehicle’s weight, the braking system lacked the sophistication of more modern systems. The 4WD system employed a part-time transfer case, allowing the driver to switch between two-wheel drive and four-wheel drive as needed.
Market Reception & Comparison
The GMC Sierra 1500, and this 5.7L V8/4WD configuration specifically, was generally well-received by truck buyers. Critics praised its durability, towing capacity, and overall value. However, some noted the truck’s relatively basic interior and somewhat rough ride quality. Compared to the Ford F-150 and Chevrolet C/K series trucks, the Sierra 1500 offered a similar level of capability and features. Fuel economy was a common criticism, as the 5.7L V8 was not particularly fuel-efficient. Reliability was generally good, although routine maintenance was essential to ensure long-term durability.
Legacy
The GMT400 generation Sierra 1500 laid the foundation for GMC’s continued success in the full-size truck market. The 5.7L V8 engine, while eventually superseded by more modern powertrains, remains a popular choice among enthusiasts due to its simplicity and reliability. Today, these trucks are often found in the used car market, offering an affordable and capable option for those seeking a classic American pickup. While not as refined as modern trucks, the GMT400 Sierra 1500 represents a durable and dependable workhorse that has stood the test of time. Parts availability remains relatively good, making these trucks a viable option for restoration projects or everyday use. The combination of the V8 engine and four-wheel drive continues to appeal to buyers looking for a capable and rugged vehicle.
