The GMC Sierra 2500HD III, specifically the facelifted version produced from 2011 to 2014, represented GMC’s entry into the heavy-duty pickup truck market. This iteration, built on the GMT900 platform, offered a robust combination of towing capacity, payload, and available features aimed at both commercial and personal use. The Extended Cab Standard Box configuration, paired with the 6.0-liter Vortec V8 engine and a four-speed automatic transmission, was a popular choice for buyers needing a versatile and powerful work truck. This particular variant occupied a middle ground in the Sierra 2500HD lineup, offering a step up in capability from the base models while remaining more accessible than the diesel-powered or fully-loaded trims.
Technical Specifications
| Brand | GMC |
| Model | Sierra 2500HD |
| Generation | Sierra 2500HD III (GMT900, facelift 2011) Extended Cab Standard Box |
| Type (Engine) | 6.0 V8 (360 Hp) 4WD Automatic |
| Start of production | 2011 |
| End of production | 2014 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5 |
| Doors | 2 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8 kg/Hp, 125.8 Hp/tonne |
| Weight-to-torque ratio | 5.6 kg/Nm, 179.9 Nm/tonne |
| Power | 360 Hp @ 5400 rpm |
| Power per litre | 60.3 Hp/l |
| Torque | 515 Nm @ 4200 rpm (379.84 lb.-ft. @ 4200 rpm) |
| Maximum engine speed | 6000 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | Vortec L96 |
| Engine displacement | 5967 cm3 (364.13 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 101.6 mm (4 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV, VVT |
| Engine oil capacity | 5.7 l (6.02 US qt | 5.02 UK qt) |
| Coolant | 15.5 l (16.38 US qt | 13.64 UK qt) |
| Kerb Weight | 2862 kg (6309.63 lbs.) |
| Max. weight | 4309 kg (9499.72 lbs.) |
| Max load | 1447 kg (3190.09 lbs.) |
| Trunk (boot) space – maximum | 1718 l (60.67 cu. ft.) |
| Fuel tank capacity | 136 l (35.93 US gal | 29.92 UK gal) |
| Permitted trailer load with brakes (12%) | 5897 kg (13000.66 lbs.) |
| Length | 5857 mm (230.59 in.) |
| Width including mirrors | 2032 mm (80 in.) |
| Height | 1979 mm (77.91 in.) |
| Wheelbase | 3663 mm (144.21 in.) |
| Front track | 1748 mm (68.82 in.) |
| Rear (Back) track | 1709 mm (67.28 in.) |
| Ride height (ground clearance) | 216 mm (8.5 in.) |
| Minimum turning circle (turning diameter) | 14.6 m (47.9 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, automatic transmission Hydra-Matic |
| Front suspension | Independent torsion bar, double wishbone |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Ventilated discs, 350×40 mm |
| Rear brakes | Ventilated discs, 360×34 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Cone worm with recirculation balls |
| Tires size | 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20 |
| Wheel rims size | 7.5J x 17; 8J x 18; 8.5J x 20 |
INTRODUCTION
The 2011-2014 GMC Sierra 2500HD with the 6.0-liter V8 and automatic transmission was a workhorse pickup designed for buyers who needed substantial towing and hauling capabilities. Positioned within the GMT900 generation, this facelifted model benefited from refinements made to the original platform, including improved interior materials and enhanced features. The Extended Cab configuration provided additional passenger space compared to the regular cab models, while the standard box offered a practical cargo bed length. This combination made it a popular choice for contractors, farmers, and individuals requiring a versatile truck for both work and personal use.
Powertrain & Engine Architecture
At the heart of this Sierra 2500HD variant lies the Vortec L96 6.0-liter V8 engine. This engine, a staple of GM’s truck lineup for many years, is a cast-iron block, overhead valve (OHV) design. It features variable valve timing (VVT) to optimize performance and fuel efficiency across a wider RPM range. The L96 utilizes multi-port fuel injection, delivering fuel directly to each cylinder. The engine produces 360 horsepower at 5400 rpm and 380 lb-ft of torque at 4200 rpm. This power is channeled through a Hydra-Matic 6L80E six-speed automatic transmission. This transmission was known for its durability and smooth shifting, although it wasn’t as fuel-efficient as some newer automatic designs. The 6L80E features electronically controlled shifting and overdrive for highway cruising.
Driving Characteristics
The 6.0-liter V8 and six-speed automatic combination provided adequate, though not exhilarating, performance. Acceleration was respectable for a heavy-duty truck, but the focus was clearly on towing and hauling. The automatic transmission’s gear ratios were optimized for pulling loads, with a relatively low first gear for quick starts and a high sixth gear for efficient highway driving. Compared to the available Duramax diesel engine, the 6.0L V8 offered significantly less torque, making it less ideal for extremely heavy loads. However, it was simpler to maintain and generally less expensive to repair. The ride quality, while typical for a heavy-duty truck, was reasonably comfortable, especially when unladen. The four-wheel-drive system provided enhanced traction in various conditions.
Equipment & Trim Levels

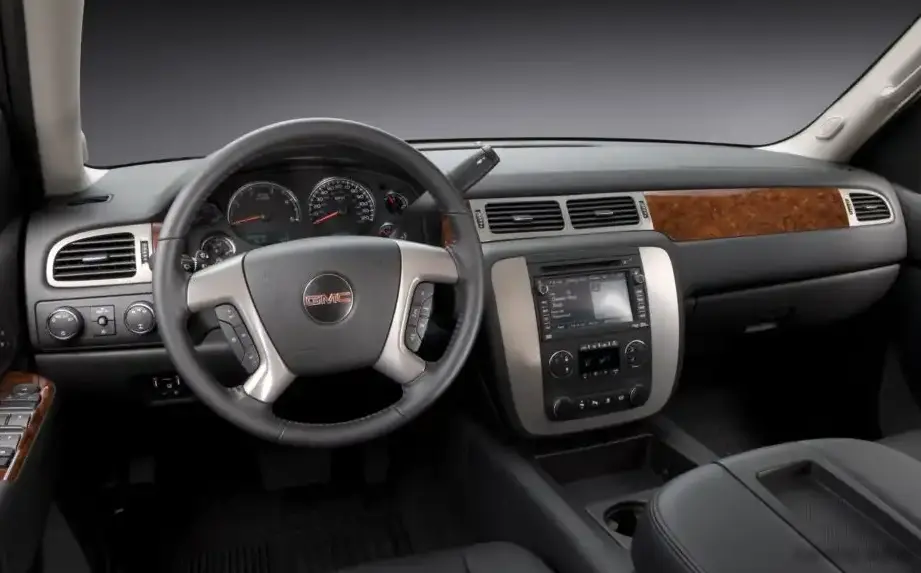

The 2011-2014 Sierra 2500HD Extended Cab Standard Box 6.0L V8 typically came standard with features such as air conditioning, power windows and locks, a basic audio system, and vinyl upholstery. Higher trim levels, such as the SLE and SLT, added features like leather upholstery, heated seats, a premium audio system, and a navigation system. Optional extras included a trailer brake controller, a backup camera, and various appearance packages. The interior design was functional and durable, prioritizing practicality over luxury.
Chassis & Braking
The Sierra 2500HD featured a robust chassis designed to handle heavy loads. The front suspension utilized an independent torsion bar setup with double wishbones, while the rear suspension employed a traditional leaf spring design. This configuration provided a good balance of ride comfort and load-carrying capacity. Braking duties were handled by ventilated disc brakes on all four wheels, with ABS (Anti-lock Braking System) as standard equipment. The braking system was adequately sized for the truck’s weight and provided confident stopping power, even when towing.
Market Reception & Comparison
Critics generally praised the Sierra 2500HD for its towing capacity, durability, and comfortable ride. The 6.0-liter V8 engine was considered a capable performer, although it lacked the sheer power and fuel efficiency of the Duramax diesel. Compared to the diesel models, the 6.0L V8 was often seen as a more affordable and simpler option. Fuel economy was typical for a heavy-duty truck, averaging around 14-16 mpg in combined driving. Reliability was generally good, although some owners reported issues with the active fuel management system, which deactivated cylinders to improve fuel economy.
Legacy
The 2011-2014 GMC Sierra 2500HD with the 6.0-liter V8 remains a popular choice in the used truck market. Its robust construction and proven powertrain make it a reliable and capable work truck. While the diesel models command a higher price, the 6.0L V8 variant offers a more affordable entry point into the heavy-duty truck segment. The L96 engine is known for its longevity, and with proper maintenance, it can provide many years of service. However, potential buyers should be aware of the potential for active fuel management issues and should ensure that the truck has been well-maintained.
