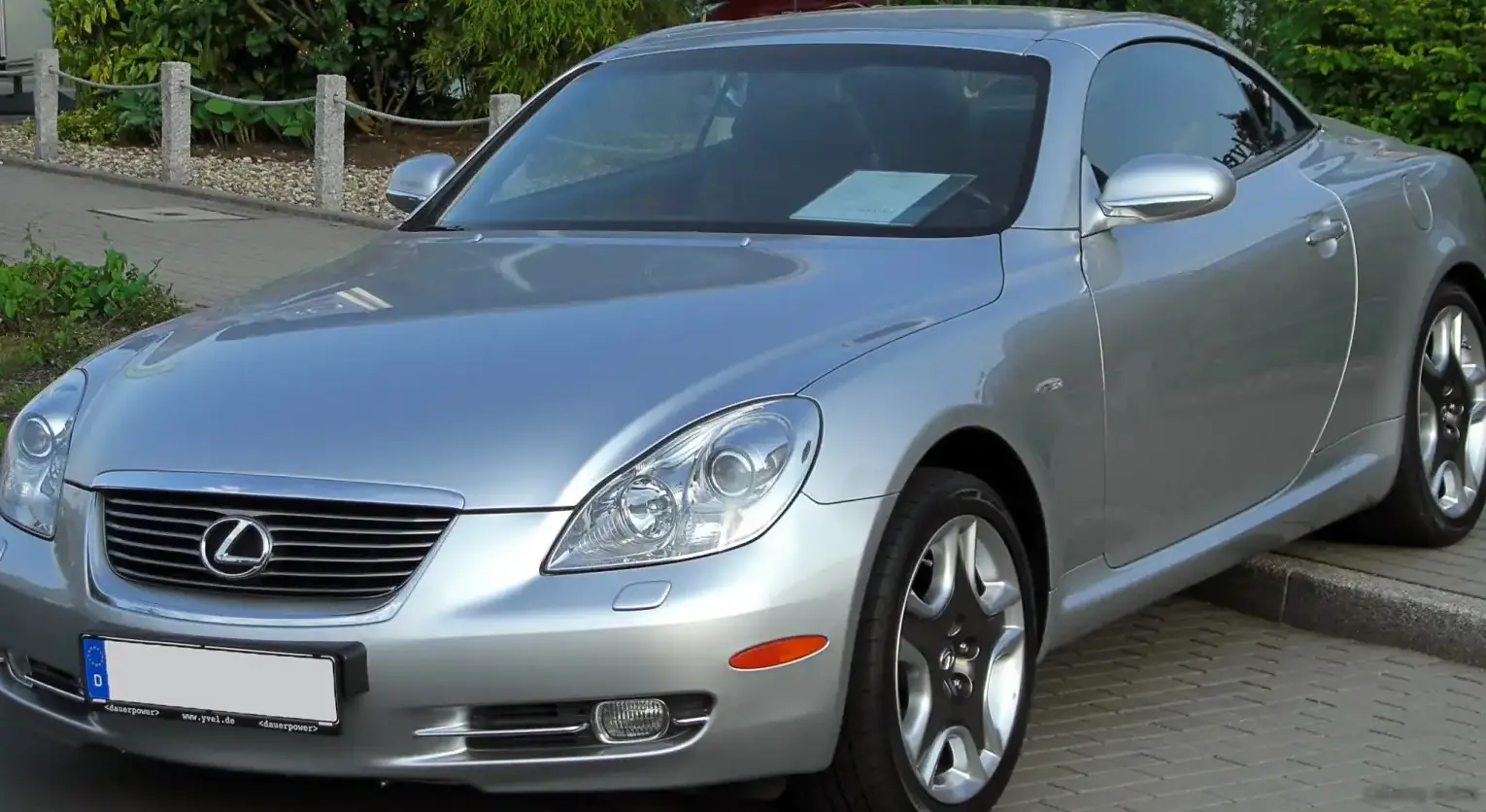

The Lexus SC 430, specifically the facelifted version produced from 2005 to 2010, represents the pinnacle of Lexus’ grand touring coupe/convertible offerings of that era. Built on the Z40 platform, this iteration of the SC series continued the tradition of a luxurious, comfortable, and reliable personal luxury car. The 430 designation refers to the engine displacement, and the model was positioned as a direct competitor to vehicles like the Mercedes-Benz CLK and BMW 6 Series. The 2005 facelift brought subtle styling revisions, primarily to the front and rear fascias, along with minor interior enhancements. This variant, equipped with the 4.3-liter V8 engine and the electronically controlled intelligent transmission (ECT-i), was the top-of-the-line offering, representing the highest performance and feature set available for the SC 430.
Technical Specifications
| Brand | Lexus |
| Model | SC |
| Generation | SC II (Z40, facelift 2005) |
| Type (Engine) | 430 V8 (288 Hp) ECT-i |
| Start of production | 2005 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe – Cabriolet |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (economy) – urban (EPA) | 14.7 l/100 km (16 US mpg, 19.2 UK mpg) |
| Fuel consumption (economy) – extra urban (EPA) | 10.2 l/100 km (23.1 US mpg, 27.7 UK mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 60 mph | 5.8 sec |
| Maximum speed | 240 km/h (149.13 mph), Electronically limited |
| Emission standard | ULEV II |
| Weight-to-power ratio | 6 kg/Hp, 165.3 Hp/tonne |
| Weight-to-torque ratio | 4.1 kg/Nm, 246.8 Nm/tonne |
| Power | 288 Hp @ 5600 rpm |
| Power per litre | 67.1 Hp/l |
| Torque | 430 Nm @ 3400 rpm (317.15 lb.-ft. @ 3400 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 3UZ-FE |
| Engine displacement | 4293 cm3 (261.97 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 91 mm (3.58 in.) |
| Piston Stroke | 82.5 mm (3.25 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine oil capacity | 5.2 l (5.49 US qt | 4.58 UK qt) |
| Coolant | 9.9 l (10.46 US qt | 8.71 UK qt) |
| Kerb Weight | 1742 kg (3840.45 lbs.) |
| Trunk (boot) space – minimum | 249 l (8.79 cu. ft.) |
| Fuel tank capacity | 75 l (19.81 US gal | 16.5 UK gal) |
| Length | 4535 mm (178.54 in.) |
| Width | 1825 mm (71.85 in.) |
| Height | 1350 mm (53.15 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Ride height (ground clearance) | 142 mm (5.59 in.) |
| Drag coefficient (Cd) | 0.30-0.31 |
| Minimum turning circle (turning diameter) | 10.8 m (35.43 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission ECT-i |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Double wishbone, Transverse stabilizer, Coil spring |
| Front brakes | Ventilated discs, 296 mm |
| Rear brakes | Disc, 307 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 245/40 ZR18 |
| Wheel rims size | 8J x 18 |
Powertrain & Engine Architecture
The heart of the SC 430 is the 3UZ-FE 4.3-liter V8 engine. This engine is a naturally aspirated, all-aluminum alloy design featuring double overhead camshafts (DOHC) and variable valve timing with intelligence (VVT-i) on both intake and exhaust valves. The 3UZ-FE utilizes a multi-port fuel injection system, delivering fuel directly to each cylinder. The engine’s architecture prioritizes smoothness and refinement over outright peak power, reflecting its grand touring intentions. Paired with this engine is the Lexus ECT-i (Electronically Controlled Transmission – intelligent) automatic transmission. This 6-speed automatic features adaptive shift logic, adjusting shift points based on driving conditions and driver input. The transmission also offers a manual shift mode for greater driver control. The ECT-i transmission was known for its smooth operation and responsiveness, contributing significantly to the overall driving experience.
Driving Characteristics
The SC 430 4.3L/ECT-i combination delivers a refined and comfortable driving experience. While not a sports car, the 288 horsepower and 317 lb-ft of torque provide ample power for confident acceleration and effortless highway cruising. The 0-60 mph time of 5.8 seconds is respectable for a grand tourer of this size and weight. The automatic transmission’s gear ratios are tuned for smooth transitions and optimal fuel efficiency, though it may not offer the aggressive downshifts of a performance-oriented transmission. Compared to a hypothetical manual transmission version (which was never offered), the automatic prioritizes ease of use and comfort over driver engagement. The weight distribution, while not ideal, is manageable, and the suspension provides a comfortable ride without excessive body roll.
Equipment & Trim Levels
The SC 430, even in its base form, was well-equipped. Standard features included leather upholstery, power-adjustable and heated seats, a premium sound system, automatic climate control, and a power-retractable hardtop (on the convertible models). The 2005 facelift brought minor interior trim updates. Optional extras included navigation system, Mark Levinson premium audio, and various cosmetic enhancements. The SC 430 didn’t offer a wide range of trim levels; the focus was on providing a luxurious experience as standard, with options allowing for personalization.
Chassis & Braking
The SC 430 utilizes a robust chassis with a double wishbone suspension setup at all four corners. This suspension design provides a good balance between ride comfort and handling. The front suspension incorporates a transverse stabilizer bar to reduce body roll. Braking duties are handled by ventilated discs at the front and solid discs at the rear. Anti-lock brakes (ABS) are standard. The braking system is adequate for the car’s performance capabilities, providing confident stopping power in most situations. The relatively heavy curb weight of around 3840 lbs does impact braking distances somewhat.
Market Reception & Comparison
The Lexus SC 430 was generally well-received by automotive critics. It was praised for its luxurious interior, smooth ride, and reliable powertrain. However, some critics noted its somewhat conservative styling and lack of a manual transmission option. Compared to other trims within the SC lineup (none existed, as the 430 was the sole engine option after the SC 300 was discontinued), the 430 offered significantly more power and performance. Fuel economy was reasonable for a V8-powered grand tourer, but not exceptional. Reliability was a strong point, with the 3UZ-FE engine being known for its longevity and minimal maintenance requirements.
Legacy
The Lexus SC 430 has developed a loyal following among enthusiasts. The 3UZ-FE engine is renowned for its durability and is capable of exceeding 200,000 miles with proper maintenance. The ECT-i transmission is also considered reliable. On the used car market, SC 430s in good condition command reasonable prices, reflecting their reputation for quality and reliability. While not a high-performance sports car, the SC 430 remains a desirable grand tourer for those seeking a comfortable, luxurious, and dependable open-air or coupe experience.
