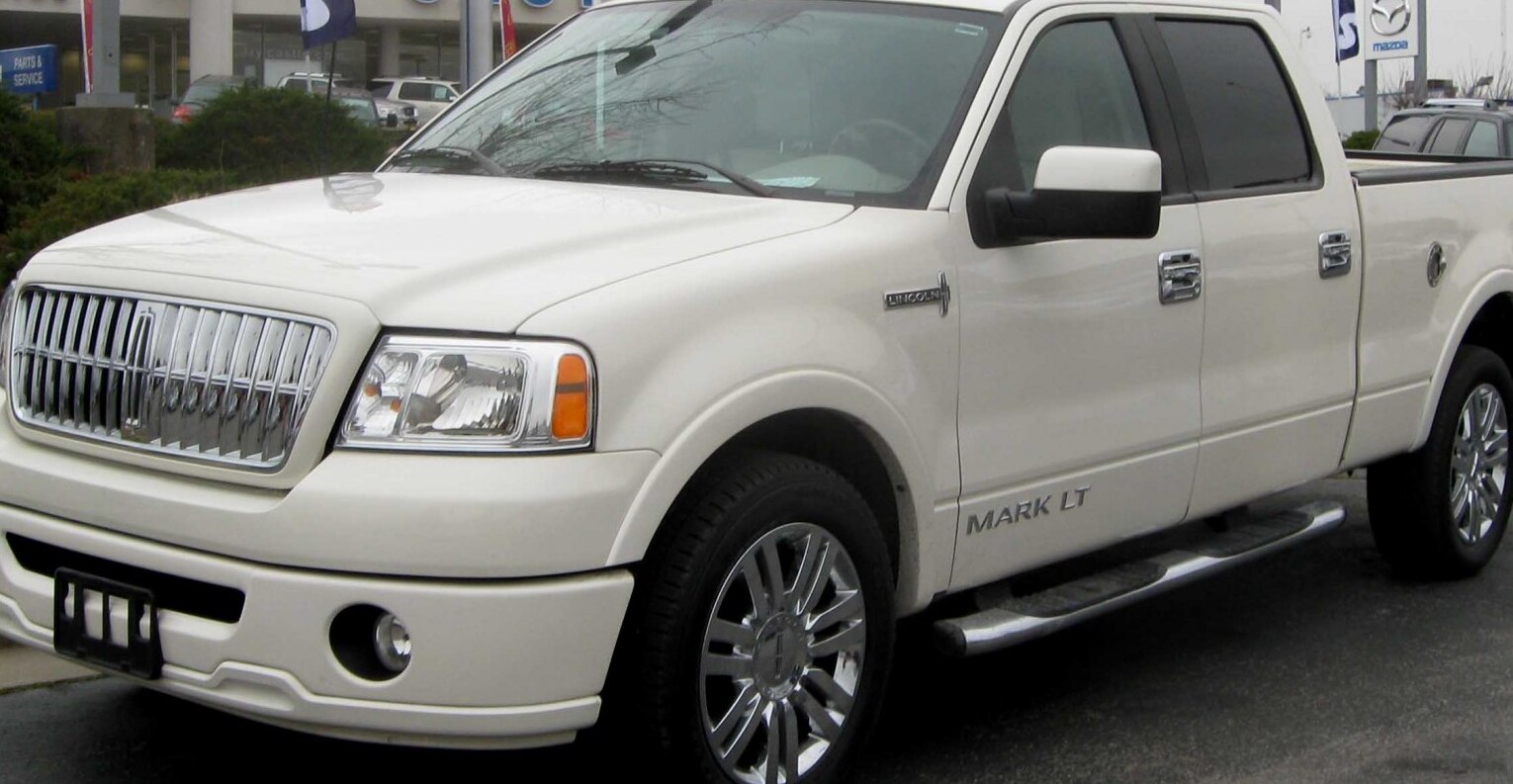

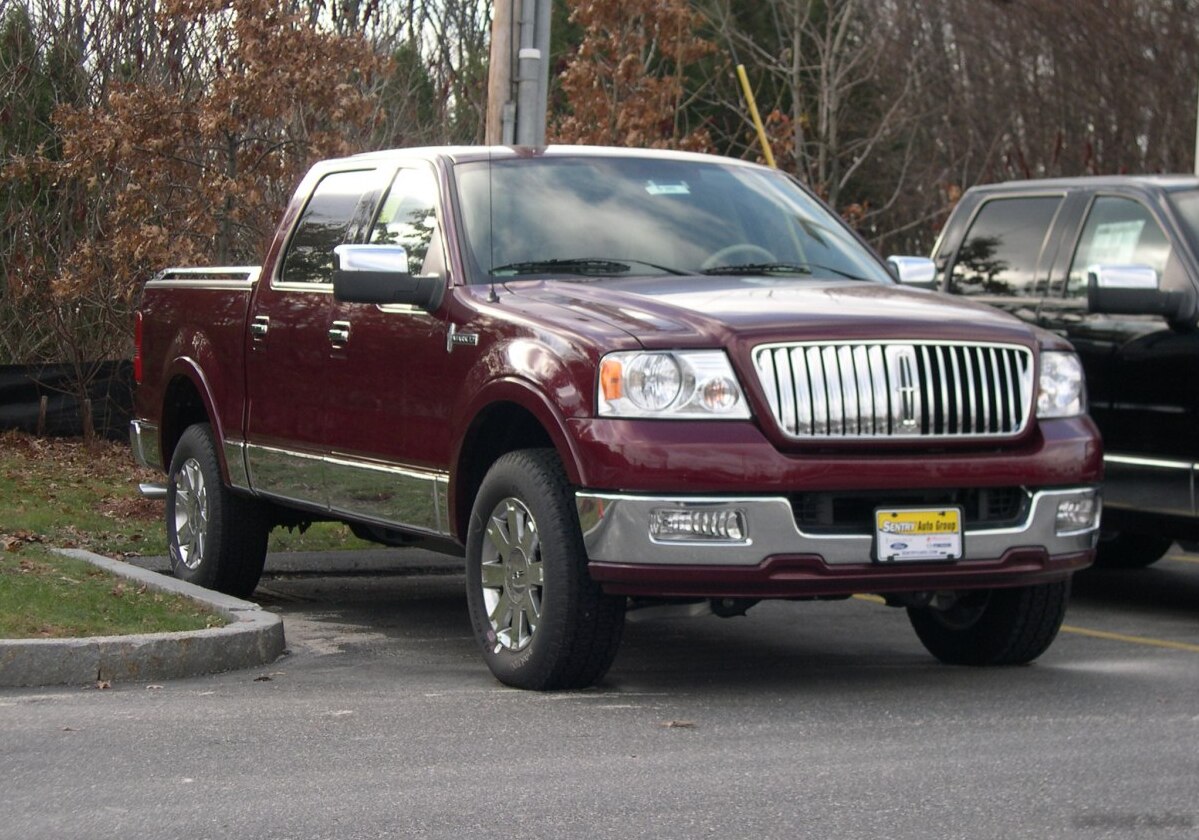

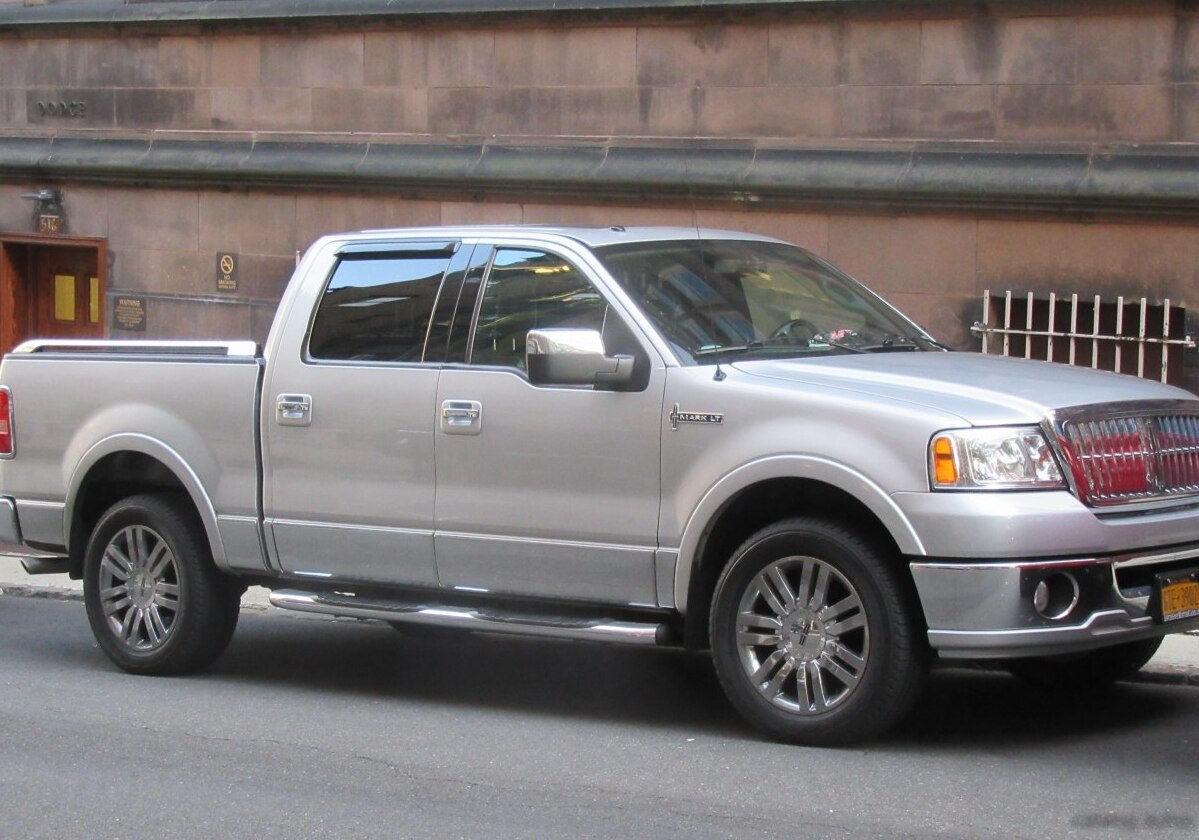

The Lincoln Mark LT with the 5.4-liter V8 engine and automatic transmission represents a unique offering in the luxury pickup truck segment. Produced for the 2005 and 2006 model years, the Mark LT was Lincoln’s attempt to capitalize on the growing popularity of pickup trucks while maintaining a premium brand image. Built on a heavily modified Ford F-150 chassis, the Mark LT aimed to provide the comfort and features expected of a Lincoln alongside the utility of a light-duty pickup. This particular configuration, featuring the 300 horsepower V8 and four-speed automatic, was the sole powertrain option offered throughout its brief production run, positioning it as the flagship – and only – trim level for the model.
Technical Specifications
| Brand | Lincoln |
| Model | Mark LT |
| Generation | Mark LT |
| Type (Engine) | 5.4 V8 (300 Hp) Automatic |
| Start of production | 2005 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (economy) – urban (EPA) | 15.7 l/100 km (15 US mpg, 18 UK mpg, 6.4 km/l) |
| Fuel consumption (economy) – extra urban (EPA) | 12.4 l/100 km (19 US mpg, 22.8 UK mpg, 8.1 km/l) |
| Fuel consumption (economy) – combined (EPA) | 14.7 l/100 km (16 US mpg, 19.2 UK mpg, 6.8 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8 kg/Hp, 124.5 Hp/tonne |
| Weight-to-torque ratio | 4.9 kg/Nm, 205.5 Nm/tonne |
| Power | 300 Hp @ 5000 rpm |
| Power per litre | 55.5 Hp/l |
| Torque | 495 Nm @ 3750 rpm (365.09 lb.-ft. @ 3750 rpm) |
| Maximum engine speed | 5400 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | Triton |
| Engine displacement | 5409 cm3 (330.08 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 90.2 mm (3.55 in.) |
| Piston Stroke | 105.8 mm (4.17 in.) |
| Compression ratio | 9.8:1 |
| Number of valves per cylinder | 3 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC, VCT |
| Engine oil capacity | 6.6 l (6.97 US qt | 5.81 UK qt) |
| Coolant | 20 l (21.13 US qt | 17.6 UK qt) |
| Kerb Weight | 2409 kg (5310.94 lbs.) |
| Max. weight | 3198 kg (7050.38 lbs.) |
| Max load | 789 kg (1739.45 lbs.) |
| Trunk (boot) space – maximum | 1572 l (55.51 cu. ft.) |
| Fuel tank capacity | 114 l (30.12 US gal | 25.08 UK gal) |
| Permitted trailer load with brakes (12%) | 4037 kg (8900.06 lbs.) |
| Length | 5685 mm (223.82 in.) |
| Width | 2004 mm (78.9 in.) |
| Height | 1867 mm (73.5 in.) |
| Wheelbase | 3518 mm (138.5 in.) |
| Front track | 1702 mm (67.01 in.) |
| Rear (Back) track | 1702 mm (67.01 in.) |
| Front overhang | 937 mm (36.89 in.) |
| Rear overhang | 1229 mm (48.39 in.) |
| Ride height (ground clearance) | 208 mm (8.19 in.) |
| Minimum turning circle (turning diameter) | 13.7 m (44.95 ft.) |
| Approach angle | 21.5° |
| Departure angle | 22.1° |
| Ramp-over (brakeover) angle | 17.7° |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Double wishbone, Independent coil spring, Transverse stabilizer |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Ventilated discs, 330 mm |
| Rear brakes | Ventilated discs, 348 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 265/60 R18 |
| Wheel rims size | 7.5J x 18 |
Powertrain & Engine Architecture
The heart of the Mark LT is Ford’s 5.4-liter Triton V8 engine. This engine, designated as the 3V version for the 2005-2006 model years, featured a single overhead camshaft (SOHC) design with variable valve timing (VCT) on both intake and exhaust valves. The engine utilized multi-port fuel injection to deliver fuel to the cylinders. The 5.4L Triton produced 300 horsepower at 5000 rpm and 365 lb-ft of torque at 3750 rpm. This power was routed through a four-speed automatic transmission, a common choice for trucks of this era. While not as sophisticated as some of the newer automatic transmissions available today, the four-speed provided adequate performance for everyday driving and towing. The engine’s longitudinal mounting and rear-wheel-drive configuration were standard for body-on-frame trucks.
Driving Characteristics
The Mark LT’s driving experience was geared towards comfort rather than outright performance. The 5.4-liter V8 provided sufficient power for most driving situations, but the truck’s considerable weight (over 5,300 pounds) meant that acceleration wasn’t particularly brisk. The four-speed automatic transmission, while reliable, lacked the responsiveness of more modern transmissions with more gears. Compared to a hypothetical Mark LT with a manual transmission, the automatic would have felt less engaging and slightly less efficient. The suspension, tuned for a comfortable ride, absorbed bumps well but didn’t offer the sporty handling of some other pickups. Towing capacity was a strong point, with the Mark LT capable of hauling up to 8,900 pounds when properly equipped.
Equipment & Trim Levels
As the sole trim level offered, the Mark LT came generously equipped. Standard features included leather upholstery, heated and cooled front seats, a premium audio system, automatic climate control, and power-adjustable pedals. Exterior features included chrome accents, alloy wheels, and a power-operated rear window. Optional extras included a navigation system, a sunroof, and upgraded audio options. The interior design aimed for a luxurious feel, with woodgrain trim and a generally upscale appearance. The Mark LT’s interior was noticeably more refined than that of a standard Ford F-150.
Chassis & Braking
The Mark LT’s chassis was based on the Ford F-150, but with several modifications to enhance ride quality and refinement. The front suspension utilized an independent double wishbone setup with coil springs and a stabilizer bar, while the rear suspension employed a traditional leaf spring configuration. Brakes consisted of ventilated discs at all four corners, with ABS included as standard. The braking system was adequate for the truck’s weight, but not particularly powerful. The steering was hydraulic power-assisted rack-and-pinion, providing reasonable steering feel.
Market Reception & Comparison
The Lincoln Mark LT received mixed reviews from automotive critics. While praised for its luxurious interior and comfortable ride, it was often criticized for its high price and limited practicality compared to other pickup trucks. Fuel economy was also a concern, with the 5.4-liter V8 delivering relatively poor gas mileage. Compared to other trims in the F-150 lineup, the Mark LT offered a more upscale experience but at a significant price premium. The Mark LT’s target audience was buyers who wanted a luxury pickup truck without sacrificing too much capability.
Legacy
The Lincoln Mark LT was discontinued after only two model years due to slow sales. Despite its short production run, the Mark LT has developed a small but dedicated following among collectors and enthusiasts. The 5.4-liter Triton V8 engine is generally considered reliable, but it is known to be prone to spark plug issues if they are not properly maintained. The four-speed automatic transmission is also relatively durable. Today, well-maintained Mark LTs can be found on the used car market, offering a unique blend of luxury and utility. Its rarity and distinctive styling have contributed to its growing appeal among those seeking a unique and comfortable pickup truck.
