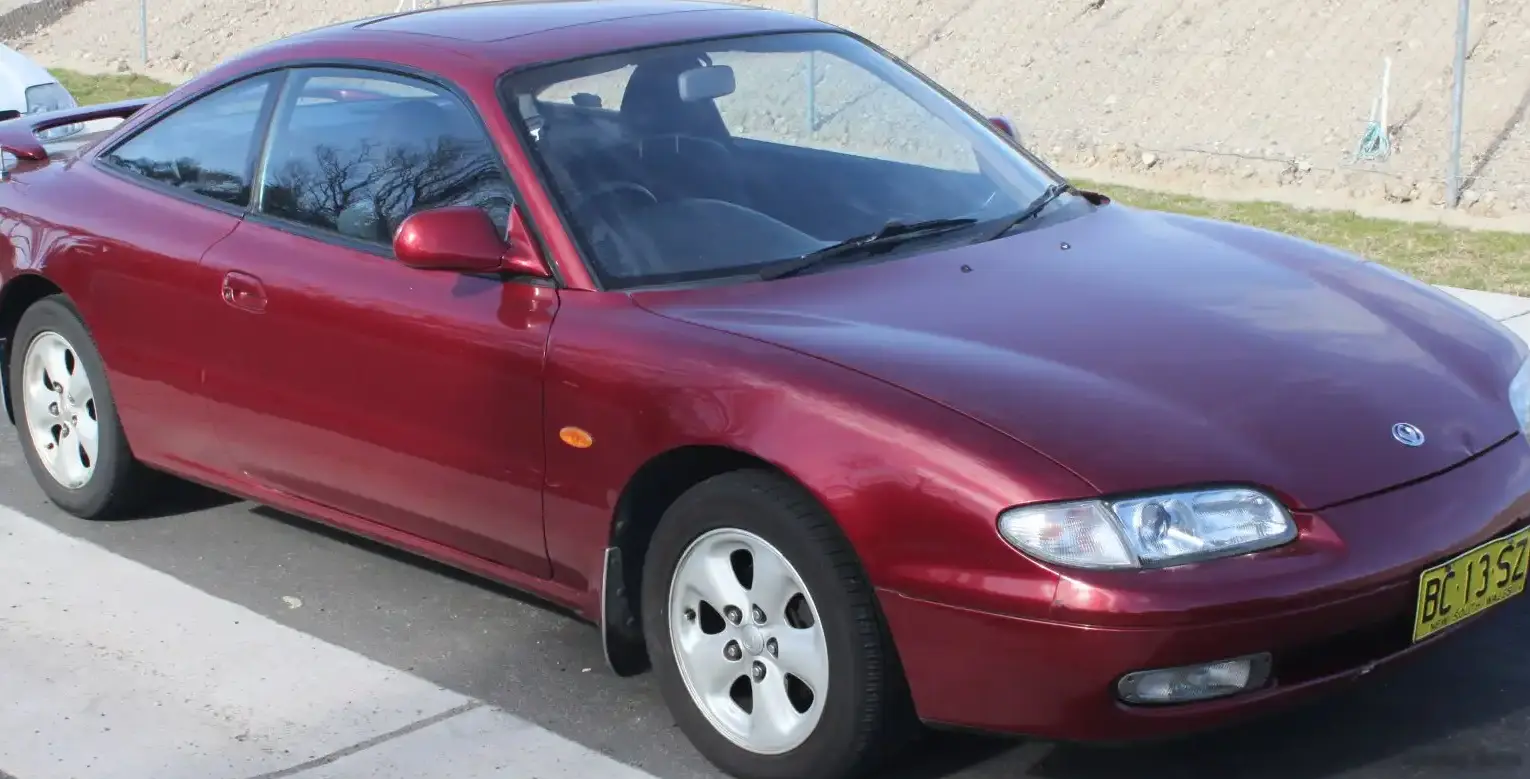

The Mazda MX-6 GE6, produced from 1992 to 2000, represented Mazda’s foray into the front-wheel-drive coupe market. Positioned as a sporty and stylish alternative to more established competitors, the MX-6 aimed to blend performance with practicality. The 2.0i 16V variant, generating 115 horsepower, served as a mid-range offering within the MX-6 lineup, bridging the gap between the base models and the more potent V6-powered versions. This model was primarily sold in North America, Europe, and Australia, offering a balance of affordability and acceptable performance for the average driver.
Technical Specifications
| Brand | Mazda |
| Model | MX-6 |
| Generation | Mx-6 (GE6) |
| Type (Engine) | 2.0 i 16V (115 Hp) |
| Start of production | 1992 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (combined) | 8 l/100 km (29.4 US mpg, 35.3 UK mpg, 12.5 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.4 sec |
| Acceleration 0 – 62 mph | 10.4 sec |
| Acceleration 0 – 60 mph | 9.9 sec |
| Maximum speed | 204 km/h (126.76 mph) |
| Weight-to-power ratio | 9.7 kg/Hp, 102.7 Hp/tonne |
| Weight-to-torque ratio | 6.6 kg/Nm, 151.8 Nm/tonne |
| Power | 115 Hp @ 5500 rpm |
| Power per litre | 57.8 Hp/l |
| Torque | 170 Nm @ 4500 rpm (125.39 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1991 cm3 (121.5 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Kerb Weight | 1120 kg (2469.18 lbs.) |
| Max. weight | 1510 kg (3328.98 lbs.) |
| Max load | 390 kg (859.8 lbs.) |
| Trunk (boot) space – minimum | 404 l (14.27 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4615 mm (181.69 in.) |
| Width | 1750 mm (68.9 in.) |
| Height | 1310 mm (51.57 in.) |
| Wheelbase | 2610 mm (102.76 in.) |
| Front track | 1500 mm (59.06 in.) |
| Rear (Back) track | 1500 mm (59.06 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R14 88 H |
| Wheel rims size | 195/65 14 88 H |
INTRODUCTION
The Mazda MX-6 GE6 2.0i 16V, launched in 1992, was a key component of Mazda’s efforts to establish itself in the competitive coupe segment. Built on the front-wheel-drive 1HX0 platform (shared with the 626), the MX-6 aimed to offer a more dynamic driving experience than its sedan sibling. The 2.0-liter, 16-valve engine was a significant upgrade over the earlier 2.2-liter offerings, providing improved responsiveness and efficiency. This variant occupied a middle ground in the MX-6 range, appealing to buyers who desired a balance between performance and affordability. Production continued through 2000, with minor revisions over the years.
Powertrain & Engine Architecture
The heart of the MX-6 2.0i 16V is the F2 engine, a 1991cc inline-four cylinder powerplant. This engine, often referred to by its engine code, utilizes a multi-port fuel injection system for precise fuel delivery. The 16-valve configuration, achieved through a dual overhead camshaft (DOHC) design, enhances volumetric efficiency and contributes to the engine’s respectable power output. The engine’s 9:1 compression ratio strikes a balance between performance and the ability to run on readily available fuel grades. The 5-speed manual transmission was the standard offering, featuring gear ratios designed to maximize acceleration and fuel economy. The transmission’s shift linkage was generally praised for its precision, contributing to a more engaging driving experience.
Driving Characteristics
The MX-6 2.0i 16V offered a reasonably engaging driving experience, though it wasn’t considered a performance leader. The 115 horsepower engine provided adequate acceleration, with a 0-60 mph time of around 9.9 seconds. While not blistering, this was sufficient for everyday driving and occasional spirited runs. The front-wheel-drive layout provided predictable handling, although it could exhibit some understeer when pushed hard. The 5-speed manual transmission allowed drivers to keep the engine in its optimal power band, maximizing performance. Compared to the V6-powered MX-6, the 2.0i 16V felt less powerful, but it also offered better fuel economy and a lighter front end, resulting in more balanced handling. The manual transmission provided a more connected feel compared to the optional 4-speed automatic.
Equipment & Trim Levels
The MX-6 2.0i 16V typically came standard with features such as power windows, power locks, and an AM/FM stereo. Air conditioning was often included as standard equipment, though this could vary depending on the market. Interior upholstery was typically cloth, with options for upgraded materials available. The dashboard layout was functional and driver-focused, with easy-to-read gauges. Optional extras included a sunroof, upgraded sound system, and alloy wheels. Higher trim levels might have featured leather upholstery and additional convenience features. The overall interior design was clean and modern for its time, prioritizing usability over outright luxury.
Chassis & Braking
The MX-6 GE6 utilized a front independent suspension with wishbone configuration, providing a comfortable ride and decent handling characteristics. The rear suspension employed a spring strut setup, which was a cost-effective solution for maintaining ride quality. Braking duties were handled by ventilated discs at the front and solid discs at the rear, providing adequate stopping power for the vehicle’s weight and performance. Anti-lock braking system (ABS) was available as an option, enhancing safety by preventing wheel lockup during hard braking. The steering system was a rack-and-pinion setup with hydraulic power assistance, offering precise steering feel and ease of maneuverability.
Market Reception & Comparison
The Mazda MX-6 2.0i 16V was generally well-received by automotive critics. It was praised for its stylish design, comfortable interior, and engaging driving experience. However, some critics noted that the 2.0-liter engine lacked the punch of the V6 models. Fuel economy was considered to be good for a coupe of its size and class, averaging around 29.4 US mpg. Compared to competitors like the Honda Prelude and Toyota Celica, the MX-6 offered a unique blend of style and practicality. The 2.0i 16V variant was often seen as a more sensible choice than the V6, appealing to buyers who prioritized fuel efficiency and affordability over outright performance.
Legacy
The Mazda MX-6 2.0i 16V has developed a modest following among enthusiasts. The F2 engine is generally considered to be reliable, although regular maintenance is essential to prevent issues. Common problems include oil leaks and wear on the timing belt. The 5-speed manual transmission is also known for its durability. Today, well-maintained examples of the MX-6 2.0i 16V can be found on the used car market at relatively affordable prices. While it may not be a collector’s item, it remains a stylish and enjoyable coupe for those seeking a classic 1990s driving experience. Its blend of practicality, affordability, and decent performance ensures its continued appeal to a niche audience.
