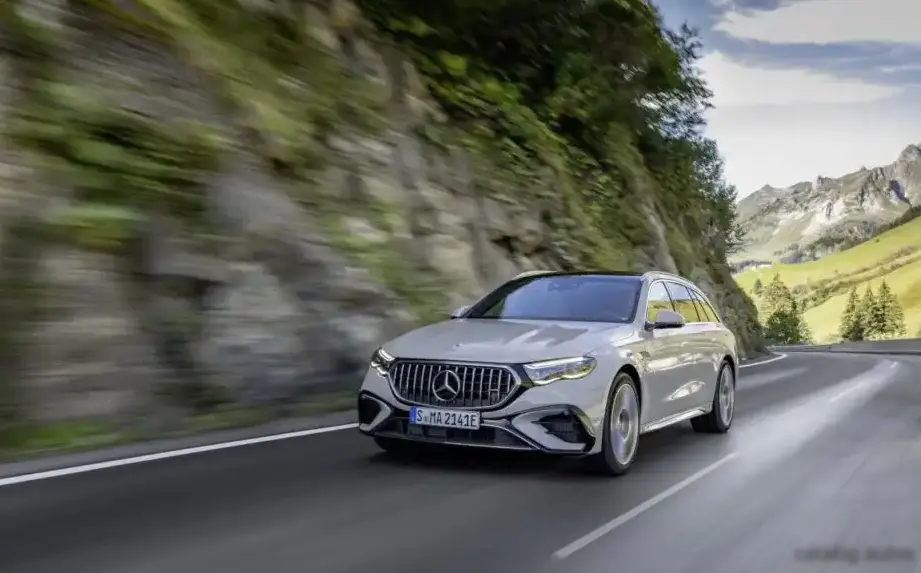

The Mercedes-Benz E 53 T-modell (S214), introduced in March 2024, represents the high-performance, plug-in hybrid variant of the fifth-generation E-Class station wagon. Positioned as a premium offering within the E-Class range, it combines a potent inline-six engine with electric power, delivering enhanced performance and efficiency. This model is part of the broader S214 series, which builds upon the success of its predecessors, offering a blend of luxury, practicality, and advanced technology. The E 53 T-modell caters to buyers seeking a versatile vehicle capable of both spirited driving and environmentally conscious operation.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | E-class |
| Generation | E-class T-modell (S214) |
| Type | AMG E 53 (585 Hp) Plug-in Hybrid 4MATIC+ AMG SPEEDSHIFT TCT 9G |
| Start of production | March, 2024 |
| Powertrain Architecture | PHEV (Plug-in Hybrid Electric Vehicle) |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Combined fuel consumption (WLTP) | 0.9-1.1 l/100 km (261.3 – 213.8 US mpg, 313.9 – 256.8 UK mpg, 111.1 – 90.9 km/l) |
| CO2 emissions (WLTP) | 21-24 g/km |
| Fuel Type | Petrol / electricity |
| Acceleration 0 – 100 km/h | 4.1 sec |
| Acceleration 0 – 62 mph | 4.1 sec |
| Acceleration 0 – 60 mph | 3.9 sec |
| Maximum speed | 250 km/h (155.34 mph) – Electronically limited |
| Emission standard | Euro 6e |
| Weight-to-power ratio | 4 kg/Hp, 247.9 Hp/tonne |
| Weight-to-torque ratio | 3.1 kg/Nm, 317.8 Nm/tonne |
| Gross battery capacity | 28.6 kWh |
| Net (usable) battery capacity | 21.2 kWh |
| Battery voltage | 400 V |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery location | Under the trunk |
| Recuperation output | 120 kW |
| All-electric range (WLTP) | 90-97 km (55.92 – 60.27 mi) |
| Average Energy consumption (WLTP) | 25-26.7 kWh/100 km (40.23 – 42.97 kWh/100 mi, 84 – 78 MPGe, 4 – 3.7 km/kWh, 2.5 – 2.3 mi/kWh) |
| Max speed (electric) | 140 km/h (86.99 mph) |
| Electric motor power | 163 Hp |
| Electric motor Torque | 480 Nm @ 1 rpm (354.03 lb.-ft. @ 1 rpm) |
| Electric motor location | Between the combustion engine and the transmission |
| Electric motor type | Synchronous |
| System power | 585 Hp |
| System torque | 750 Nm (553.17 lb.-ft.) |
| Power | 449 Hp @ 5800-6100 rpm |
| Torque | 560 Nm @ 2200-5000 rpm (413.03 lb.-ft. @ 2200-5000 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M 256 |
| Engine displacement | 2999 cm3 (183.01 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 92.4 mm (3.64 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Twin-scroll turbo, Intercooler |
| Valvetrain | DOHC, CAMTRONIC |
| Engine systems | Start & Stop System, Particulate filter |
| Kerb Weight | 2360 kg (5202.91 lbs.) |
| Max. weight | 2975 kg (6558.75 lbs.) |
| Max load | 615 kg (1355.84 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Trunk (boot) space – maximum | 1675 l (59.15 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2100 kg (4629.71 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 84 kg (185.19 lbs.) |
| Length | 4958 mm (195.2 in.) |
| Width | 1902 mm (74.88 in.) |
| Width including mirrors | 2065 mm (81.3 in.) |
| Height | 1483 mm (58.39 in.) |
| Wheelbase | 2961 mm (116.57 in.) |
| Front track | 1649 mm (64.92 in.) |
| Rear (Back) track | 1608 mm (63.31 in.) |
| Minimum turning circle (turning diameter) | 12.53 m (41.11 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 9 gears, automatic transmission AMG SPEEDSHIFT TCT |
| Front suspension | Coil spring, Independent multi-link suspension, Transverse stabilizer |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs, 370×36 mm |
| Rear brakes | Ventilated discs, 360×26 mm |
| Assisting systems | ABS (Anti-lock braking system), 4-wheel steering (4WS, active rear steering) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | Front wheel tires: 255/45 ZR19, Rear wheel tires: 285/40 ZR19 |
| Wheel rims size | 19 |
INTRODUCTION
The Mercedes-Benz E 53 T-modell (S214) is a performance-oriented station wagon introduced in March 2024 as part of the fifth-generation E-Class (S214) lineup. It distinguishes itself through its plug-in hybrid powertrain, combining a 3.0-liter inline-six engine with an electric motor for a total system output of 585 horsepower. This model aims to deliver a compelling blend of practicality, luxury, and high-performance capabilities, appealing to buyers who desire a versatile vehicle without compromising on driving dynamics. The E 53 T-modell sits at the upper end of the E-Class range, offering a more potent alternative to the standard E-Class wagons.
Powertrain & Engine Architecture
At the heart of the E 53 T-modell lies the M 256 3.0-liter inline-six cylinder engine, featuring direct injection and a twin-scroll turbocharger. This engine produces 449 horsepower and 560 Nm (413.03 lb-ft) of torque. Integrated with this is a powerful electric motor, delivering an additional 163 horsepower and 480 Nm (354.03 lb-ft) of torque. The combined system output reaches 585 horsepower and 750 Nm (553.17 lb-ft). The engine utilizes CAMTRONIC variable valve timing and a particulate filter to meet stringent emission standards. Power is delivered through a 9-speed AMG SPEEDSHIFT TCT automatic transmission, known for its quick and smooth gear changes. The transmission is coupled with Mercedes-Benz’s 4MATIC+ all-wheel-drive system, providing optimal traction and stability. The 28.6 kWh gross (21.2 kWh net) lithium-ion battery pack, located under the trunk floor, enables an all-electric range of 90-97 km (55.92 – 60.27 miles) according to WLTP standards.
Driving Characteristics
The E 53 T-modell offers a remarkably refined and potent driving experience. The combination of the inline-six engine and electric motor results in instant torque and impressive acceleration, achieving 0-60 mph in approximately 3.9 seconds. The 9-speed automatic transmission provides seamless gear changes, contributing to a smooth and comfortable ride. The 4MATIC+ all-wheel-drive system ensures excellent grip in various driving conditions. In electric mode, the vehicle operates silently and efficiently, ideal for urban commuting. Switching to Sport or Sport+ modes sharpens throttle response and steering feel, transforming the E 53 into a dynamic performance machine. Compared to lower-powered E-Class wagons, the E 53 delivers significantly more exhilarating acceleration and a more engaging driving experience. While not as overtly aggressive as the full AMG models, it provides a substantial performance upgrade.
Equipment & Trim Levels
The E 53 T-modell comes standard with a comprehensive array of luxury and technology features. Interior appointments include premium leather upholstery, heated and ventilated front seats, and a sophisticated infotainment system with a large touchscreen display. Standard equipment also includes a panoramic sunroof, advanced driver-assistance systems (such as adaptive cruise control and lane-keeping assist), and a premium sound system. Optional extras include upgraded leather options, a head-up display, and advanced suspension systems. The interior design emphasizes modern luxury and technological integration, offering a comfortable and connected driving environment.
Chassis & Braking
The E 53 T-modell features a sophisticated chassis designed to balance comfort and handling. It utilizes a coil spring, independent multi-link suspension at both the front and rear, with a transverse stabilizer bar. This setup provides a comfortable ride while minimizing body roll during cornering. The braking system consists of ventilated discs on all four wheels (370×36 mm front, 360×26 mm rear), providing ample stopping power. The inclusion of ABS (Anti-lock braking system) and 4-wheel steering further enhances safety and stability. The suspension is tuned to complement the vehicle’s increased power and weight, delivering a confident and controlled driving experience.
Market Reception & Comparison
The E 53 T-modell has been well-received by automotive critics, who praise its blend of performance, luxury, and practicality. Its fuel economy, particularly in hybrid mode, is competitive within its segment. Compared to other E-Class wagon variants, the E 53 offers a significant performance advantage, but at a higher price point. Against rivals such as the Audi S6 Avant and BMW M550i Touring, the E 53 provides a compelling alternative, offering a unique combination of German engineering and plug-in hybrid technology. Some reviewers note that the E 53 doesn’t quite match the outright performance of the dedicated AMG models, but it provides a more accessible and versatile performance option.
Legacy
The M 256 engine family, utilized in the E 53 T-modell, has proven to be a reliable and durable powertrain. While long-term reliability data for the plug-in hybrid system is still emerging, Mercedes-Benz’s reputation for engineering quality suggests a robust and dependable system. On the used car market, the E 53 T-modell is expected to hold its value well, appealing to buyers seeking a premium, high-performance station wagon with advanced technology. Its combination of practicality, luxury, and efficiency positions it as a desirable and well-rounded vehicle for years to come.
