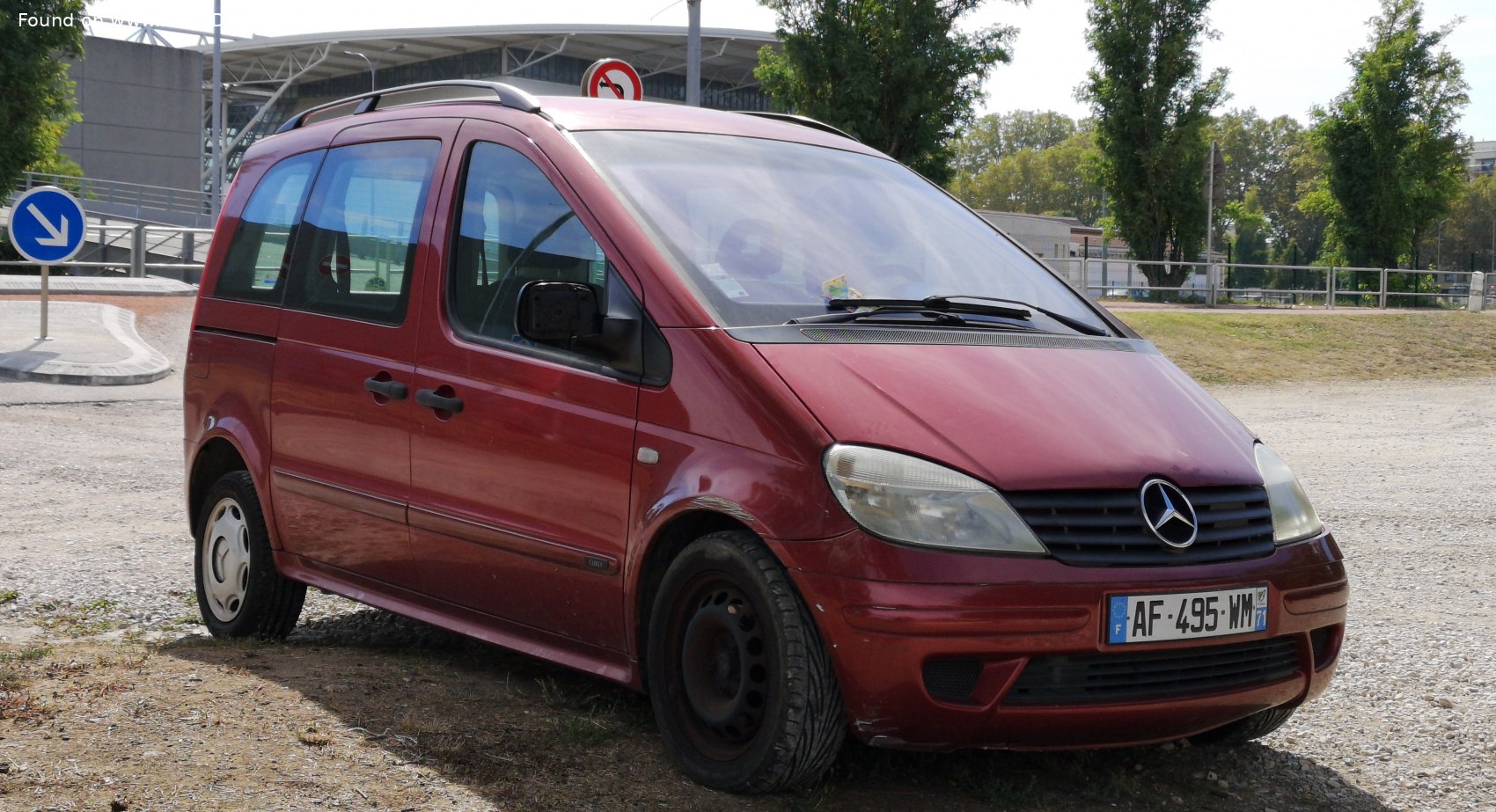

The Mercedes-Benz Vaneo (W414) is a compact minivan produced by the German manufacturer Mercedes-Benz between 2001 and 2005. Designed as a more premium and versatile alternative to conventional compact MPVs, the Vaneo was primarily marketed in Europe and did not receive widespread distribution in the United States. It occupied a niche segment, offering a blend of practicality, comfort, and the Mercedes-Benz brand prestige. The 1.6i variant, powered by a 102 horsepower engine, represented a core offering within the Vaneo range, balancing fuel efficiency with adequate performance for everyday use.
Mercedes-Benz Vaneo (W414) 1.6i: An Overview
The Vaneo was conceived as a response to the growing demand for smaller, more manageable multi-purpose vehicles. Unlike larger, van-derived MPVs, the Vaneo utilized a unibody construction, contributing to improved ride quality and handling. It aimed to appeal to families and individuals seeking a practical vehicle with a more refined driving experience than typically found in the segment. The W414 designation refers to the vehicle’s internal chassis code. While not a commercial success in the same vein as some of its competitors, the Vaneo showcased Mercedes-Benz’s ability to innovate within the compact MPV space.
Engine & Performance
The 1.6i Vaneo is equipped with a 1.6-liter inline-four cylinder gasoline engine, designated M 166 E 16/166.960. This engine produces 102 horsepower at 5250 rpm and 150 Nm (110.63 lb.-ft.) of torque at 4000 rpm. The engine features multi-port fuel injection and a naturally aspirated design, relying on atmospheric pressure for air intake. Power is delivered to the front wheels via a five-speed manual transmission. Acceleration from 0 to 100 km/h (0-62 mph) takes 13.5 seconds, while 0 to 60 mph is achieved in approximately 12.8 seconds. The vehicle has a maximum speed of 167 km/h (103.77 mph). The engine’s power-to-weight ratio is 12.6 kg/Hp, and the torque-to-weight ratio is 8.6 kg/Nm. Fuel economy figures are rated at 10.7 l/100 km (22 US mpg) in urban conditions, 6.5 l/100 km (36.2 US mpg) on the extra-urban cycle, and 8.0 l/100 km (29.4 US mpg) combined.
Design & Features
The Mercedes-Benz Vaneo is a five-door minivan with seating for five passengers. Its design prioritized practicality and interior space. The vehicle’s compact dimensions – 4190 mm (164.96 in) in length, 1740 mm (68.5 in) in width, and 1830 mm (72.05 in) in height – made it relatively easy to maneuver in urban environments. A key feature of the Vaneo was its versatile interior, with rear seats that could be folded or removed to create a larger cargo area. Trunk space ranges from a minimum of 150 liters (5.3 cu. ft.) to a maximum of 3000 liters (105.94 cu. ft.) with the rear seats folded. Safety features included ABS (Anti-lock Braking System) and ventilated disc brakes on the front wheels, with disc brakes on the rear. The Vaneo’s suspension consists of a spring strut setup at the front and coil springs at the rear, providing a comfortable ride. Hydraulic power steering contributes to ease of handling. The vehicle rides on 185/60 R15 tires.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | Vaneo |
| Generation | Vaneo (W414) |
| Type (Engine) | 1.6i (102 Hp) |
| Start of production | 2001 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 10.7 l/100 km (22 US mpg) |
| Fuel consumption (extra urban) | 6.5 l/100 km (36.2 US mpg) |
| Fuel consumption (combined) | 8 l/100 km (29.4 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.5 sec |
| Acceleration 0 – 62 mph | 13.5 sec |
| Acceleration 0 – 60 mph | 12.8 sec |
| Maximum speed | 167 km/h (103.77 mph) |
| Weight-to-power ratio | 12.6 kg/Hp |
| Weight-to-torque ratio | 8.6 kg/Nm |
| Power | 102 Hp @ 5250 rpm |
| Torque | 150 Nm @ 4000 rpm (110.63 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | M 166 E 16/166.960 |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm (3.15 in.) |
| Piston Stroke | 79.5 mm (3.13 in.) |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Coolant capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 1290 kg (2843.96 lbs.) |
| Max. weight | 1910 kg (4210.83 lbs.) |
| Max load | 620 kg (1366.87 lbs.) |
| Trunk (boot) space – minimum | 150 l (5.3 cu. ft.) |
| Trunk (boot) space – maximum | 3000 l (105.94 cu. ft.) |
| Fuel tank capacity | 54 l (14.27 US gal | 11.88 UK gal) |
| Length | 4190 mm (164.96 in.) |
| Width | 1740 mm (68.5 in.) |
| Height | 1830 mm (72.05 in.) |
| Wheelbase | 2900 mm (114.17 in.) |
| Front track | 1525 mm (60.04 in.) |
| Rear track | 1475 mm (58.07 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/60 R15 |
The Mercedes-Benz Vaneo (W414) 1.6i, while not a mainstream success in all markets, represents an interesting chapter in Mercedes-Benz’s history, demonstrating their exploration of the compact MPV segment and their commitment to providing versatile and practical vehicles for a diverse range of customers.
