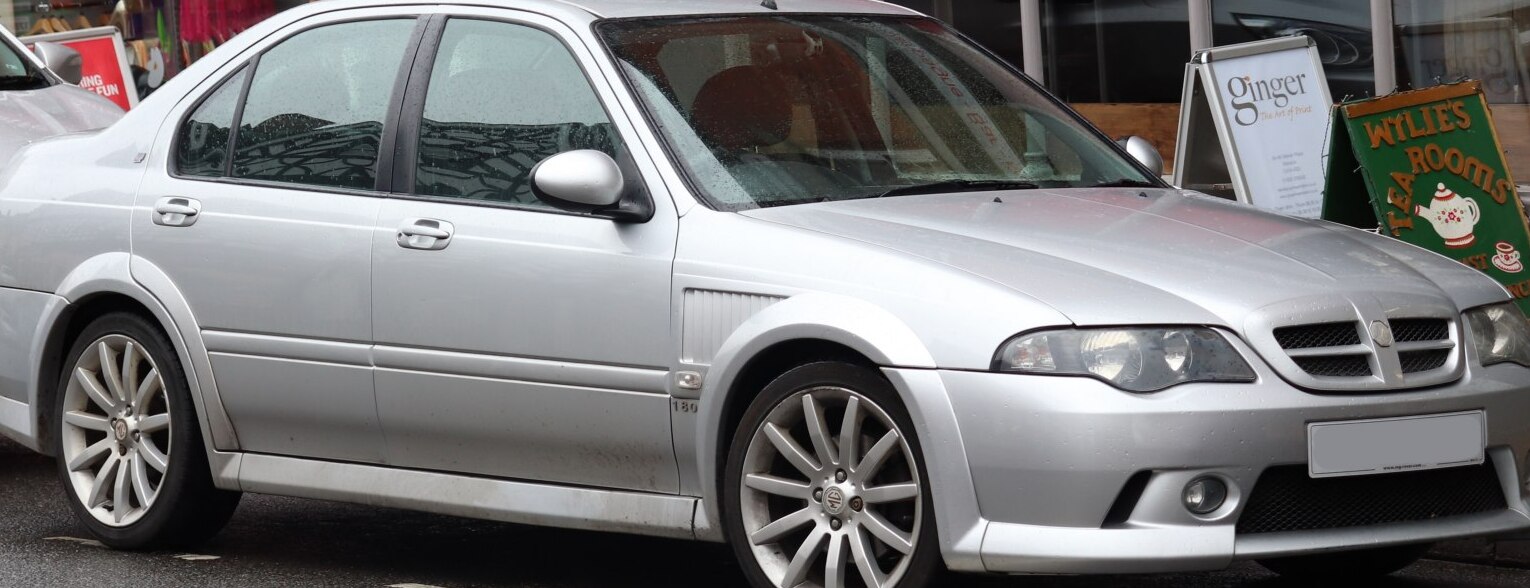

The MG ZS 1.8 16V, equipped with a Continuously Variable Transmission (CVT), was a compact sedan produced by MG Motor from 2001 to 2005. Positioned as a mainstream offering within the ZS range, it represented MG’s attempt to compete in the increasingly popular small family car segment. This variant, powered by the 18K4F engine, aimed to provide a balance of affordability, practicality, and ease of driving, particularly appealing to buyers prioritizing comfort over outright performance. It was built on the platform shared with the Rover 400, reflecting MG’s ownership by BMW at the time of its development.
Technical Specifications
| Brand | MG |
| Model | ZS |
| Generation | ZS |
| Type (Engine) | 1.8 16V (117 Hp) CVT |
| Start of production | 2001 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 11.9 l/100 km (19.8 US mpg) |
| Fuel consumption (extra urban) | 6.5 l/100 km (36.2 US mpg) |
| Fuel consumption (combined) | 8.5 l/100 km (27.7 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.9 sec |
| Acceleration 0 – 62 mph | 9.9 sec |
| Acceleration 0 – 60 mph | 9.4 sec |
| Maximum speed | 185 km/h (114.95 mph) |
| Weight-to-power ratio | 9.6 kg/Hp |
| Weight-to-torque ratio | 7 kg/Nm |
| Power | 117 Hp @ 5500 rpm |
| Torque | 160 Nm @ 2750 rpm (118.01 lb.-ft. @ 2750 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 18K4F |
| Engine displacement | 1795 cm3 (109.54 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm (3.15 in.) |
| Piston Stroke | 89.3 mm (3.52 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Kerb Weight | 1125 kg (2480.2 lbs.) |
| Max. weight | 1640 kg (3615.58 lbs.) |
| Max load | 515 kg (1135.38 lbs.) |
| Trunk (boot) space – minimum | 470 l (16.6 cu. ft.) |
| Trunk (boot) space – maximum | 810 l (28.6 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4520 mm (177.95 in.) |
| Width | 1700 mm (66.93 in.) |
| Height | 1390 mm (54.72 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1480 mm (58.27 in.) |
| Rear (Back) track | 1470 mm (57.87 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 1, automatic transmission (CVT) |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/45 R17 |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The MG ZS 1.8 16V utilized the 18K4F engine, a 1.8-liter inline-four cylinder powerplant. This engine, derived from the Rover K-series, featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its relatively high output for its displacement. The engine employed multi-point fuel injection for precise fuel delivery. The 18K4F produced 117 horsepower at 5500 rpm and 160 Nm (118 lb-ft) of torque at 2750 rpm. Paired with this engine was a Continuously Variable Transmission (CVT). Unlike traditional automatic transmissions with fixed gear ratios, the CVT offered a seamless and stepless gear change, aiming to optimize fuel efficiency and provide a smoother driving experience. However, CVTs of this era were often criticized for a “rubber band” feel during acceleration, where engine speed would rise without a corresponding increase in vehicle speed.
Driving Characteristics
The 1.8L CVT combination in the MG ZS delivered a comfortable, if not particularly sporty, driving experience. Acceleration from 0-60 mph took approximately 9.4 seconds, and top speed was around 115 mph. The CVT, while providing smooth transitions, did detract from the sense of urgency. Compared to the manual transmission versions of the ZS 1.8, the CVT offered less driver engagement and a slightly slower 0-60 time. The CVT’s programming prioritized fuel economy, resulting in a more relaxed power delivery. The gear ratios were continuously adjusted to keep the engine within its optimal operating range, which was beneficial for everyday driving but less ideal for spirited performance. The weight of the vehicle, around 2480 lbs, was reasonably well-matched to the engine’s output, providing adequate performance for typical commuting and highway driving.
Equipment & Trim Levels
The MG ZS 1.8 16V CVT typically came with a reasonable level of standard equipment. Interior features included cloth upholstery, a basic stereo system, power windows, and central locking. Air conditioning was often standard, though some base models may have offered it as an option. Safety features included ABS brakes and driver and passenger airbags. Optional extras included alloy wheels, upgraded audio systems, and metallic paint finishes. The trim level of the 1.8 CVT generally fell in the mid-range of the ZS lineup, offering a step up from the base models in terms of comfort and convenience features, but lacking the more luxurious appointments found in higher-spec trims.
Chassis & Braking
The MG ZS featured a conventional chassis layout with a MacPherson strut front suspension and a coil spring rear suspension. The front brakes were ventilated discs, providing good stopping power, while the rear brakes were solid discs. The steering was rack and pinion with hydraulic power assistance. The suspension was tuned for comfort, providing a relatively soft ride quality. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering. The 17-inch wheels, typically fitted with 205/45 R17 tires, provided a good balance of grip and ride comfort.
Market Reception & Comparison
The MG ZS 1.8 16V CVT received mixed reviews from automotive critics. While the car was praised for its affordability and comfortable ride, the CVT transmission was often criticized for its lack of responsiveness and the “rubber band” effect. Fuel economy was considered average for its class, with combined figures around 27.7 US mpg. Compared to other compact sedans available at the time, such as the Ford Focus and Vauxhall Astra, the ZS offered a more budget-friendly option but lacked the refinement and driving dynamics of its rivals. Reliability was also a concern, as MG’s financial difficulties during this period led to concerns about parts availability and long-term support.
Legacy
The MG ZS 1.8 16V CVT, while not a resounding success in terms of sales or critical acclaim, remains a relatively affordable and accessible classic car today. The 18K4F engine is generally considered reliable, although regular maintenance is essential. The CVT transmission can be a potential weak point, and finding replacement units can be challenging. Parts availability has improved in recent years, thanks to the efforts of MG enthusiasts and specialist parts suppliers. The ZS 1.8 CVT is now often sought after by enthusiasts looking for a unique and affordable British-built sedan. Its relatively simple mechanical design makes it a relatively easy car to maintain and repair for those with some mechanical aptitude.
