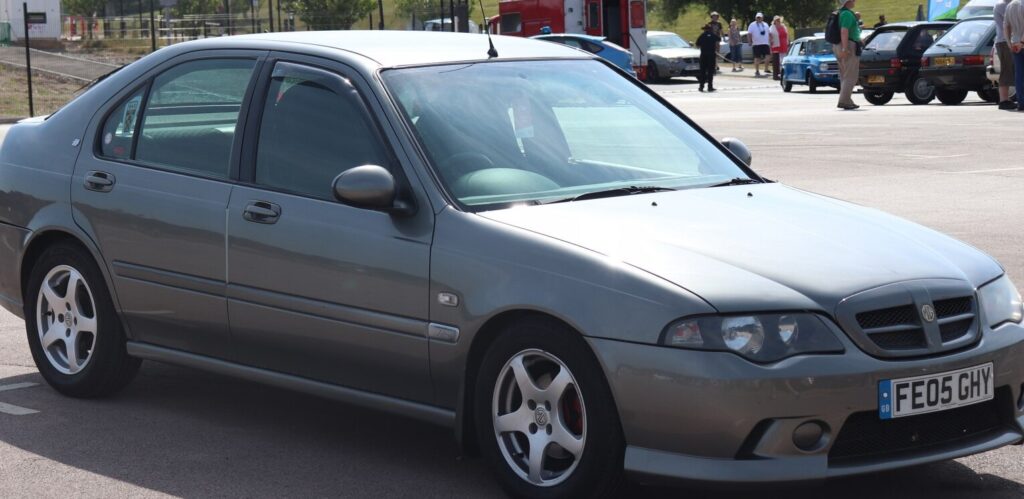

The MG ZS 1.8 16V, produced between 2001 and 2005, was a compact hatchback aimed at the European market as a budget-friendly and practical family vehicle. Positioned as a mainstream offering within the ZS range, it served as an accessible entry point to the model line, sitting below the more powerful and often better-equipped variants. The ZS itself represented MG’s attempt to modernize its image and compete in the increasingly crowded small family car segment, building upon the platform developed during its time under BMW ownership. This particular 1.8-liter engine and five-speed manual transmission combination was a core part of the ZS lineup during its production run.
Technical Specifications
| Brand | MG |
| Model | ZS |
| Generation | ZS Hatchback |
| Type (Engine) | 1.8 16V (117 Hp) |
| Start of production | 2001 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 9.7 l/100 km (24.2 US mpg) |
| Fuel consumption (extra urban) | 5.8 l/100 km (40.6 US mpg) |
| Fuel consumption (combined) | 7.3 l/100 km (32.2 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.7 sec |
| Acceleration 0 – 62 mph | 9.7 sec |
| Acceleration 0 – 60 mph | 9.2 sec |
| Maximum speed | 197 km/h (122.41 mph) |
| Weight-to-power ratio | 9.7 kg/Hp |
| Weight-to-torque ratio | 7.1 kg/Nm |
| Power | 117 Hp @ 5500 rpm |
| Torque | 160 Nm @ 2750 rpm (118.01 lb.-ft. @ 2750 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 18K4F |
| Engine displacement | 1795 cm3 (109.54 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm (3.15 in.) |
| Piston Stroke | 89.3 mm (3.52 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Kerb Weight | 1130 kg (2491.22 lbs.) |
| Max. weight | 1640 kg (3615.58 lbs.) |
| Max load | 510 kg (1124.36 lbs.) |
| Trunk (boot) space – minimum | 370 l (13.07 cu. ft.) |
| Trunk (boot) space – maximum | 720 l (25.43 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4377 mm (172.32 in.) |
| Width | 1696 mm (66.77 in.) |
| Height | 1386 mm (54.57 in.) |
| Wheelbase | 2622 mm (103.23 in.) |
| Front track | 1475 mm (58.07 in.) |
| Rear track | 1465 mm (57.68 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/50 R16 |
Powertrain & Engine Architecture
The MG ZS 1.8 16V utilized the 18K4F engine, a 1.8-liter inline-four cylinder gasoline engine. This engine, while developed under MG’s ownership, had roots in designs originating from the BMW era. It featured a multi-port fuel injection system and a double overhead camshaft (DOHC) valvetrain, contributing to its relatively efficient operation for its time. The engine produced 117 horsepower at 5500 rpm and 160 Nm (118 lb-ft) of torque at 2750 rpm. The five-speed manual transmission was the standard offering for this variant, providing a reasonably direct connection between the engine and the front wheels. The transmission’s gear ratios were tuned for a balance between acceleration and fuel economy, though it wasn’t particularly sporty in its gearing.
Driving Characteristics
The 1.8-liter engine, paired with the five-speed manual, offered adequate performance for everyday driving. Acceleration from 0-60 mph took around 9.2 seconds, which was competitive within its class, but not particularly exciting. The engine felt reasonably responsive in the mid-range, making it suitable for overtaking maneuvers on typical roads. Compared to the more powerful 2.0-liter variants, the 1.8 felt noticeably less potent, especially at higher speeds. However, the 1.8 offered a more economical driving experience, and the manual transmission allowed for greater driver control. The gear ratios were spaced to provide acceptable acceleration in each gear, but the engine didn’t feel particularly eager to rev beyond 5000 rpm.
Equipment & Trim Levels
The MG ZS 1.8 16V typically came equipped with a reasonable level of standard features for a car in its price bracket. These included central locking, power steering, electric front windows, and an adjustable steering column. Interior upholstery was generally cloth, with a relatively simple dashboard layout. Optional extras included air conditioning, alloy wheels, and a CD player. The trim level was generally considered the base or mid-range offering, providing a good balance of features and affordability. It was aimed at buyers who prioritized practicality and value over luxury or performance.
Chassis & Braking
The ZS 1.8 featured a conventional front-wheel-drive chassis with a MacPherson strut front suspension and a coil spring rear suspension. This setup provided a comfortable ride quality, although it wasn’t particularly sporty in handling. The front brakes were ventilated discs, while the rear brakes were solid discs, providing adequate stopping power for the car’s weight and performance. Anti-lock Braking System (ABS) was standard, enhancing safety. The suspension was tuned for comfort, prioritizing ride quality over sharp handling, and the stabilizer bars were of moderate thickness.
Market Reception & Comparison
The MG ZS 1.8 16V received mixed reviews from automotive critics. It was generally praised for its affordability, spacious interior, and decent fuel economy (around 32.2 US mpg combined). However, it was also criticized for its somewhat bland styling, uninspired handling, and the perceived lack of refinement compared to some of its competitors. Compared to the higher-output 2.0-liter ZS variants, the 1.8 offered better fuel economy but significantly less performance. Against rivals like the Ford Focus and Vauxhall/Opel Astra, the ZS 1.8 offered a competitive price point but often lagged behind in terms of overall driving experience and brand prestige.
Legacy
The MG ZS 1.8 16V, while not a groundbreaking vehicle, represents a significant chapter in MG’s history. The 18K4F engine proved to be reasonably reliable, although regular maintenance is crucial for older examples. In the used car market today, the ZS 1.8 is often sought after as an affordable and practical runabout. Parts availability can be a concern, as MG ceased production some time ago, but many components are shared with other vehicles from the Rover/MG group. The 1.8-liter engine and manual transmission combination is generally considered a solid and dependable powertrain, making it a viable option for budget-conscious buyers seeking a simple and functional hatchback.
