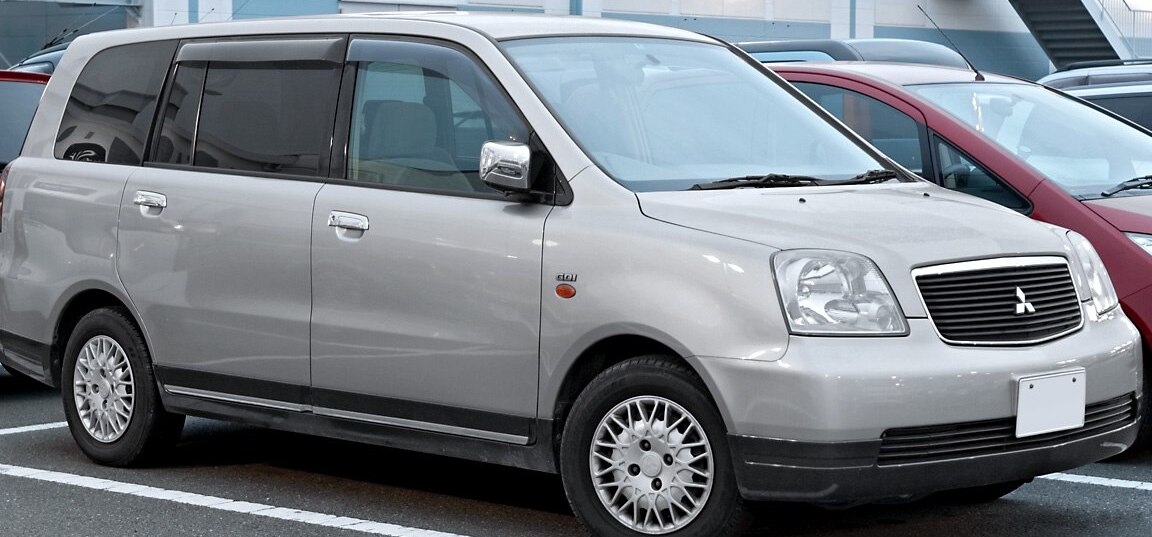

The Mitsubishi Dion 1.8 GDI, produced between May 2002 and March 2006, represents a unique offering in Mitsubishi’s lineup during that period. Positioned as a compact minivan, the Dion aimed to provide affordable seven-passenger transportation, primarily targeted towards families in Asian markets, particularly Indonesia and Malaysia. This specific 1.8 GDI variant, equipped with a 165 horsepower engine and a four-speed automatic transmission, served as a mid-range option within the Dion family, offering a balance between performance and fuel efficiency. It was a key player in a segment where space and practicality were paramount, competing with other Asian-market MPVs.
Technical Specifications
| Brand | Mitsubishi |
| Model | Dion |
| Generation | Dion |
| Type (Engine) | 1.8 GDI (165 Hp) |
| Start of production | May, 2002 |
| End of production | March, 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 7 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8.5 kg/Hp, 117.9 Hp/tonne |
| Weight-to-torque ratio | 6.4 kg/Nm, 157.1 Nm/tonne |
| Power | 165 Hp @ 5500 rpm |
| Power per litre | 90 Hp/l |
| Torque | 220 Nm @ 3500 rpm (162.26 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 4G93 |
| Engine displacement | 1834 cm3 (111.92 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 89 mm (3.5 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.8 l (4.02 US qt | 3.34 UK qt) |
| Kerb Weight | 1400 kg (3086.47 lbs.) |
| Max. weight | 1470 kg (3240.8 lbs.) |
| Max load | 70 kg (154.32 lbs.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4460 mm (175.59 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1650 mm (64.96 in.) |
| Wheelbase | 2705 mm (106.5 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear (Back) track | 1470 mm (57.87 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Spring Strut |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/60 R15 |
Powertrain & Engine Architecture
The heart of the Dion 1.8 GDI is the 4G93 engine, a 1.8-liter inline-four cylinder powerplant. The “GDI” designation stands for Gasoline Direct Injection, a technology Mitsubishi pioneered. This system injects fuel directly into the combustion chamber, rather than into the intake port, allowing for more precise fuel control, increased power, and improved fuel economy. The 4G93 features a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its relatively high output for its displacement. The engine produces 165 horsepower at 5500 rpm and 220 Nm (162.26 lb-ft) of torque at 3500 rpm. Paired with this engine is a four-speed automatic transmission, chosen for its ease of use and suitability for the target market. While not offering the sportiness of a manual transmission, the automatic provided smooth shifts and convenient operation for everyday driving.
Driving Characteristics
The 1.8 GDI automatic Dion offered a reasonable driving experience for its class. Acceleration was adequate for typical urban and highway driving, though it wasn’t particularly quick. The four-speed automatic transmission, while smooth, lacked the responsiveness of more modern gearboxes. Gear ratios were tuned for fuel efficiency and comfortable cruising rather than outright performance. Compared to the manual transmission versions of the Dion, the automatic suffered a slight performance penalty, but the convenience factor was often preferred by buyers. Compared to other engine options within the Dion range, the 1.8 GDI provided a noticeable step up in power over the smaller 1.5-liter engine, making it more suitable for fully loaded vehicles or driving in hilly terrain.
Equipment & Trim Levels
The 1.8 GDI trim typically included features such as air conditioning, power windows, power steering, and an AM/FM radio with a CD player. Higher trim levels offered options like alloy wheels, a more sophisticated audio system, and upgraded interior upholstery. The interior was generally functional and durable, with seating for seven passengers arranged in a 2-3-2 configuration. The third-row seats were best suited for children or shorter adults, as space was limited. Safety features were relatively basic for the time, typically including ABS brakes and seatbelts for all occupants.
Chassis & Braking
The Dion utilized a front-engine, front-wheel-drive layout. Suspension consisted of a MacPherson strut setup at the front and a double wishbone arrangement at the rear, providing a comfortable ride quality. Braking duties were handled by ventilated discs at the front and drum brakes at the rear. The braking system, while adequate for normal driving conditions, lacked the stopping power of more advanced systems. The steering was rack and pinion, providing reasonably precise control.
Market Reception & Comparison
The Mitsubishi Dion 1.8 GDI was generally well-received in its target markets. Critics praised its spacious interior, affordability, and relatively fuel-efficient engine. However, some reviewers noted the lack of refinement compared to more expensive MPVs. Compared to other trims in the Dion lineup, the 1.8 GDI offered a compelling balance of performance and economy. The smaller 1.5-liter engine was more affordable but lacked sufficient power for some drivers, while higher-spec models with more features came at a premium price. Fuel economy was competitive for its class, averaging around 8-10 liters per 100 kilometers (23-28 mpg) in real-world driving.
Legacy
The Mitsubishi Dion, while not a global success, remains a popular choice in the used car market in Southeast Asia. The 1.8 GDI engine is generally considered reliable, although regular maintenance is crucial to prevent issues. The GDI system, while offering performance benefits, can be susceptible to carbon buildup if not properly maintained. Parts availability can be a concern in some regions, but the 4G93 engine is shared with other Mitsubishi models, making sourcing components easier. Today, the Dion 1.8 GDI represents an affordable and practical option for families seeking a spacious and reliable minivan.
