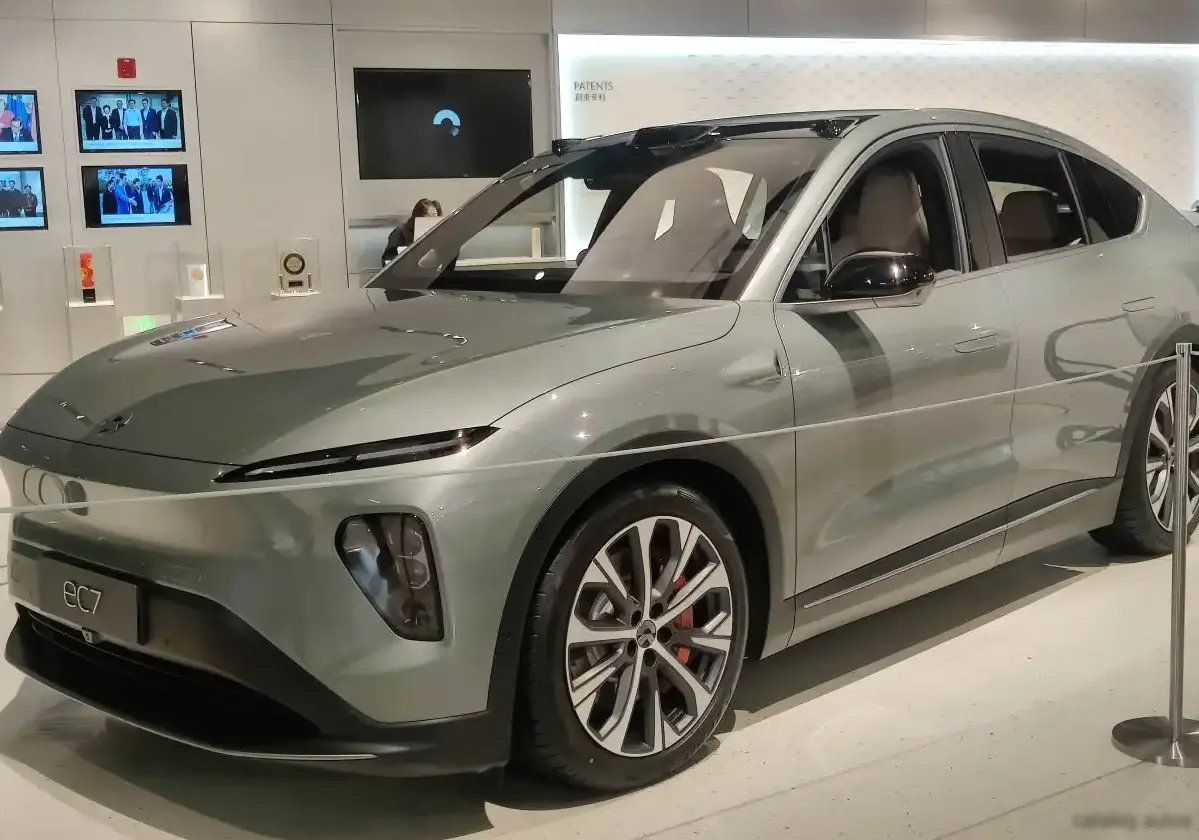

2023 NIO EC7 Long Range 100 kWh (653 Hp) i4WD Electric

The NIO EC7 Long Range 100 kWh, producing 653 horsepower, is an all-electric, five-passenger coupe SUV introduced by the Chinese automotive manufacturer NIO in June 2023. Positioned as a premium offering within NIO’s expanding lineup, the EC7 represents a blend of performance, technology, and luxury aimed at the growing electric vehicle market. It’s built on NIO’s second-generation technology platform and is designed to compete with established luxury electric SUVs like the Porsche Cayenne and BMW iX. The EC7 is primarily marketed in China and select European markets, representing NIO’s ambition to become a global leader in the EV space.

Technical Specifications

Brand NIO
Model EC7
Generation EC7
Type Long Range 100 kWh (653 Hp) i4WD Electric
Start of production June, 2023
Powertrain Architecture BEV (Electric Vehicle)
Body type Coupe, SUV
Seats 5
Doors 5
Fuel Type Electricity
Acceleration 0 – 100 km/h 3.8 sec
Acceleration 0 – 62 mph 3.8 sec
Acceleration 0 – 60 mph 3.6 sec
100 km/h – 0 33.9 m
Gross battery capacity 100 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (CLTC) 590-635 km (366.61 – 394.57 mi)
Electric motor power (Front) 245 Hp
Electric motor location (Front) Front axle, Transverse
Electric motor power (Rear) 408 Hp
Electric motor location (Rear) Rear axle, Transverse
System power 653 Hp
System torque 850 Nm (626.93 lb.-ft.)
Trunk (boot) space – minimum 442-532 l (15.61 – 18.79 cu. ft.)
Trunk (boot) space – maximum 1449 l (51.17 cu. ft.)
Length 4968 mm (195.59 in.)
Width 1974 mm (77.72 in.)
Height 1714 mm (67.48 in.)
Wheelbase 2960 mm (116.54 in.)
Drag coefficient (Cd) 0.23
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears 1
Gearbox type Automatic transmission
Front suspension Double wishbone, Air Suspension – Optional
Rear suspension Independent multi-link suspension, Air Suspension – Optional
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/50 R20; 265/45 R21; 265/40 R22
Wheel rims size 20; 21; 22

Powertrain & Engine Architecture

The NIO EC7 Long Range utilizes a dual-motor, all-wheel-drive (i4WD) powertrain. Unlike traditional internal combustion engine vehicles, it doesn’t have an “engine” in the conventional sense. Instead, it employs two independent electric motors – one driving the front axle and the other driving the rear axle. The front motor produces 245 horsepower, while the rear motor generates a more substantial 408 horsepower, resulting in a combined system output of 653 horsepower and 850 Nm (626.93 lb.-ft.) of torque. Both motors are permanent magnet synchronous motors, known for their high efficiency and power density. The 100 kWh battery pack, utilizing lithium-ion technology, is positioned under the vehicle floor to optimize weight distribution and lower the center of gravity. The battery supports fast charging capabilities, allowing for a significant range boost in a relatively short period. The single-speed automatic transmission is inherent to electric vehicle design, providing seamless acceleration without the need for multiple gears.

Driving Characteristics

The EC7 Long Range delivers exceptionally quick acceleration, achieving 0-60 mph in approximately 3.6 seconds. The dual-motor setup provides instant torque, resulting in a responsive and engaging driving experience. The all-wheel-drive system ensures excellent traction and stability, particularly in adverse weather conditions. The single-speed transmission contributes to a smooth and linear power delivery. Compared to potential future, higher-performance variants of the EC7, the Long Range model prioritizes a balance between performance and efficiency. While it offers exhilarating acceleration, it’s not quite as aggressively tuned as a dedicated performance model. The optional air suspension further enhances ride comfort and handling, allowing for adjustable ride height and damping characteristics.

Equipment & Trim Levels

The NIO EC7 Long Range is well-equipped with standard features, reflecting its premium positioning. Interior appointments typically include high-quality leather upholstery, a panoramic sunroof, and a large touchscreen infotainment system. NIO’s proprietary NOMI in-car AI assistant is also standard, providing voice control and personalized features. Available options include upgraded audio systems, advanced driver-assistance systems (ADAS) such as adaptive cruise control and lane-keeping assist, and the aforementioned air suspension. The interior design emphasizes minimalism and technology, with a focus on creating a spacious and comfortable cabin. Trim levels beyond the base Long Range may offer additional cosmetic enhancements and exclusive features.

Chassis & Braking

The EC7 features a double wishbone front suspension and an independent multi-link rear suspension, designed to provide a comfortable ride and precise handling. The optional air suspension adds another layer of sophistication, allowing for adjustable ride height and damping. Braking duties are handled by ventilated discs on all four wheels, providing ample stopping power. The EC7 incorporates a comprehensive suite of safety features, including ABS (Anti-lock Braking System), electronic stability control, and multiple airbags. The vehicle’s relatively low center of gravity, thanks to the underfloor battery pack, contributes to its stability and cornering ability.

Market Reception & Comparison

The NIO EC7 has been generally well-received by automotive critics, praised for its performance, technology, and luxurious interior. Its range of 590-635 km (366.61 – 394.57 mi) on the CLTC cycle is competitive within the luxury electric SUV segment. Compared to other trims in the EC7 lineup, the Long Range model offers the best balance of performance and range. While the standard range model is more affordable, it sacrifices some performance and range. The EC7’s primary competitors include the Porsche Cayenne Electric, BMW iX, and Tesla Model X. The EC7 aims to differentiate itself through its advanced technology, luxurious interior, and unique ownership experience, including NIO’s battery swapping technology.

Legacy

As a relatively new vehicle, the long-term reliability of the NIO EC7 Long Range remains to be fully established. However, NIO has demonstrated a commitment to quality and continuous improvement. The electric powertrain is expected to be highly durable, with fewer moving parts than a traditional internal combustion engine. The battery pack is covered by an eight-year/120,000-mile warranty, providing peace of mind for owners. The EC7 represents a significant step forward for NIO, showcasing its technological capabilities and design prowess. Its success will play a crucial role in NIO’s ambition to become a leading global electric vehicle manufacturer. In the used car market, the EC7 is expected to hold its value well, particularly among buyers seeking a technologically advanced and luxurious electric SUV.
