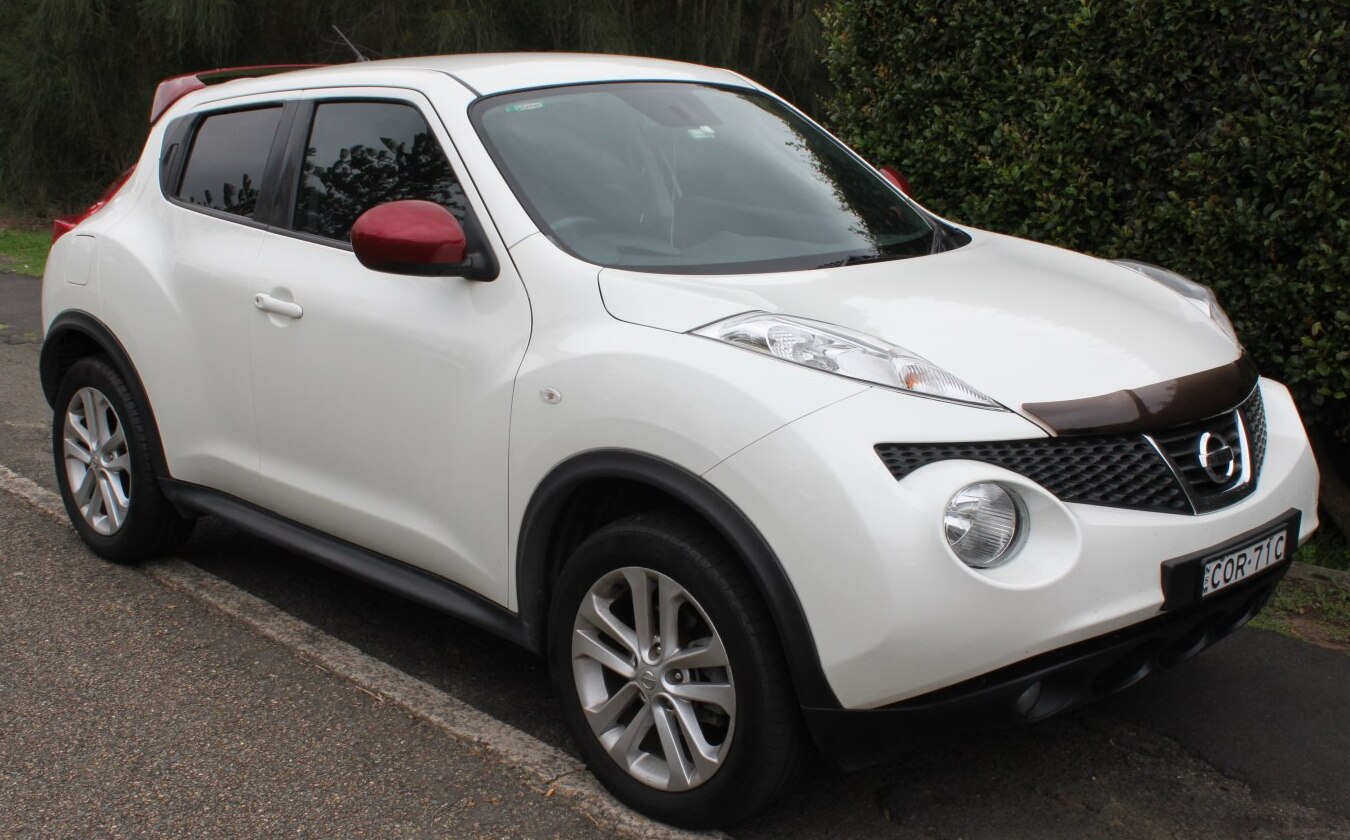

The Nissan Juke I (facelift, produced 2014-2018) 1.6 Xtronic represents a key variant within the first generation of Nissan’s distinctive subcompact crossover. Introduced as part of a mid-cycle refresh in 2014, this model combined the 1.6-liter naturally aspirated four-cylinder engine with Nissan’s Xtronic Continuously Variable Transmission (CVT). Positioned as a more accessible and fuel-efficient option within the Juke lineup, it aimed to broaden the vehicle’s appeal to buyers prioritizing economy and ease of driving over outright performance. The facelift brought styling updates and minor interior revisions, enhancing the Juke’s already bold aesthetic.
Technical Specifications
| Brand | Nissan |
| Model | Juke |
| Generation | Juke I (facelift 2014) |
| Type (Engine) | 1.6 (117 Hp) Xtronic |
| Start of production | 2014 |
| End of production | June, 2018 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV, Crossover |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.3 l/100 km (28.3 US mpg) |
| Fuel consumption (extra urban) | 5.2 l/100 km (45.2 US mpg) |
| Fuel consumption (combined) | 6.3 l/100 km (37.3 US mpg) |
| CO2 emissions | 145 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.5 sec |
| Acceleration 0 – 62 mph | 11.5 sec |
| Acceleration 0 – 60 mph | 10.9 sec |
| Maximum speed | 170 km/h (105.63 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 9.7 kg/Hp |
| Weight-to-torque ratio | 7.2 kg/Nm |
| Power | 117 Hp @ 6000 rpm |
| Torque | 158 Nm @ 4000 rpm (116.53 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | HR16DE |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 78 mm (3.07 in.) |
| Piston Stroke | 83.6 mm (3.29 in.) |
| Compression ratio | 10.7:1 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 4.3 l (4.54 US qt | 3.78 UK qt) |
| Coolant capacity | 6.7 l (7.08 US qt | 5.9 UK qt) |
| Kerb Weight | 1130-1203 kg (2491.22 – 2652.16 lbs.) |
| Max. weight | 1680 kg (3703.77 lbs.) |
| Max load | 477-550 kg (1051.6 – 1212.54 lbs.) |
| Trunk (boot) space – minimum | 354 l (12.5 cu. ft.) |
| Trunk (boot) space – maximum | 797 l (28.15 cu. ft.) |
| Fuel tank capacity | 46 l (12.15 US gal | 10.12 UK gal) |
| Permitted trailer load with brakes (12%) | 1250 kg (2755.78 lbs.) |
| Permitted trailer load without brakes | 625 kg (1377.89 lbs.) |
| Permitted towbar download | 75 kg (165.35 lbs.) |
| Length | 4135 mm (162.8 in.) |
| Width | 1765 mm (69.49 in.) |
| Height | 1565 mm (61.61 in.) |
| Wheelbase | 2530 mm (99.61 in.) |
| Minimum turning circle | 10.7 m (35.1 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | automatic transmission Xtronic CVT |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Tires size | 215/55 R17; 225/45 R18 |
Powertrain & Engine Architecture
The heart of this Juke variant is the HR16DE 1.6-liter inline four-cylinder engine. This engine, a staple in Nissan’s compact vehicle lineup, utilizes multi-point fuel injection and a single overhead camshaft (SOHC) valvetrain. While not known for its high output, the HR16DE prioritizes fuel efficiency and smooth operation. The engine produces 117 horsepower at 6000 rpm and 158 Nm (116.53 lb-ft) of torque at 4000 rpm. The Xtronic CVT, Nissan’s branded continuously variable transmission, is a key component. Unlike traditional automatic transmissions with fixed gear ratios, the CVT provides a virtually infinite number of ratios within its range, optimizing engine speed for efficiency or power as needed. This transmission is known for its smooth acceleration and contribution to improved fuel economy.
Driving Characteristics
The 1.6L Xtronic Juke offers a comfortable and undemanding driving experience. Acceleration is adequate for city driving and highway merging, though it’s noticeably slower than the higher-powered 1.6 Turbo models. The CVT contributes to a smooth, linear power delivery, but can sometimes feel less responsive than a traditional automatic, particularly during quick acceleration requests. The CVT’s programming often prioritizes fuel economy, resulting in the engine holding lower RPMs for longer periods. The Juke’s relatively lightweight construction helps mitigate the engine’s modest power output. Compared to the manual transmission versions of the 1.6, the Xtronic CVT offers greater convenience, especially in stop-and-go traffic, but sacrifices some driver engagement.
Equipment & Trim Levels
The 1.6 Xtronic trim typically served as the entry-level automatic option in the Juke range. Standard features generally included air conditioning, power windows and locks, a basic audio system with USB connectivity, and stability control. Higher trim levels, such as the Visia, Acenta, and Tekna, added features like alloy wheels, climate control, a touchscreen infotainment system, and parking sensors. Interior upholstery was typically cloth, with options for upgraded materials on higher trims. Optional extras often included a panoramic sunroof, navigation system, and premium audio upgrades.
Chassis & Braking
The Juke I utilizes a front-wheel-drive platform with a MacPherson strut front suspension and a torsion beam rear suspension. This setup provides a reasonable balance between ride comfort and handling. The 1.6 Xtronic models typically featured ventilated front disc brakes and solid rear disc brakes. Electric power steering was standard, offering light and easy steering feel. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering. The suspension tuning was generally geared towards comfort rather than sporty handling.
Market Reception & Comparison
The Nissan Juke, in general, received mixed reviews upon its launch, with its polarizing styling being a major point of discussion. The 1.6 Xtronic variant was often praised for its fuel efficiency and ease of use, making it a practical choice for urban commuters. However, critics often noted its lack of outright performance compared to the turbocharged models. Compared to competitors like the Kia Soul and Honda Fit, the Juke offered a more distinctive design and a slightly more engaging driving experience, but often at a higher price point. Fuel economy figures were competitive within its class, and reliability was generally considered average.
Legacy
The HR16DE engine and Xtronic CVT combination proved to be reasonably reliable in the Nissan Juke. While the CVT is sometimes a concern for long-term durability, proper maintenance – including regular fluid changes – can significantly extend its lifespan. On the used car market, the 1.6 Xtronic Juke represents an affordable entry point into the crossover segment. Its fuel efficiency and relatively low running costs make it an attractive option for budget-conscious buyers. However, potential buyers should be aware of the CVT’s maintenance requirements and the vehicle’s somewhat polarizing styling.
