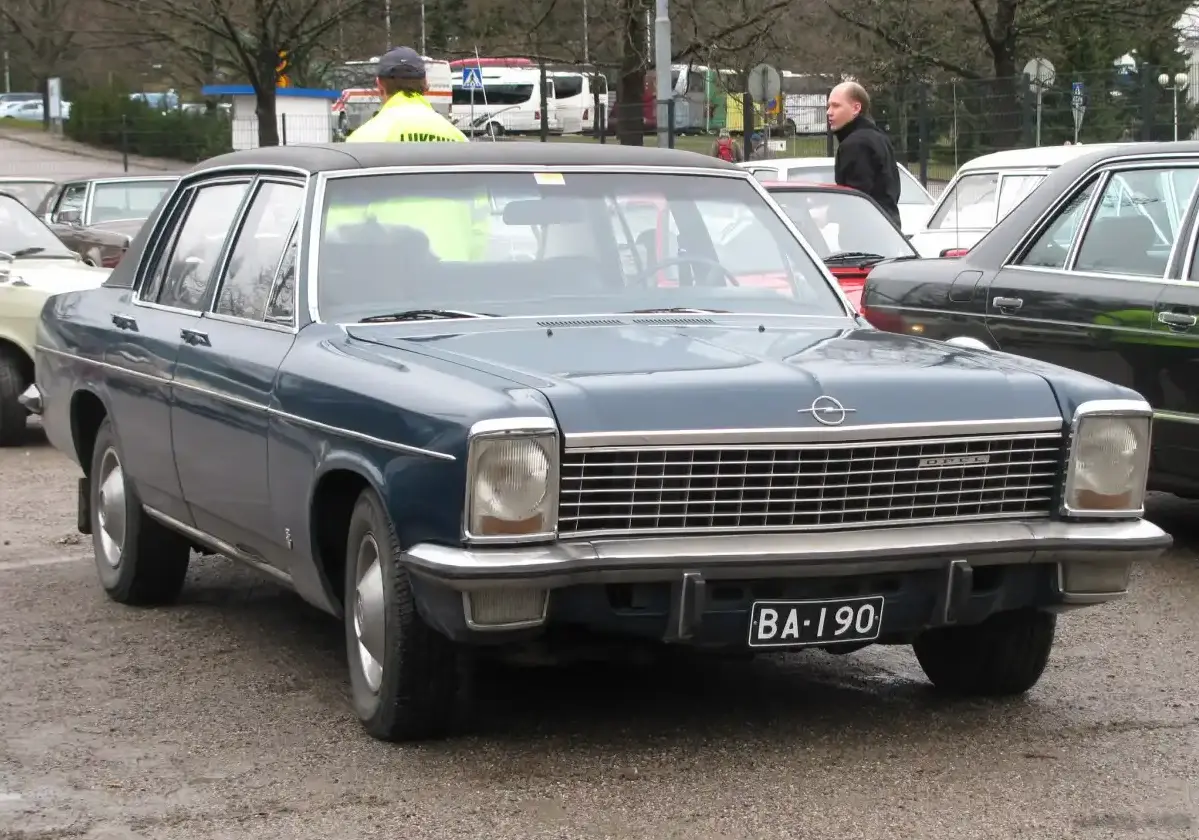

The Opel Diplomat B, specifically the 5.3 V8 variant with automatic transmission, represented the pinnacle of Opel’s luxury offerings from 1969 to 1978. Positioned as the flagship model, it aimed to compete with larger, more prestigious vehicles from brands like Mercedes-Benz and BMW. This generation, built on a lengthened version of the Opel Kapitän’s platform, was a significant departure from its predecessor, offering a more modern design and a powerful American-influenced V8 engine. The Diplomat B served as a statement of German engineering and aspiration, primarily marketed towards executives, government officials, and those seeking a spacious and comfortable grand touring experience. The 5.3 V8 automatic was the top-of-the-line trim, offering the most power and convenience within the Diplomat B range.
Technical Specifications
| Brand | Opel |
| Model | Diplomat |
| Generation | Diplomat B |
| Type (Engine) | 5.3 V8 (230 Hp) Automatic |
| Start of production | 1969 |
| End of production | 1978 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 8.5 sec |
| Acceleration 0 – 62 mph | 8.5 sec |
| Acceleration 0 – 60 mph | 8.1 sec |
| Maximum speed | 205 km/h (127.38 mph) |
| Weight-to-power ratio | 7.3 kg/Hp, 136.1 Hp/tonne |
| Weight-to-torque ratio | 4 kg/Nm, 252.7 Nm/tonne |
| Power | 230 Hp @ 4700 rpm |
| Power per litre | 43 Hp/l |
| Torque | 427 Nm @ 3000-3200 rpm (314.94 lb.-ft. @ 3000-3200 rpm) |
| Engine Model/Code | 54S |
| Engine displacement | 5354 cm3 (326.72 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 101.6 mm (4 in.) |
| Piston Stroke | 82.55 mm (3.25 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine oil capacity | 5.4 l (5.71 US qt | 4.75 UK qt) |
| Kerb Weight | 1690 kg (3725.81 lbs.) |
| Max. weight | 2200 kg (4850.17 lbs.) |
| Max load | 510 kg (1124.36 lbs.) |
| Trunk (boot) space – minimum | 475 l (16.77 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Length | 4920 mm (193.7 in.) |
| Width | 1852 mm (72.91 in.) |
| Height | 1450 mm (57.09 in.) |
| Wheelbase | 2850 mm (112.2 in.) |
| Front track | 1510 mm (59.45 in.) |
| Rear (Back) track | 1512 mm (59.53 in.) |
| Ride height (ground clearance) | 150 mm (5.91 in.) |
| Drag coefficient (Cd) | 0.45 |
| Minimum turning circle (turning diameter) | 11.8 m (38.71 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 3 gears, automatic transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
Powertrain & Engine Architecture
The heart of the Diplomat B 5.3 V8 was the 54S engine, a 5.354-liter (326.72 cubic inch) overhead valve (OHV) V8. This engine, while designed by Opel, drew heavily from American V8 design principles, prioritizing low-end torque and smooth operation. It utilized a cast iron block and cylinder heads, and was fed by a four-barrel carburetor. The 10.5:1 compression ratio contributed to its respectable power output for the time. The automatic transmission was a three-speed unit, providing a comfortable, if not particularly sporty, driving experience. This transmission was chosen to complement the Diplomat’s luxury focus, prioritizing ease of use over outright performance. The engine code ’54S’ is crucial for identifying parts and specifications, and is often used in restoration work.
Driving Characteristics
The 5.3 V8 automatic Diplomat B offered a distinctly American-style driving experience. The engine delivered ample torque, making it effortless to cruise on the Autobahn or accelerate for overtaking. However, the three-speed automatic transmission, while smooth, lacked the responsiveness of a manual gearbox or a more modern automatic. The gear ratios were geared towards comfortable cruising rather than spirited driving. Compared to the six-cylinder versions, the V8 provided a significant performance boost, but at the cost of increased fuel consumption. The Diplomat B wasn’t a sports sedan; it was a large, comfortable cruiser designed for long distances.
Equipment & Trim Levels
The 5.3 V8 automatic Diplomat B was generously equipped, reflecting its status as the range-topping model. Standard features included power steering, power-assisted disc brakes on all four wheels, a plush interior with cloth or optional leather upholstery, and a comprehensive instrument panel. Optional extras included air conditioning, a sunroof, and a high-fidelity radio. The interior trim was typically finished in rich wood veneer, further enhancing the luxurious ambiance. The automatic transmission was almost always paired with a center console featuring a gear selector and additional storage compartments.
Chassis & Braking
The Diplomat B featured a robust chassis designed to handle the weight and power of the V8 engine. It utilized a traditional body-on-frame construction, providing a comfortable ride but also contributing to its substantial weight. The suspension consisted of independent front suspension with coil springs and a rigid rear axle with leaf springs. The braking system employed ventilated disc brakes on all four wheels, offering good stopping power for a vehicle of its size and weight. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The Diplomat B 5.3 V8 automatic received mixed reviews. Critics praised its spacious interior, comfortable ride, and powerful engine. However, it was often criticized for its high fuel consumption, somewhat dated technology, and lack of sporting pretensions. Compared to the smaller-engined Diplomat models, the V8 offered significantly more performance but came with a substantial price premium. The six-cylinder models were often seen as a more sensible choice for those prioritizing fuel economy and value. The Diplomat B competed directly with the Mercedes-Benz W116 and BMW E3, but generally lacked the prestige and refinement of those rivals.
Legacy
Today, the Opel Diplomat B 5.3 V8 automatic is a sought-after classic car, particularly among enthusiasts of 1970s German automobiles. The 54S V8 engine is known for its durability, but requires regular maintenance to prevent issues. Parts availability can be challenging, but a dedicated community of owners and restorers exists to support the preservation of these vehicles. The Diplomat B represents a unique chapter in Opel’s history, showcasing the company’s ambition to compete in the luxury car market. Well-maintained examples command respectable prices in the classic car market, reflecting their rarity and historical significance. The automatic transmission, while not the most modern, is generally reliable if properly serviced.
