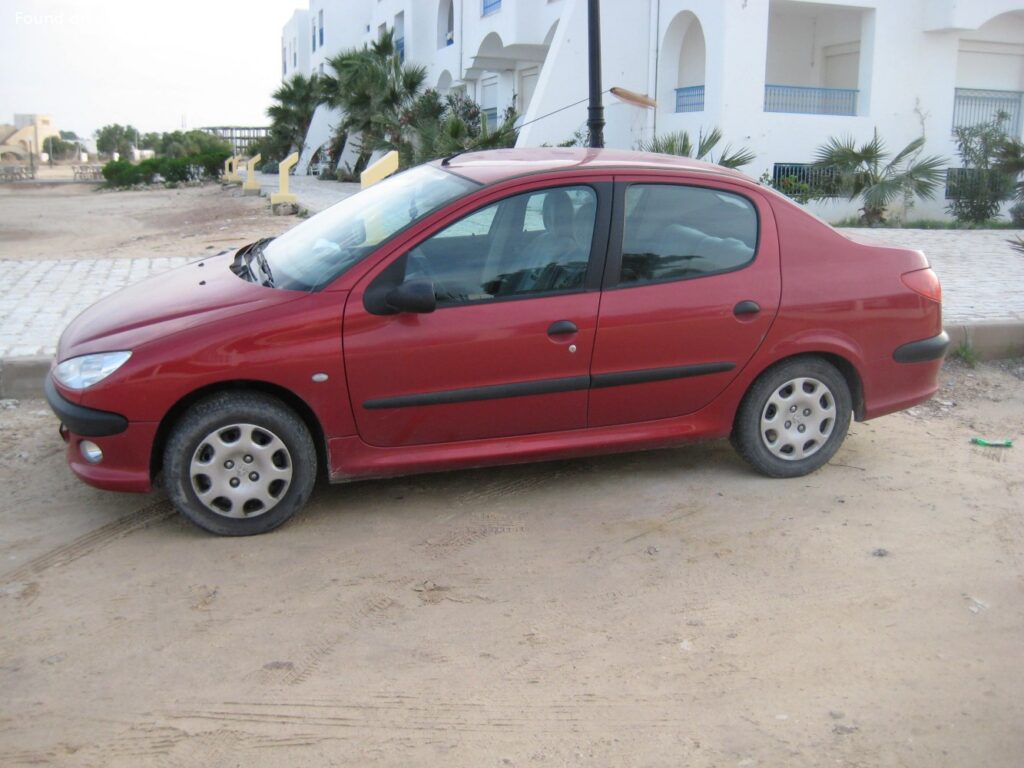

The Peugeot 206 Sedan 1.6 (110 hp) Tiptronic was a four-door sedan variant of the popular 206 model, produced between 2007 and 2012. This version represented a mid-range offering within the 206 Sedan lineup, positioned above the base 1.4-liter models and below any potential performance-oriented trims. It was primarily aimed at buyers seeking a comfortable, practical, and relatively affordable family car with the convenience of an automatic transmission. The 206 Sedan itself was a regional adaptation of the 206 hatchback, designed to cater to markets where sedan body styles were preferred, particularly in parts of South America, Eastern Europe, and North Africa. It utilized the shared platform components of the 206 series, but with a lengthened wheelbase and extended rear bodywork to accommodate the sedan configuration.
Powertrain & Engine Architecture
The heart of the 206 Sedan 1.6 Tiptronic is the NFU (and sometimes TU5JP4) 1.6-liter inline-four cylinder gasoline engine. This engine is a naturally aspirated unit, meaning it does not employ forced induction like a turbocharger or supercharger. It features multi-port fuel injection, delivering fuel directly into the intake ports just before the intake valves. The engine’s valvetrain consists of two valves per cylinder (two intake and two exhaust), operated by a single overhead camshaft. The engine produces a maximum power output of 110 horsepower at 5750 rpm, and 147 Nm (108.42 lb-ft) of torque at 4000 rpm.
The “Tiptronic” designation refers to the four-speed automatic transmission paired with this engine. This transmission, sourced from various suppliers depending on the production year and region, offered both fully automatic operation and a manual shift mode, allowing the driver to select gears for greater control. The transmission’s gear ratios were tuned for a balance between fuel efficiency and acceptable acceleration. First gear was relatively short for quick take-off, while higher gears were geared for comfortable cruising. The transmission also featured an overdrive function for improved highway fuel economy.
Engine Specifications (NFU/TU5JP4)
- Displacement: 1587 cc (96.84 cu in)
- Bore x Stroke: 78 mm x 83 mm (3.07 in x 3.27 in)
- Compression Ratio: 11:1
- Fuel Injection: Multi-port
- Aspiration: Naturally Aspirated
Driving Characteristics
The 1.6-liter engine and four-speed automatic transmission combination in the 206 Sedan provided adequate, but not particularly exhilarating, performance. Acceleration from 0 to 100 km/h (0-62 mph) took approximately 13.7 seconds, and 0 to 60 mph was achieved in around 13 seconds. The top speed was rated at 190 km/h (118 mph). Compared to the manual transmission versions of the 1.6, the automatic resulted in a slight performance decrease due to the inherent power losses within the torque converter and the transmission itself. The automatic transmission’s shift points were generally smooth, but could sometimes feel hesitant during quick acceleration. The Tiptronic manual shift mode offered some degree of control, but lacked the responsiveness of a dedicated manual gearbox. Overall, the driving experience was geared towards comfort and ease of use rather than sporty handling.
Equipment & Trim Levels
The 206 Sedan 1.6 Tiptronic typically came equipped with a reasonable level of standard features. These generally included power steering, central locking, electric front windows, and an air conditioning system. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Depending on the market and optional packages, additional features could include alloy wheels, a CD player with radio, rear electric windows, and upgraded interior trim. Safety features generally included ABS (Anti-lock Braking System) as standard, with airbags (driver and passenger) often included depending on the specific market regulations. The trim level often dictated the availability of these optional extras, with higher-spec versions offering more luxurious appointments.
Chassis & Braking
The 206 Sedan 1.6 Tiptronic utilized a MacPherson strut front suspension and a torsion beam rear suspension. This setup provided a reasonable balance between ride comfort and handling. The front suspension featured coil springs and a stabilizer bar to reduce body roll during cornering. The rear torsion beam suspension was a cost-effective solution that offered adequate damping characteristics. The braking system consisted of disc brakes on the front wheels and drum brakes on the rear wheels. ABS was standard, providing enhanced braking control in emergency situations. The 185/65 R14 tires, mounted on 5.5Jx14 steel or alloy wheels, provided adequate grip for everyday driving conditions.
Market Reception & Comparison
The Peugeot 206 Sedan 1.6 Tiptronic was generally well-received as a practical and affordable family car. Critics praised its comfortable ride, spacious interior (for its class), and the convenience of the automatic transmission. However, the engine’s performance was often considered adequate rather than exciting, and the four-speed automatic transmission was seen as somewhat dated compared to newer transmissions with more gears. In terms of fuel economy, the 1.6 Tiptronic offered reasonable figures, but the manual transmission versions were typically more fuel-efficient. Compared to other sedans in its class, such as the Renault Symbol or the Fiat Albea, the 206 Sedan offered a slightly more refined interior and a more modern design, but often came at a slightly higher price point.
Technical Specifications
| Body Type | Sedan, 4 Doors, 5 Seats |
| Engine Type | Petrol (Gasoline) |
| Engine Displacement | 1.6 l (1587 cm3 / 96.84 cu in) |
| Engine Code | NFU / TU5JP4 |
| Number of Cylinders | 4, Inline |
| Power Output | 110 Hp @ 5750 rpm |
| Torque | 147 Nm @ 4000 rpm (108.42 lb-ft @ 4000 rpm) |
| Transmission | 4-speed Automatic (Tiptronic) |
| Drive Type | Front Wheel Drive |
| 0-100 km/h | 13.7 sec |
| 0-62 mph | 13.7 sec |
| 0-60 mph | 13 sec |
| Top Speed | 190 km/h (118.06 mph) |
| Fuel Tank Capacity | Not Specified |
| Trunk Space (Maximum) | 402 l (14.2 cu ft) |
| Length | 4188 mm (164.88 in) |
| Width | 1655 mm (65.16 in) |
| Height | 1452 mm (57.17 in) |
| Wheelbase | 2442 mm (96.14 in) |
Legacy
The Peugeot 206 Sedan 1.6 Tiptronic, while not a particularly groundbreaking vehicle, proved to be a reliable and durable option for many buyers. The NFU/TU5JP4 engine is generally considered to be a robust unit, capable of high mileage with proper maintenance. The automatic transmission, while not the most advanced, is also known for its durability. In the used car market today, these vehicles are typically available at very affordable prices. Common issues include wear and tear on suspension components, corrosion (depending on the climate), and potential problems with the electrical system. However, parts availability is generally good, and the relatively simple mechanical design makes them relatively easy to repair. The 206 Sedan 1.6 Tiptronic remains a viable option for those seeking a budget-friendly and practical family car, particularly in regions where these vehicles were originally popular.
