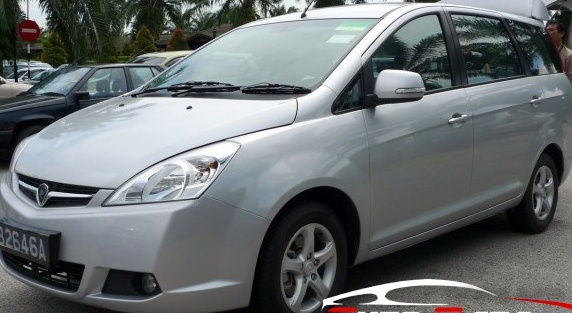

The Proton Exora 1.6 16V (126 hp) Automatic, produced between April 2009 and 2010, represents a significant entry for Proton into the multi-purpose vehicle (MPV) segment. Positioned as a family-oriented vehicle, the Exora aimed to provide affordable seven-seat transportation with a degree of comfort and practicality. It was a key model for Proton, representing a move towards more contemporary designs and features, particularly within the Malaysian market. The Exora was built on a dedicated MPV platform, and this specific 1.6L variant served as a core offering, balancing affordability with acceptable performance for everyday use. It occupied the mid-range position within the Exora lineup, offering a step up from potential base models (if offered) while remaining more accessible than higher-specification trims.
Technical Specifications
| Brand | Proton |
| Model | Exora |
| Generation | Exora |
| Type (Engine) | 1.6 16V (126 Hp) Automatic |
| Start of production | April, 2009 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | MPV |
| Seats | 7 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 11.3 kg/Hp, 88.1 Hp/tonne |
| Weight-to-torque ratio | 9.5 kg/Nm, 104.9 Nm/tonne |
| Power | 126 Hp @ 6500 rpm |
| Power per litre | 78.9 Hp/l |
| Torque | 150 Nm @ 4500 rpm (110.63 lb.-ft. @ 4500 rpm) |
| Engine Model/Code | CPS |
| Engine displacement | 1597 cm3 (97.45 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 76 mm (2.99 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.05 l (4.28 US qt | 3.56 UK qt) |
| Coolant | 5 l (5.28 US qt | 4.4 UK qt) |
| Kerb Weight | 1430-1450 kg (3152.61 – 3196.7 lbs.) |
| Length | 4592 mm (180.79 in.) |
| Width | 1809 mm (71.22 in.) |
| Height | 1691 mm (66.57 in.) |
| Wheelbase | 2730 mm (107.48 in.) |
| Ride height (ground clearance) | 156 mm (6.14 in.) |
| Minimum turning circle | 10.8 m (35.43 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Torsion |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6.0J x 15 |
Powertrain & Engine Architecture
The Proton Exora 1.6 16V Automatic is powered by Proton’s CamPro CPS (Cylinder Head Pressure Sensing) engine. This 1.6-liter inline-four engine utilizes a multi-port fuel injection system and a double overhead camshaft (DOHC) valvetrain. The CPS technology was intended to improve combustion efficiency and power delivery. The engine produces 126 horsepower at 6500 rpm and 150 Nm (110.63 lb-ft) of torque at 4500 rpm. The engine’s design focused on providing adequate power for a family vehicle without prioritizing outright performance. The automatic transmission is a conventional four-speed unit. While not the most modern transmission available at the time, it was chosen for its cost-effectiveness and ease of maintenance. The transmission’s gear ratios are tuned for fuel efficiency and smooth operation, rather than aggressive acceleration.
Driving Characteristics
The driving experience in the Exora 1.6 Automatic is geared towards comfort and practicality. Acceleration is adequate for everyday driving, but it’s not particularly brisk. The four-speed automatic transmission contributes to a relatively relaxed driving style, with noticeable shifts. Compared to a manual transmission version (if available), the automatic offers less driver engagement but greater convenience, especially in urban traffic. The power delivery is linear, with the engine providing sufficient torque for highway cruising and moderate inclines. The weight of the vehicle, combined with the engine’s output, means that overtaking maneuvers require planning. The suspension is tuned for comfort, absorbing bumps and imperfections in the road reasonably well, though it can feel somewhat soft in corners.
Equipment & Trim Levels
The Proton Exora 1.6 Automatic typically came equipped with standard features such as air conditioning, power windows, and central locking. Higher trim levels added features like alloy wheels, a more sophisticated audio system, and optional leather upholstery. The interior design was functional and spacious, prioritizing practicality over luxury. The seven-seat configuration offered flexibility for families, with the third-row seats typically foldable to increase cargo space. Safety features included ABS (Anti-lock Braking System), though airbags were often limited to the front occupants depending on the specific trim level.
Chassis & Braking
The Exora utilizes a McPherson strut independent suspension system at the front and a torsion beam setup at the rear. This configuration provides a balance between ride comfort and handling. The front brakes are ventilated discs, offering better stopping power than the drum brakes used on the rear wheels. The hydraulic power steering provides reasonable assistance, making maneuvering easy. The 195/65 R15 tires offer a good compromise between comfort and grip, though they are not designed for high-performance driving.
Market Reception & Comparison
The Proton Exora 1.6 Automatic was generally well-received in the Malaysian market as an affordable and practical MPV. Critics praised its spacious interior and comfortable ride. However, some reviewers noted the engine’s lack of outright power and the somewhat dated four-speed automatic transmission. Compared to other MPVs available at the time, the Exora offered a competitive price point and a generous amount of space. Fuel economy was reasonable for its class, though not exceptional. Reliability reports were mixed, with some owners experiencing issues with the engine and transmission over the long term.
Legacy
The Proton Exora, and specifically the 1.6L Automatic variant, remains a common sight on Malaysian roads today. The CamPro CPS engine, while not known for its exceptional durability, is generally considered reliable with proper maintenance. The four-speed automatic transmission is relatively simple and inexpensive to repair. In the used car market, the Exora 1.6 Automatic represents a budget-friendly option for families seeking a spacious and practical vehicle. Its affordability and availability of spare parts contribute to its continued popularity. While it may not offer the refinement or performance of more modern MPVs, the Exora remains a viable option for those seeking a functional and economical seven-seater.
