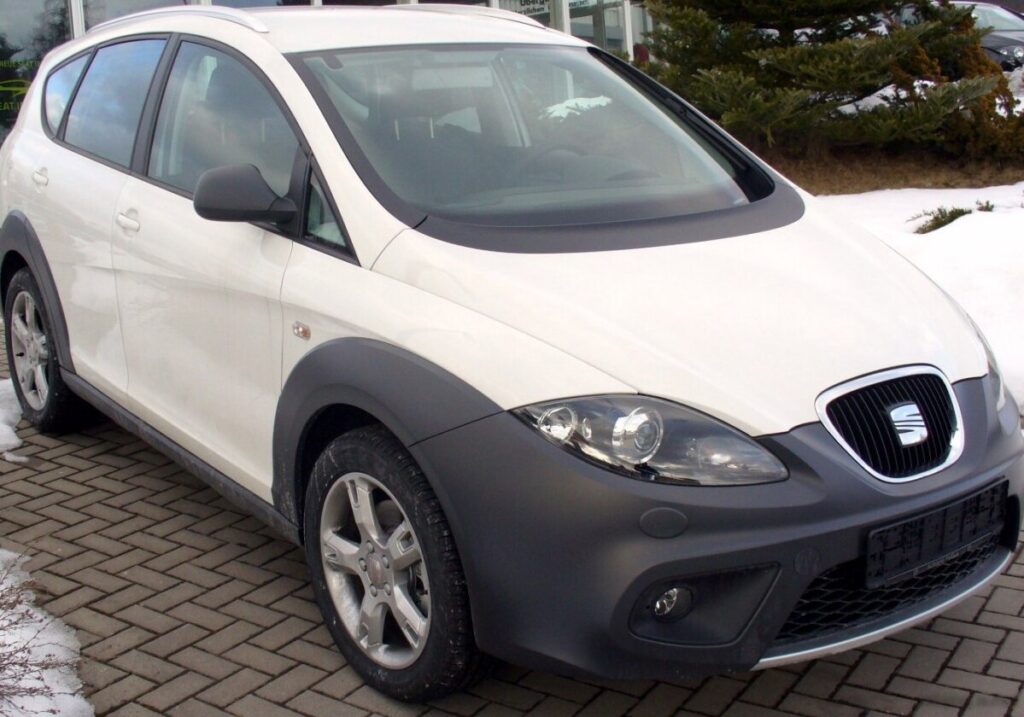

The Seat Altea Freetrack 2.0 TFSI Automatic, produced from May 2009 to 2010, represents a performance-oriented variant within the Altea Freetrack range. This model, based on the Altea platform (1HX0/A3), aimed to blend the practicality of a compact MPV with the styling cues and enhanced capability of a crossover SUV. The facelifted 2009 model year brought styling updates and, crucially, the introduction of the potent 2.0 TFSI engine paired with a six-speed automatic transmission, positioning it as the flagship trim level for those seeking a more dynamic driving experience. It was primarily marketed in Europe, offering a sporty alternative to more conventional family vehicles.
Technical Specifications
| Brand | Seat |
| Model | Altea |
| Generation | Altea Freetrack (facelift 2009) |
| Type (Engine) | 2.0 TFSI (200 Hp) Automatic |
| Start of production | May, 2009 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 12.8 l/100 km (18.4 US mpg, 22.1 UK mpg, 7.8 km/l) |
| Fuel consumption (extra urban) | 7.4 l/100 km (31.8 US mpg, 38.2 UK mpg, 13.5 km/l) |
| Fuel consumption (combined) | 9.4 l/100 km (25 US mpg, 30.1 UK mpg, 10.6 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 7.5 sec |
| Acceleration 0 – 62 mph | 7.5 sec |
| Acceleration 0 – 60 mph | 7.1 sec |
| Maximum speed | 214 km/h (132.97 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 7.9 kg/Hp, 127.3 Hp/tonne |
| Weight-to-torque ratio | 5.6 kg/Nm, 178.2 Nm/tonne |
| Power | 200 Hp @ 5700 rpm |
| Power per litre | 100.8 Hp/l |
| Torque | 280 Nm @ 3500 rpm (206.52 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | BWA |
| Engine displacement | 1984 cm3 (121.07 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 92.8 mm (3.65 in.) |
| Compression ratio | 10.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 4.6 l (4.86 US qt | 4.05 UK qt) |
| Kerb Weight | 1571 kg (3463.46 lbs.) |
| Max. weight | 2191 kg (4830.33 lbs.) |
| Max load | 620 kg (1366.87 lbs.) |
| Trunk (boot) space – minimum | 490 l (17.3 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4493 mm (176.89 in.) |
| Width | 1788 mm (70.39 in.) |
| Height | 1622 mm (63.86 in.) |
| Wheelbase | 2576 mm (101.42 in.) |
| Front track | 1542 mm (60.71 in.) |
| Rear (Back) track | 1527 mm (60.12 in.) |
| Minimum turning circle | 10.9 m (35.76 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Several levers and rods |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/50 R17 94W |
| Wheel rims size | 6J x 17 |
Powertrain & Engine Architecture
The heart of the Altea Freetrack 2.0 TFSI is the BWA engine code, a 1.984-liter (121.07 cubic inches) inline-four cylinder gasoline engine. This engine utilizes direct fuel injection (FSI) and a turbocharger with an intercooler to deliver a substantial 200 horsepower at 5700 rpm and 280 Nm (206.52 lb-ft) of torque at 3500 rpm. The direct injection system allows for precise fuel delivery, enhancing both power and fuel efficiency. The turbocharger provides a significant boost in power output, while the intercooler helps to cool the intake air, further improving performance. The engine features a 10.3:1 compression ratio and four valves per cylinder, contributing to its responsiveness and overall efficiency. Paired with this engine is a six-speed automatic transmission, designed to provide smooth and efficient gear changes. This transmission was a common unit within the Volkswagen Group at the time, known for its reliability and adaptability to various driving conditions.
Driving Characteristics
The 2.0 TFSI Automatic Altea Freetrack offered a noticeable step up in performance compared to lower-powered variants. The 200 hp output and 280 Nm of torque provided brisk acceleration, with a 0-60 mph time of around 7.1 seconds. While not a sports car, the engine delivered ample power for overtaking and maintaining highway speeds. The automatic transmission, while convenient, did slightly diminish the sense of control compared to the available manual gearbox. Gear ratios were tuned for a balance between acceleration and fuel economy, with a focus on providing usable power in everyday driving situations. The Freetrack’s slightly raised suspension and all-wheel-drive system (available on some models, but standard on this trim) contributed to a more confident feel on varied road surfaces.
Equipment & Trim Levels
The Altea Freetrack 2.0 TFSI Automatic was typically well-equipped, reflecting its position as the range-topping model. Standard features often included alloy wheels, climate control, a multi-function steering wheel, and an upgraded audio system. Interior upholstery was typically a combination of cloth and leather, with a sporty design. Optional extras could include a sunroof, parking sensors, and a navigation system. The Freetrack trim also featured unique exterior styling elements, such as body-colored bumpers and side skirts, as well as roof rails, emphasizing its crossover SUV character.
Chassis & Braking
The Altea Freetrack utilized an independent McPherson strut suspension at the front and a multi-link suspension at the rear, providing a comfortable ride and good handling characteristics. Stabilizer bars were fitted to both axles to reduce body roll during cornering. Braking duties were handled by ventilated discs at the front and solid discs at the rear, equipped with ABS (Anti-lock Braking System) as standard. The steering was a rack and pinion system with electric power assistance, offering precise and responsive steering feel.
Market Reception & Comparison
The Altea Freetrack 2.0 TFSI Automatic received generally positive reviews from automotive critics. It was praised for its powerful engine, comfortable ride, and practical interior. However, some reviewers noted that the automatic transmission could feel slightly sluggish at times, and the fuel economy was not as competitive as some of its rivals. Compared to the lower-powered 1.8-liter TSI variants, the 2.0 TFSI offered a significant performance advantage, but at a higher price point and with slightly increased running costs. Against competitors like the Renault Scenic or Opel Zafira, the Altea Freetrack distinguished itself with its more distinctive styling and sporty driving dynamics.
Legacy
The Seat Altea Freetrack 2.0 TFSI Automatic, while not a high-volume seller, has developed a following among enthusiasts who appreciate its blend of practicality, performance, and unique styling. The BWA engine, while generally reliable, requires regular maintenance, including oil changes and timing belt replacements. Used examples are now relatively affordable, making them an attractive option for those seeking a distinctive and capable compact crossover. The engine’s direct injection system can be prone to carbon buildup over time, requiring periodic cleaning to maintain optimal performance. Overall, the Altea Freetrack 2.0 TFSI Automatic remains a compelling choice for those looking for a well-rounded and enjoyable driving experience.
