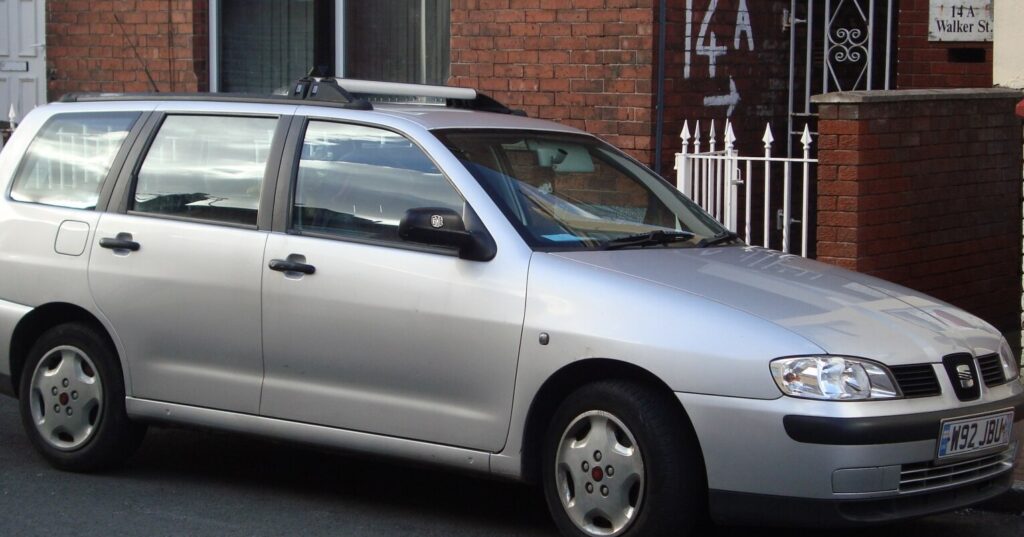

The SEAT Cordoba Vario I (facelifted in 1999) 1.6, producing 75 horsepower, represents an entry-level offering within the second generation (1999-2002) of the Cordoba Vario, SEAT’s compact estate car. Positioned as a practical and affordable option, this variant aimed to provide family-oriented buyers with a spacious and economical vehicle. The Vario, based on the Volkswagen Golf Mk4’s 1HX0/A3 platform, offered a more versatile alternative to the standard Cordoba hatchback, capitalizing on the growing popularity of station wagons in the European market. This specific 1.6-liter engine and five-speed manual transmission combination was a mainstay of the Cordoba Vario range, offering a balance between fuel efficiency and usability.
Technical Specifications
| Brand | Seat |
| Model | Cordoba |
| Generation | Cordoba Vario I (facelift 1999) |
| Type (Engine) | 1.6 (75 Hp) |
| Start of production | 1999 |
| End of production | 2002 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 10.3 l/100 km (22.8 US mpg, 27.4 UK mpg, 9.7 km/l) |
| Fuel consumption (extra urban) | 6 l/100 km (39.2 US mpg, 47.1 UK mpg, 16.7 km/l) |
| Fuel consumption (combined) | 10 l/100 km (23.5 US mpg, 28.2 UK mpg, 10 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.3 sec |
| Acceleration 0 – 62 mph | 13.3 sec |
| Acceleration 0 – 60 mph | 12.6 sec |
| Maximum speed | 165 km/h (102.53 mph) |
| Weight-to-power ratio | 13.9 kg/Hp, 71.8 Hp/tonne |
| Weight-to-torque ratio | 7.7 kg/Nm, 129.2 Nm/tonne |
| Power | 75 Hp @ 4600 rpm |
| Power per litre | 46.9 Hp/l |
| Torque | 135 Nm @ 2800 rpm (99.57 lb.-ft. @ 2800 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | ALM |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 76.5 mm (3.01 in.) |
| Piston Stroke | 86.9 mm (3.42 in.) |
| Compression ratio | 9.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.2 l (3.38 US qt | 2.82 UK qt) |
| Coolant capacity | 5.6 l (5.92 US qt | 4.93 UK qt) |
| Kerb Weight | 1045 kg (2303.83 lbs.) |
| Max. weight | 1505 kg (3317.96 lbs.) |
| Max load | 460 kg (1014.13 lbs.) |
| Trunk (boot) space – minimum | 455 l (16.07 cu. ft.) |
| Trunk (boot) space – maximum | 1250 l (44.14 cu. ft.) |
| Fuel tank capacity | 45 l (11.89 US gal | 9.9 UK gal) |
| Length | 4163 mm (163.9 in.) |
| Width | 1640 mm (64.57 in.) |
| Height | 1433 mm (56.42 in.) |
| Wheelbase | 2443 mm (96.18 in.) |
| Front track | 1429 mm (56.26 in.) |
| Rear track | 1394 mm (54.88 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Suspension with traction connecting levers |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/70 R13 |
Powertrain & Engine Architecture
The Cordoba Vario 1.6 utilized the ALM engine code, a naturally aspirated, inline-four cylinder petrol engine. This engine was a common sight in various Volkswagen Group vehicles of the era, known for its relative simplicity and durability. The ALM featured a single overhead camshaft (OHC) operating two valves per cylinder. Fuel delivery was managed by a multi-port fuel injection system, providing adequate, though not exceptional, performance. The 1598cc displacement produced 75 horsepower at 4600 rpm and 135 Nm (99.57 lb-ft) of torque at 2800 rpm. The engine’s characteristics favored low-end torque over high-revving power, making it suitable for everyday driving. The five-speed manual transmission offered a reasonably spaced gear ratio, though it wasn’t particularly sporty. The transmission was chosen for its cost-effectiveness and reliability, aligning with the Vario 1.6’s positioning as a value-oriented vehicle.
Driving Characteristics
The 1.6-liter engine in the Cordoba Vario provided adequate, but not exhilarating, performance. Acceleration from 0-60 mph took around 12.6 seconds, and top speed was approximately 102.53 mph. Compared to higher-spec Cordoba Vario models equipped with larger engines (like the 2.0-liter), the 1.6 felt noticeably slower, particularly when fully loaded or tackling inclines. The five-speed manual transmission helped to keep the engine in its optimal power band, but frequent downshifts were often necessary for overtaking maneuvers. The gear ratios were geared towards fuel economy rather than outright performance. The ride quality was generally comfortable, thanks to the suspension setup, but handling was not particularly sharp. The steering, while hydraulically assisted, lacked the precision found in more performance-focused vehicles.
Equipment & Trim Levels
The Cordoba Vario 1.6 typically came with a fairly basic level of equipment, reflecting its entry-level status. Standard features generally included power steering, central locking, front electric windows, and an adjustable steering column. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat plain, design. Optional extras included air conditioning, alloy wheels, a radio/cassette player, and upgraded interior trim. Higher trim levels, available at an additional cost, offered features like rear electric windows, a sunroof, and more luxurious upholstery.
Chassis & Braking
The Cordoba Vario’s chassis was based on the Golf Mk4 platform, providing a solid and stable foundation. Front suspension utilized a spring strut setup, while the rear employed a torsion beam arrangement with traction connecting levers. The braking system featured disc brakes on the front wheels and drum brakes on the rear. ABS (Anti-lock Braking System) was standard, enhancing safety. The suspension was tuned for comfort rather than sporty handling, prioritizing ride quality over cornering precision. Stabilizer bars were present, but their thickness was relatively modest, contributing to the car’s slightly understeer-biased handling characteristics.
Market Reception & Comparison
The Cordoba Vario 1.6 was generally well-received as a practical and affordable estate car. Critics praised its spacious interior, generous boot capacity, and reasonable fuel economy. However, the engine’s lack of power was often cited as a drawback, particularly when compared to competitors offering more potent engines. Compared to the higher-spec Cordoba Vario models, the 1.6 offered a significant price advantage, making it an attractive option for budget-conscious buyers. Fuel economy was a strong point, averaging around 23.5 US mpg in combined driving, making it a relatively economical choice for families and individuals who frequently covered long distances.
Legacy
The ALM engine, while not known for being particularly groundbreaking, proved to be a reliable and durable unit. Cordoba Vario 1.6 models from the late 1990s and early 2000s are still occasionally seen on the roads today, testament to their build quality and longevity. In the used car market, these vehicles are typically offered at very affordable prices, making them attractive options for first-time car buyers or those seeking a cheap and practical estate car. Maintenance costs are generally low, as parts are readily available and the engine is relatively simple to work on. However, potential buyers should be aware of the possibility of age-related issues, such as corrosion and wear and tear on suspension components.
