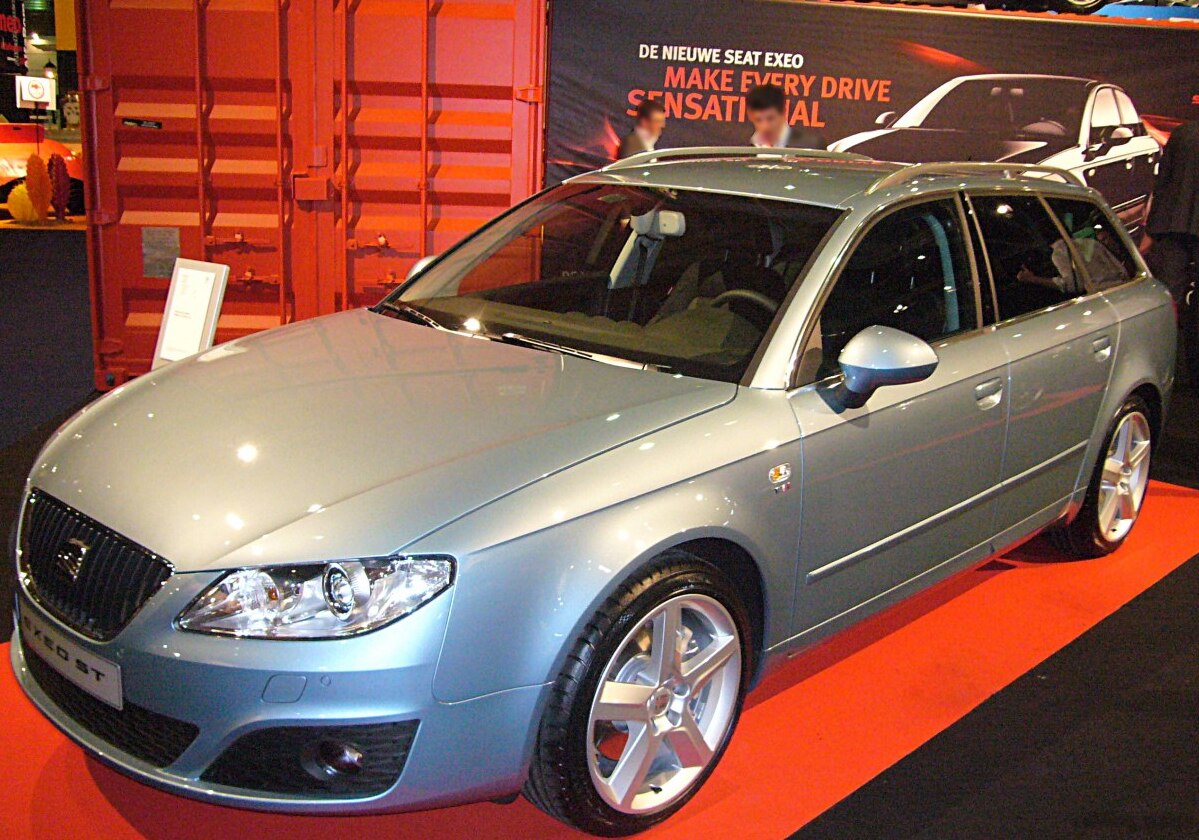

2010-2011 Seat Exeo ST 1.8 TSI (120 Hp)

The Seat Exeo ST 1.8 TSI (120 hp) was a station wagon produced by the Spanish automaker Seat between September 2010 and September 2011. It represented a mid-cycle update to the Exeo line, which itself was based on the Audi B7 platform – also known as the 1HX0/A3 platform. The ST designation denoted the “Sport Tourer” or station wagon body style. This particular variant occupied the lower-mid range of the Exeo ST lineup, offering a balance between fuel efficiency, practicality, and affordability, positioned below the more powerful 2.0 TSI models and above any potential base-level diesel offerings. It was aimed at families and individuals seeking a spacious and comfortable vehicle for everyday use.

1.8 TSI Powertrain & Engine Architecture

The heart of the Exeo ST 1.8 TSI was the CDHA engine code, a 1.8-liter inline-four cylinder gasoline engine. This engine was part of the Volkswagen Group’s TSI (Turbocharged Stratified Injection) family, known for its combination of turbocharging and direct fuel injection. The CDHA engine featured direct injection, delivering fuel directly into the combustion chamber at high pressure, improving efficiency and reducing emissions. The engine utilized a single turbocharger with an intercooler to increase air density and boost power output. The valvetrain employed four valves per cylinder, contributing to improved breathing and overall performance.

While the Exeo ST was offered with both manual and automatic transmissions, this specific 120 hp variant was primarily paired with a six-speed automatic transmission. This transmission was a conventional torque-converter automatic, offering smooth shifts and ease of use. It was chosen to appeal to buyers prioritizing comfort and convenience over outright performance. The automatic transmission’s gear ratios were tuned for fuel efficiency and relaxed cruising, rather than aggressive acceleration.

Engine Specifications

Key engine specifications included a compression ratio of 9.6:1, a bore of 82.5 mm (3.25 inches), and a stroke of 84.2 mm (3.31 inches). The engine produced 120 horsepower at 3650-6200 rpm and 230 Nm (169.64 lb-ft) of torque between 1500-3650 rpm. The engine oil capacity was 4.6 liters (4.86 US quarts / 4.05 UK quarts).

Driving Characteristics

The Exeo ST 1.8 TSI with the automatic transmission delivered a comfortable and predictable driving experience. Acceleration from 0-100 km/h (0-62 mph) took approximately 11.1 seconds, and 0-60 mph was achieved in around 10.5 seconds. While not particularly sporty, the engine provided adequate power for everyday driving situations, including highway merging and overtaking. The automatic transmission contributed to a smooth and effortless driving experience, particularly in urban environments.

Compared to the more powerful 2.0 TSI variants, the 1.8 TSI felt noticeably less responsive. The 2.0 TSI offered significantly more torque and a broader powerband, resulting in quicker acceleration and a more engaging driving experience. However, the 1.8 TSI offered better fuel economy and a more relaxed driving character. Compared to the diesel options, the 1.8 TSI provided a smoother and quieter engine experience, albeit with slightly lower fuel efficiency.

Equipment & Trim Levels

The standard equipment level for the Exeo ST 1.8 TSI varied depending on the specific market and optional packages selected. Generally, it included features such as air conditioning, power windows, power mirrors, a CD/MP3 stereo system, and alloy wheels. Safety features typically included ABS (Anti-lock Braking System), front and side airbags, and electronic stability control. Interior upholstery was typically cloth, with the option of leather upgrades.

Optional extras included a sunroof, navigation system, parking sensors, upgraded audio system, and heated seats. Higher trim levels offered additional features such as automatic climate control, rain-sensing wipers, and a more luxurious interior finish. The dashboard configuration was typical of Volkswagen Group vehicles of the era, with a functional and straightforward design.

Chassis & Braking

The Exeo ST featured an independent multi-link suspension at the front and an independent on trapezoidal lever suspension at the rear. This suspension setup provided a comfortable ride and good handling characteristics. The front brakes were ventilated discs, while the rear brakes were solid discs. The steering system was a rack and pinion type with electric power steering. The vehicle rode on 205/55 R16 tires mounted on 7J x 16 inch alloy wheels.

The Exeo ST’s chassis was tuned to prioritize comfort and stability over outright sportiness. The suspension was relatively soft, absorbing bumps and imperfections in the road surface effectively. The braking system provided adequate stopping power for everyday driving conditions.

Market Reception & Comparison

The Seat Exeo ST 1.8 TSI received generally positive reviews from automotive critics. It was praised for its spacious interior, comfortable ride, and good fuel economy. However, some critics noted that the 1.8 TSI engine lacked the punch of the more powerful 2.0 TSI variants. Fuel consumption figures were rated at 7.6 l/100 km (30.9 US mpg / 37.2 UK mpg) combined, making it a relatively efficient option in its class.

In terms of reliability, the Exeo ST generally proved to be a dependable vehicle. However, like all cars, it was susceptible to certain common issues, such as problems with the turbocharger and fuel injectors. Compared to other station wagons in its segment, such as the Ford Mondeo and Volkswagen Passat, the Exeo ST offered a good value proposition, with a competitive price and a generous level of standard equipment.

Technical Specifications

Legacy

The Seat Exeo ST, including the 1.8 TSI variant, represents a unique chapter in Seat’s history. It was the first and only station wagon produced by Seat based on an Audi platform. While production was relatively short-lived, the Exeo ST has gained a following among enthusiasts who appreciate its practicality, comfort, and understated styling. The 1.8 TSI engine, when properly maintained, has proven to be a reliable and durable powertrain.

In the used car market, the Exeo ST 1.8 TSI offers a compelling value proposition. It provides a spacious and well-equipped station wagon at an affordable price point. However, potential buyers should be aware of the potential for age-related issues, such as wear and tear on the suspension components and the possibility of turbocharger problems. Overall, the Exeo ST 1.8 TSI remains a viable option for those seeking a practical and comfortable family vehicle.
