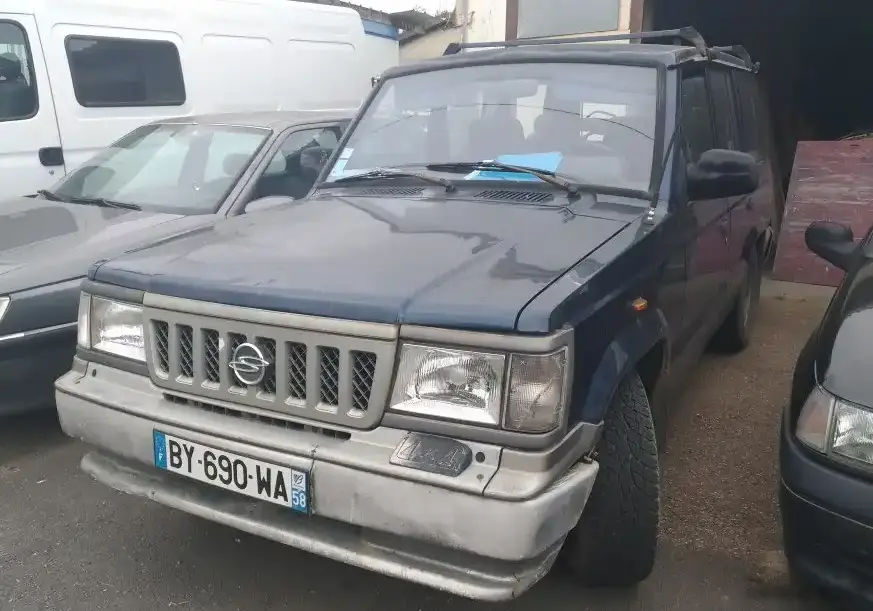

The SsangYong Family 2.5 D, producing 76 horsepower, was a mainstay of the South Korean automaker’s lineup from 1987 to 1998. This variant occupied the entry-level position within the broader Family range, a rugged, body-on-frame SUV designed primarily for utility and off-road capability. The Family, and specifically this diesel-powered version, played a significant role in establishing SsangYong (then Dong-A Motor) as a producer of durable, practical vehicles, particularly in the Korean domestic market and select export regions. It was based on a traditional SUV formula, prioritizing robustness over refinement, and served as a workhorse for both commercial and private users.
Technical Specifications
| Brand | SsangYong |
| Model | Family |
| Generation | Family |
| Type (Engine) | 2.5 D (76 Hp) |
| Start of production | 1987 |
| End of production | 1998 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Diesel |
| Maximum speed | 145 km/h (90.1 mph) |
| Weight-to-power ratio | 21.7 kg/Hp, 46 Hp/tonne |
| Weight-to-torque ratio | 11 kg/Nm, 90.9 Nm/tonne |
| Power | 76 Hp @ 4500 rpm |
| Power per litre | 30.4 Hp/l |
| Torque | 150 Nm @ 2000 rpm (110.63 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 2498 cm3 (152.44 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 94 mm (3.7 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 23:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Naturally aspirated engine |
| Kerb Weight | 1651 kg (3639.83 lbs.) |
| Max. weight | 2140 kg (4717.89 lbs.) |
| Max load | 489 kg (1078.06 lbs.) |
| Fuel tank capacity | 75 l (19.81 US gal | 16.5 UK gal) |
| Length | 4500 mm (177.17 in.) |
| Width | 1700 mm (66.93 in.) |
| Height | 1720 mm (67.72 in.) |
| Wheelbase | 2640 mm (103.94 in.) |
| Front track | 1340 mm (52.76 in.) |
| Rear (Back) track | 1270 mm (50 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Double wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 215/75 R15 S |
Powertrain & Engine Architecture
The heart of the SsangYong Family 2.5 D was a naturally aspirated, 2.5-liter inline-four diesel engine. This engine, internally designated with various codes depending on the specific year and market, was a relatively simple design utilizing precombustion chamber injection. This system, common in diesel engines of the era, involved injecting fuel into a small pre-chamber within the cylinder head, where it partially combusted before igniting the main charge. This aided in cold-starting and reduced engine noise compared to direct injection systems. The engine produced 76 horsepower at 4500 rpm and 150 Nm (110.63 lb.-ft.) of torque at 2000 rpm. The engine was mounted longitudinally in the chassis. The five-speed manual transmission was the only gearbox option available with this engine, prioritizing durability and simplicity over shift speed.
Driving Characteristics
The 76 hp diesel engine in the Family provided adequate, but not exhilarating, performance. Acceleration was slow, and highway passing required careful planning. The engine’s strength lay in its low-end torque, making it well-suited for off-road driving and hauling loads. The five-speed manual transmission offered a reasonable spread of gears, but the shift quality was often described as agricultural. Compared to potential gasoline-powered variants (which were less common), the diesel offered significantly better fuel economy but at the expense of refinement and power. The gear ratios were optimized for pulling power rather than high-speed cruising. The vehicle felt stable and planted, but the steering lacked precision.
Equipment & Trim Levels
The 2.5 D variant of the SsangYong Family was typically the base model, and as such, came with a relatively sparse equipment list. Standard features generally included basic steel wheels, vinyl or cloth upholstery, a simple dashboard layout, and minimal exterior trim. Air conditioning and power windows were often optional extras. The interior was functional and durable, designed to withstand heavy use. Higher trim levels, if available, added features like upgraded upholstery, a more comprehensive instrument cluster, and potentially a sunroof. However, the 2.5 D was primarily marketed as a utilitarian vehicle, and luxury features were not a priority.
Chassis & Braking
The SsangYong Family utilized a traditional body-on-frame construction, providing a robust and durable chassis. The front suspension employed a double wishbone setup, while the rear featured a coil spring arrangement. This suspension configuration aimed to balance ride comfort with off-road capability. Braking duties were handled by ventilated discs at the front and drum brakes at the rear. An Anti-lock Braking System (ABS) was included as a safety feature, though its effectiveness was limited by the vehicle’s overall weight and tire technology of the time. The tires were typically 215/75 R15 size, chosen for their durability and all-terrain capability.
Market Reception & Comparison
The SsangYong Family 2.5 D was generally well-received in its target markets as a practical and affordable SUV. Critics praised its durability and off-road capability, but noted its lack of refinement and relatively slow performance. Compared to other SUVs available at the time, such as the Suzuki Samurai or early Mitsubishi Pajeros, the Family offered a larger interior and a more robust chassis. However, it lacked the sophistication and features of more expensive models. Fuel economy was a strong point for the diesel variant, making it an attractive option for users who prioritized practicality over performance. Reliability was generally good, although maintenance could be challenging due to the limited availability of parts in some markets.
Legacy
The SsangYong Family 2.5 D, while not a groundbreaking vehicle, played an important role in establishing SsangYong as a manufacturer of capable and durable SUVs. The powertrain, while simple, proved to be relatively reliable and long-lasting. Today, these vehicles are increasingly sought after by enthusiasts and collectors who appreciate their rugged simplicity and off-road capability. Finding parts can be a challenge, but a dedicated community of owners exists to support the preservation of these vehicles. The 2.5 D variant, as the entry-level model, remains relatively affordable on the used car market, making it an accessible option for those seeking a classic, utilitarian SUV.
