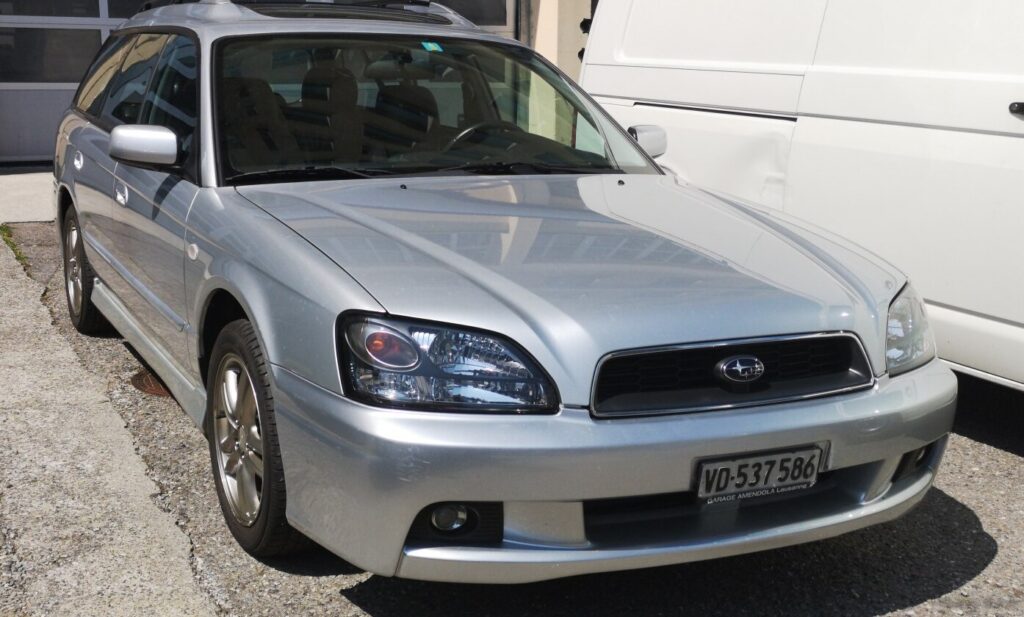

The Subaru Legacy III Station Wagon, specifically the 2.0-liter (125 hp) All-Wheel Drive (AWD) Automatic variant produced from 2001 to 2003, represents a significant iteration of Subaru’s popular family vehicle. This model, designated as part of the BE/BH facelift series, aimed to balance practicality, safety, and Subaru’s signature symmetrical all-wheel-drive system. Positioned as a mid-range offering within the Legacy wagon lineup, it catered to buyers seeking a comfortable and capable vehicle for everyday use and light-duty family transport. It built upon the foundation of the second-generation Legacy, offering refinements in styling, interior appointments, and mechanical components.
Technical Specifications
| Brand | Subaru |
| Model | Legacy |
| Generation | Legacy III Station Wagon (BE,BH, facelift 2001) |
| Type (Engine) | 2.0 (125 Hp) AWD Automatic |
| Start of production | 2001 |
| End of production | 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 12.6 l/100 km (18.7 US mpg, 22.4 UK mpg, 7.9 km/l) |
| Fuel consumption (extra urban) | 6.8 l/100 km (34.6 US mpg, 41.5 UK mpg, 14.7 km/l) |
| Fuel consumption (combined) | 8.9 l/100 km (26.4 US mpg, 31.7 UK mpg, 11.2 km/l) |
| CO2 emissions | 215 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 12.2 sec |
| Acceleration 0 – 62 mph | 12.2 sec |
| Acceleration 0 – 60 mph | 11.6 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Weight-to-power ratio | 11.6 kg/Hp, 86.2 Hp/tonne |
| Weight-to-torque ratio | 7.9 kg/Nm, 126.9 Nm/tonne |
| Power | 125 Hp @ 5600 rpm |
| Power per litre | 62.7 Hp/l |
| Torque | 184 Nm @ 3600 rpm (135.71 lb.-ft. @ 3600 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | EJ201 |
| Engine displacement | 1994 cm3 (121.68 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Boxer |
| Cylinder Bore | 92 mm (3.62 in.) |
| Piston Stroke | 75 mm (2.95 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 4 l (4.23 US qt | 3.52 UK qt) |
| Coolant | 6.7 l (7.08 US qt | 5.9 UK qt) |
| Kerb Weight | 1450 kg (3196.7 lbs.) |
| Max. weight | 1920 kg (4232.88 lbs.) |
| Max load | 470 kg (1036.17 lbs.) |
| Trunk (boot) space – minimum | 528 l (18.65 cu. ft.) |
| Trunk (boot) space – maximum | 1646 l (58.13 cu. ft.) |
| Fuel tank capacity | 64 l (16.91 US gal | 14.08 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 1500 kg (3306.93 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Length | 4760 mm (187.4 in.) |
| Width | 1745 mm (68.7 in.) |
| Height | 1525 mm (60.04 in.) |
| Wheelbase | 2650 mm (104.33 in.) |
| Front track | 1460 mm (57.48 in.) |
| Rear (Back) track | 1455 mm (57.28 in.) |
| Ride height (ground clearance) | 160 mm (6.3 in.) |
| Minimum turning circle (turning diameter) | 11.5 m (37.73 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/60 R15 90H; 205/55 R16 89H |
| Wheel rims size | 6.0J x 15; 6.5J x 16 |
INTRODUCTION
The 2001-2003 Subaru Legacy III Station Wagon 2.0 AWD Automatic represents a refinement of the BE/BH generation, introduced as a facelift to address market demands and improve upon the previous model. This variant was primarily sold in markets outside of North America, where station wagons maintained a stronger presence. It was built on Subaru’s robust platform, known for its symmetrical all-wheel-drive system, and aimed to provide a practical and reliable vehicle for families and individuals alike. The facelift included subtle styling changes to the front and rear fascias, along with interior updates designed to enhance comfort and usability. This particular configuration, with the 2.0-liter engine and automatic transmission, was designed to appeal to buyers prioritizing ease of use and fuel efficiency over outright performance.
Powertrain & Engine Architecture
At the heart of this Legacy wagon lies the EJ201 engine, a 1994cc naturally aspirated, horizontally-opposed (boxer) four-cylinder engine. This engine design, a Subaru hallmark, contributes to a lower center of gravity, improving handling and stability. The EJ201 utilizes a multi-point fuel injection system and a single overhead camshaft (OHC) valvetrain. The engine produces 125 horsepower at 5600 rpm and 184 Nm (135.71 lb-ft) of torque at 3600 rpm. Paired with this engine is a four-speed automatic transmission, designed for smooth and convenient operation. This transmission was chosen to provide a more relaxed driving experience compared to the available five-speed manual. The automatic transmission features electronically controlled torque converter lock-up for improved fuel efficiency at highway speeds. The engine code, EJ201, is crucial for identifying specific parts and maintenance requirements.
Driving Characteristics
The 2.0-liter automatic Legacy wagon delivers a comfortable, if not particularly sporty, driving experience. Acceleration from 0-60 mph takes approximately 11.6 to 12.2 seconds, and top speed is limited to 111.85 mph (180 km/h). The automatic transmission’s gear ratios are tuned for fuel economy and smooth cruising, rather than aggressive acceleration. While the manual transmission variants offered a more engaging driving experience, the automatic provided ease of use, especially in urban environments. The symmetrical all-wheel-drive system provides excellent traction in various weather conditions, a key selling point for Subaru vehicles. The boxer engine’s low center of gravity contributes to stable handling, but the overall driving experience is geared towards practicality and comfort rather than performance.
Equipment & Trim Levels
The 2.0-liter AWD Automatic Legacy wagon typically came equipped with a reasonable level of standard features. These included power windows, power locks, air conditioning, and an AM/FM radio with cassette player. Higher trim levels, often denoted by additional badging, could add features such as alloy wheels, a sunroof, upgraded audio systems, and leather upholstery. Interior upholstery was typically cloth, with options for upgraded materials. Dashboard configuration was relatively straightforward, prioritizing functionality and ease of use. Optional extras often included a CD changer, cruise control, and upgraded sound systems.
Chassis & Braking
The Legacy wagon utilizes an independent McPherson strut suspension in the front and an independent multi-link suspension in the rear, providing a comfortable ride and good handling characteristics. Braking duties are handled by ventilated discs in the front and solid discs in the rear. An Anti-lock Braking System (ABS) was standard equipment, enhancing safety by preventing wheel lockup during hard braking. The vehicle’s weight of approximately 1450 kg (3196.7 lbs) is distributed relatively evenly thanks to the boxer engine and symmetrical all-wheel-drive system. Stabilizer bars are present on both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The 2.0-liter automatic Legacy wagon was generally well-received as a practical and reliable family vehicle. Critics praised its all-wheel-drive system, comfortable ride, and spacious interior. However, some reviewers noted that the engine lacked the power of the turbocharged variants, and the automatic transmission could feel somewhat sluggish. Compared to the more powerful 2.5-liter or turbocharged models, the 2.0-liter offered better fuel economy but less exhilarating performance. The 2.0-liter was often seen as a more economical and accessible entry point into the Legacy lineup, appealing to buyers who prioritized value and practicality over outright performance. Fuel economy figures averaged around 26.4 US mpg combined.
Legacy
The EJ201 engine, while generally reliable, is known to require regular maintenance, particularly regarding oil changes. The automatic transmission, if properly maintained, can provide years of service. Today, these Legacy wagons are becoming increasingly sought after by enthusiasts and collectors, particularly those who appreciate Subaru’s engineering and all-wheel-drive technology. Finding well-maintained examples can be challenging, as many have accumulated significant mileage. However, the 2.0-liter automatic variant remains a relatively affordable and practical option for those seeking a classic Subaru wagon with a reputation for reliability and capability. Parts availability is generally good, although some specific components may become increasingly difficult to source over time.
