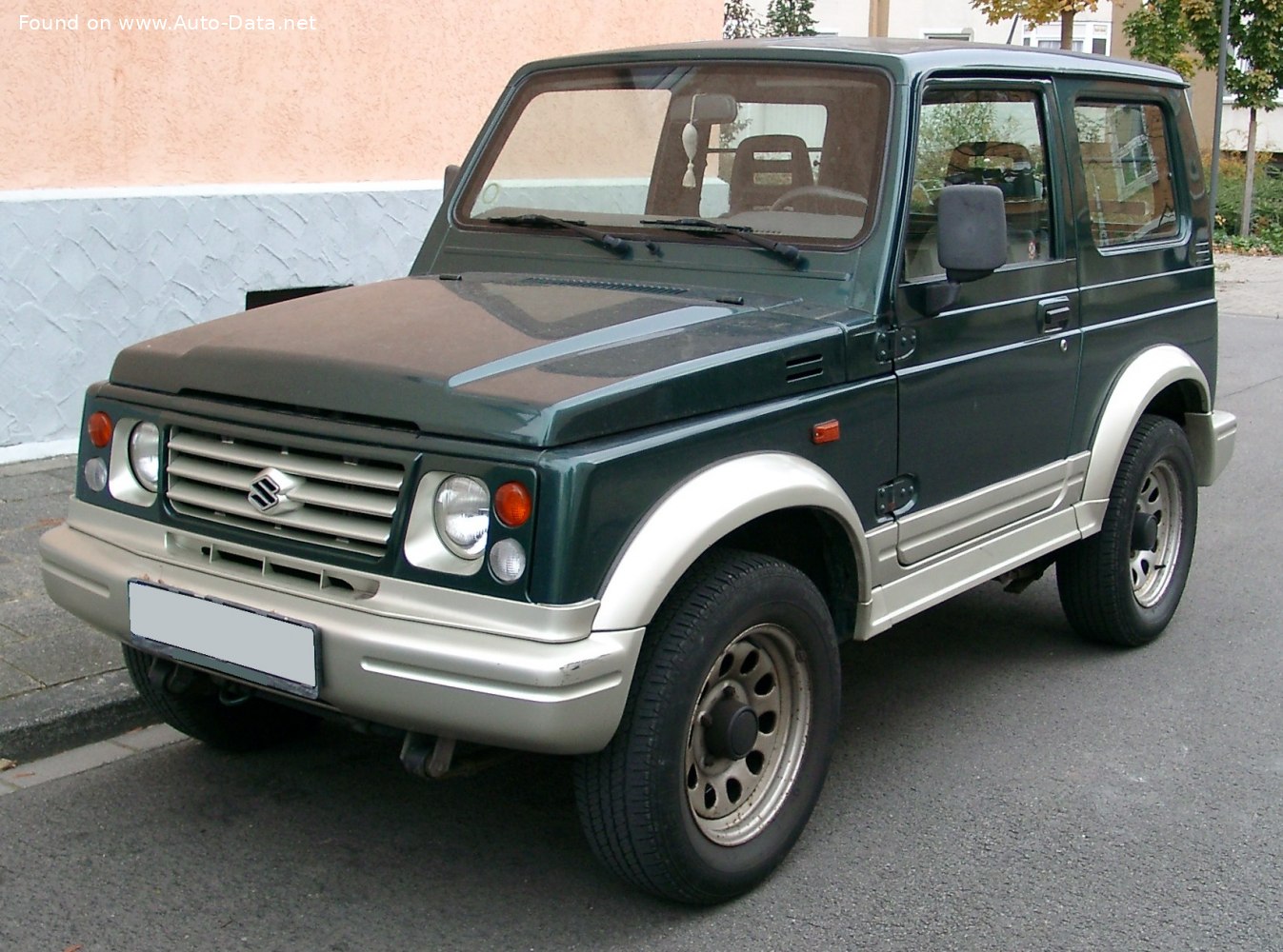

The Suzuki Samurai (SJ) is a series of small, lightweight four-wheel drive off-road vehicles manufactured by Suzuki from 1981 to 1998, with production continuing in some markets until 2003. The model designated as the 1.3 (SJ 413), producing 64 horsepower, represents a significant iteration within the SJ lineage. While never officially sold in large numbers in the United States due to safety concerns and import regulations in the early 1990s, the Samurai gained a cult following for its exceptional off-road capability, simple mechanics, and affordability. This article details the specifications and characteristics of the 1.3-liter Suzuki Samurai (SJ 413) produced between 1992 and 2003.
Suzuki Samurai (SJ) 1.3: An Overview
The Suzuki SJ series, known as the Samurai in many export markets, originated as a kei car designed to meet Japanese regulations for small vehicle tax benefits. Over time, it evolved into a globally recognized off-road vehicle, particularly popular in Australia, Europe, and Latin America. The 1.3-liter variant, designated SJ413, was introduced to offer increased power and refinement compared to earlier, smaller-engined models. It filled a niche for a compact, rugged, and capable vehicle suitable for both on and off-road use, appealing to enthusiasts and those requiring a practical workhorse.
Engine & Performance
The Suzuki Samurai (SJ) 1.3 (SJ 413) is powered by a 1.3-liter (1324 cm3 or 80.8 cu. in.) inline four-cylinder gasoline engine. This naturally aspirated engine produces 64 horsepower at 5500 rpm and 100 Nm (73.76 lb.-ft.) of torque at 3500 rpm. The engine features a single overhead camshaft (SOHC) valvetrain with two valves per cylinder and utilizes a carburetor fuel injection system. While not a powerhouse, the engine’s relatively high power-to-weight ratio – 66.3 HP per tonne – contributes to its nimble performance. The weight-to-power ratio is 15.1 kg/Hp. Fuel consumption is rated at 8.7 l/100 km (27 US mpg, 32.5 UK mpg) in urban conditions and 8.1 l/100 km (29 US mpg, 34.9 UK mpg) on the open road. The Samurai 1.3 achieves a maximum speed of 140 km/h (86.99 mph). The engine’s longitudinal front-engine layout and the vehicle’s light weight contribute to its balanced handling.
Design & Features
The Suzuki Samurai (SJ) 1.3 is a three-door, four-seat off-road vehicle characterized by its boxy, utilitarian design. Its short wheelbase (2030 mm or 79.92 in.) and high ground clearance (205 mm or 8.07 in.) are key to its off-road prowess. The body-on-frame construction provides durability and allows for significant articulation over rough terrain. The vehicle’s approach angle of 43° and departure angle of 38° further enhance its ability to navigate challenging obstacles.
The interior is spartan but functional, prioritizing practicality over luxury. Features were minimal, reflecting the vehicle’s intended purpose and price point. Safety features of the era were limited, contributing to the vehicle’s issues with US safety standards. The Samurai’s appeal lay in its simplicity, reliability, and its ability to be easily modified and customized for various off-road applications. The vehicle’s compact dimensions (3440 mm length, 1530 mm width, 1665 mm height) make it maneuverable in tight spaces.
Technical Specifications
| Brand | Suzuki |
| Model | Samurai |
| Generation | Samurai (SJ) |
| Type (Engine) | 1.3 (SJ 413) (64 Hp) |
| Start of production | 1992 |
| End of production | 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 4 |
| Doors | 3 |
| Fuel consumption (urban) | 8.7 l/100 km (27 US mpg, 32.5 UK mpg) |
| Fuel consumption (extra urban) | 8.1 l/100 km (29 US mpg, 34.9 UK mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 140 km/h (86.99 mph) |
| Weight-to-power ratio | 15.1 kg/Hp |
| Weight-to-torque ratio | 9.7 kg/Nm |
| Power | 64 Hp @ 5500 rpm |
| Power per litre | 48.3 Hp/l |
| Torque | 100 Nm @ 3500 rpm (73.76 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 1324 cm3 (80.8 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 74 mm (2.91 in.) |
| Piston Stroke | 77 mm (3.03 in.) |
| Compression ratio | 8.9:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated |
| Valvetrain | SOHC |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant | 5 l (5.28 US qt | 4.4 UK qt) |
| Kerb Weight | 965 kg (2127.46 lbs.) |
| Max. weight | 1330 kg (2932.15 lbs.) |
| Max load | 365 kg (804.69 lbs.) |
| Fuel tank capacity | 40 l (10.57 US gal | 8.8 UK gal) |
| Length | 3440 mm (135.43 in.) |
| Width | 1530 mm (60.24 in.) |
| Height | 1665 mm (65.55 in.) |
| Wheelbase | 2030 mm (79.92 in.) |
| Front track | 1300 mm (51.18 in.) |
| Rear track | 1310 mm (51.57 in.) |
| Ride height (ground clearance) | 205 mm (8.07 in.) |
| Minimum turning circle | 10.2 m (33.46 ft.) |
| Drivetrain Architecture | All wheel drive (4×4) |
| Number of gears | 5 gears, manual transmission |
| Front suspension | Leaf spring |
| Rear suspension | Leaf spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Cone worm with recirculation balls |
| Tires size | 205/70 R15 |
The Suzuki Samurai (SJ) 1.3 (SJ 413) remains a popular choice for off-road enthusiasts and those seeking a simple, reliable, and affordable vehicle. Its enduring appeal lies in its robust construction, exceptional off-road capability, and the ease with which it can be maintained and modified. Despite its limitations in terms of modern safety and comfort features, the Samurai continues to hold a special place in automotive history as a truly iconic off-road vehicle.
