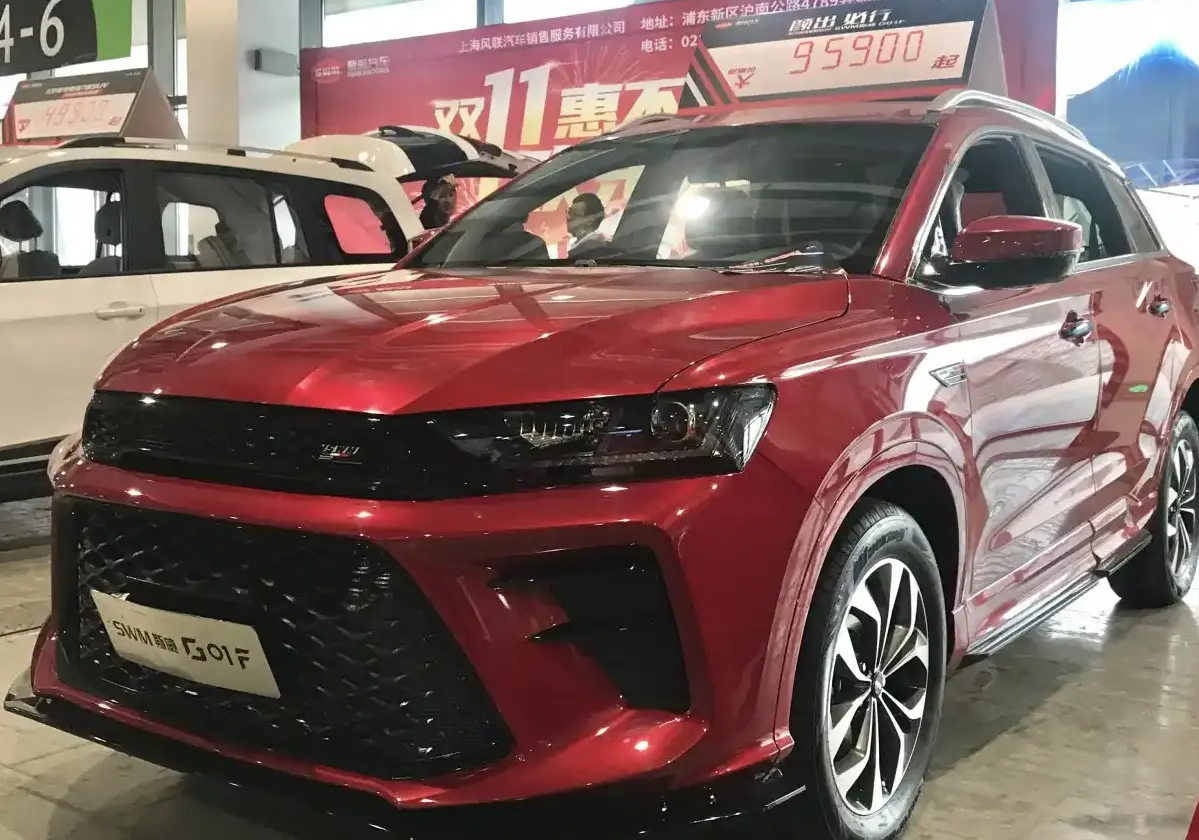

The SWM G01FF 1.5T, launched in 2020, represents SWM Motor’s entry into the competitive compact SUV segment. SWM, originally an Italian motorcycle manufacturer, was revived by the Chinese Shineray Group and began producing automobiles in China. The G01FF is a five-door, five-seat SUV positioned as a mainstream offering, aiming to provide a balance of practicality, features, and affordability. This particular variant, powered by a 1.5-liter turbocharged engine producing 137 horsepower, was a key model in establishing the brand’s presence in the Chinese market and select export regions. It’s built on a dedicated SUV platform, designed to accommodate both front-wheel drive and all-wheel drive configurations, though the 1.5T was primarily offered in front-wheel drive.
Technical Specifications
| Brand | SWM |
| Model | G01FF |
| Generation | G01FF |
| Type (Engine) | 1.5T (137 Hp) |
| Start of production | 2020 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption at Low speed (WLTP) | 10.87 l/100 km (21.6 US mpg, 26 UK mpg, 9.2 km/l) |
| Fuel consumption at Medium speed (WLTP) | 7.51 l/100 km (31.3 US mpg, 37.6 UK mpg, 13.3 km/l) |
| Fuel consumption at high speed (WLTP) | 6.97 l/100 km (33.7 US mpg, 40.5 UK mpg, 14.3 km/l) |
| Fuel consumption at very high speed (WLTP) | 8.18 l/100 km (28.8 US mpg, 34.5 UK mpg, 12.2 km/l) |
| Combined fuel consumption (WLTP) | 8.03 l/100 km (29.3 US mpg, 35.2 UK mpg, 12.5 km/l) |
| CO2 emissions (WLTP) | 182 g/km |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 180 km/h (111.85 mph) |
| Emission standard | Euro 6 D |
| Weight-to-power ratio | 11.1 kg/Hp, 90.1 Hp/tonne |
| Weight-to-torque ratio | 7.1 kg/Nm, 141.4 Nm/tonne |
| Power | 137 Hp |
| Power per litre | 91.5 Hp/l |
| Torque | 215 Nm (158.58 lb.-ft.) |
| Engine layout | Front, Transverse |
| Engine Model/Code | SWD15T |
| Engine displacement | 1498 cm3 (91.41 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine systems | Start & Stop System |
| Kerb Weight | 1520 kg (3351.03 lbs.) |
| Trunk (boot) space – minimum | 789 l (27.86 cu. ft.) |
| Trunk (boot) space – maximum | 1725 l (60.92 cu. ft.) |
| Fuel tank capacity | 52 l (13.74 US gal | 11.44 UK gal) |
| Length | 4670 mm (183.86 in.) |
| Width | 1855 mm (73.03 in.) |
| Height | 1740 mm (68.5 in.) |
| Wheelbase | 2750 mm (108.27 in.) |
| Front track | 1575 mm (62.01 in.) |
| Rear (Back) track | 1575 mm (62.01 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/60 R18 |
| Wheel rims size | 18 |
Powertrain & Engine Architecture
The heart of the G01FF 1.5T is the SWD15T engine, a 1.5-liter inline-four cylinder gasoline engine equipped with a turbocharger and intercooler. This engine utilizes multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain, contributing to its relatively efficient operation. The engine’s 137 horsepower and 215 Nm (158.58 lb.-ft.) of torque are respectable figures for its displacement and class. The engine also incorporates a Start & Stop system to further improve fuel economy in urban driving conditions. The engine is transversely mounted, driving the front wheels through a six-speed manual transmission. While an automatic transmission was offered on other G01FF variants, the 1.5T was primarily sold with the manual gearbox, emphasizing a more driver-focused experience.
Driving Characteristics
The G01FF 1.5T offers a reasonably engaging driving experience, particularly for a vehicle in its price range. The turbocharger provides a noticeable boost in power, making overtaking and merging onto highways manageable. However, it’s not a particularly quick vehicle; acceleration is adequate rather than exhilarating. The six-speed manual transmission is well-matched to the engine’s powerband, allowing drivers to keep the engine in its optimal torque range. The steering is light and precise, making it easy to maneuver in city traffic. The suspension, comprised of independent McPherson struts at the front and a multi-link setup at the rear, provides a comfortable ride, absorbing bumps and imperfections in the road surface effectively. Compared to higher-powered G01FF models, the 1.5T prioritizes fuel efficiency and affordability over outright performance.
Equipment & Trim Levels
The G01FF 1.5T typically came equipped with a standard suite of features including air conditioning, power windows, power door locks, and a basic audio system. Safety features such as ABS (Anti-lock Braking System) were also standard. Higher trim levels offered upgrades such as alloy wheels, a touchscreen infotainment system with Bluetooth connectivity, and a rearview camera. Interior upholstery was typically cloth, with options for leatherette available on some trims. The dashboard layout was functional and straightforward, prioritizing ease of use over stylistic flair.
Chassis & Braking
The G01FF utilizes a front-wheel drive chassis with independent suspension all around. The front suspension employs McPherson struts, while the rear features a multi-link setup. This configuration provides a good balance of ride comfort and handling. Braking duties are handled by ventilated discs at the front and solid discs at the rear. The ABS system helps to prevent wheel lockup during hard braking, enhancing safety. The vehicle’s weight of 1520 kg (3351.03 lbs) is relatively moderate for its class, contributing to its decent handling characteristics.
Market Reception & Comparison
The SWM G01FF 1.5T was generally well-received in the Chinese market as a value-for-money option in the compact SUV segment. Critics praised its spacious interior, comfortable ride, and reasonable fuel economy. However, some reviewers noted that the engine could feel strained when fully loaded or driving uphill. Compared to other 1.5-liter turbocharged SUVs, the G01FF offered a competitive level of equipment and features for its price point. Its fuel economy of 8.03 l/100 km (29.3 US mpg) was comparable to other vehicles in its class.
Legacy
The SWM G01FF 1.5T played a significant role in establishing SWM as a viable automotive brand. While long-term reliability data is still emerging, the SWD15T engine has proven to be generally durable. On the used car market, the G01FF 1.5T represents an affordable and practical option for buyers seeking a compact SUV with a reasonable level of features. Its simple mechanical design and readily available parts should contribute to relatively low maintenance costs. As SWM continues to expand its model range and global presence, the G01FF 1.5T will likely be remembered as a foundational vehicle for the brand.
