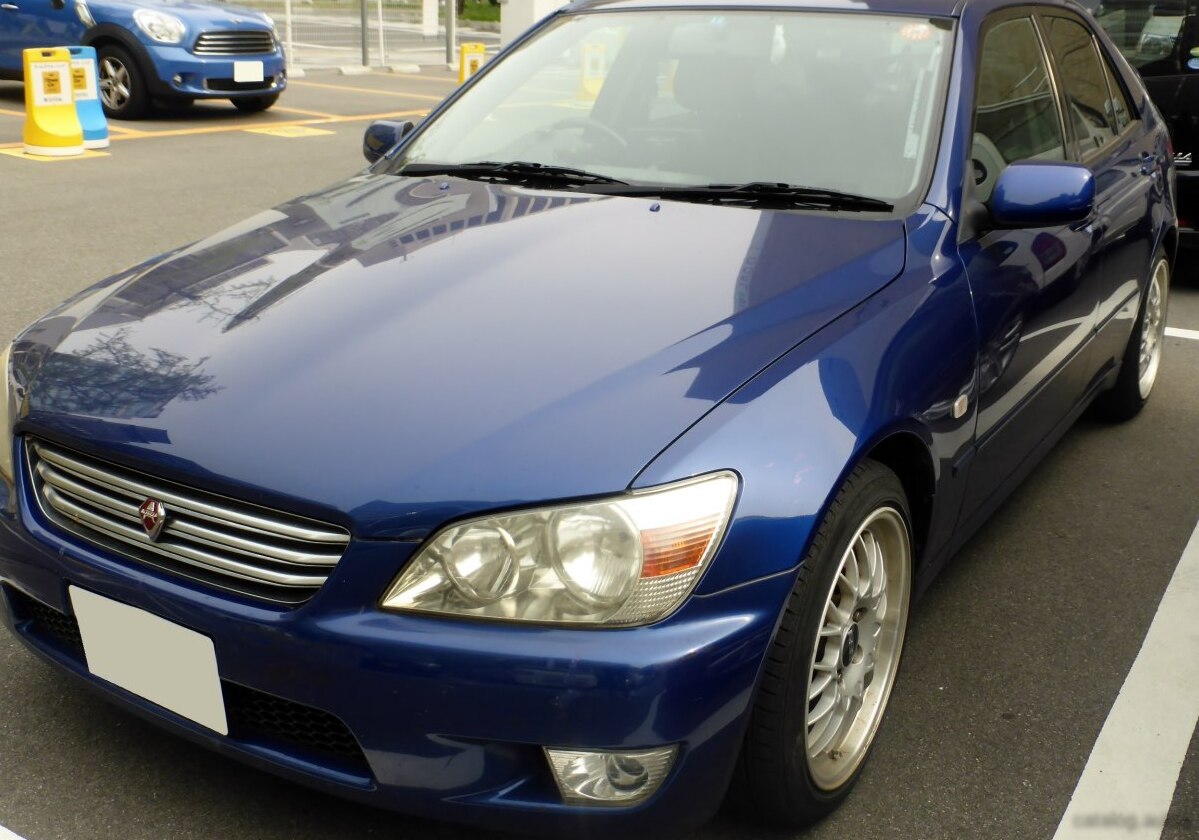

The Toyota Altezza RS200, produced from 1998 to 2005, was a compact, rear-wheel-drive sports sedan primarily aimed at the Japanese domestic market (JDM). It represented a return to Toyota’s sporting roots, offering a driver-focused experience largely absent from their lineup at the time. The RS200 variant, equipped with the 3S-GE 2.0-liter engine and a five-speed automatic transmission, occupied the top performance tier of the Altezza range, positioned above the less powerful RS180 and the more economical models. While never officially sold in the United States, the Altezza gained a following among enthusiasts who appreciated its balanced handling and potent engine. It was essentially the Japanese market equivalent of the Lexus IS200/300, though with distinct styling and trim levels.
Technical Specifications
| Brand | Toyota |
| Model | Altezza |
| Generation | Altezza |
| Type | RS200 2.0 i 16V (200 Hp) Automatic |
| Start of production | 1998 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (combined) | 9.8 l/100 km (24 US mpg, 28.8 UK mpg, 10.2 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.5 sec |
| Acceleration 0 – 62 mph | 9.5 sec |
| Acceleration 0 – 60 mph | 9 sec |
| Maximum speed | 215 km/h (133.59 mph) |
| Weight-to-power ratio | 6.8 kg/Hp, 147.1 Hp/tonne |
| Weight-to-torque ratio | 6.3 kg/Nm, 158.8 Nm/tonne |
| Power | 200 Hp @ 7000 rpm |
| Power per litre | 100.1 Hp/l |
| Torque | 216 Nm @ 4800 rpm (159.31 lb.-ft. @ 4800 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 3S-GE |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm (3.39 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 11.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine oil capacity | 4.8 l (5.07 US qt | 4.22 UK qt) |
| Coolant | 6.8 l (7.19 US qt | 5.98 UK qt) |
| Kerb Weight | 1360 kg (2998.29 lbs.) |
| Max. weight | 1635 kg (3604.56 lbs.) |
| Max load | 275 kg (606.27 lbs.) |
| Trunk (boot) space – minimum | 400 l (14.13 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4400 mm (173.23 in.) |
| Width | 1720 mm (67.72 in.) |
| Height | 1410 mm (55.51 in.) |
| Wheelbase | 2670 mm (105.12 in.) |
| Front track | 1495 mm (58.86 in.) |
| Rear (Back) track | 1485 mm (58.46 in.) |
| Ride height (ground clearance) | 135 mm (5.31 in.) |
| Minimum turning circle | 10.2 m (33.46 ft.) |
| Drivetrain Architecture | Rear wheel drive |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Coil spring, Double wishbone |
| Rear suspension | Double wishbone, Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/45 R17 |
Powertrain & Engine Architecture
The heart of the RS200 is the 3S-GE engine, a 2.0-liter, inline-four cylinder powerplant. This engine is a naturally aspirated design featuring a double overhead camshaft (DOHC) and Toyota’s Variable Valve Timing-intelligent (VVT-i) system. VVT-i optimizes valve timing based on engine speed and load, improving both performance and fuel efficiency. The 3S-GE utilizes multi-port fuel injection, delivering fuel directly to each cylinder for precise control. The engine produces 200 horsepower at 7000 rpm and 216 Nm (159.31 lb-ft) of torque at 4800 rpm. Paired with this engine is a five-speed automatic transmission. While not as engaging as the available six-speed manual, the automatic offered smooth shifts and made the RS200 more accessible to a wider range of drivers. The transmission was tuned for a balance between performance and comfort, with gear ratios optimized for both acceleration and highway cruising.
Driving Characteristics
The RS200 Automatic delivers a respectable driving experience. Acceleration from 0-60 mph takes around 9 seconds, and it reaches a top speed of 133.59 mph. Compared to the manual transmission version, the automatic sacrifices some responsiveness, particularly during quick downshifts. However, the automatic’s smooth operation and ease of use make it a more comfortable choice for daily driving. The rear-wheel-drive layout contributes to balanced handling, and the suspension provides a firm but compliant ride. The steering is precise and well-weighted, offering good feedback to the driver. While not a track-focused machine, the RS200 Automatic is capable of providing an enjoyable and engaging driving experience.
Equipment & Trim Levels
The RS200 Automatic came standard with a number of features, including power windows, power locks, air conditioning, and a basic audio system. Interior upholstery typically consisted of cloth seats, although leather options were available. The dashboard featured a straightforward design with easy-to-read gauges. Optional extras included a sunroof, upgraded audio system, and alloy wheels. The RS200 also featured a unique instrument cluster with distinctive graphics and a sport steering wheel.
Chassis & Braking
The Altezza RS200 utilizes a MacPherson strut front suspension and a double wishbone rear suspension. This setup provides a good balance of handling and ride comfort. The RS200 is equipped with ventilated disc brakes at the front and solid disc brakes at the rear. Anti-lock Braking System (ABS) is standard, enhancing safety and control during hard braking. The chassis is relatively lightweight, contributing to the car’s nimble handling characteristics.
Market Reception & Comparison
The Altezza RS200 was well-received in Japan, praised for its sporty handling, responsive engine, and attractive styling. Critics noted that the automatic transmission, while smooth, didn’t quite match the engagement of the manual gearbox. Compared to the RS180, the RS200 offered a significant performance boost, thanks to its larger engine and higher compression ratio. Fuel economy for the RS200 Automatic was rated at around 24 US mpg combined, which was reasonable for a sports sedan of its class. Reliability was generally good, although like any vehicle, regular maintenance was essential.
Legacy
The Toyota Altezza RS200 has become a popular choice among JDM enthusiasts. Its rear-wheel-drive layout, potent engine, and relatively affordable price make it an attractive option for those seeking a fun-to-drive sports sedan. The 3S-GE engine is known for its durability and tunability, and parts availability remains relatively good. Today, well-maintained RS200s command a premium in the used car market, and the model continues to be celebrated for its contribution to Toyota’s sporting heritage. The automatic transmission, while not the preferred choice for purists, offers a more accessible and comfortable driving experience, broadening the appeal of this iconic JDM car.
