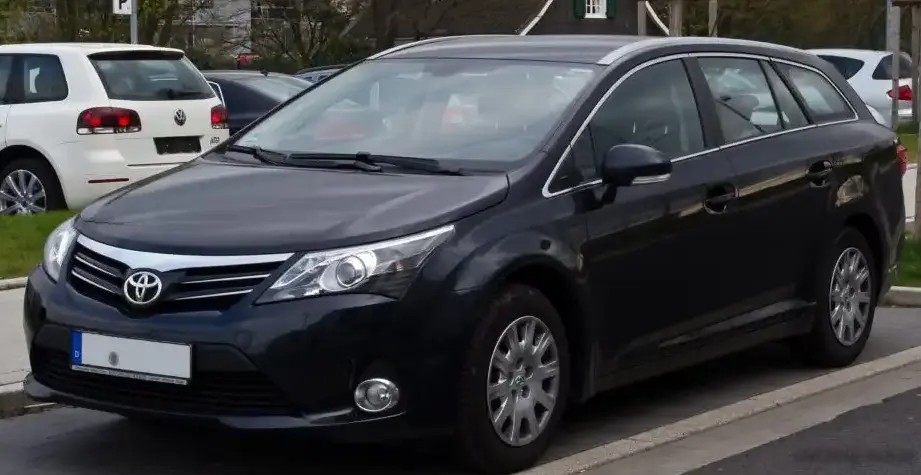

The Toyota Avensis III Wagon, specifically the facelifted model produced from 2012 to 2015, represented Toyota’s offering in the mid-size station wagon segment. The 2.0 Valvematic variant, producing 152 horsepower, was a key engine option within the Avensis lineup, positioned as a balance between fuel efficiency and performance. This generation Avensis (designated T27) aimed to provide a more refined and spacious alternative to competitors like the Ford Mondeo, Volkswagen Passat, and Opel/Vauxhall Insignia, primarily targeting the European market. The facelift brought styling updates and improvements to the interior, enhancing the Avensis’ appeal.
Technical Specifications
| Brand | Toyota |
| Model | Avensis |
| Generation | Avensis III Wagon (facelift 2012) |
| Type (Engine) | 2.0 Valvematic (152 Hp) |
| Start of production | 2012 |
| End of production | 2015 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 9.2 l/100 km (25.6 US mpg) |
| Fuel consumption (extra urban) | 5.6 l/100 km (42 US mpg) |
| Fuel consumption (combined) | 6.9 l/100 km (34.1 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.3 sec |
| Acceleration 0 – 62 mph | 9.3 sec |
| Acceleration 0 – 60 mph | 8.8 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Emission standard | Euro 5 B |
| Weight-to-power ratio | 9.4 kg/Hp |
| Weight-to-torque ratio | 7.3 kg/Nm |
| Power | 152 Hp @ 6200 rpm |
| Torque | 196 Nm @ 4000 rpm (144.56 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 3ZR-FAE |
| Engine displacement | 1987 cm3 (121.25 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80.5 mm (3.17 in.) |
| Piston Stroke | 97.6 mm (3.84 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC – Valvematic |
| Engine oil capacity | 4.2 l (4.44 US qt | 3.7 UK qt) |
| Coolant capacity | 6.3 l (6.66 US qt | 5.54 UK qt) |
| Kerb Weight | 1430 kg (3152.61 lbs.) |
| Max. weight | 2020 kg (4453.34 lbs.) |
| Max load | 590 kg (1300.73 lbs.) |
| Trunk (boot) space – minimum | 543 l (19.18 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4780 mm (188.19 in.) |
| Width | 1810 mm (71.26 in.) |
| Height | 1480 mm (58.27 in.) |
| Wheelbase | 2700 mm (106.3 in.) |
| Front track | 1550 mm (61.02 in.) |
| Rear track | 1540 mm (60.63 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
Powertrain & Engine Architecture
The heart of the Avensis 2.0 Valvematic was the 3ZR-FAE engine, a 1.987-liter (121.25 cubic inches) inline-four cylinder gasoline engine. This engine featured Toyota’s Valvematic technology, a continuously variable valve lift system. Unlike traditional variable valve timing (VVT) systems that adjust the timing of valve opening and closing, Valvematic directly alters the lift amount of the intake valves. This allows for greater control over the air-fuel mixture, improving both fuel efficiency and engine responsiveness. The engine utilized multi-port fuel injection and a compression ratio of 10:1. The 6-speed manual transmission was standard, offering precise gear changes and contributing to a more engaging driving experience. The engine’s design prioritized refinement and low-end torque, making it suitable for everyday driving conditions.
Driving Characteristics
The 152 horsepower and 196 Nm (144.56 lb-ft) of torque delivered by the 2.0 Valvematic engine provided adequate performance for the Avensis Wagon. Acceleration from 0 to 60 mph took approximately 8.8 seconds, and top speed was limited to 124.27 mph. While not a sports car, the engine offered sufficient power for overtaking maneuvers and comfortable highway cruising. The manual transmission allowed drivers to fully utilize the engine’s powerband, although the gear ratios were tuned for fuel economy rather than outright acceleration. Compared to the more powerful 2.2-liter D-4D diesel variants, the 2.0 Valvematic felt less potent, but it offered a smoother and quieter driving experience. The suspension provided a comfortable ride, absorbing bumps and imperfections in the road effectively.
Equipment & Trim Levels
The 2.0 Valvematic trim typically included features such as air conditioning, power windows, power mirrors, a CD/MP3 stereo system, and alloy wheels. Higher trim levels added features like automatic climate control, a touchscreen infotainment system, rear parking sensors, and cruise control. Interior upholstery was typically cloth, with options for leather available on higher-spec models. The dashboard layout was functional and well-designed, with clear instrumentation and intuitive controls. Safety features included ABS, electronic brakeforce distribution (EBD), and multiple airbags.
Chassis & Braking
The Avensis Wagon featured a front-wheel-drive layout with an independent McPherson strut suspension at the front and a double wishbone suspension at the rear. This suspension setup provided a good balance between ride comfort and handling. The front brakes were ventilated discs, while the rear brakes were solid discs. ABS (Anti-lock Braking System) was standard, enhancing braking performance and stability. The steering was a rack and pinion system, offering precise and responsive steering feel. The chassis was designed to provide a stable and predictable driving experience, even when fully loaded.
Market Reception & Comparison
The Toyota Avensis 2.0 Valvematic was generally well-received by automotive critics. It was praised for its comfortable ride, spacious interior, and fuel efficiency. However, some critics noted that the engine lacked the punch of its diesel counterparts and that the styling was somewhat conservative. Compared to the diesel models, the 2.0 Valvematic offered lower running costs in terms of fuel, but potentially higher maintenance costs due to the complexity of the Valvematic system. Fuel economy figures of around 34.1 US mpg combined were competitive for its class. The Avensis aimed to compete with established players like the Ford Mondeo and Volkswagen Passat, offering a reliable and practical alternative.
Legacy
The 3ZR-FAE engine, while generally reliable, is known to require regular maintenance, particularly regarding the Valvematic system. Proper oil changes and adherence to Toyota’s recommended service intervals are crucial for long-term durability. In the used car market, the Avensis 2.0 Valvematic Wagon represents a sensible and affordable option for buyers seeking a spacious and reliable family vehicle. Its reputation for dependability and relatively low running costs (excluding potential Valvematic repairs) continues to make it a popular choice. The Avensis, while not a particularly exciting car, proved to be a solid and dependable workhorse for many owners.
