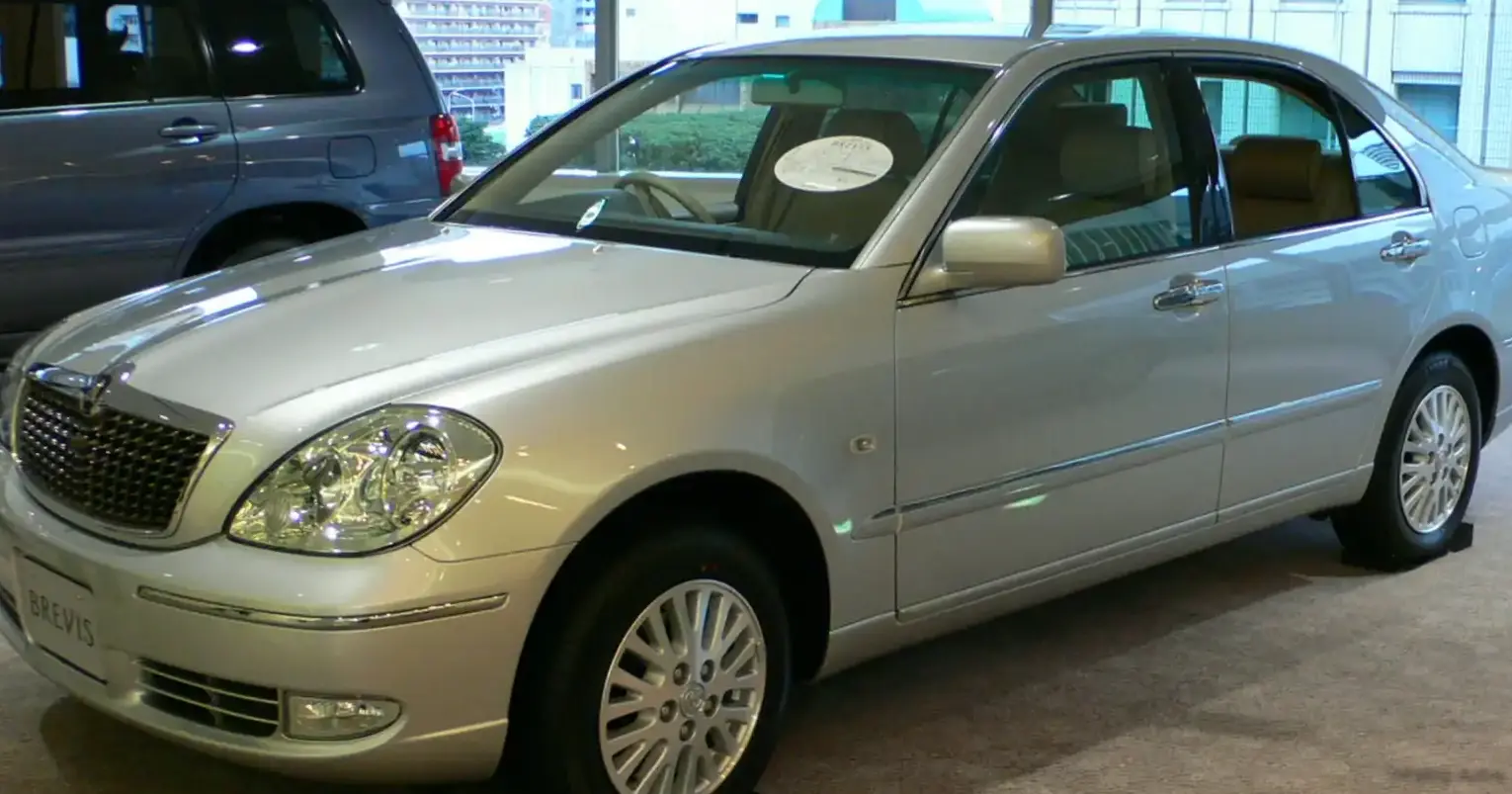

The Toyota Brevis 3.0 i 24V Ai300, produced between 2001 and 2007, was a four-door, rear-wheel drive sedan positioned as a somewhat niche offering within Toyota’s lineup. It shared a platform with the Toyota Pronard and Lexus GS, representing a more sporting and stylish alternative to the more mainstream Toyota sedans of the era. The Brevis aimed to appeal to buyers seeking a blend of luxury, performance, and distinctive styling, primarily targeted at the Japanese domestic market (JDM). This specific 3.0-liter variant, equipped with the 2JZ-FSE engine and a five-speed automatic transmission, represented the top-tier performance option for the Brevis.
Technical Specifications
| Brand | Toyota |
| Model | Brevis |
| Generation | Brevis |
| Type (Engine) | 3.0 i 24V Ai300 (220 Hp) |
| Start of production | May, 2001 |
| End of production | 2007 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 7.2 kg/Hp, 139.2 Hp/tonne |
| Weight-to-torque ratio | 5.3 kg/Nm, 187.3 Nm/tonne |
| Power | 220 Hp @ 5600 rpm |
| Power per litre | 73.4 Hp/l |
| Torque | 296 Nm @ 3600 rpm, 218.32 lb.-ft. @ 3600 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 2JZ-FSE |
| Engine displacement | 2997 cm3, 182.89 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm, 3.39 in. |
| Piston Stroke | 86 mm, 3.39 in. |
| Compression ratio | 11.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 5.4 l, 5.71 US qt | 4.75 UK qt |
| Coolant | 7.2 l, 7.61 US qt | 6.34 UK qt |
| Kerb Weight | 1580 kg, 3483.3 lbs |
| Max. weight | 1855 kg, 4089.57 lbs |
| Max load | 275 kg, 606.27 lbs |
| Fuel tank capacity | 70 l, 18.49 US gal | 15.4 UK gal |
| Length | 4550 mm, 179.13 in |
| Width | 1720 mm, 67.72 in |
| Height | 1460 mm, 57.48 in |
| Wheelbase | 2780 mm, 109.45 in |
| Front track | 1490 mm, 58.66 in |
| Rear (Back) track | 1475 mm, 58.07 in |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/55 R16 |
Powertrain & Engine Architecture
The heart of the Brevis 3.0 i was the 2JZ-FSE engine, a 3.0-liter inline-six cylinder powerplant. This engine was notable for its direct fuel injection system, a technology that improved both fuel efficiency and power output compared to traditional port fuel injection. The 2JZ-FSE featured a double overhead camshaft (DOHC) valvetrain, optimizing airflow into and out of the cylinders. The engine produced 220 horsepower at 5600 rpm and 296 Nm (218.32 lb-ft) of torque at 3600 rpm. Paired with this engine was a five-speed automatic transmission, designed to provide smooth and relatively quick shifts. While a manual transmission was not offered on this specific variant, the automatic was tuned for a balance between comfort and responsiveness. The engine’s longitudinal mounting and rear-wheel drive configuration contributed to the Brevis’s balanced handling characteristics.
Driving Characteristics
The Brevis 3.0 i Automatic offered a comfortable and refined driving experience. The automatic transmission, while not as engaging as a manual, provided seamless gear changes and made the car easy to drive in everyday traffic. The 220 hp engine provided adequate power for confident acceleration and highway cruising. However, it wasn’t a particularly sporty car; the automatic transmission and relatively heavy curb weight (1580 kg / 3483.3 lbs) meant that it wasn’t as quick or agile as some of its competitors. Compared to a manual transmission equipped Brevis (had one been available) or the higher-performance Lexus GS models, the automatic version felt slightly less responsive. The rear-wheel drive layout provided a more balanced feel than front-wheel drive cars, enhancing cornering stability.
Equipment & Trim Levels
The Brevis 3.0 i typically came well-equipped, reflecting its positioning as a premium sedan. Standard features included leather upholstery, power-adjustable front seats, automatic climate control, a premium sound system, and alloy wheels. Optional extras could include a navigation system, sunroof, and upgraded audio components. The interior design was generally conservative but well-executed, with a focus on comfort and usability. The dashboard layout was straightforward, with clearly labeled controls. The overall ambiance was one of understated luxury.
Chassis & Braking
The Brevis utilized a double wishbone suspension setup at both the front and rear, providing a comfortable ride and good handling characteristics. The front brakes were ventilated discs, offering strong stopping power, while the rear brakes were solid discs. An Anti-lock Braking System (ABS) was standard, enhancing safety during emergency braking situations. The steering was rack and pinion with hydraulic power assistance, providing a responsive and precise feel. The tires were typically 205/55 R16, offering a good balance between grip and ride comfort.
Market Reception & Comparison
The Toyota Brevis, and particularly the 3.0 i variant, received generally positive reviews from automotive critics in Japan. It was praised for its comfortable ride, refined interior, and distinctive styling. However, some critics noted that it wasn’t as sporty or engaging to drive as some of its European competitors. Compared to other trims in the Brevis lineup (which were limited), the 3.0 i offered a significant performance advantage. Fuel economy was reasonable for a 3.0-liter engine, but not exceptional. Reliability was generally considered to be excellent, consistent with Toyota’s reputation.
Legacy
The Toyota Brevis, while not a mainstream success, has developed a following among enthusiasts, particularly in Japan. The 2JZ-FSE engine is known for its durability and potential for modification. The direct injection system, while advanced for its time, can require specialized maintenance. Today, well-maintained Brevis 3.0 i models are sought after by collectors and enthusiasts who appreciate their unique styling and refined driving experience. The car represents a unique chapter in Toyota’s history, showcasing the company’s willingness to experiment with different designs and technologies. Finding parts can be challenging outside of Japan, but the robust nature of the 2JZ engine and the overall build quality of the Brevis ensure that many examples remain on the road today.
