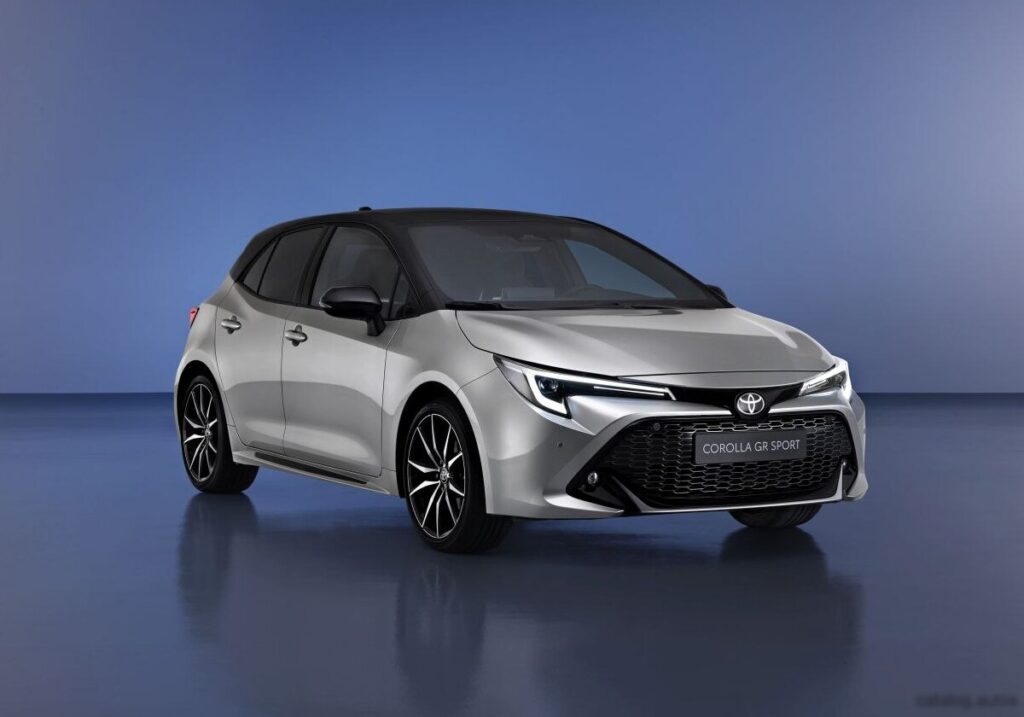

2022 Toyota Corolla Hatchback XII (E210 facelift ) 1.8 (140 Hp) Hybrid e-CVT

The Toyota Corolla Hatchback XII, specifically the 1.8 (140 Hp) Hybrid e-CVT variant, represents a significant iteration of Toyota’s popular compact hatchback, introduced with a facelift in June 2022. This model falls within the E210 series, which is part of the broader Corolla family and utilizes the TNGA (Toyota New Global Architecture) platform. Positioned as a fuel-efficient and technologically advanced option, the 1.8 Hybrid e-CVT aimed to appeal to buyers prioritizing economy and practicality over outright performance. It served as a mid-range offering within the Corolla Hatchback lineup, slotting below higher-powered gasoline variants and potentially above more basic trims depending on regional market configurations.

Powertrain & Engine Architecture

The heart of the Corolla 1.8 Hybrid is the 2ZR-FXE 1.8-liter inline-four cylinder gasoline engine. This engine produces 98 horsepower at 5200 rpm and 142 Nm (104.73 lb-ft) of torque at 3600 rpm. It features a multi-port fuel injection system and utilizes Toyota’s Dual VVT-i (Variable Valve Timing-intelligence) technology for both intake and exhaust valves, optimizing efficiency and responsiveness. The engine boasts a relatively high compression ratio of 13:1, contributing to its thermal efficiency. Crucially, this engine isn’t designed to operate independently for extended periods; it’s intrinsically linked to the hybrid system.

The “Hybrid” designation refers to Toyota’s Hybrid Synergy Drive system. This system combines the 1.8L engine with a permanent magnet synchronous electric motor, producing an additional 95 horsepower and 185 Nm (136.45 lb-ft) of torque. The total system output is rated at 140 horsepower. Power is delivered through a unique electronically controlled continuously variable transmission (e-CVT). Unlike traditional CVTs with belts and pulleys, Toyota’s e-CVT utilizes a power-split device – a planetary gearset – to seamlessly blend power from the engine and electric motor. The battery, a 207.2V Lithium-ion unit, is located under the rear seats. This configuration allows for all-electric driving at low speeds and assists the gasoline engine during acceleration, maximizing fuel economy.

Fuel Injection and Valvetrain Details

The 2ZR-FXE engine employs multi-port fuel injection, delivering fuel directly to the intake ports rather than directly into the combustion chamber. While direct injection offers certain advantages, multi-port injection is a cost-effective and reliable solution for this application. The DOHC (Dual Overhead Camshaft) valvetrain, coupled with Dual VVT-i, allows for precise control of valve timing, optimizing engine performance across a wide range of operating conditions. This system dynamically adjusts valve timing based on engine load and speed, improving both fuel efficiency and power output.

Driving Characteristics

The 1.8 Hybrid e-CVT delivers a smooth and refined driving experience, prioritizing fuel efficiency over sporty performance. Acceleration from 0-60 mph takes approximately 8.7 seconds, and 0-100 km/h is achieved in 9.2 seconds. While not particularly quick, the combined output of the engine and electric motor provides adequate power for everyday driving situations. The e-CVT contributes to a seamless and linear power delivery, eliminating the stepped gear changes associated with traditional automatic transmissions. The electric motor provides instant torque, particularly at lower speeds, which enhances responsiveness in urban environments.

Compared to higher-output gasoline versions of the Corolla Hatchback, the 1.8 Hybrid offers significantly better fuel economy but sacrifices some performance. Manual transmission variants, if available, generally provide a more engaging driving experience but at the cost of fuel efficiency. The e-CVT is programmed to prioritize efficiency, often holding lower engine speeds to maximize fuel economy, which can sometimes feel slightly sluggish during aggressive acceleration. The hybrid system’s regenerative braking feature also contributes to a unique driving feel, providing noticeable deceleration when lifting off the throttle.

Equipment & Trim Levels

The standard equipment level for the 1.8 Hybrid e-CVT Corolla Hatchback varied depending on the specific market and optional packages selected. Generally, it included features such as Toyota Safety Sense (a suite of advanced driver-assistance systems including pre-collision system, lane departure alert, and adaptive cruise control), automatic climate control, a touchscreen infotainment system with smartphone integration (Apple CarPlay and Android Auto), and power windows and locks. Interior upholstery typically consisted of fabric seats, although leather options were often available as upgrades.

Optional extras could include a premium audio system, heated front seats, a sunroof, and upgraded alloy wheels. Higher trim levels often added features such as blind-spot monitoring, rear cross-traffic alert, and a larger touchscreen display. The dashboard configuration was generally consistent across the Corolla Hatchback range, featuring a modern and functional design.

Chassis & Braking

The Corolla Hatchback utilizes a front-wheel-drive layout. The front suspension consists of an independent McPherson strut setup with coil springs and an anti-roll bar, providing a comfortable and controlled ride. The rear suspension employs a double wishbone configuration, also with coil springs and a transverse stabilizer bar. This setup aims to balance ride comfort with handling stability.

Braking duties are handled by ventilated discs at the front and solid discs at the rear. The vehicle is equipped with an Anti-lock Braking System (ABS) as standard, enhancing braking performance and safety. The electric motor also contributes to braking through regenerative braking, capturing energy during deceleration and storing it in the battery.

Market Reception & Comparison

The Toyota Corolla Hatchback 1.8 Hybrid e-CVT was generally well-received by automotive critics for its exceptional fuel economy and smooth driving experience. Reviewers praised the seamless operation of the e-CVT and the effectiveness of the hybrid system in reducing fuel consumption. However, some critics noted the lack of outright performance compared to higher-powered gasoline variants. Fuel economy figures, according to WLTP testing, range from 4.6 to 5.1 l/100 km (51.1 – 46.1 US mpg, 61.4 – 55.4 UK mpg), making it one of the most fuel-efficient vehicles in its class.

Compared to other trims in the Corolla Hatchback lineup, the 1.8 Hybrid offered a compelling value proposition for buyers prioritizing fuel efficiency. While the more powerful gasoline engines provided quicker acceleration, they came at the cost of increased fuel consumption. The hybrid variant also benefited from Toyota’s reputation for reliability and durability.

Technical Specifications

Legacy

The 1.8 Hybrid e-CVT powertrain in the Corolla Hatchback has proven to be a reliable and durable unit. Toyota’s hybrid technology is well-established, and the 2ZR-FXE engine has a solid track record. On the used car market, these models are generally sought after for their fuel efficiency and low running costs. The e-CVT transmission, while not known for its sporty feel, is generally considered to be very reliable. Regular maintenance, including oil changes and coolant flushes, is crucial for ensuring the long-term health of the hybrid system. As of today, these vehicles continue to hold their value reasonably well, reflecting their reputation for reliability and fuel economy.
