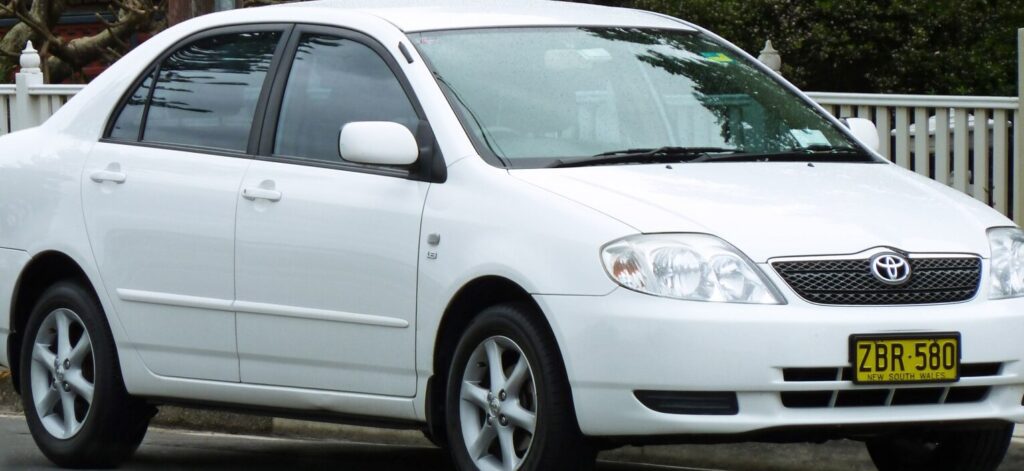

2001-2006 Toyota Corolla IX (E120 E130) 1.4 i 16V (97 Hp)

The Toyota Corolla IX, encompassing the E120 and E130 chassis codes, represented the ninth generation of Toyota’s globally renowned Corolla compact car. Produced from 2001 to 2006, this generation saw continued refinement of the Corolla’s reputation for reliability and practicality. Within the range, the 1.4 i 16V variant, producing 97 horsepower, served as a key entry point into the Corolla lineup in many European and Asian markets. This model aimed to provide affordable and efficient transportation, prioritizing fuel economy and ease of use over outright performance. It was positioned as the base model, appealing to buyers seeking a no-frills, dependable vehicle.

The 1.4 i 16V: A Core Corolla Offering

The 1.4 i 16V version of the Corolla IX was a significant volume seller, particularly in regions where smaller displacement engines were favored due to tax regulations or fuel costs. It represented a balance between affordability and acceptable performance for everyday driving. While not the most powerful or feature-rich Corolla available, it offered a compelling package for budget-conscious buyers and those new to car ownership. This trim level was often seen as a direct competitor to other entry-level compact sedans like the Ford Focus, Opel/Vauxhall Astra, and Hyundai Elantra.

Powertrain & Engine Architecture

At the heart of the 1.4 i 16V Corolla lies the 4ZZ-FE engine, a 1.4-liter (1398 cc) inline-four cylinder gasoline engine. This engine is a naturally aspirated design, meaning it does not utilize a turbocharger or supercharger. It features a double overhead camshaft (DOHC) valvetrain with four valves per cylinder – hence the “16V” designation – contributing to improved breathing and efficiency. The engine utilizes a multi-port fuel injection system, delivering fuel directly into the intake ports just before the intake valves. This system, common for its time, provides precise fuel metering for optimal combustion.

The 4ZZ-FE engine produces 97 horsepower at 6000 rpm and 130 Nm (95.88 lb-ft) of torque at 4400 rpm. While these figures aren’t substantial, they were considered adequate for the vehicle’s intended purpose. The engine’s bore and stroke measure 79 mm (3.11 in) and 71.3 mm (2.81 in) respectively, resulting in a compression ratio of 10.5:1. The engine oil capacity is 4.2 liters (4.44 US qt | 3.7 UK qt), and it requires coolant totaling 6.5 liters (6.87 US qt | 5.72 UK qt). The engine is transversely mounted in the front of the vehicle, driving the front wheels.

Driving Characteristics

The driving experience in the 1.4 i 16V Corolla is characterized by its smooth and predictable nature. Acceleration from 0 to 100 km/h (0-62 mph) takes approximately 12 seconds, and 0 to 60 mph is achieved in around 11.4 seconds. The top speed is rated at 185 km/h (114.95 mph). While these figures aren’t particularly exciting, the engine provides sufficient power for everyday commuting and highway cruising. The engine’s torque curve is relatively flat, offering usable power across a broad range of engine speeds. Compared to the higher-output 1.6L or 1.8L variants, the 1.4L feels noticeably less responsive, particularly when accelerating or overtaking. However, this is offset by its superior fuel economy.

The Corolla’s suspension is tuned for comfort, providing a relatively soft ride that absorbs bumps and imperfections in the road. The steering is light and easy to use, making it well-suited for urban driving. The 5-speed manual transmission (also available was a 4-speed automatic) offers precise shifts, although the automatic transmission can feel somewhat dated by modern standards. The weight-to-power ratio of 11.3 kg/Hp and weight-to-torque ratio of 8.5 kg/Nm reflect the engine’s modest output relative to the vehicle’s weight.

Equipment & Trim Levels

The 1.4 i 16V Corolla typically came equipped with a basic but functional set of features. Standard equipment generally included power steering, central locking, electric front windows, and an audio system. Air conditioning was often an optional extra. Interior upholstery was typically cloth, with a simple and durable design. The dashboard layout was straightforward and easy to use, prioritizing functionality over aesthetics. Higher trim levels within the 1.4 i 16V range might have included features such as alloy wheels, a more advanced audio system, and upgraded interior trim. Safety features typically included ABS (Anti-lock Braking System) and driver and passenger airbags.

Chassis & Braking

The Corolla IX utilized a front-wheel-drive layout with a MacPherson strut front suspension and a coil spring rear suspension. This suspension setup provided a good balance between ride comfort and handling. The front brakes were ventilated discs, offering good stopping power, while the rear brakes were typically solid discs. The steering system employed a rack and pinion design, providing precise and responsive steering. The standard tire size was 175/65 R14. The kerb weight of the 1.4 i 16V Corolla was approximately 1100 kg (2425.08 lbs), with a maximum weight of 1655 kg (3648.65 lbs) and a maximum load capacity of 555 kg (1223.57 lbs).

Market Reception & Comparison

The 1.4 i 16V Corolla was generally well-received by critics as a practical and reliable everyday car. It was praised for its fuel efficiency, comfortable ride, and Toyota’s renowned build quality. However, it was also criticized for its lack of excitement and relatively modest performance. Compared to the more powerful Corolla variants, such as the 1.6L or 1.8L models, the 1.4L offered lower running costs but sacrificed performance. Fuel consumption figures were around 8.9 l/100 km (26.4 US mpg, 31.7 UK mpg, 11.2 km/l) in urban conditions and 5.7 l/100 km (41.3 US mpg, 49.6 UK mpg, 17.5 km/l) on the extra-urban cycle. The 1.4L model was often seen as a sensible choice for first-time car buyers or those prioritizing economy over performance.

Technical Specifications

Legacy

The 4ZZ-FE engine, found in the 1.4 i 16V Corolla, is known for its reliability and longevity. While not a particularly sophisticated engine, it is relatively simple to maintain and repair. In the used car market, these Corollas are often sought after for their affordability and dependability. They represent a good value for buyers seeking a basic, reliable transportation option. However, potential buyers should be aware of the engine’s modest performance and the potential for age-related wear and tear. Regular maintenance, including oil changes and timing belt replacements, is crucial to ensure the engine’s continued reliability. Overall, the 1.4 i 16V Corolla remains a popular choice for those seeking a practical and economical used car.
