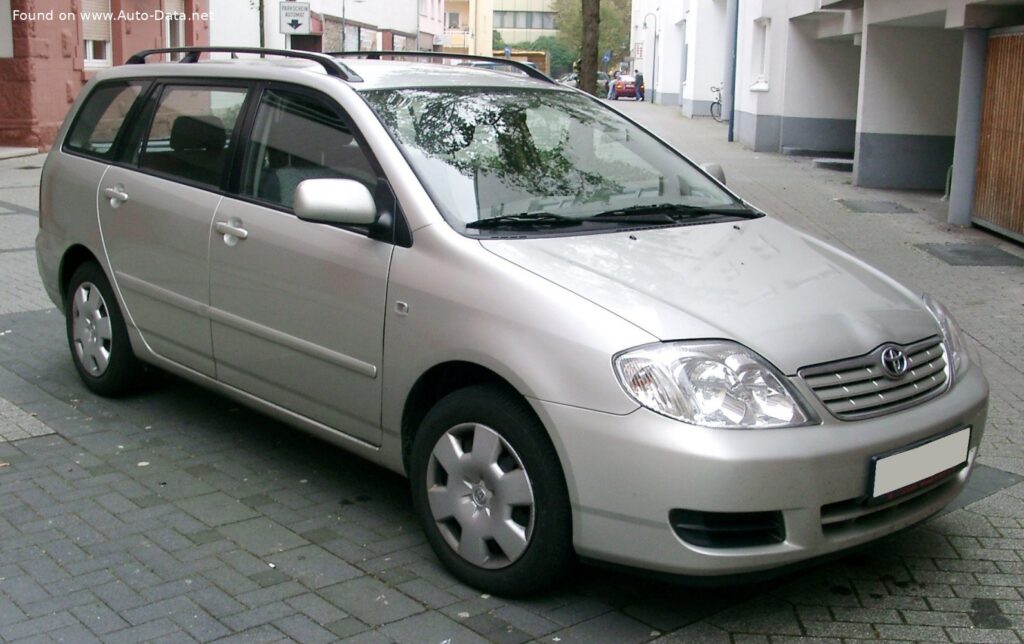

The Toyota Corolla Wagon IX, specifically the 1.4 D-4D (90 hp) variant, was a practical and fuel-efficient station wagon produced between 2004 and 2006. Part of the E120/E130 series Corolla generation, this model offered a diesel-powered option within the wagon body style, catering to European markets where diesel engines were – and continue to be – popular for their economy and suitability for long distances. This particular trim level represented an entry point into the Corolla wagon range, prioritizing fuel efficiency and affordability over outright performance. It was positioned below the gasoline-powered variants and any potential higher-output diesel options that may have been available in certain regions.
Powertrain & Engine Architecture
The heart of the Corolla 1.4 D-4D was the 1ND-TV engine, a 1.4-liter inline-four cylinder diesel. This engine was a member of Toyota’s ‘ND’ engine family, known for its robust construction and relatively simple design. It featured a common rail direct injection system, delivering fuel directly into the combustion chamber at extremely high pressure for improved efficiency and reduced emissions. The 1ND-TV utilized a turbocharger with an intercooler to boost power output and improve throttle response. The engine produced 90 horsepower at 3800 rpm and 190 Nm (140.14 lb-ft) of torque between 1800 and 3000 rpm. The engine’s valvetrain employed an Overhead Camshaft (OHC) configuration with two valves per cylinder. Engine oil capacity was 4.3 liters (4.54 US quarts), and the recommended coolant capacity was 5.5 liters (5.81 US quarts).
Transmission
While the provided data indicates a 5-speed manual transmission was standard, it’s important to note that Toyota also offered an optional 4-speed automatic transmission with this engine in some markets. The automatic transmission was designed to provide smooth and convenient shifting, but at the cost of some fuel economy and performance compared to the manual. The automatic’s gear ratios were tuned for everyday drivability, prioritizing fuel efficiency over rapid acceleration. The manual transmission offered a more engaging driving experience and allowed the driver to fully utilize the engine’s torque.
Driving Characteristics
The 1.4 D-4D Corolla Wagon was not designed for sporty driving. Acceleration was modest, with a 0-62 mph (0-100 km/h) time of approximately 14.5 seconds. Top speed was limited to 111.85 mph (180 km/h). The engine’s strength lay in its low-end torque, making it suitable for hauling loads and navigating hilly terrain. The turbocharger provided a noticeable boost in power once spooled up, but there was some degree of turbo lag. Compared to the gasoline-powered Corolla wagons, the 1.4 D-4D offered significantly better fuel economy, but at the expense of outright performance. The manual transmission allowed for better control and responsiveness, while the automatic provided a more relaxed driving experience. The weight-to-power ratio of 13.7 kg/hp indicated a relatively heavy vehicle for the amount of power produced.
Equipment & Trim Levels
The 1.4 D-4D Corolla Wagon typically came with a reasonable level of standard equipment, focusing on practicality and comfort. Standard features generally included power steering, central locking, electric front windows, and an adjustable steering column. Interior upholstery was typically cloth, with a functional and durable design. Air conditioning was often an optional extra, as were features like alloy wheels, a CD player, and upgraded interior trim. The dashboard layout was typical of Corollas of that era, with a straightforward and easy-to-use design. Trim levels varied depending on the market, but the 1.4 D-4D generally represented the base or mid-range offering within the wagon lineup.
Chassis & Braking
The Corolla Wagon IX utilized a front-wheel-drive layout with a MacPherson strut front suspension and a coil spring rear suspension. This suspension setup provided a comfortable ride quality, although it wasn’t particularly sporty. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were typically solid discs. Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The steering system employed a rack and pinion setup, offering precise and responsive steering. The vehicle rode on 175/70 R14 tires, which were chosen for a balance of comfort, fuel efficiency, and grip. The curb weight of 1230 kg (2711.69 lbs) influenced the handling characteristics, making the vehicle feel somewhat ponderous compared to lighter cars.
Market Reception & Comparison
The Toyota Corolla Wagon IX 1.4 D-4D was generally well-received by critics and consumers alike, particularly in Europe. It was praised for its fuel efficiency, reliability, and practicality. However, some reviewers noted its lack of performance and somewhat basic interior. Compared to other diesel-powered wagons in its class, such as the Volkswagen Golf Estate TDI or the Ford Focus Estate TDCi, the Corolla offered a competitive level of fuel economy and reliability, but often lacked the refinement and driving dynamics of its rivals. The 1.4 D-4D was often seen as a sensible and economical choice for families or individuals who prioritized practicality and low running costs over sporty performance. Its fuel economy was a significant selling point, especially with rising fuel prices.
Technical Specifications
| Brand | Toyota |
| Model | Corolla |
| Generation | Corolla Wagon IX (E120, E130) |
| Type (Engine) | 1.4 D-4D (90 Hp) |
| Start of production | 2004 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 14.5 sec |
| Acceleration 0 – 62 mph | 14.5 sec |
| Acceleration 0 – 60 mph | 13.8 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Weight-to-power ratio | 13.7 kg/Hp |
| Weight-to-torque ratio | 6.5 kg/Nm |
| Power | 90 Hp @ 3800 rpm |
| Torque | 190 Nm @ 1800-3000 rpm (140.14 lb.-ft. @ 1800-3000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 1ND-TV |
| Engine displacement | 1364 cm3 (83.24 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 73 mm (2.87 in.) |
| Piston Stroke | 81.5 mm (3.21 in.) |
| Compression ratio | 17.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine oil capacity | 4.3 l (4.54 US qt | 3.78 UK qt) |
| Coolant | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Kerb Weight | 1230 kg (2711.69 lbs.) |
| Max. weight | 1695 kg (3736.84 lbs.) |
| Max load | 465 kg (1025.15 lbs.) |
| Trunk (boot) space – minimum | 402 l (14.2 cu. ft.) |
| Trunk (boot) space – maximum | 1280 l (45.2 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4375 mm (172.24 in.) |
| Width | 1710 mm (67.32 in.) |
| Height | 1500 mm (59.06 in.) |
| Wheelbase | 2600 mm (102.36 in.) |
| Front track | 1490 mm (58.66 in.) |
| Rear (Back) track | 1470 mm (57.87 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R14 |
Legacy
The 1.4 D-4D engine, while not known for its high performance, proved to be a reliable and durable unit. Properly maintained examples continue to operate reliably today, often exceeding high mileage. The Corolla Wagon IX, in general, enjoys a reputation for longevity and low running costs. On the used car market, these wagons represent an affordable and practical option for those seeking a fuel-efficient and spacious vehicle. However, potential buyers should be aware of the age-related wear and tear common to all vehicles of this era, and a thorough inspection is recommended before purchase. The 1ND-TV engine, while generally robust, can be susceptible to issues with the turbocharger and fuel injectors if not properly maintained. Despite these potential issues, the 1.4 D-4D Corolla Wagon remains a popular choice for budget-conscious buyers seeking a dependable and economical vehicle.
