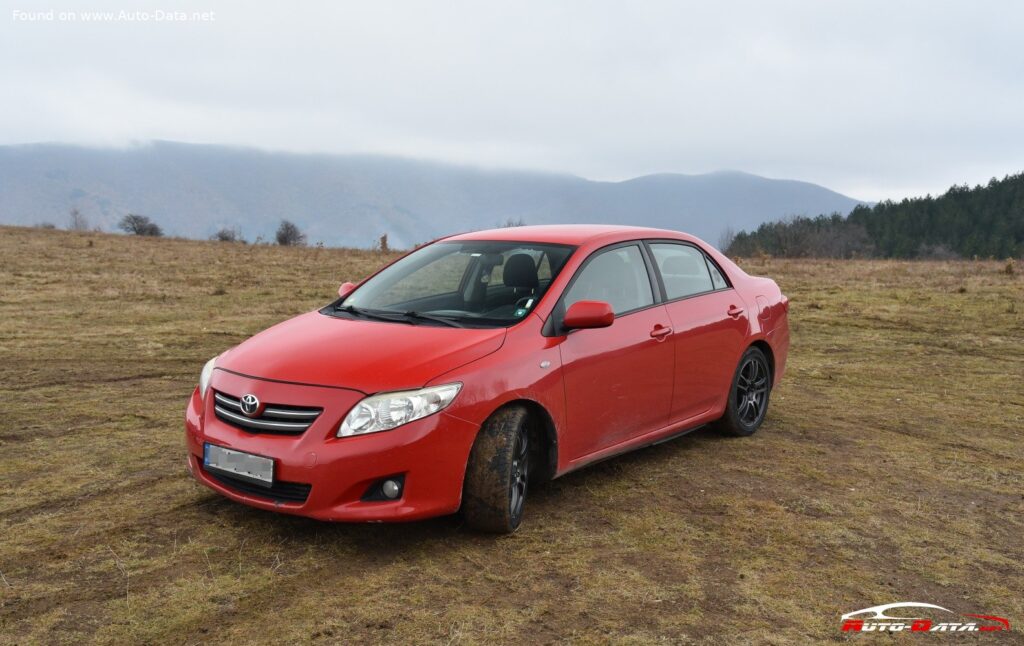

2006-2012 Toyota Corolla X (E140 E150) 1.4 D-4D (90 Hp) Automatic

The Toyota Corolla X (E140, E150) 1.4 D-4D (90 Hp) Automatic represents a significant variant within the tenth generation of Toyota’s globally renowned Corolla line. Produced from 2006 to 2012, this model catered specifically to markets outside of North America, where diesel engines held considerable popularity. It occupied a position as an entry-level to mid-range offering, prioritizing fuel efficiency and dependability over outright performance. The E140/E150 series, built on the Toyota New MC platform, aimed to refine the Corolla’s established strengths while incorporating modern features and improved powertrain technology.

The 1.4 D-4D Automatic: Positioning and Context

The 1.4 D-4D Automatic trim was designed to appeal to a broad customer base seeking a practical and economical sedan. It was particularly attractive to drivers prioritizing low running costs, such as commuters and families on a budget. Compared to other engine options available in the Corolla X range – including larger gasoline engines and more powerful diesel variants like the 2.0 D-4D – the 1.4 D-4D Automatic offered a more accessible price point and superior fuel economy. While the 2.0 D-4D provided more spirited performance, it came at a higher cost and with increased fuel consumption. The gasoline engines, while offering smoother operation, generally lacked the torque and fuel efficiency of the diesel options, especially for long-distance driving.

Powertrain & Engine Architecture

The heart of the Corolla X 1.4 D-4D Automatic is the 1ND-TV engine, a 1.4-liter (1364 cc) inline four-cylinder diesel. This engine utilizes a common-rail direct injection system, delivering fuel directly into the combustion chamber at extremely high pressure for optimized combustion and reduced emissions. A turbocharger with an intercooler further enhances performance by forcing more air into the engine, increasing power output. The engine features an Overhead Camshaft (OHC) valvetrain with two valves per cylinder, a configuration chosen for its simplicity, reliability, and ease of maintenance.

The 1ND-TV produces 90 horsepower (hp) at 3800 rpm and 190 Nm (140.14 lb-ft) of torque between 1800 and 3000 rpm. This broad torque band is a key characteristic of diesel engines, providing strong pulling power at lower engine speeds, making it well-suited for everyday driving conditions. Power is transmitted to the front wheels through a four-speed automatic transmission. This transmission, while not offering the most advanced gear ratios, was selected for its smooth shifting and ease of operation, catering to drivers who preferred the convenience of an automatic over a manual gearbox. The automatic transmission’s gear ratios are optimized for fuel efficiency and comfortable cruising, rather than aggressive acceleration.

Driving Characteristics

The driving experience in the Corolla X 1.4 D-4D Automatic is characterized by its smoothness and efficiency. Acceleration is modest, with a 0-60 mph time of approximately 14 seconds and a top speed of 108.74 mph (175 km/h). Compared to the manual transmission version of the same engine, the automatic version typically exhibits slightly slower acceleration due to the inherent power losses within the torque converter. However, the automatic transmission provides a more relaxed driving experience, particularly in stop-and-go traffic. The engine’s strong low-end torque makes it easy to navigate city streets, and the automatic transmission seamlessly shifts gears to maintain optimal engine speed. Compared to the higher-output 2.0 D-4D, the 1.4 D-4D feels less powerful, especially when overtaking or climbing hills, but it compensates with significantly better fuel economy.

Equipment & Trim Levels

The Corolla X 1.4 D-4D Automatic typically came equipped with a range of standard features designed to enhance comfort and convenience. These included power steering (electric), air conditioning, central locking, power windows, and an audio system with CD player. Interior upholstery was typically cloth, with a durable and practical design. Higher trim levels offered optional extras such as alloy wheels, a sunroof, upgraded audio systems, and climate control. Safety features included Anti-lock Braking System (ABS) as standard, and depending on the market, airbags (driver and passenger) were also commonly included. The dashboard layout was functional and ergonomically designed, with easy-to-read gauges and intuitive controls.

Chassis & Braking

The Corolla X 1.4 D-4D Automatic utilizes a front-wheel-drive layout with a MacPherson strut suspension at the front and a torsion beam suspension at the rear. This suspension setup provides a comfortable ride quality, absorbing bumps and irregularities in the road surface effectively. The torsion beam rear suspension is a cost-effective and space-efficient design, suitable for the vehicle’s weight class. Braking is provided by ventilated discs at the front and solid discs at the rear, offering adequate stopping power for everyday driving. The ABS system helps to prevent wheel lockup during emergency braking, enhancing stability and control. Stabilizer bars were typically fitted to both the front and rear axles to reduce body roll during cornering.

Market Reception & Comparison

The Toyota Corolla X 1.4 D-4D Automatic was generally well-received by automotive critics and consumers alike. It was praised for its fuel efficiency, reliability, and comfortable ride. However, some critics noted its relatively modest performance compared to other engines in the Corolla lineup and its competitors. In terms of fuel economy, the 1.4 D-4D Automatic consistently outperformed its gasoline counterparts, achieving a combined fuel consumption of approximately 4.9 liters per 100 kilometers (48 US mpg). Compared to rivals like the Volkswagen Jetta TDI and Ford Focus TDCi, the Corolla offered a comparable level of fuel efficiency and reliability, but often at a slightly lower price point. Reliability surveys consistently ranked the Corolla highly, making it a popular choice for buyers seeking a dependable and long-lasting vehicle.

Technical Specifications

Legacy

The Toyota Corolla X (E140, E150) 1.4 D-4D Automatic has proven to be a remarkably durable and reliable vehicle. The 1ND-TV engine, when properly maintained, is known for its longevity and ability to withstand high mileage. In the used car market, these Corollas continue to be sought after for their affordability, fuel efficiency, and reputation for dependability. While older examples may require routine maintenance items such as timing belt replacement and injector cleaning, the engine itself is generally robust. The automatic transmission, while not as sophisticated as modern units, is also known for its reliability. Overall, the 1.4 D-4D Automatic variant of the E140/E150 Corolla remains a practical and economical choice for buyers seeking a dependable compact sedan.
