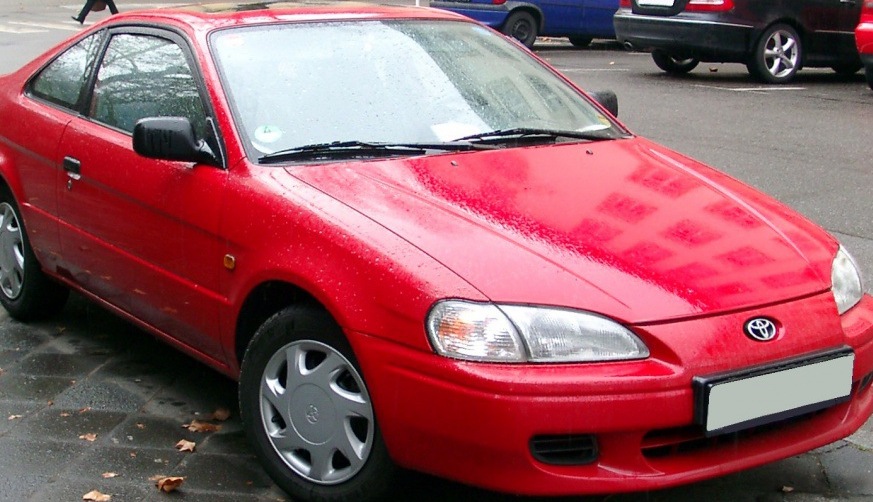

The Toyota Cynos (EL54) 1.3i 16V Alpha Automatic, produced between 1995 and 1999, represents a compact, two-door coupe offering from Toyota primarily aimed at the Japanese domestic market (JDM). Positioned as an affordable and stylish entry-level vehicle, the Cynos was part of the broader E100 series, sharing its platform with the Toyota Starlet and the Daihatsu Charmant. This particular variant, equipped with the 4E-FE engine and a three-speed automatic transmission, offered a balance of fuel efficiency and ease of use, making it a popular choice for urban commuters. While never officially sold in the United States, the Cynos gained a following among enthusiasts importing JDM vehicles.
Technical Specifications
| Brand | Toyota |
| Model | Cynos |
| Generation | Cynos (EL54) |
| Type (Engine) | 1.3i 16V Alpha (88 Hp) Automatic |
| Start of production | 1995 |
| End of production | 1999 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (urban) | 6.2 l/100 km (37.9 US mpg) |
| Fuel consumption (extra urban) | 4 l/100 km (58.8 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 9.9 kg/Hp |
| Weight-to-torque ratio | 7.1 kg/Nm |
| Power | 88 Hp @ 6000 rpm |
| Power per litre | 67.7 Hp/l |
| Torque | 123 Nm @ 4400 rpm (90.72 lb.-ft. @ 4400 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 4E-FE |
| Engine displacement | 1299 cm3 (79.27 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm (2.95 in.) |
| Piston Stroke | 73.5 mm (2.89 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.2 l (3.38 US qt | 2.82 UK qt) |
| Kerb Weight | 870 kg (1918.02 lbs.) |
| Max. weight | 1090 kg (2403.04 lbs.) |
| Max load | 220 kg (485.02 lbs.) |
| Fuel tank capacity | 45 l (11.89 US gal | 9.9 UK gal) |
| Length | 4155 mm (163.58 in.) |
| Width | 1660 mm (65.35 in.) |
| Height | 1295 mm (50.98 in.) |
| Wheelbase | 2380 mm (93.7 in.) |
| Front track | 1405 mm (55.31 in.) |
| Rear track | 1395 mm (54.92 in.) |
| Minimum turning circle | 9.4 m (30.84 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Drive wheel | Front wheel drive |
| Number of gears | 3 |
| Gearbox type | automatic transmission |
| Front suspension | Wishbone |
| Rear suspension | Suspension with traction connecting levers |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
| Wheel rims size | 14 |
Powertrain & Engine Architecture
The Cynos 1.3i Alpha Automatic is powered by the Toyota 4E-FE engine, a 1.3-liter (1299 cc) inline-four cylinder gasoline engine. This engine utilizes a multi-port fuel injection system and a double overhead camshaft (DOHC) valvetrain, contributing to its relatively efficient operation and respectable power output for its displacement. The 4E-FE is known for its durability and relatively simple design, making it a cost-effective engine to maintain. The engine produces 88 horsepower at 6000 rpm and 123 Nm (90.72 lb-ft) of torque at 4400 rpm. Paired with this engine is a three-speed automatic transmission, designed for smooth and convenient operation. This transmission, while not offering the performance of a manual gearbox, provided a comfortable driving experience, particularly in city traffic. The three-speed configuration prioritized fuel economy over outright acceleration.
Driving Characteristics
The 1.3i Automatic Cynos delivers a comfortable, if not particularly sporty, driving experience. The three-speed automatic transmission provides smooth shifts, but the limited number of gears means the engine can feel strained during aggressive acceleration. The power delivery is linear, but the 88 hp output is modest, resulting in a 0-60 mph time estimated around 12-14 seconds. Compared to the manual transmission versions of the Cynos, the automatic suffers a slight performance penalty. Higher trim levels, equipped with larger engines like the 1.5-liter, offered significantly more power and a more engaging driving experience. However, the automatic transmission’s ease of use made it a popular choice for drivers prioritizing convenience.
Equipment & Trim Levels
The Cynos 1.3i Alpha Automatic typically came equipped with standard features such as power steering, air conditioning, and an AM/FM radio. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Optional extras included power windows, central locking, and upgraded audio systems. The “Alpha” trim level generally represented a mid-range offering, positioned above the base models but below the more luxurious trims. The interior plastics were durable but not particularly high-end, reflecting the Cynos’s affordable positioning.
Chassis & Braking
The Cynos utilizes a front-wheel-drive layout with a wishbone suspension in the front and a torsion beam suspension with traction connecting levers in the rear. The front brakes are disc brakes, providing adequate stopping power, while the rear brakes are drum brakes, a cost-saving measure common in vehicles of this class. Anti-lock braking system (ABS) was often included as standard equipment, enhancing safety. The suspension setup prioritizes ride comfort over sporty handling, providing a relatively smooth ride on most road surfaces. The relatively light curb weight of 870 kg (1918.02 lbs) helps to mitigate the effects of the modest engine output.
Market Reception & Comparison
The Toyota Cynos was well-received in Japan as a stylish and affordable coupe. Critics praised its fuel efficiency and reliability, but noted its modest performance. Compared to other vehicles in its class, such as the Honda Civic Coupe and the Nissan Sunny Coupe, the Cynos offered a competitive combination of features and price. The automatic transmission variant was particularly popular among drivers seeking a convenient and easy-to-drive vehicle. Fuel economy figures of around 38 mpg (US) combined made it an attractive option for daily commuting. Reliability was generally high, consistent with Toyota’s reputation.
Legacy
The Toyota Cynos, while not a widely known model outside of Japan, has developed a cult following among JDM enthusiasts. The 4E-FE engine is known for its longevity and relatively simple maintenance requirements. Today, Cynos models in good condition are becoming increasingly collectible. The automatic transmission variant, while not the most desirable among performance enthusiasts, remains a practical and reliable option for those seeking a unique and affordable JDM coupe. Parts availability can be a challenge outside of Japan, but a growing aftermarket support network is emerging to cater to the needs of Cynos owners.
