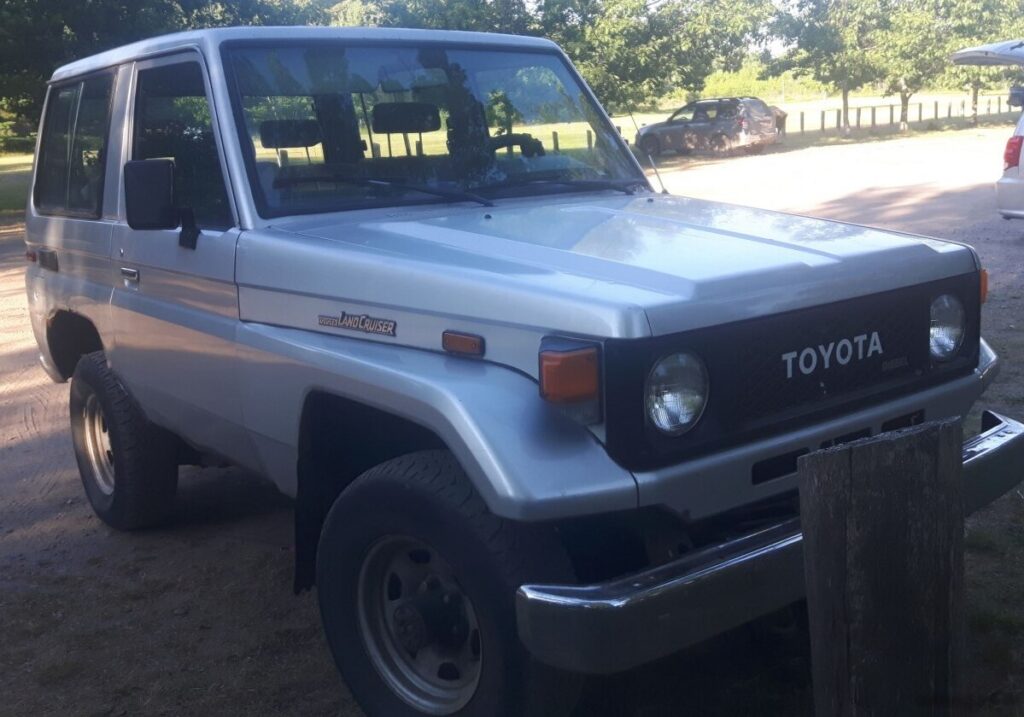

The Toyota Land Cruiser J77, specifically the 2.4 TD (LJ77) variant producing 90 horsepower, was a mainstay of Toyota’s rugged off-road vehicle lineup from 1990 to 1996. Positioned as an entry-level offering within the J77 series, it catered to buyers seeking a durable and capable 4×4 without the higher price tag of the gasoline-powered models or the more powerful diesel options. The J77 Land Cruiser was primarily sold in markets outside of North America, finding significant popularity in Australia, South America, and parts of Asia and Africa, where its robust construction and reliable diesel engine were highly valued. This model represented a continuation of the Land Cruiser’s long-standing reputation for off-road prowess and dependability.
Technical Specifications
| Brand | Toyota |
| Model | Land Cruiser |
| Generation | Land Cruiser (J77) |
| Type | 2.4 TD (LJ77) (90 Hp) 4WD |
| Start of production | 1990 |
| End of production | 1996 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Diesel |
| Power | 90 Hp @ 4000 rpm |
| Power per litre | 36.8 Hp/l |
| Torque | 188 Nm @ 2200 rpm (138.66 lb.-ft. @ 2200 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 2L-T |
| Engine displacement | 2446 cm3 (149.26 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 92 mm (3.62 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 20:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger |
| Valvetrain | SOHC |
| Engine oil capacity | 6.7 l (7.08 US qt | 5.9 UK qt) |
| Coolant | 10 l (10.57 US qt | 8.8 UK qt) |
| Fuel tank capacity | 90 l (23.78 US gal | 19.8 UK gal) |
| Length | 4755 mm (187.2 in.) |
| Width | 1690 mm (66.54 in.) |
| Height | 1900 mm (74.8 in.) |
| Wheelbase | 2730 mm (107.48 in.) |
| Front track | 1415 mm (55.71 in.) |
| Rear track | 1400 mm (55.12 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Leaf spring |
| Rear suspension | Leaf spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Steering type | Cone worm with recirculation balls |
Powertrain & Engine Architecture
The heart of the LJ77 is the 2L-T 2.4-liter inline-four diesel engine. This engine utilizes a precombustion chamber injection system, a common design for diesel engines of the era, which improves combustion efficiency and reduces noise. The addition of a turbocharger significantly boosted power output for a diesel of this displacement, bringing it to 90 horsepower. The 2L-T engine is known for its durability and relatively simple mechanical design, making it easier to maintain and repair in remote locations. The engine’s single overhead camshaft (SOHC) valvetrain is a straightforward design contributing to its reliability. The 5-speed manual transmission was the standard offering for this variant, providing a good balance between fuel economy and usability. The transmission’s gear ratios were optimized for off-road driving, providing ample torque multiplication for navigating challenging terrain.
Driving Characteristics
The 90-horsepower 2.4 TD Land Cruiser J77 wasn’t about outright speed. Its strength lay in its low-end torque and ability to crawl over obstacles. The turbocharger provided a noticeable boost in power, but it wasn’t a particularly responsive system by modern standards, exhibiting some turbo lag. The manual transmission allowed for precise control over gear selection, crucial for off-road driving. Compared to the gasoline-powered Land Cruisers, the 2.4 TD offered significantly better fuel economy and a more robust powertrain. Against higher-output diesel variants, like those with larger displacement engines, the LJ77 felt comparatively underpowered, especially when fully loaded or traveling at highway speeds. However, its simplicity and lower maintenance costs made it an attractive option for many buyers.
Equipment & Trim Levels
The LJ77 2.4 TD was typically equipped with basic, utilitarian features. Standard equipment generally included steel wheels, vinyl or cloth upholstery, a basic instrument cluster, and manual windows and locks. Air conditioning was often an optional extra, as were power windows and upgraded audio systems. The interior was designed for functionality rather than luxury, with durable materials chosen to withstand harsh conditions. Trim levels were relatively limited, with most variations stemming from optional equipment packages. The focus was on providing a reliable and capable workhorse, rather than a lavishly appointed vehicle.
Chassis & Braking
The J77 Land Cruiser utilized a body-on-frame construction, providing exceptional strength and durability. The suspension consisted of leaf springs at both the front and rear, a design chosen for its robustness and ability to handle heavy loads. Front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were drums, a cost-saving measure common in this class of vehicle. The steering system employed a cone worm and recirculation balls mechanism, offering a direct but somewhat heavy steering feel. The chassis was designed to withstand significant torsional stress, essential for off-road driving.
Market Reception & Comparison
The LJ77 2.4 TD Land Cruiser was well-received in markets where durability and off-road capability were prioritized. Critics praised its robust construction, reliable engine, and relatively low running costs. Compared to the gasoline-powered Land Cruisers, the diesel variant offered superior fuel economy and a more durable powertrain. However, it was often criticized for its lack of refinement and relatively slow performance. Against competitors like the Nissan Patrol, the Land Cruiser J77 was often seen as offering a slightly more refined driving experience and a stronger reputation for reliability. The 2.4 TD variant was particularly popular among those who needed a dependable 4×4 for work or recreational purposes, but didn’t require the higher performance of the larger-engined models.
Legacy
The Toyota Land Cruiser J77 2.4 TD (LJ77) has earned a reputation as a remarkably durable and reliable vehicle. Many examples are still in use today, often having accumulated hundreds of thousands of kilometers. The 2L-T engine is known for its longevity, and parts availability remains relatively good in many regions. In the used car market, these Land Cruisers are sought after by enthusiasts and those seeking a dependable off-road vehicle. While not as collectible as some of the earlier Land Cruiser models, the J77 2.4 TD represents a significant chapter in the Land Cruiser’s history, embodying the brand’s commitment to building tough, reliable, and capable 4x4s.
