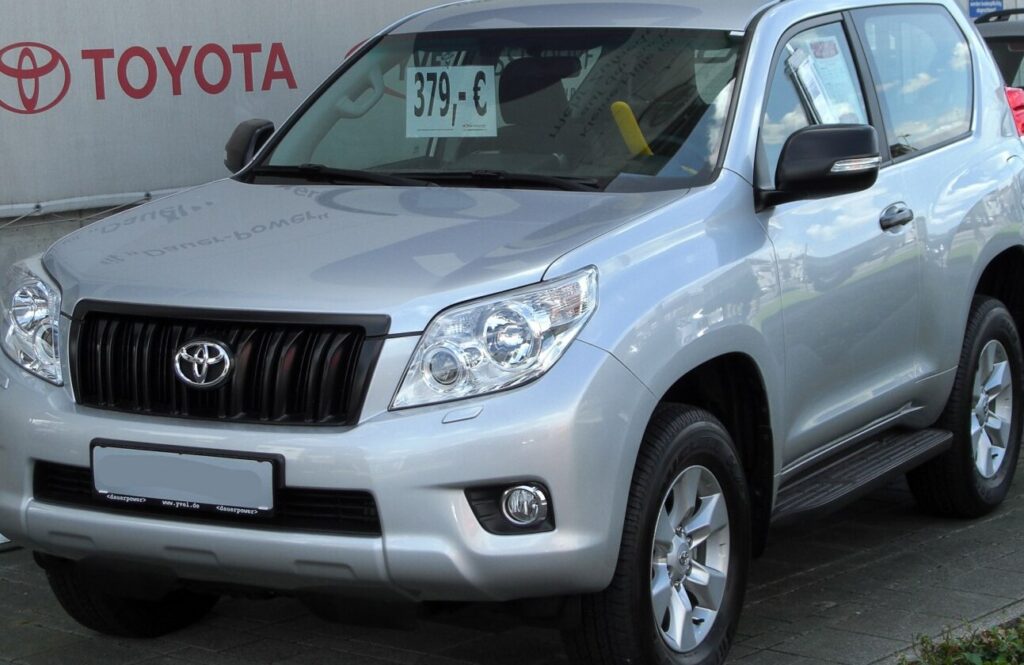

The Toyota Land Cruiser Prado J150 3-door, specifically the 3.0 D-4D variant with 173 horsepower and a four-wheel-drive automatic transmission, was produced for a limited time between 2009 and 2010. This model represented a niche offering within the broader J150 Prado range, primarily aimed at markets where a more compact, rugged SUV was preferred. Positioned as a mid-range option, it offered a balance between off-road capability, fuel efficiency (for its class), and relative affordability compared to the larger, more luxurious Land Cruiser models. The J150 series itself was a significant evolution of the Prado lineage, moving towards a more comfortable and refined driving experience while retaining the legendary Land Cruiser durability and off-road prowess.
Technical Specifications
| Brand | Toyota |
| Model | Land Cruiser Prado |
| Generation | Land Cruiser Prado (J150) 3-door |
| Type (Engine) | 3.0 D-4D (173 Hp) 4WD Automatic |
| Start of production | 2009 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (urban) | 10.2-10.4 l/100 km (23.1 – 22.6 US mpg) |
| Fuel consumption (extra urban) | 6.6-6.7 l/100 km (35.6 – 35.1 US mpg) |
| Fuel consumption (combined) | 8-8.1 l/100 km (29.4 – 29 US mpg) |
| CO2 emissions | 210-214 g/km |
| Fuel Type | Diesel |
| Maximum speed | 175 km/h (108.74 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 11.4 kg/Hp |
| Weight-to-torque ratio | 4.8 kg/Nm |
| Power | 173 Hp @ 3400 rpm |
| Torque | 410 Nm @ 1600-2800 rpm (302.4 lb.-ft. @ 1600-2800 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 1KD-FTV |
| Engine displacement | 2982 cm3 (181.97 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 96 mm (3.78 in.) |
| Piston Stroke | 103 mm (4.06 in.) |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 7 l (7.4 US qt | 6.16 UK qt) |
| Coolant capacity | 13.1 l (13.84 US qt | 11.53 UK qt) |
| Kerb Weight | 1970 kg (4343.11 lbs.) |
| Max. weight | 2600 kg (5732.02 lbs.) |
| Max load | 630 kg (1388.91 lbs.) |
| Trunk (boot) space – minimum | 381 l (13.45 cu. ft.) |
| Trunk (boot) space – maximum | 1434 l (50.64 cu. ft.) |
| Fuel tank capacity | 87 l (22.98 US gal | 19.14 UK gal) |
| Max. roof load | 80 kg (176.37 lbs.) |
| Permitted trailer load (braked) | 3000 kg (6613.87 lbs.) |
| Permitted trailer load (unbraked) | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 120 kg (264.55 lbs.) |
| Length | 4485 mm (176.57 in.) |
| Width | 1885 mm (74.21 in.) |
| Width including mirrors | 2185 mm (86.02 in.) |
| Height | 1875 mm (73.82 in.) |
| Wheelbase | 2450 mm (96.46 in.) |
| Front track | 1605 mm (63.19 in.) |
| Rear track | 1605 mm (63.19 in.) |
| Ride height (ground clearance) | 205 mm (8.07 in.) |
| Minimum turning circle | 10.6 m (34.78 ft.) |
| Approach angle | 32° |
| Departure angle | 26° |
| Ramp-over angle | 25° |
| Climb angle | 42° |
| Wading depth | 700 mm (27.56 in.) |
| Drivetrain | All wheel drive (4×4) |
| Number of gears | 5 |
| Gearbox type | Automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Rigid axle suspension, Coil spring |
| Front brakes | Ventilated discs, 388 mm |
| Rear brakes | Ventilated discs, 312 mm |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 245/70 R17 |
| Wheel rims size | 6.5J x 17 |
INTRODUCTION
The Toyota Land Cruiser Prado J150 3-door 3.0 D-4D 4WD Automatic, produced between 2009 and 2010, was a specialized variant of Toyota’s globally successful Prado series. Built on the J150 platform, it catered to buyers seeking a more manageable and fuel-efficient Land Cruiser without sacrificing the brand’s renowned off-road capabilities. The three-door configuration, combined with the 3.0-liter diesel engine and automatic transmission, made it particularly popular in European and Asian markets where narrower roads and fuel costs were significant considerations. This model filled a gap between the full-size Land Cruiser and smaller SUVs, offering a unique blend of practicality and adventure.
Powertrain & Engine Architecture
The heart of this Prado variant is the 1KD-FTV 3.0-liter inline-four diesel engine. This engine is a robust and well-regarded unit known for its durability and relatively good fuel economy. It features a common-rail direct injection system, a turbocharger with intercooler, and a double overhead camshaft (DOHC) valvetrain. The 1KD-FTV produces 173 horsepower at 3400 rpm and a substantial 410 Nm (302.4 lb-ft) of torque between 1600 and 2800 rpm. The engine’s longitudinal mounting and the four-wheel-drive system contribute to its off-road prowess. Paired with the engine is a five-speed automatic transmission, designed to provide smooth shifting and ease of use, although it isn’t known for being particularly sporty. The transmission was chosen to appeal to a broader audience seeking convenience over outright performance.
Driving Characteristics
The 3.0 D-4D automatic Prado offers a comfortable and capable driving experience, though it’s not a performance-oriented vehicle. The automatic transmission prioritizes smooth operation and fuel efficiency over rapid acceleration. While the 173 hp output is adequate for everyday driving, it doesn’t provide exhilarating performance, especially when fully loaded or tackling steep inclines. The torque, however, is readily available from low engine speeds, making it well-suited for off-road situations and towing. Compared to the manual transmission versions of the same engine, the automatic sacrifices some responsiveness, but gains in ease of use. Higher-output Prado variants, such as those equipped with the 4.0-liter V6 gasoline engine, offer significantly more power but at the expense of fuel economy.
Equipment & Trim Levels
The 3-door Prado 3.0 D-4D Automatic typically came with a reasonable level of standard equipment. This included air conditioning, power windows and locks, a basic audio system, and alloy wheels. Safety features such as ABS (Anti-lock Braking System) were standard. Interior upholstery was generally cloth, with options for leather available at an extra cost. Optional extras could include a sunroof, upgraded audio system, navigation system, and parking sensors. The trim level was generally considered mid-range within the Prado lineup, offering a good balance of features and affordability.
Chassis & Braking
The Prado J150 features a robust body-on-frame construction, providing excellent durability and off-road capability. The front suspension utilizes a double wishbone setup, while the rear employs a rigid axle with coil springs. This configuration provides a good balance between ride comfort and off-road articulation. Braking duties are handled by ventilated disc brakes on all four wheels, providing adequate stopping power for the vehicle’s weight. The 3-door model’s shorter wheelbase contributes to improved maneuverability in tight spaces, both on and off-road.
Market Reception & Comparison
The 3-door Prado 3.0 D-4D Automatic was generally well-received by critics and buyers alike. It was praised for its fuel efficiency, comfortable ride, and off-road capability. However, some reviewers noted that the automatic transmission could feel sluggish at times, and the engine lacked the outright power of some of its competitors. Compared to other trims in the Prado lineup, the 3.0 D-4D Automatic offered a more affordable entry point, making it attractive to buyers who prioritized practicality and fuel economy over performance. The 1.9 TDI versions, while more fuel efficient, offered less power and torque. The V6 gasoline models provided more power but were significantly more expensive to run.
Legacy
The Toyota Land Cruiser Prado J150 3-door 3.0 D-4D Automatic has proven to be a reliable and durable vehicle. The 1KD-FTV engine is known for its longevity, and with proper maintenance, can easily exceed 200,000 miles. In the used car market, these Prados are sought after for their reputation for reliability and off-road capability. While not as common as the five-door models, the three-door variant appeals to buyers who value its compact size and unique character. Parts availability remains good, and the Prado continues to be a popular choice for those seeking a rugged and dependable SUV.
